Description

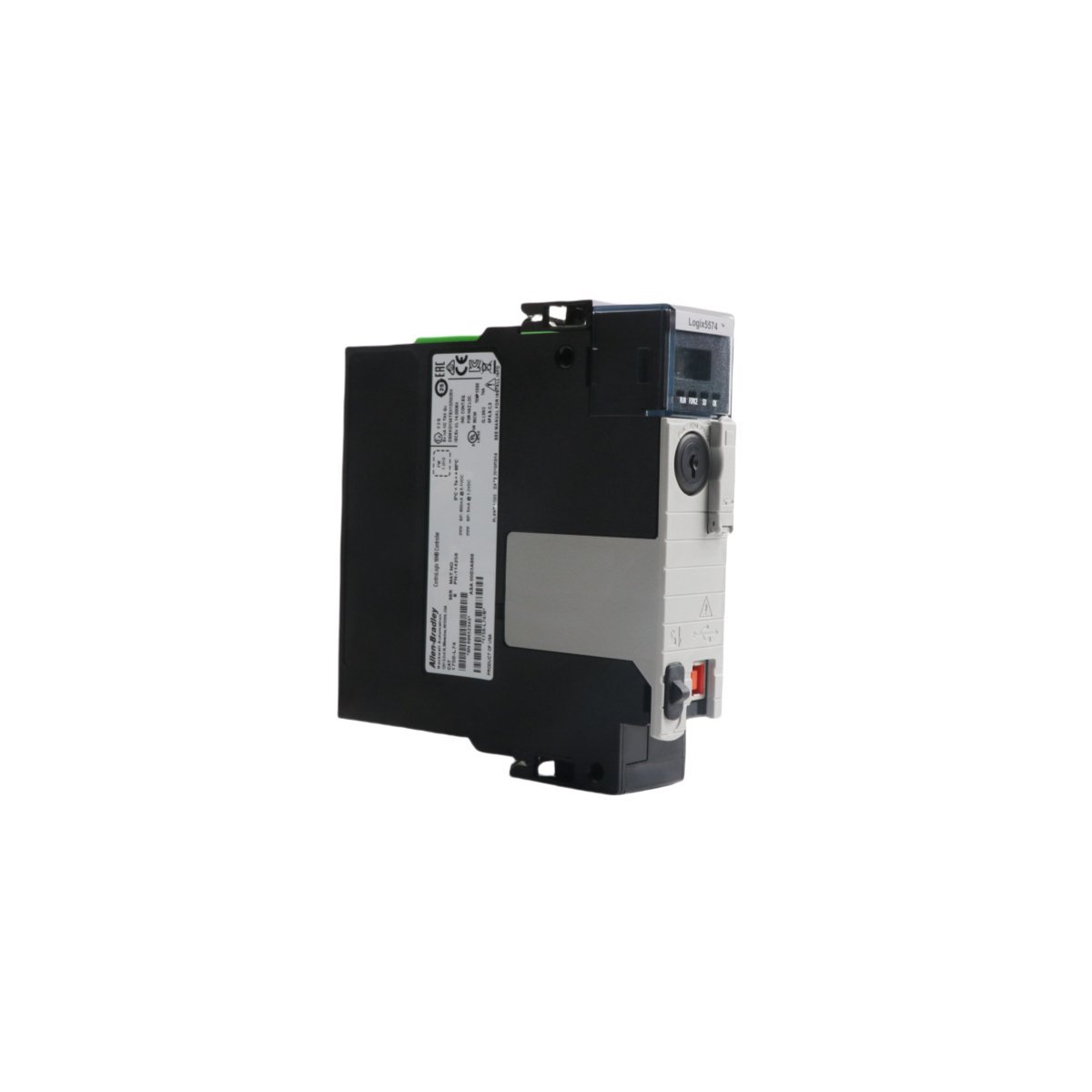

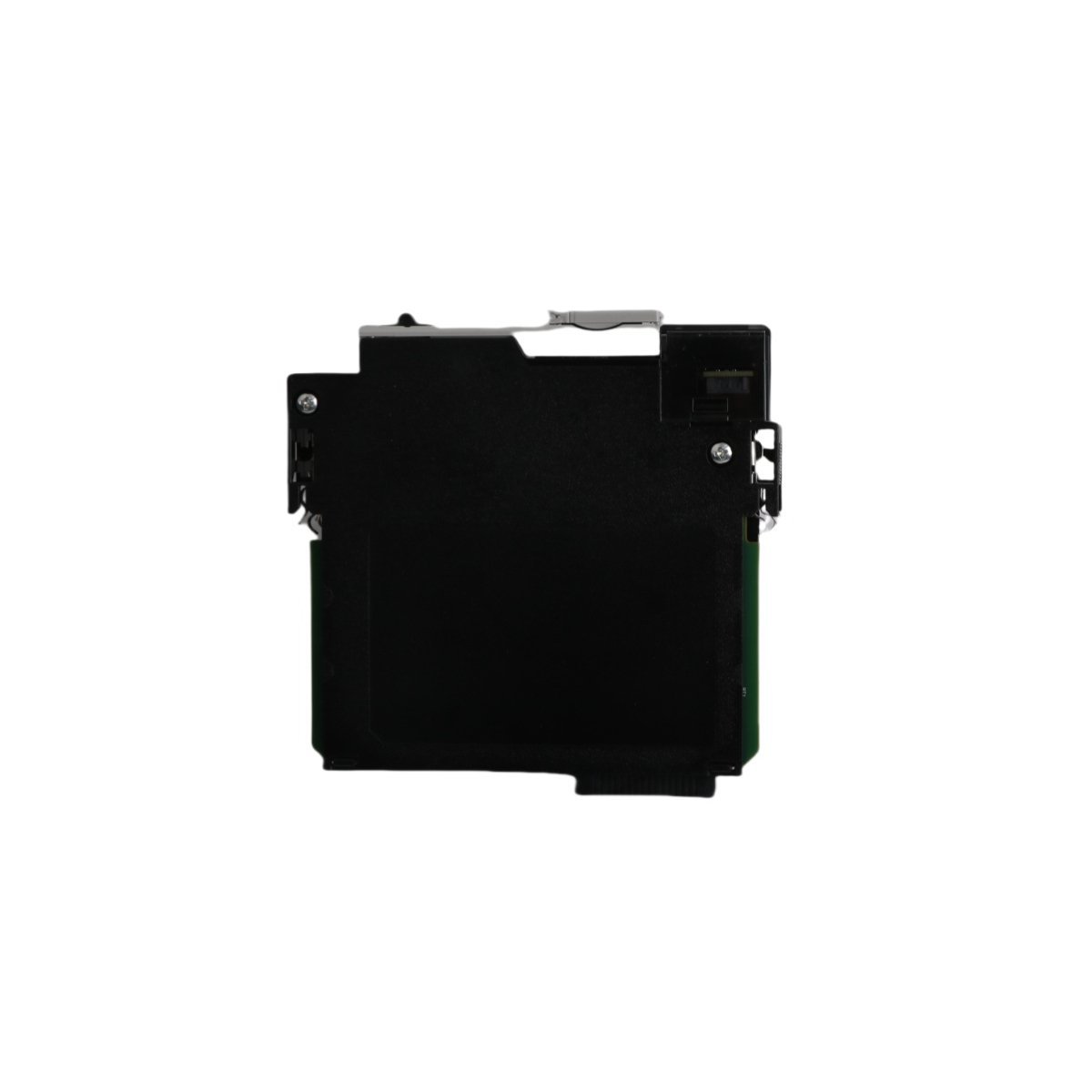

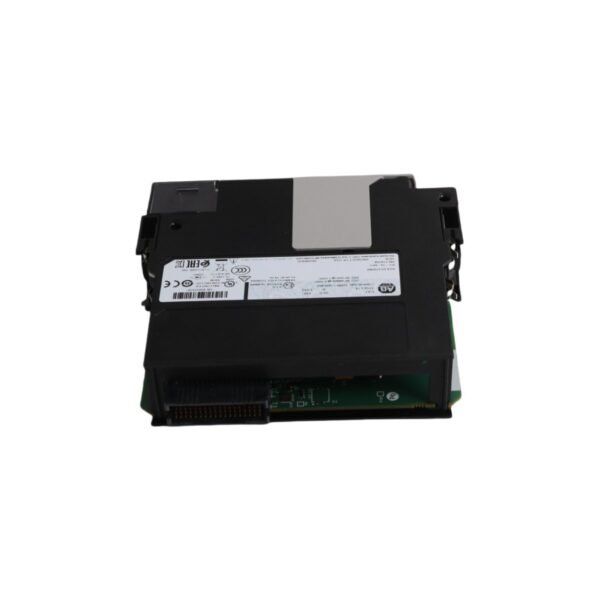

Configured for high-speed logic execution in ControlLogix platforms, the Allen Bradley 1756-L74 (1756-L74 ControlLogix 16 MB Controller) provides direct physical and electrical execution of industrial control tasks. This module manages complex I/O processing, motion control coordination, and network communication handling across backplane and Ethernet-based architectures.

Hardware Specifications

Industrial Control Integration and Firmware Compatibility

The Allen Bradley 1756-L74 integrates with the ControlLogix backplane to achieve deterministic network performance. To maintain system stability, firmware flash compatibility must be validated against the targeted Studio 5000 Logix Designer project version. The module utilizes backplane bus communication protocols designed to optimize data exchange velocities between the CPU and remote I/O adapters. Administrators must ensure that the backplane current draw does not exceed the power supply limits when populating high-density chassis configurations.

Frequently Asked Questions (FAQ)

Q: What are the requirements for firmware updates on the 1756-L74?

A: Updates are performed via the ControlFlash utility. Ensure the controller is in Program mode and the communication path is stable during the entire flash duration to prevent corruption.

Q: Is the 1756-L74 compatible with hot-swap operations?

A: Yes, the module supports insertion and removal under power (RIUP) within a standard ControlLogix chassis. However, ensure all wiring is secured and grounded before module engagement to prevent potential backplane arcing.

Field Installation Guidelines

• Ensure the chassis power supply is de-energized before physical installation if required by site safety protocols.
• Align the 1756-L74 module with the chassis slot guides and slide it in until the backplane connector is fully seated.
• Tighten the top and bottom mounting screws to the chassis frame to ensure a low-impedance ground connection.
• Verify that the Ethernet cable is shielded and connected to the RJ45 port with strain relief to minimize communication interference.
• Check that the chassis backplane current capacity is sufficient for the total module load before powering on the system.
