Description

Technical Function and Integration

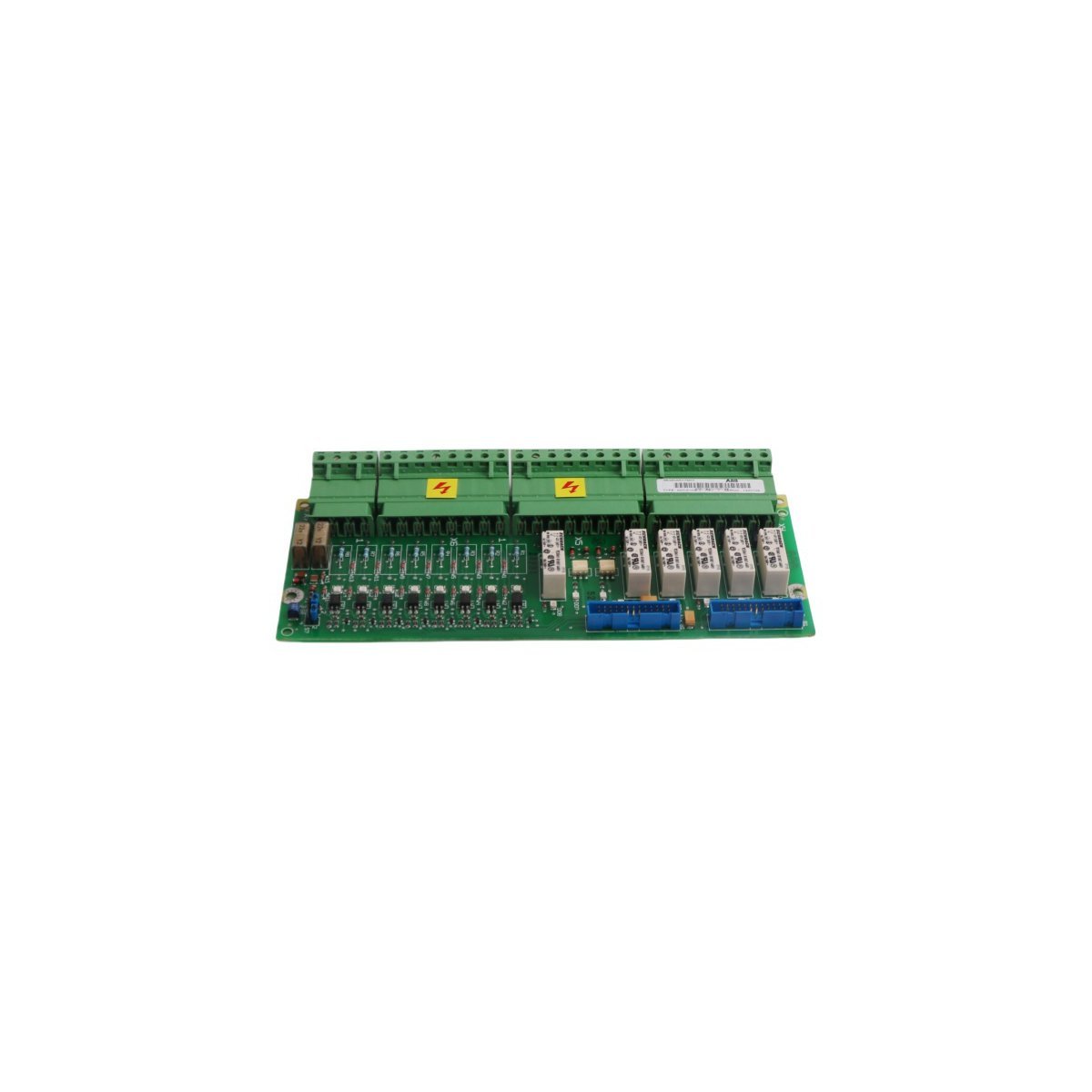

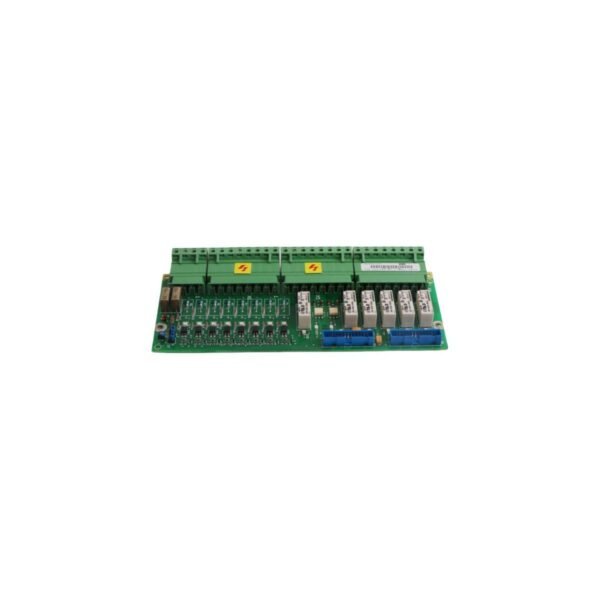

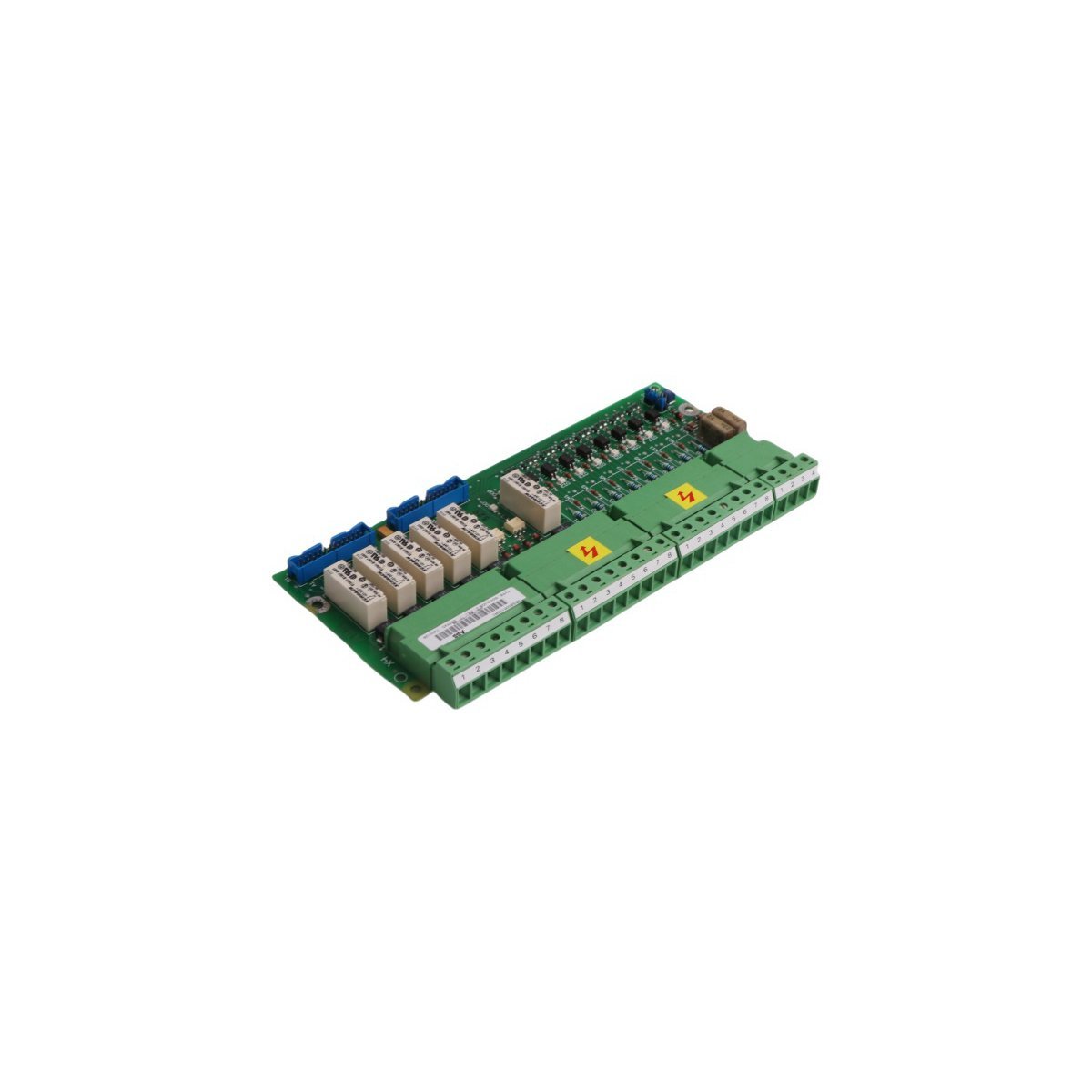

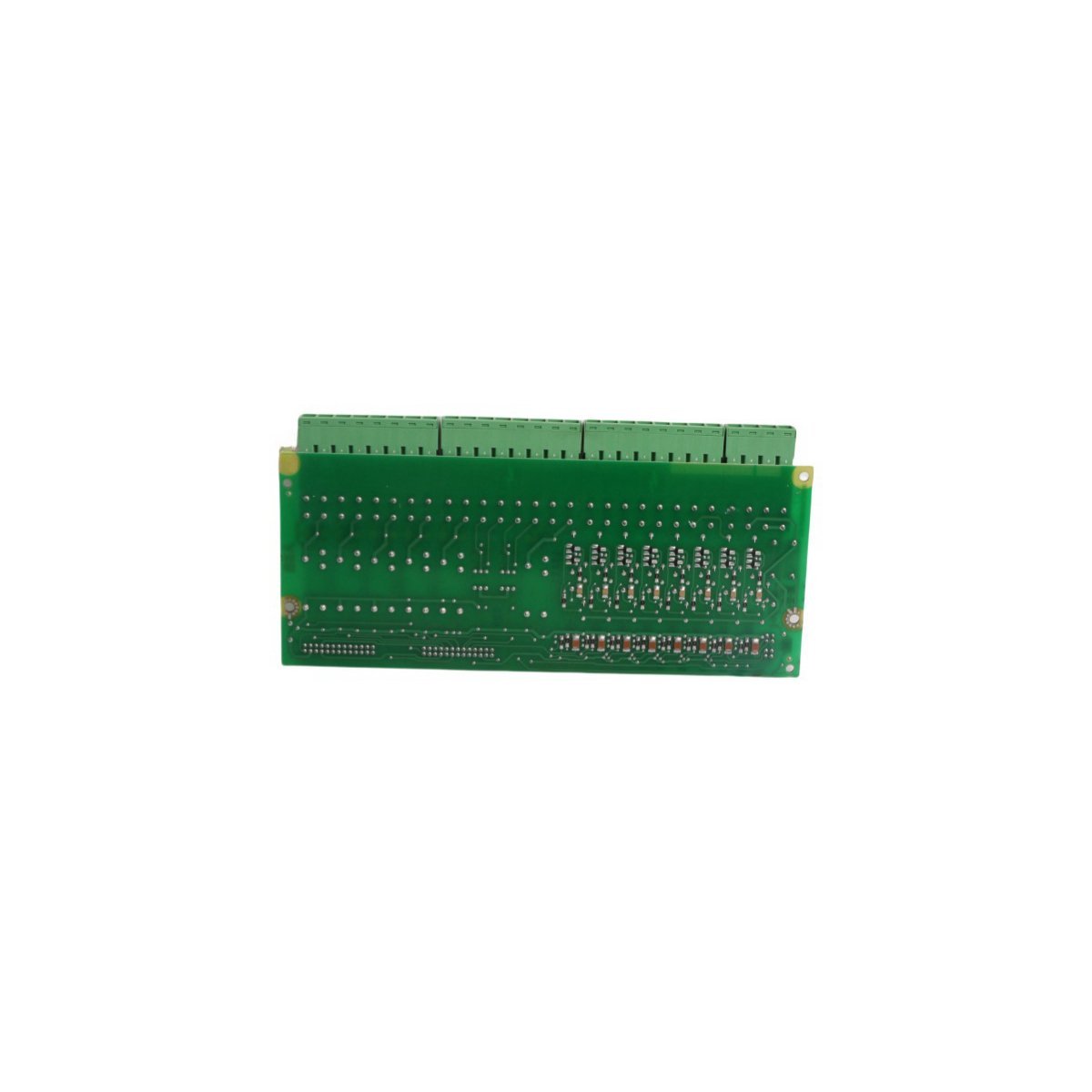

The ABB SDCS-IOB-21 (part number 3BSE005176R1) functions as a high-performance signal interface specifically engineered for the DCS800 drive system and broader Distributed Control System (DCS) architectures. This board actively facilitates the exchange of digital data between the drive’s control logic and external field devices. By incorporating a robust RS-485 communication interface, the module supports advanced industrial protocols, which ensures high-speed data synchronization and precise process execution.

Signal Protection and Isolation Capabilities

Because industrial environments frequently generate significant electrical noise, this board utilizes high-grade galvanic isolation to decouple external field signals from the controller’s sensitive internal logic. Specifically, the integrated 1500V AC isolation barrier acts as a protective firewall that blocks voltage transients and surges. Consequently, the SDCS-IOB-21 prevents electrical interference from damaging the primary processor. This proactive protection significantly increases the total lifespan of the automation system while maintaining signal integrity under harsh operating conditions.

I/O Configuration and Load Management

The module provides a versatile 16-input and 16-output configuration to accommodate high-density connectivity requirements. To handle demanding switching tasks, the board features relay contacts rated at 2A and 250V AC. These specifications allow the hardware to manage significant electrical loads without compromising safety or performance. Furthermore, the unit operates reliably across a wide temperature gradient ranging from -20°C to +70°C. Therefore, engineering teams can confidently deploy this board in extreme environments where standard consumer electronics would fail.

Installation and Maintenance Efficiency

The SDCS-IOB-21 prioritizes ease of integration through its compact and lightweight design. Measuring only 23.4 x 11.3 x 2 cm, the board fits easily into standard industrial control cabinets, which optimizes internal space. Moreover, the straightforward wiring layout simplifies routine maintenance and accelerates the initial commissioning process. By reducing installation complexity, this module helps facilities minimize scheduled downtime and improve overall operational throughput.

Technical Specifications Summary

• Manufacturer: ABB
• Model: SDCS-IOB-21
• Order Code: 3BSE005176R1
• Series: DCS800 / DCS
• Input/Output: 16 Digital Inputs / 16 Digital Outputs
• Isolation Voltage: 1500V AC
• Relay Contact Rating: 2A / 250V AC
• Communication: RS-485
• Operating Temperature: -20°C to +70°C
• Dimensions: 234 x 113 x 20 mm
• Weight: 0.34 kg
• Origin: Sweden
