Description

Engineering and Performance Overview

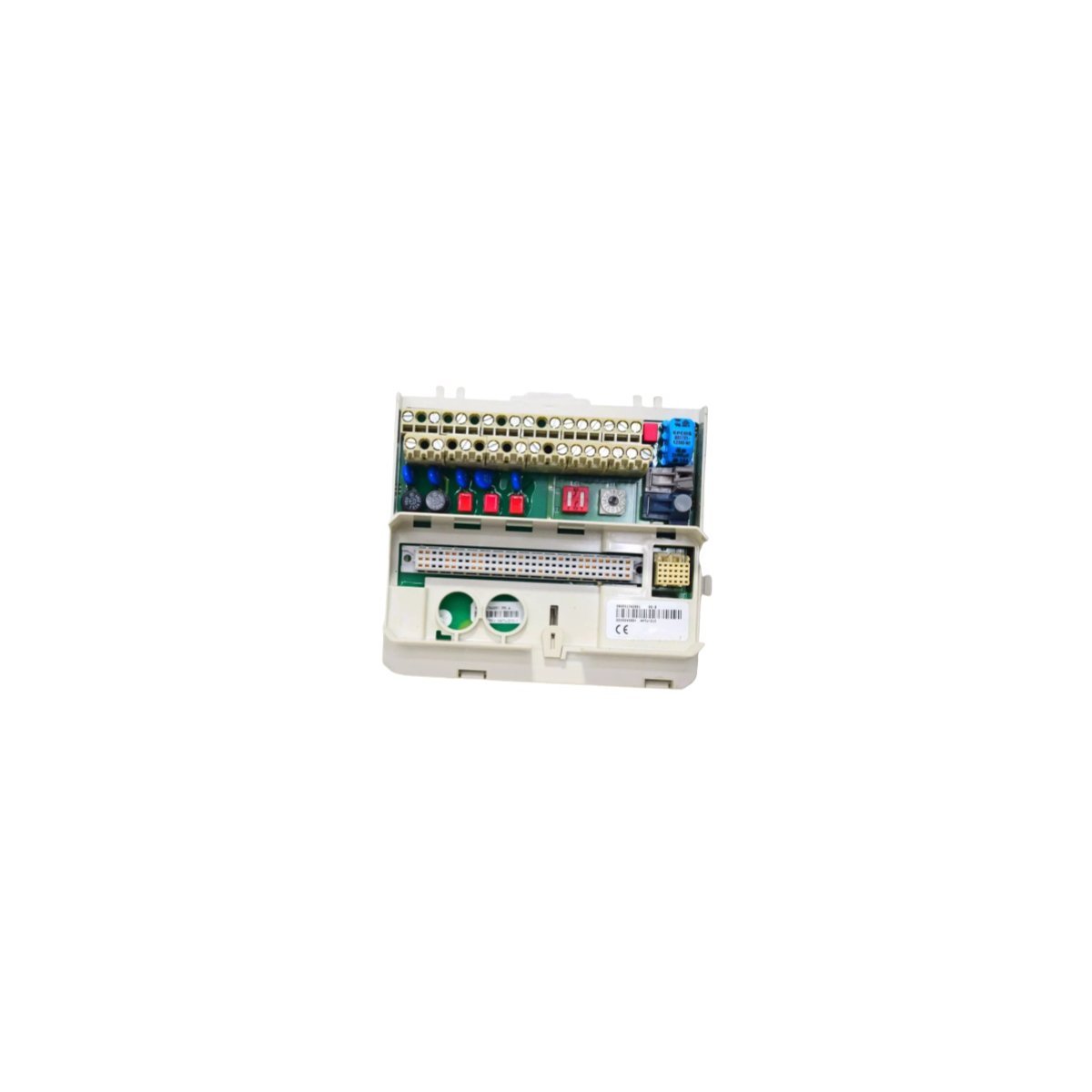

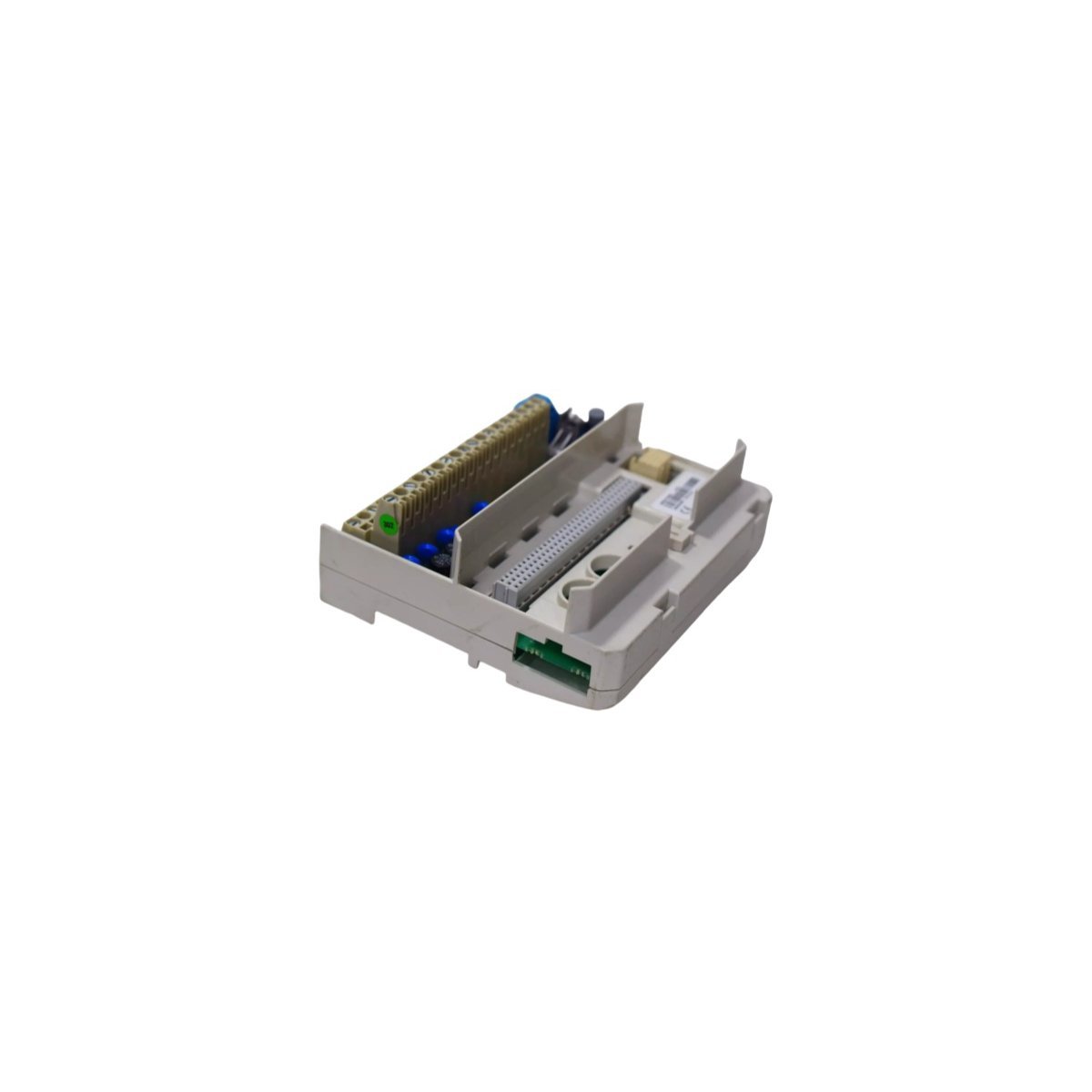

The ABB NMTU-21C (Order Code 3BSE017429R1) functions as a specialized termination and control interface within the Bailey Net 90 and Infi 90 Distributed Control System (DCS) families. This hardware provides a critical connection point for digital signal routing, ensuring that control commands translate accurately to field instrumentation. Because industrial environments demand high availability, the NMTU-21C utilizes a ruggedized architecture that protects signal integrity against electrical noise and thermal stress.

Signal Control and Communication Features

Operators benefit from the module’s precision switching capabilities, which manage digital outputs with microsecond accuracy. Furthermore, the unit integrates seamlessly with existing Bailey OCS architectures, supporting standard communication bus protocols. The internal circuitry employs sophisticated error-detection mechanisms that monitor signal paths in real time. Consequently, the system can identify and isolate faults before they escalate into process interruptions, thereby maximizing facility uptime.

Maintenance and Diagnostic Capabilities

ABB designed the 3BSE017429R1 with maintenance efficiency in mind. The module includes onboard diagnostic indicators that allow technicians to verify power status and communication health at a glance. Additionally, the termination unit facilitates simplified wiring configurations, which reduces the complexity of cabinet installations. By streamlining the troubleshooting process, this module lowers the overall cost of ownership for long-term automation projects.

Technical Specifications

• Brand: ABB
• Model Designation: NMTU-21C
• Part Number: 3BSE017429R1
• System Compatibility: Bailey Infi 90 / Net 90
• Product Category: Digital Termination / Proximity Control
• Weight: 1.0 kg
• Dimensions: 38 cm x 3 cm x 28.6 cm
• Country of Manufacture: Sweden
• HS Tariff Code: 8537101190

Operational Applications

This termination unit is primarily deployed in heavy industries such as pulp and paper, power generation, and petrochemical processing. It serves as a reliable interface for proximity sensing and high-density digital output management. Because it adheres to ABB’s strict quality standards, the NMTU-21C remains a preferred choice for engineers looking to maintain or expand legacy Infi 90 control networks with brand-new, reliable hardware.
