Description

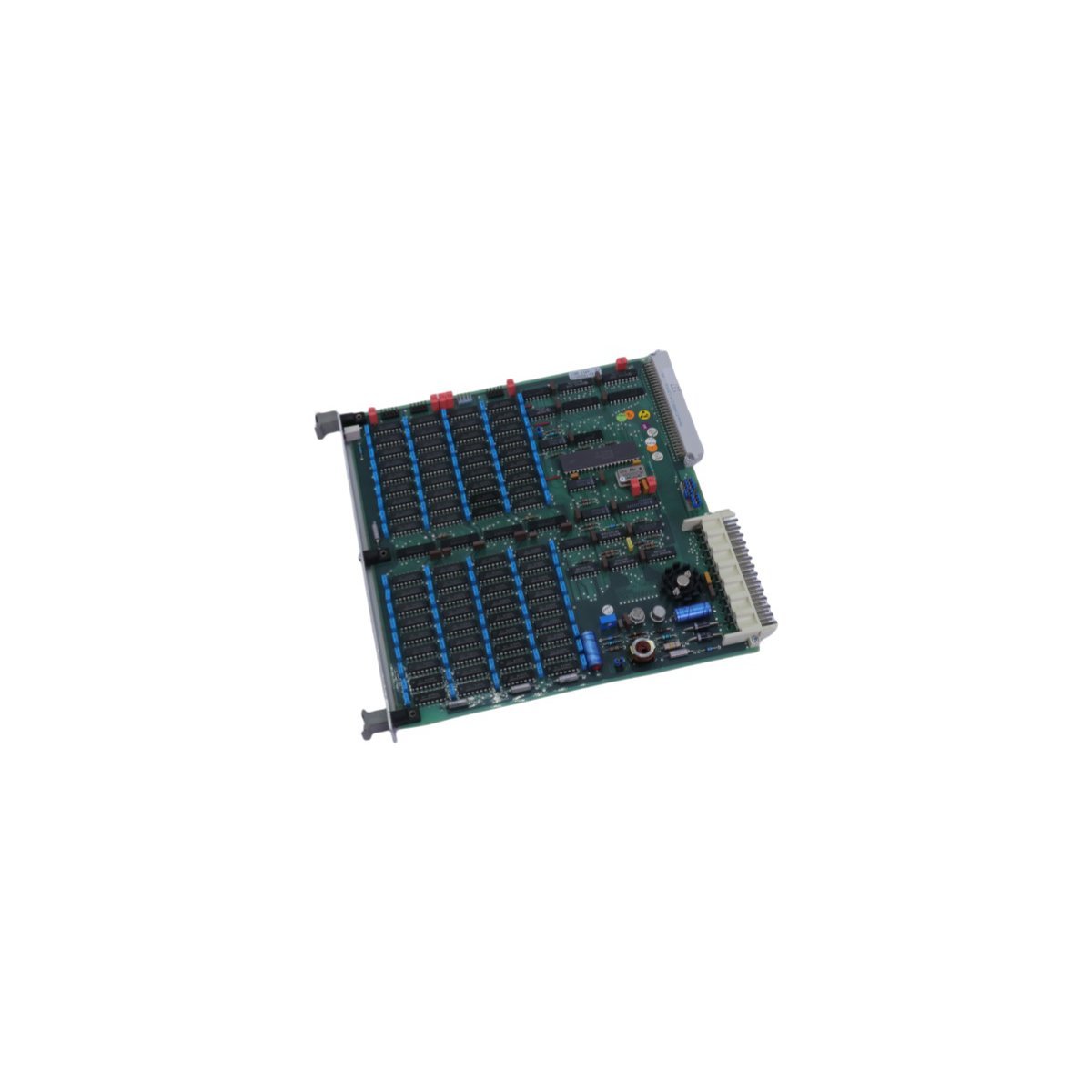

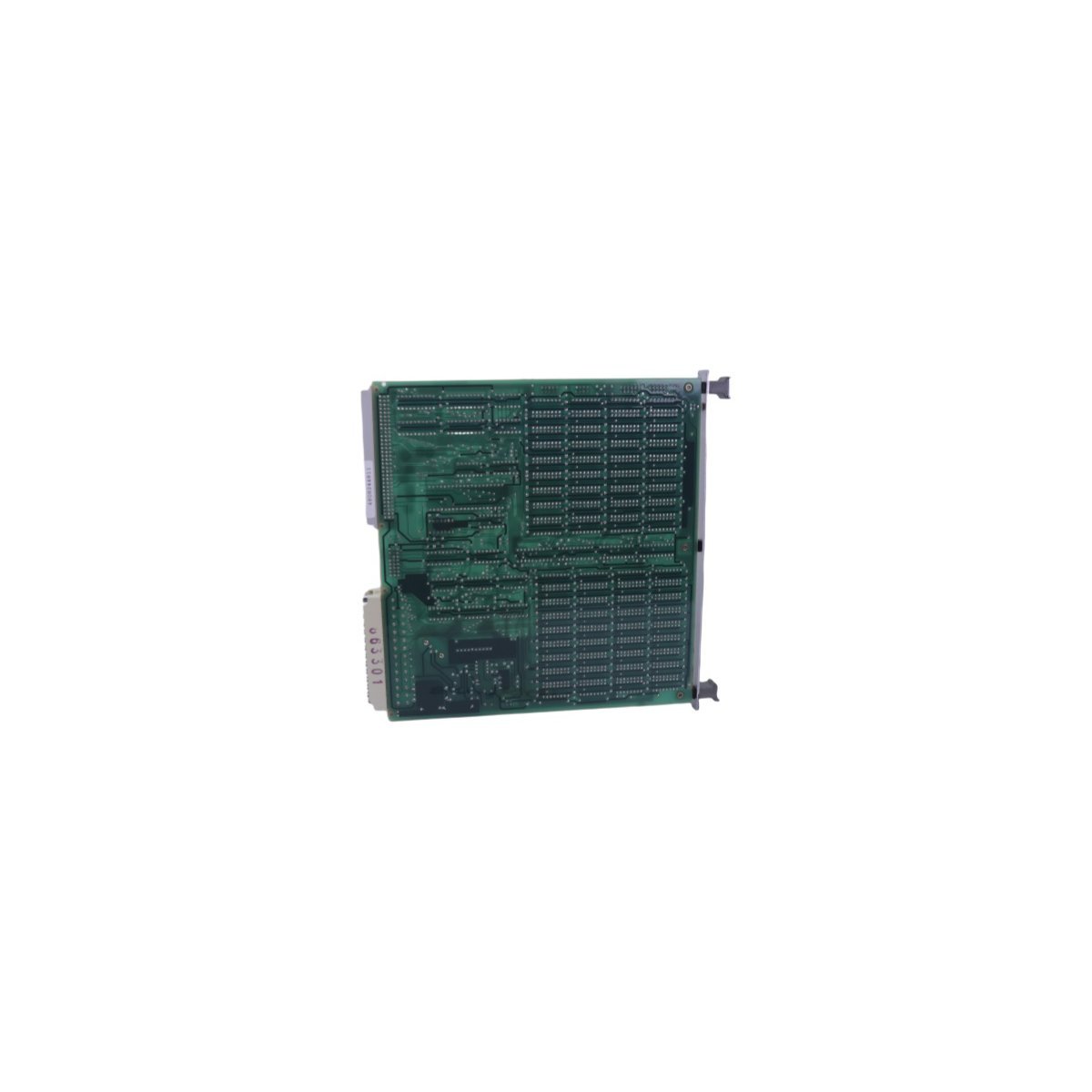

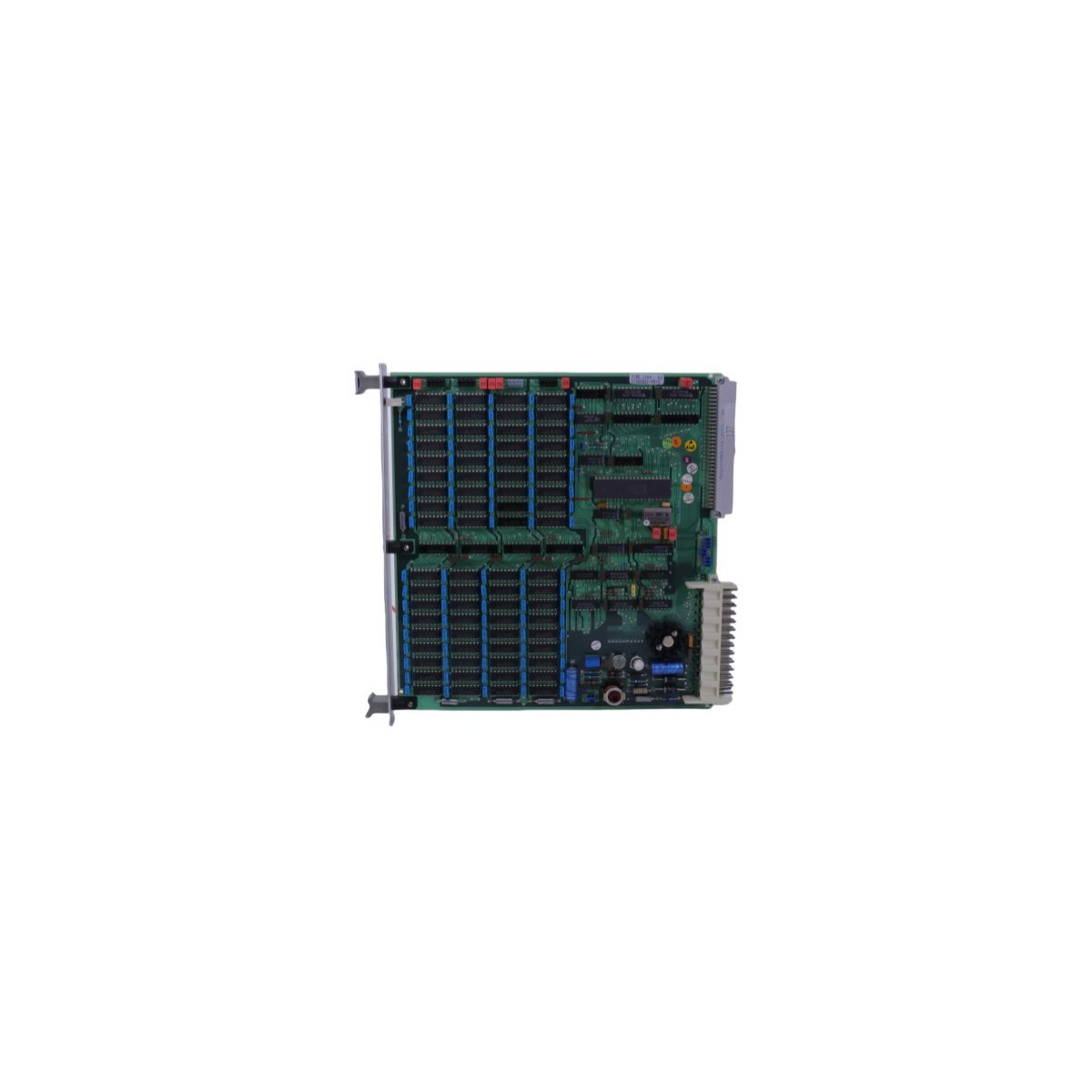

The ABB DSMB116 5736 0001-EB, also cataloged as the DSMB116 5736 0001-EB Memory Module, operates as a dedicated hardware component for volatile and non-volatile data storage within MasterPiece DCS platforms.

Hardware Specifications

Industrial Control and Connectivity

Regarding the operational architecture, the DSMB116 5736 0001-EB module utilizes deterministic network protocols to manage data exchange across MasterPiece architecture environments. Furthermore, its firmware supports flash compatibility; consequently, this ensures seamless integration with existing backplane bus communication velocities. Simultaneously, the internal architecture facilitates high-density memory scaling, which allows the module to maintain data integrity for field control logic. In addition to this capability, the design maintains the necessary timing precision required for DCS loop execution. Finally, as a measure of structural integrity, channel-to-channel isolation is maintained; therefore, the module effectively protects against common-mode noise interference in industrial electrical environments.

Frequently Asked Questions

Q: Does the DSMB116 5736 0001-EB support hot-swapping while the MasterPiece rack is under power?

A: No, the module requires the removal of backplane power to prevent potential data bus contention or electrical transients during the seating or unseating of the module.

Q: How is the RS-232 communication interface configured for this module?

A: The interface is routed through the designated front-panel port or backplane assignment. Consequently, ensure that the communication parameters match the host controller settings to prevent data frame errors or connection timeouts.

Field Installation Guidelines

• Shielding and Grounding: Terminate communication cable shields only at the specified control system common ground terminal. In order to prevent ground loops, avoid grounding at field junction boxes.
• Wiring Separation: Route signal cables in dedicated conduits separate from high-voltage power lines. Specifically, maintain segregation from variable frequency drive output circuits to minimize crosstalk.
• Physical Mounting: Ensure the module is fully seated into the rack slot, and subsequently, confirm the mechanical locking mechanism is engaged. Finally, verify that the backplane connector pins are free from debris or oxidation before applying power.
