Description

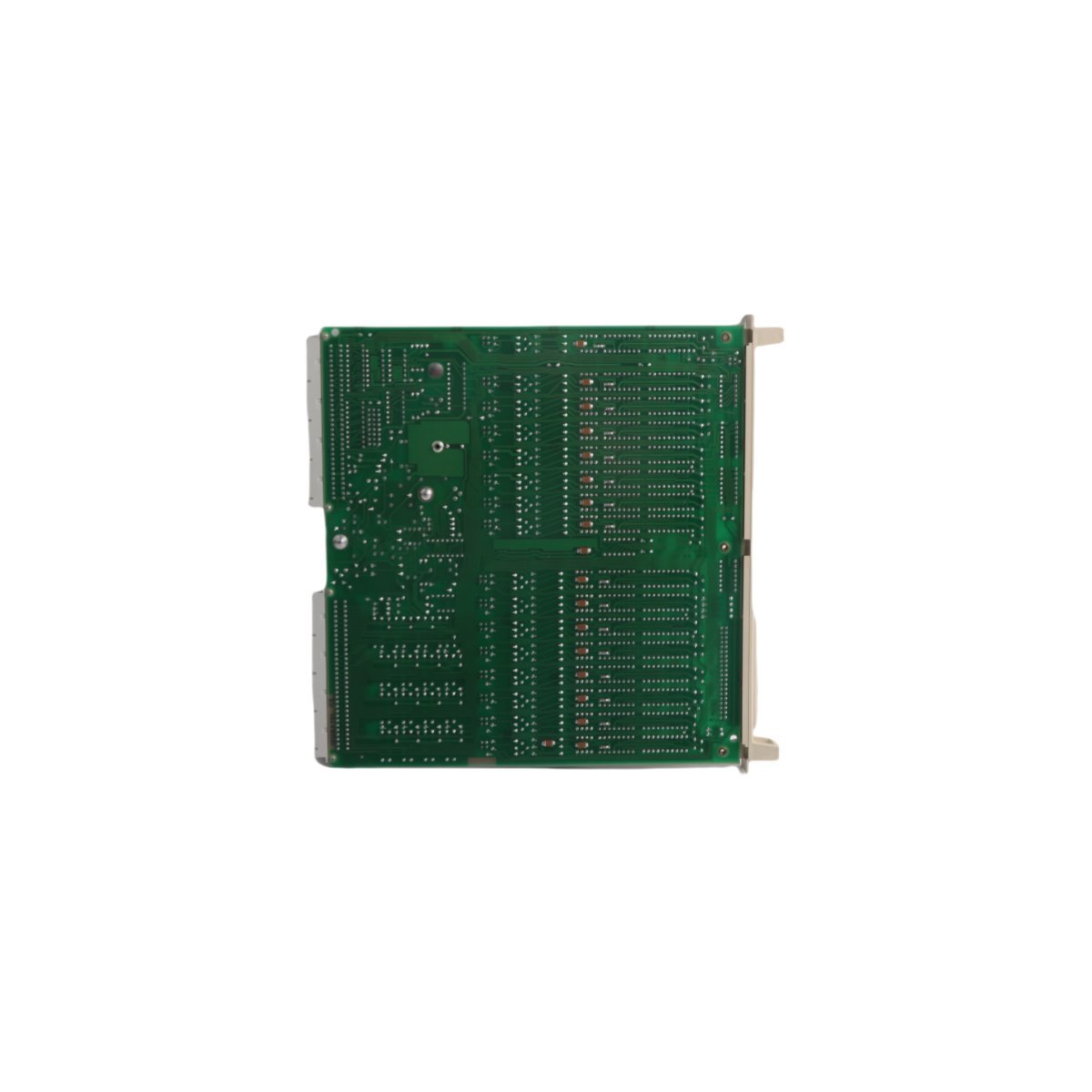

The ABB DSAO 130 57210001-FG functions as a high-capacity interface for modern industrial automation environments. This board manages up to 16 independent analog output channels within a single slot. It converts internal digital commands into precise physical signals for field equipment. Consequently, the module effectively drives control valves, actuators, and speed regulators. The robust architecture ensures consistent performance during complex process loops. Integration into the Advant Controller 450 system remains straightforward and efficient.

Technical Performance and Accuracy

This module delivers exceptional signal purity with a rated accuracy of 0.1% to 0.4% FS. It supports standard industrial ranges including 0 to 10 V and 0 to 20 mA. Furthermore, the 12-bit resolution provides the fine control necessary for sensitive operations. Internal diagnostic circuits continuously monitor the health of each output channel. If a fault occurs, the system provides immediate feedback to the central controller. This proactive monitoring helps prevent unexpected downtime in safety-critical applications.

Technical Specifications

Modular Integration and Sustainability

The 57210001-FG features a space-saving design to maximize cabinet efficiency. Its modular form factor allows for rapid hardware replacement without extensive system reconfiguration. Additionally, the unit operates reliably in demanding temperature and humidity conditions. The board utilizes high-grade components to extend the operational life of the DCS hardware. Maintenance teams can easily access front-panel indicators for rapid troubleshooting. Therefore, it remains a vital component for long-term plant stability.

Versatile Industrial Application

Engineers primarily deploy the DSAO 130 in large-scale power generation and chemical processing plants. It handles the rigorous demands of continuous process control with ease. Moreover, the board maintains high isolation levels to protect the controller from field-side surges. This level of protection ensures the safety of the entire control network. By providing stable and repeatable outputs, the module optimizes overall production efficiency. It serves as a reliable solution for both legacy upgrades and new installations.
