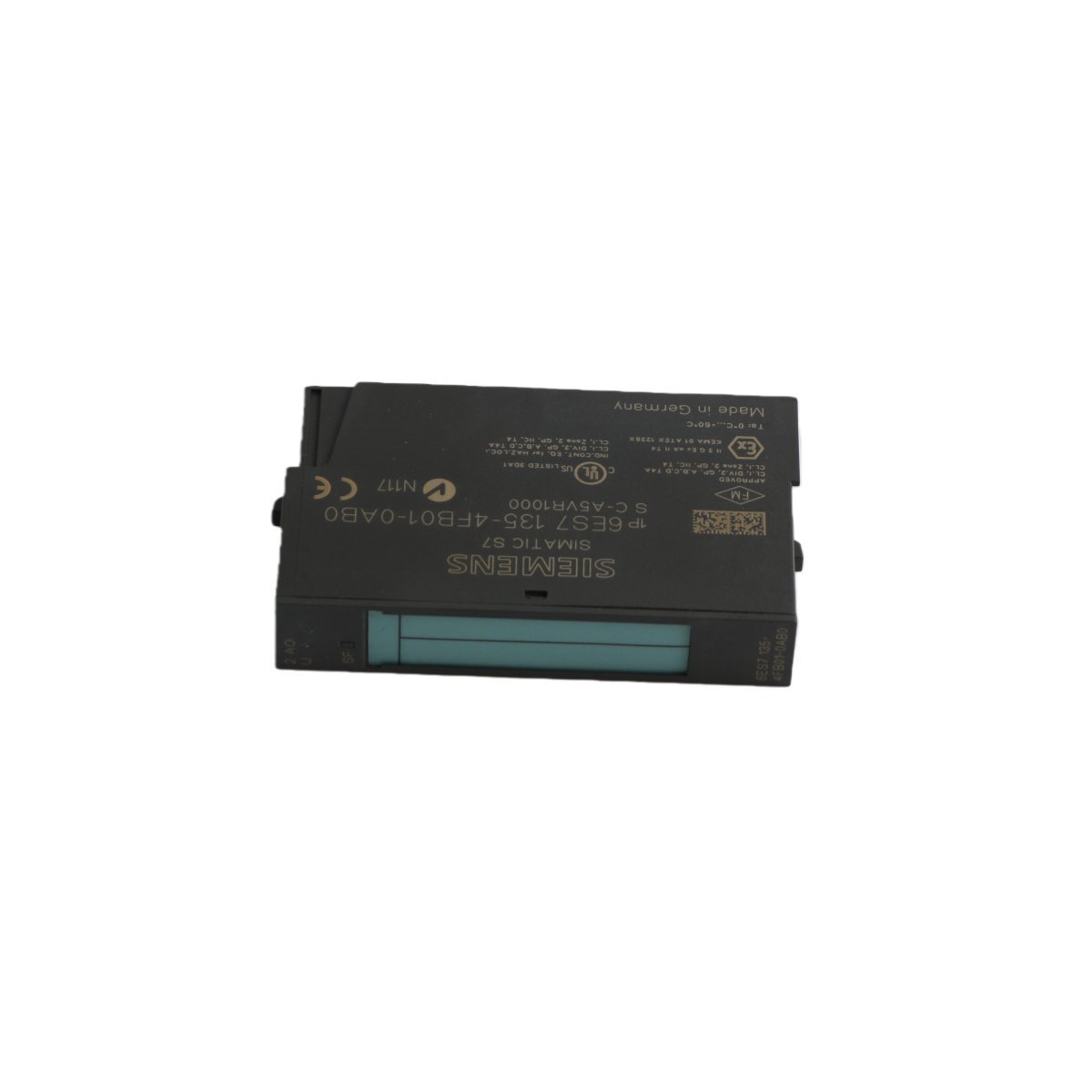

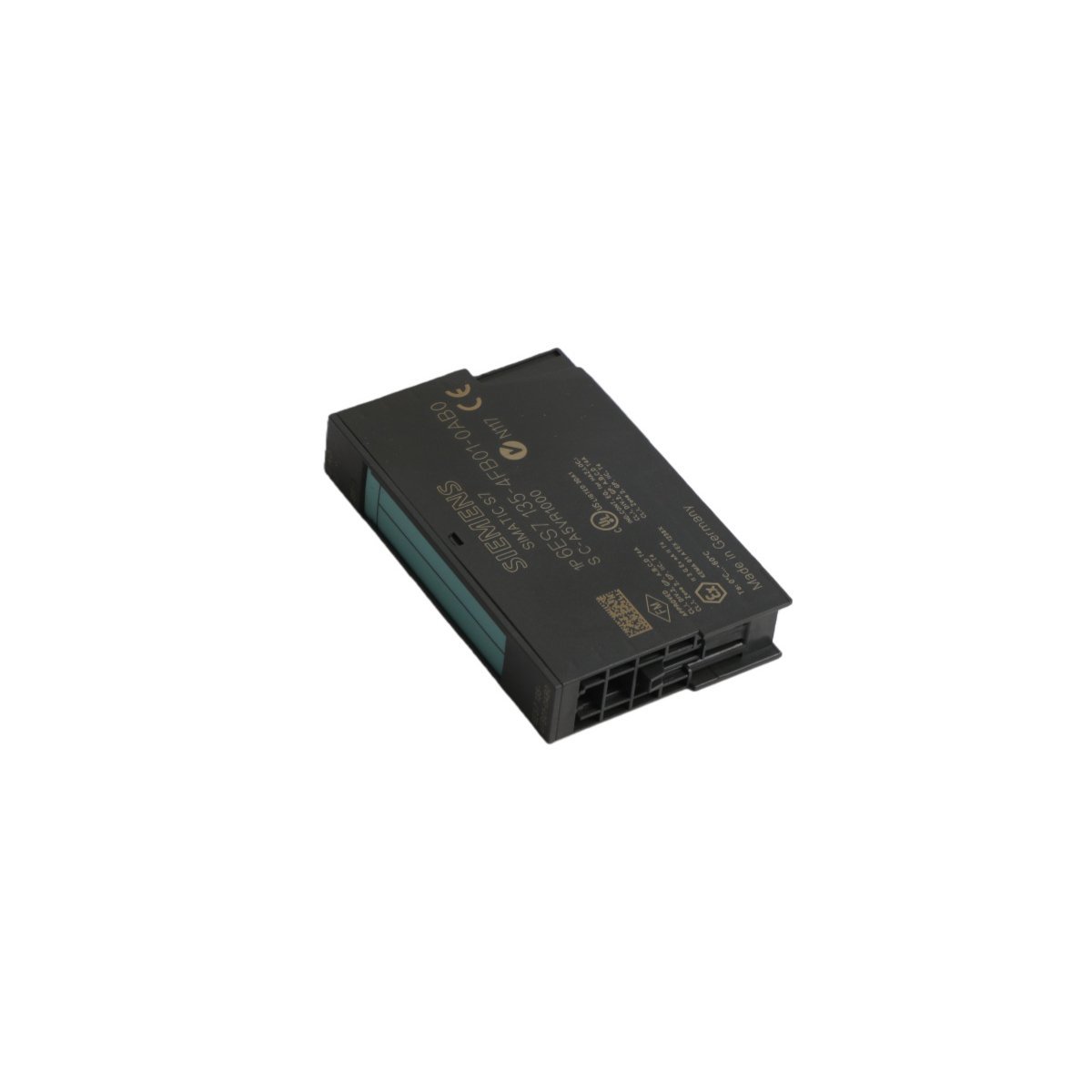

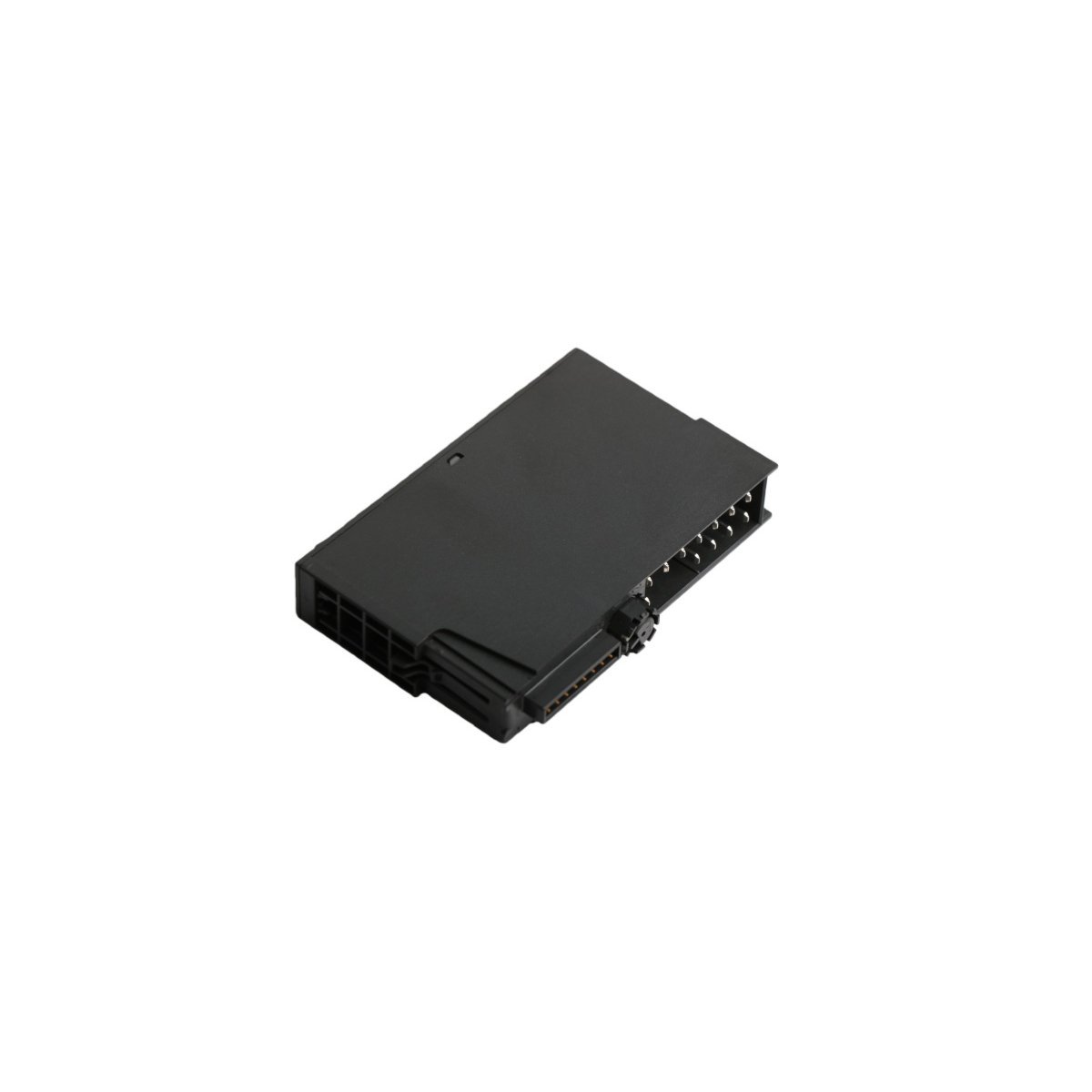

Siemens 6ES7135-4FB01-0AB0 Analog Output Module
The Siemens 6ES7135-4FB01-0AB0 is a 2-channel analog output module for ET 200S distributed I/O. It provides precise ±10V or 1-5V voltage signals with a fast 1ms cycle time. This 15mm wide module ensures accurate actuator control and reliable system diagnostics.
Description
The Siemens 6ES7135-4FB01-0AB0 is a dual-channel analog output module for the SIMATIC ET 200S series. This electronics module converts digital PLC data into precise voltage signals. It primarily controls actuators like variable speed drives and proportional valves. The unit supports standard voltage ranges of ±10V and 1-5V for industrial compatibility. Its compact 15mm width allows for high-density configurations in control cabinets.
Furthermore, this module excels in high-speed applications requiring rapid signal updates. It achieves a cycle time of less than 1ms for both channels. This speed ensures immediate response in dynamic closed-loop control systems. Consequently, the 6ES7135-4FB01-0AB0 maintains superior process stability in fast-moving automation environments. It integrates effortlessly with PROFIBUS or PROFINET interface modules.
Detailed Technical Specifications
| Feature | Technical Specification |
| Manufacturer | Siemens |
| Order Number | 6ES7135-4FB01-0AB0 |
| Number of Outputs | 2 Analog Channels |
| Resolution (±10V) | 13 Bits + Sign |
| Resolution (1-5V) | 12 Bits |
| Cycle Time | < 1.0 ms |
| Output Type | Voltage Output |
| Diagnostics | Group Fault (SF) LED |
| Operational Voltage | 24V DC via Power Module |
| Module Width | 15 mm |
Advanced Signal Processing and Diagnostics
The 6ES7135-4FB01-0AB0 provides exceptional signal integrity through galvanically isolated channels. This isolation separates the backplane bus from the field-side electronics. As a result, it prevents electrical noise from affecting the central controller. The module also features built-in short-circuit protection for each output. If a fault occurs, the integrated SF LED provides an immediate visual warning.
Additionally, the module supports extensive diagnostic data transmission to the PLC. It detects missing load voltage and parameterization errors automatically. This proactive monitoring simplifies troubleshooting and reduces system downtime significantly. Engineers can configure output behavior for CPU stop conditions to ensure plant safety. These features make it a reliable choice for critical manufacturing infrastructure.
Industrial Automation Applications
- Controlling motor speeds via frequency converters in automotive assembly.
- Managing proportional valve positions in chemical dosing systems.
- Driving precision actuators for material handling and sorting equipment.
- Regulating heating elements in temperature-sensitive food processing.
- Integrating distributed I/O in large-scale pharmaceutical production facilities.
Additional information
| Weight | 0.95 kg |
|---|---|
| Country of Origin | Germany |
| Dimension | 2.5 cm x 5.1 cm x 83.8 cm |
