Description

Product Overview

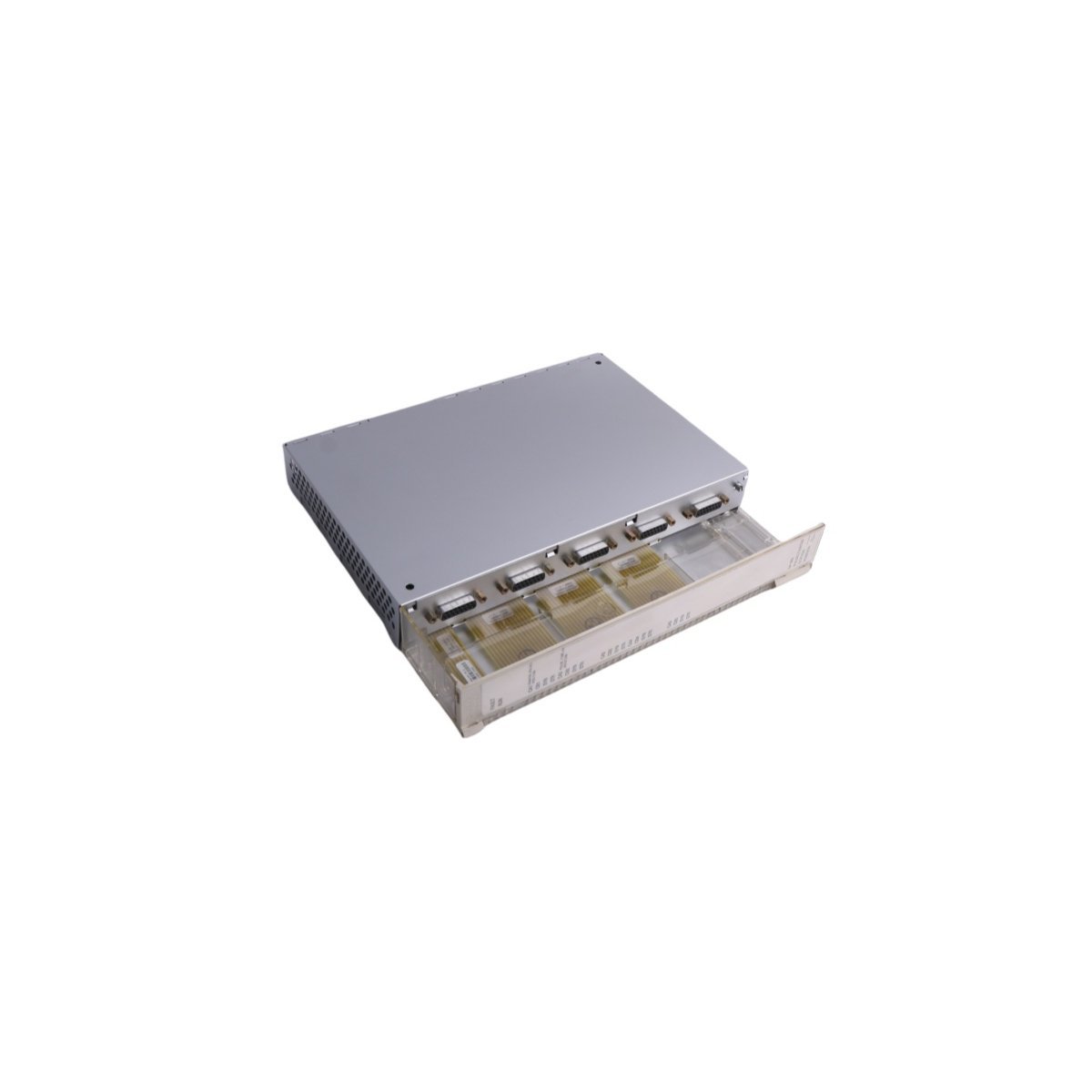

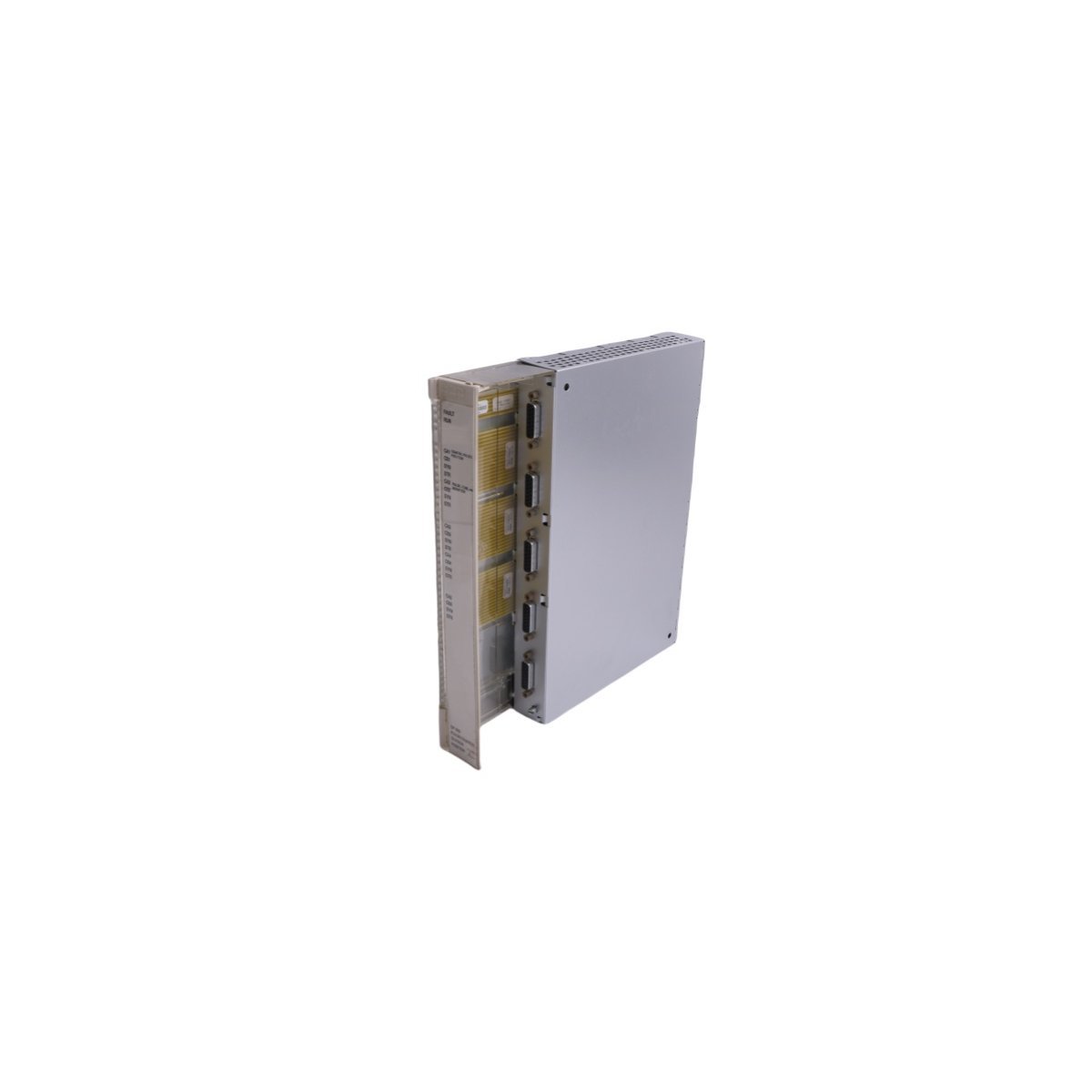

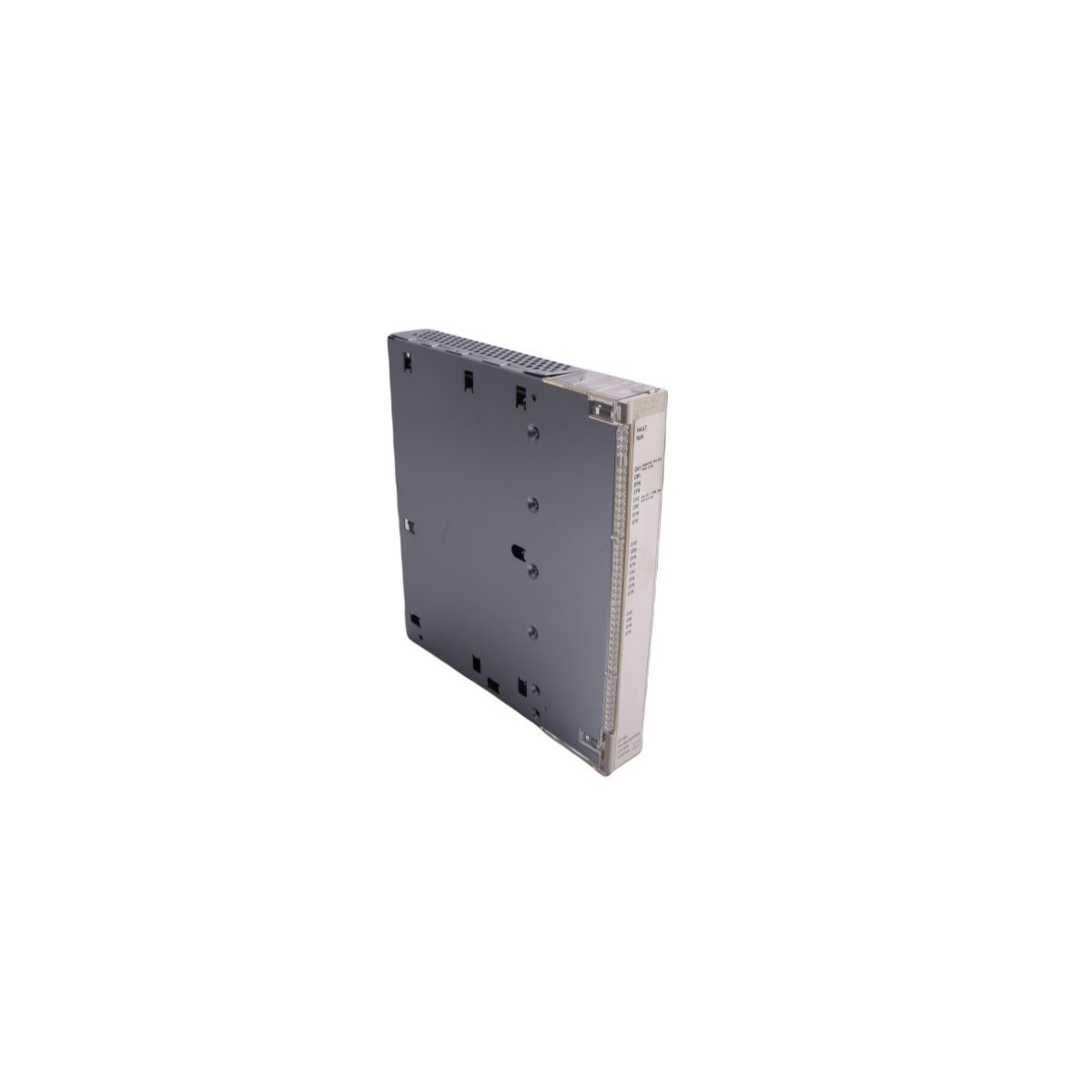

The ABB DP620, referenced by order code 3BHT300016R1, serves as a high-performance pulse counter module within the S800 I/O series. Automation engineers integrate this unit into Distributed Control Systems (DCS) to facilitate precise high-speed pulse acquisition and frequency measurement. Because the module features sophisticated signal processing circuitry, it maintains high accuracy levels even when monitoring demanding industrial processes such as turbine rotation, flow meter output, or robotic positioning.

Key Technical Specifications

• Model Identification: DP620 (3BHT300016R1)
• Manufacturer: ABB
• Series Compatibility: S800 I/O
• Module Function: High-speed Pulse Counter
• Physical Dimensions: 3.8 x 26 x 27.1 cm
• Total Weight: 1.42 kg
• Country of Origin: Sweden
• HS Code: 8537101190

Operational Capabilities and Performance

This module delivers reliable signal counting capabilities across a versatile voltage range, which allows it to interface seamlessly with diverse industrial sensor types. By utilizing the DP620, operators minimize latency in critical feedback loops, as the module processes incoming pulse trains with exceptional speed. Furthermore, ABB designed this unit to survive harsh operating conditions; its durable construction protects internal components from ambient dust and moisture.

The S800 I/O design architecture simplifies system maintenance and expansion. Because the module supports hot-swapping and integrates directly with standard DCS communication protocols, technicians reduce overall downtime during system upgrades. Consequently, industrial facilities ensure continuous, error-free monitoring of high-speed machinery by standardizing their I/O infrastructure with the DP620 pulse counter.
