Description

Product Overview

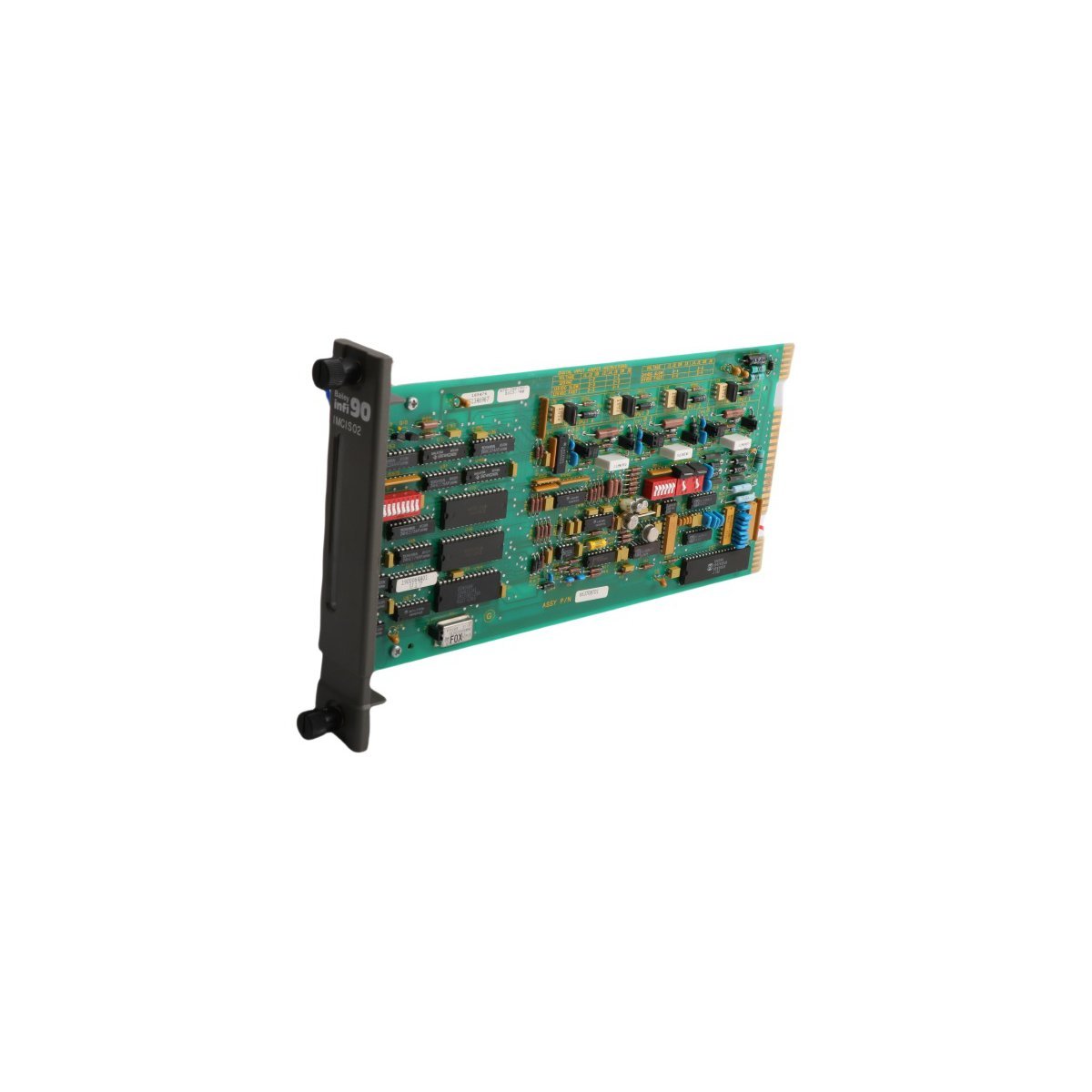

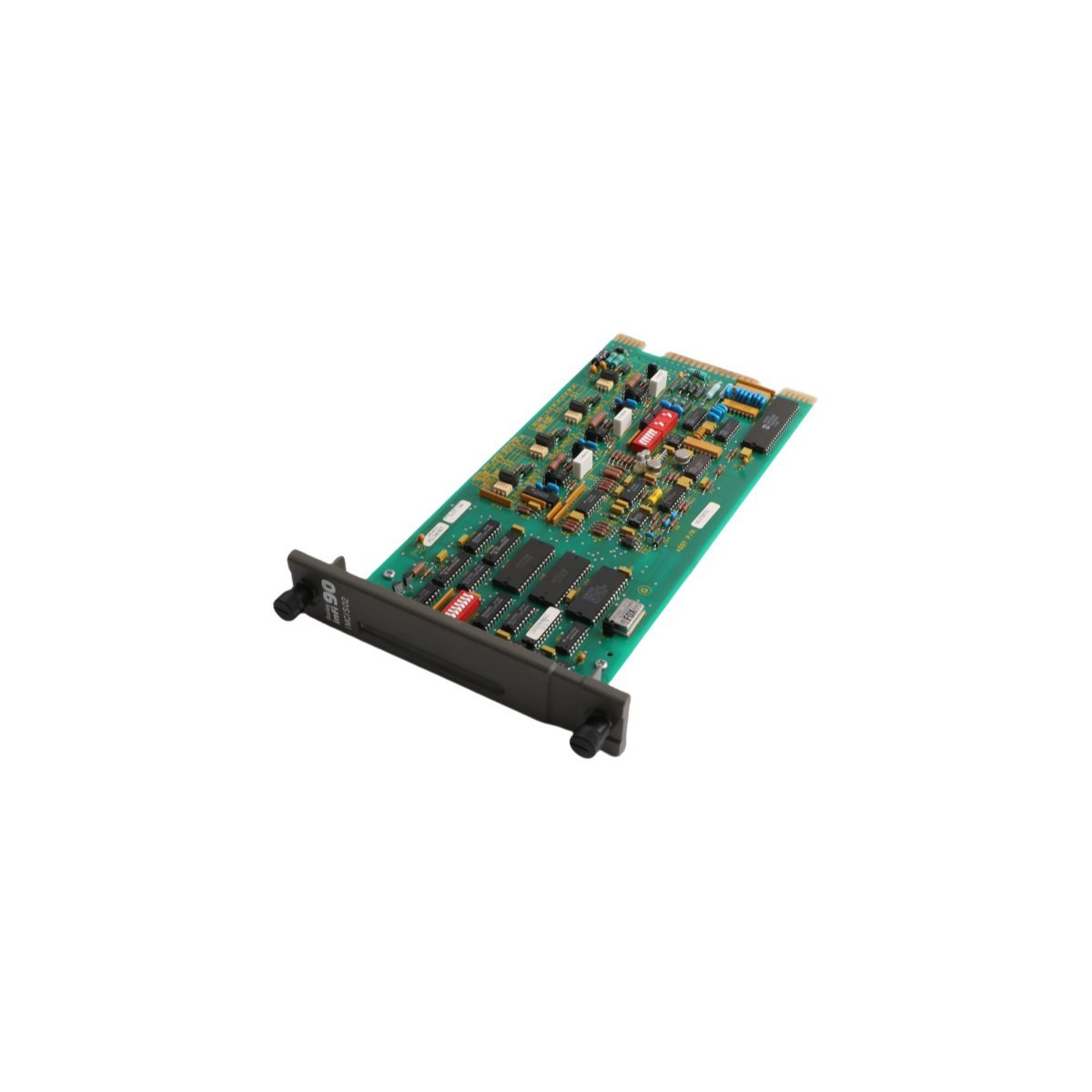

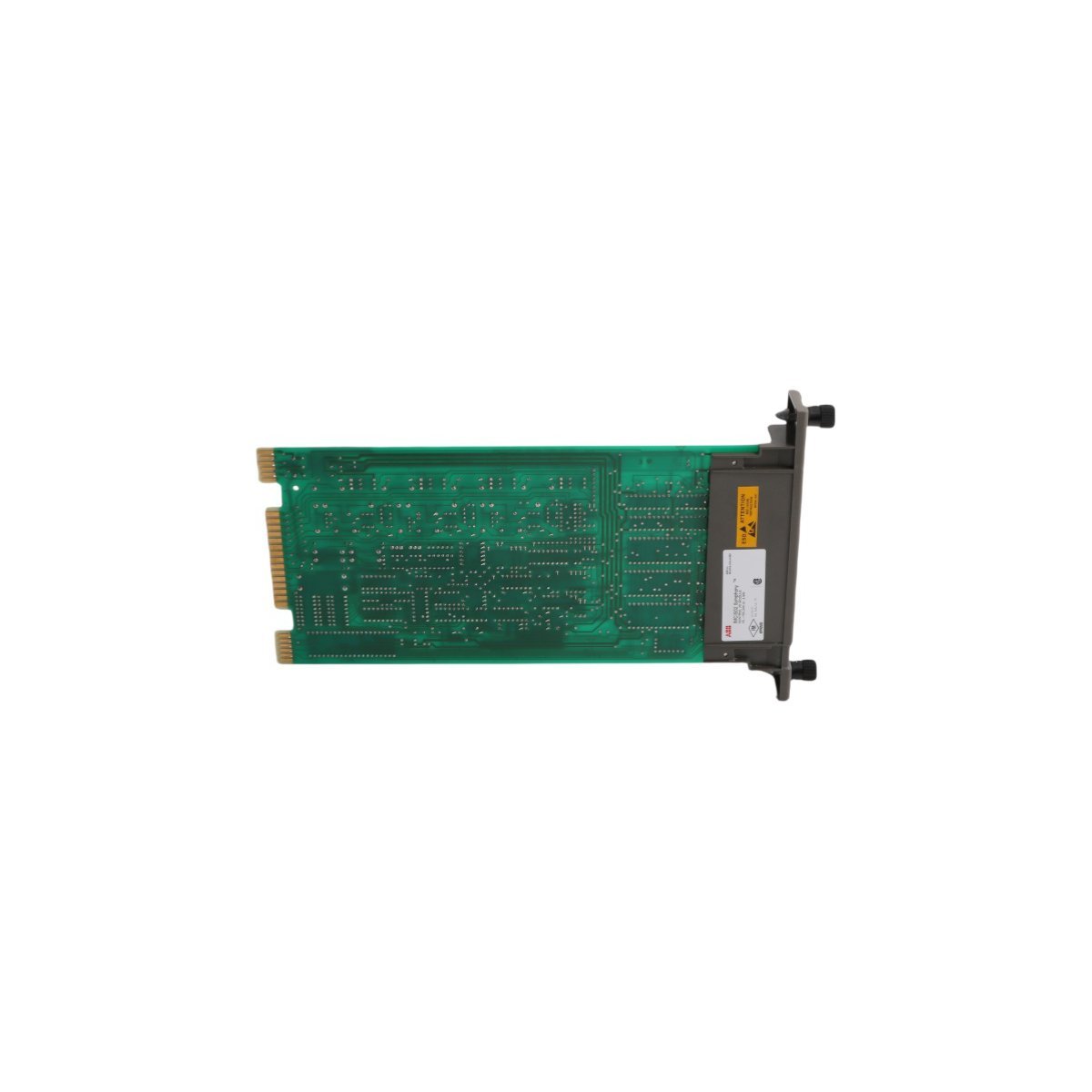

The ABB IMCIS02 is a specialized Control I/O Slave Module designed for the Harmony Rack (Infi 90) series within Distributed Control Systems (DCS). This module facilitates high-speed data exchange between field devices and the primary controller, ensuring precise execution of industrial automation logic.

Product Features and Technical Functions

The IMCIS02 module functions as a critical bridge within the Bailey Infi 90 architecture, processing signals from various sensors and actuators to maintain system stability. By offloading local I/O tasks from the main processor, it significantly improves overall system throughput and reliability.

• Robust Signal Processing: The module actively manages signal conditioning for diverse industrial inputs, converting raw field data into actionable digital information for the DCS network.
• Bailey Infi 90 Integration: Because the IMCIS02 belongs to the Harmony Rack series, it provides native compatibility with existing Bailey PLC environments, simplifying system upgrades and maintenance.
• Industrial-Grade Durability: ABB engineered this module to function continuously in harsh environments, featuring a design that resists electromagnetic interference and thermal fluctuations common in power plants.
• High-Speed Communication: The module utilizes a dedicated slave bus interface to transmit data rapidly, which ensures real-time monitoring and immediate response to process changes.
• Compact Form Factor: The narrow rack-mount design allows engineers to maximize cabinet density, providing extensive I/O capabilities without requiring excessive physical space.

Technical Specifications

Application Fields

Operators typically install the IMCIS02 module in large-scale industrial infrastructures that require high-availability control. Key applications include:

• Power generation facilities for monitoring boiler and turbine parameters.
• Chemical processing plants requiring synchronized control of valves and pumps.
• Water and wastewater treatment systems for managing distributed field instrumentation.
• Refineries where real-time data acquisition is critical for safety and process optimization.
