Description

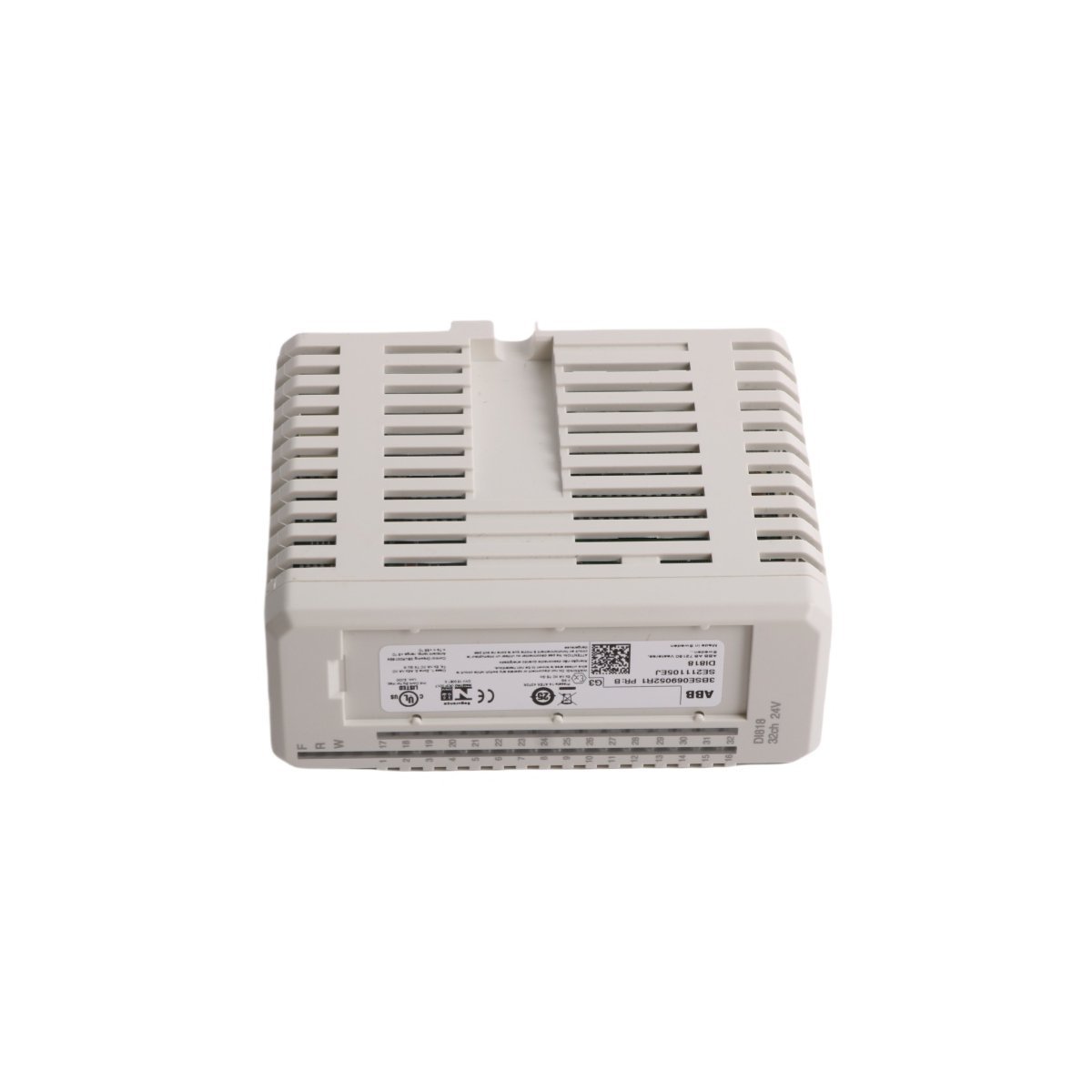

The ABB DI818 functions as a high-density interface for digital signal collection in automation environments. This 3BSE069052R1 module features 32 independent input channels for monitoring field device states. It specifically processes 24V DC signals from switches, sensors, and contacts. Furthermore, the hardware supports both current-sinking and current-sourcing configurations. This flexibility allows engineers to integrate the unit into various wiring architectures. The module actively converts physical electrical states into logic data for the AC 800M controller.

System Safety and Electrical Isolation

Reliability remains a core priority for the S800 I/O series design. The DI818 module incorporates 1500V AC galvanic isolation to protect sensitive control logic. This barrier effectively prevents ground loops and electrical interference from damaging the processor. Additionally, the unit features built-in digital filtering to eliminate contact bounce. This ensures the DCS receives clean, accurate signals during high-speed operations. Each channel includes individual status LEDs for immediate visual confirmation of input activity.

Integration and Communication Protocols

Connectivity occurs through the standardized ABB ModuleBus interface for seamless data exchange. The 3BSE069052R1 hardware occupies minimal space within the control cabinet. Moreover, the plug-in design supports hot-swapping during active system maintenance. This capability significantly reduces downtime in continuous manufacturing processes. The module also provides comprehensive self-diagnostics to identify internal hardware faults. Operators can monitor these diagnostics remotely through the Ethernet-linked DCS network.

Technical Specifications

Practical Industrial Applications

• Monitoring limit switches and pushbuttons in factory assembly lines.
• Status tracking for motors and valves in oil and gas refineries.
• Signal collection for power plant substation control systems.
• High-density digital sensing for chemical processing plants.
• Integrating discrete field data into 800xA automation architectures.
