Description

Product Overview

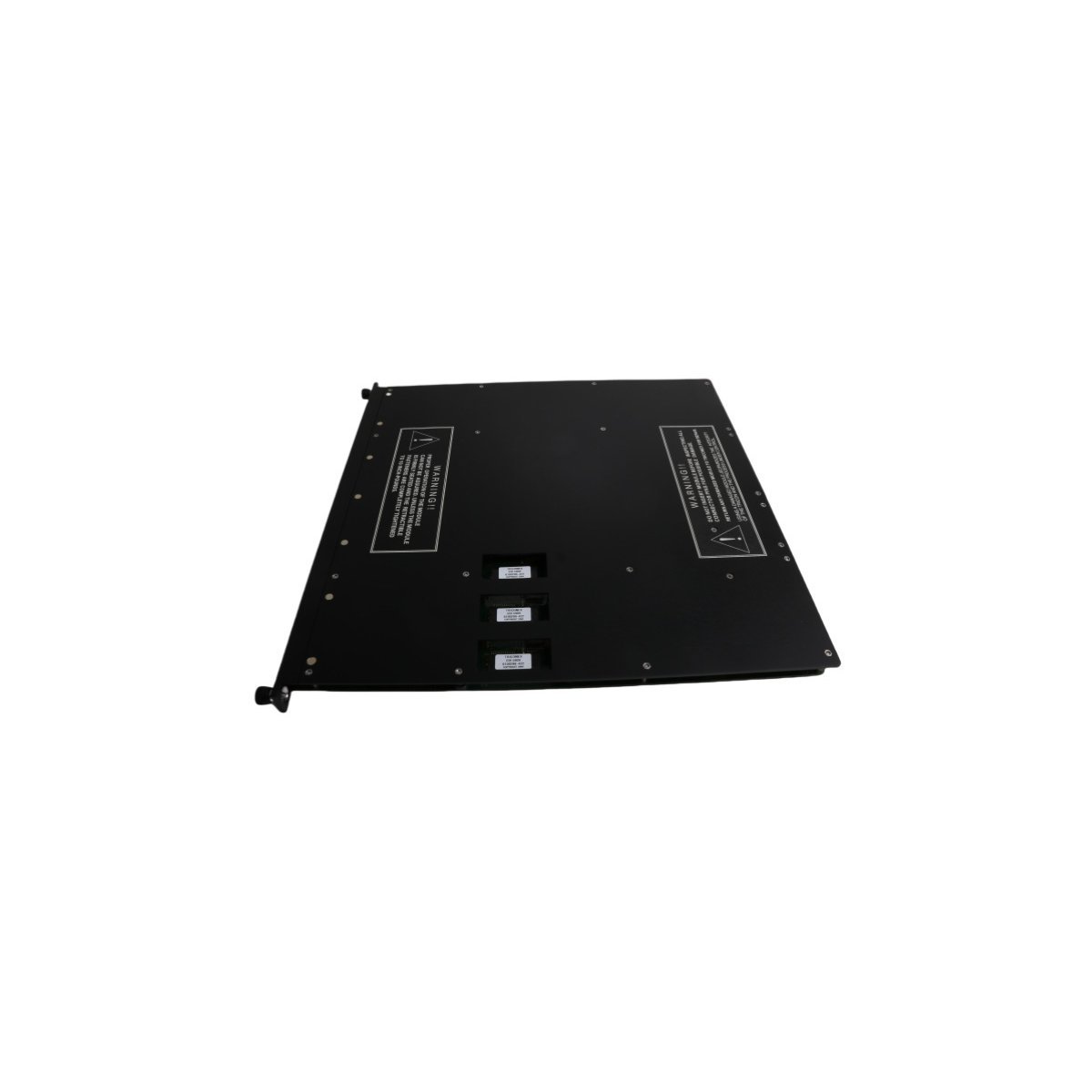

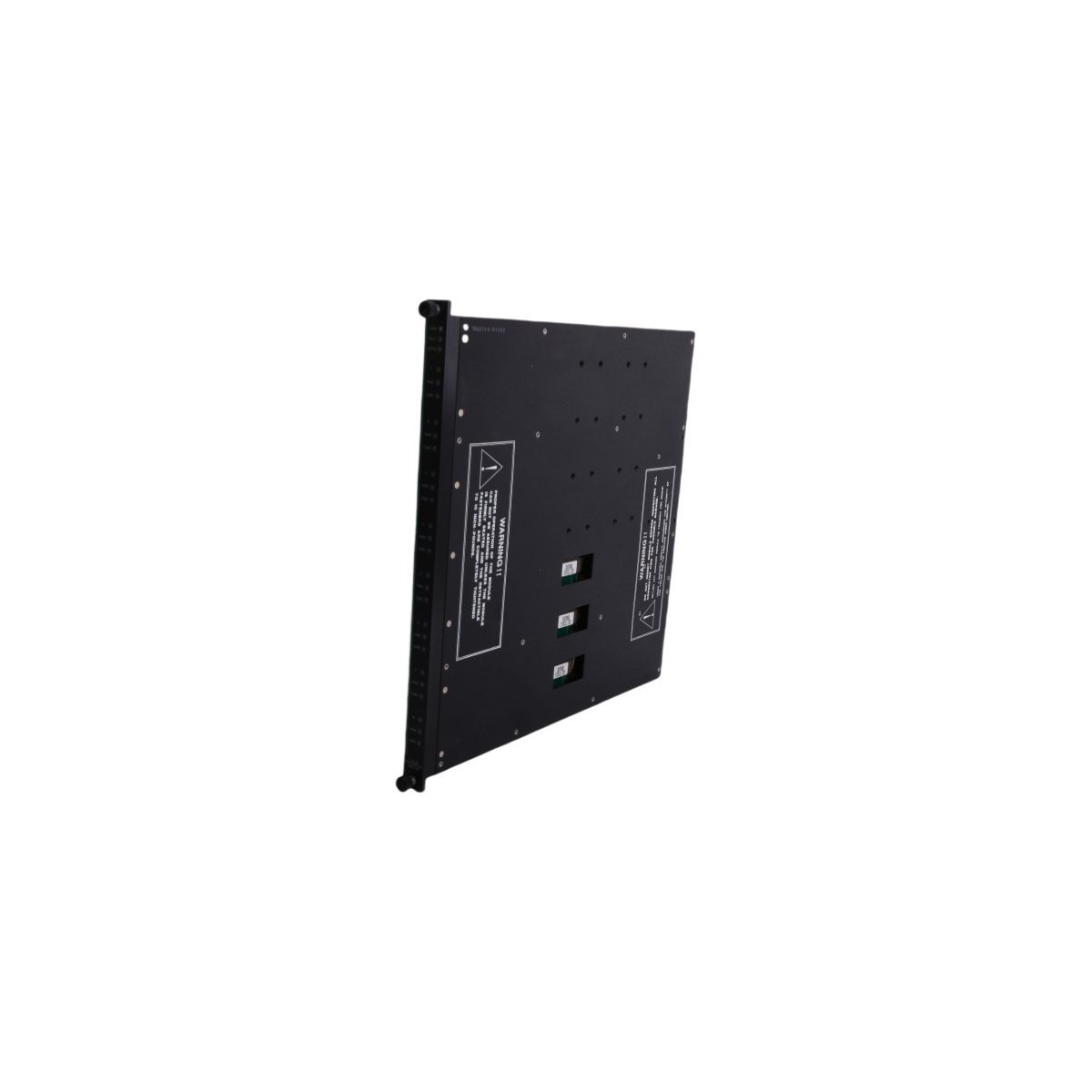

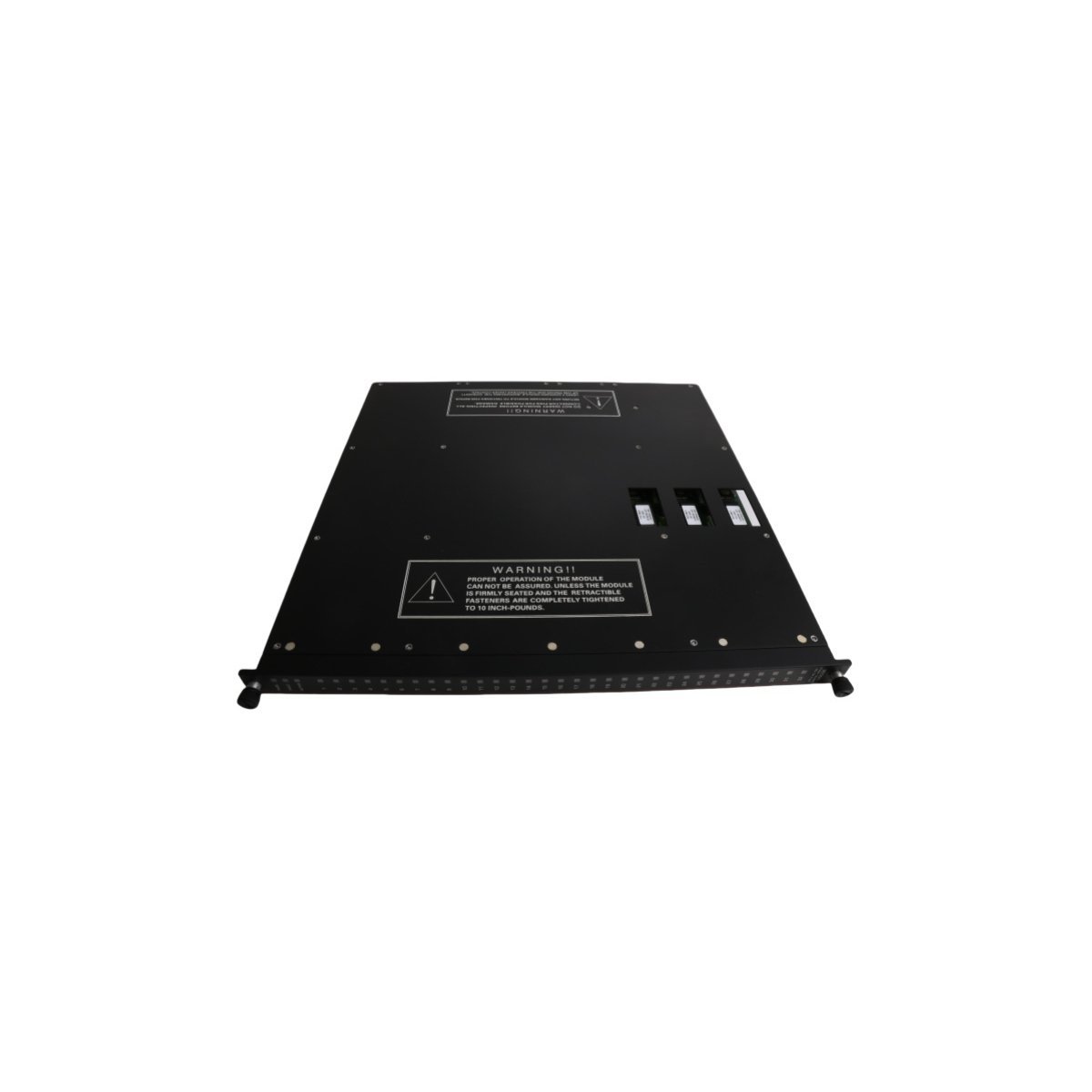

The Triconex 3503E is a 32-channel Triple Modular Redundant (TMR) digital input module designed for high-availability safety applications. It continuously monitors 24VDC field signals, utilizing three independent processing paths to ensure fail-safe performance and maximum fault tolerance in critical control loops.

TMR Architecture and Signal Integrity

The 3503E module serves as a fundamental building block for the Triconex safety system, specifically handling digital signals from field devices like pushbuttons and limit switches. To achieve the highest level of reliability, the module employs Triple Modular Redundant (TMR) architecture. This design processes every input signal through three separate branches—A, B, and C. The main processors then vote on the results to determine the true state of the input. Consequently, the system remains fully operational and maintains safety integrity even if an individual component fails within one of the branches.

Advanced Self-Diagnostics and Supervision

Safety-critical operations require constant verification of hardware health. The 3503E incorporates sophisticated self-test routines that run continuously without interrupting the monitoring of field inputs. These diagnostics check for “stuck-on” or “stuck-off” conditions and verify the integrity of the internal voting logic. Transitioning from traditional single-channel inputs to the 3503E supervised TMR model allows operators to identify latent hardware faults instantly. This proactive monitoring approach significantly reduces the probability of a “fail-to-danger” scenario, ensuring that the safety system acts precisely when required.

Rugged Design for Industrial Environments

Schneider Electric engineered the 3503E to withstand the rigorous demands of the oil, gas, and power industries. The module features a hardened mechanical casing that protects sensitive electronics from electromagnetic interference and vibration. Furthermore, its 32-channel high-density layout optimizes cabinet space while providing comprehensive isolation between field circuits and the internal logic bus. Because the module supports hot-swapping, maintenance personnel can replace a faulty unit while the process remains live. This capability eliminates the need for system shutdowns during routine maintenance or emergency repairs, effectively maximizing plant uptime.

Technical Specifications
