Description

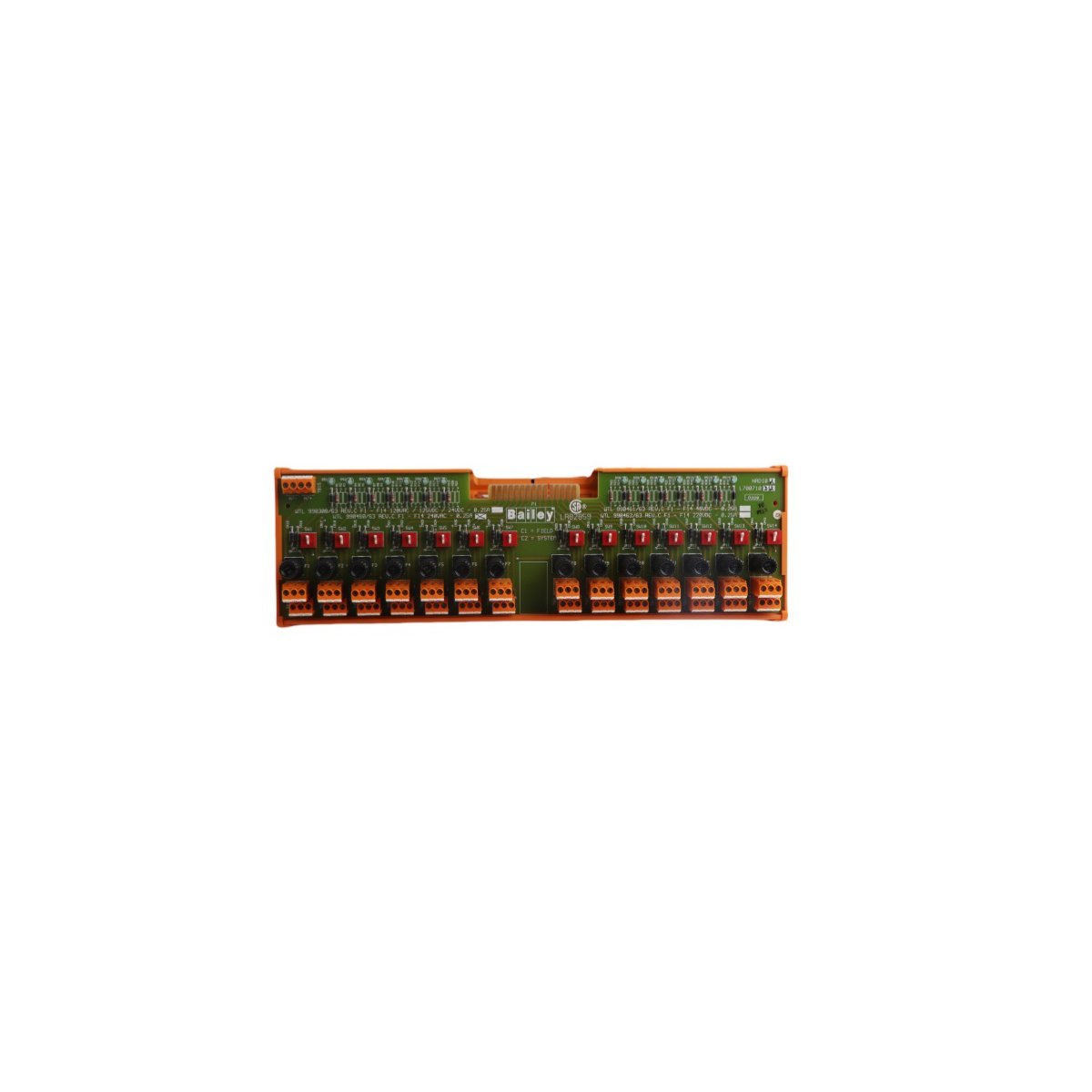

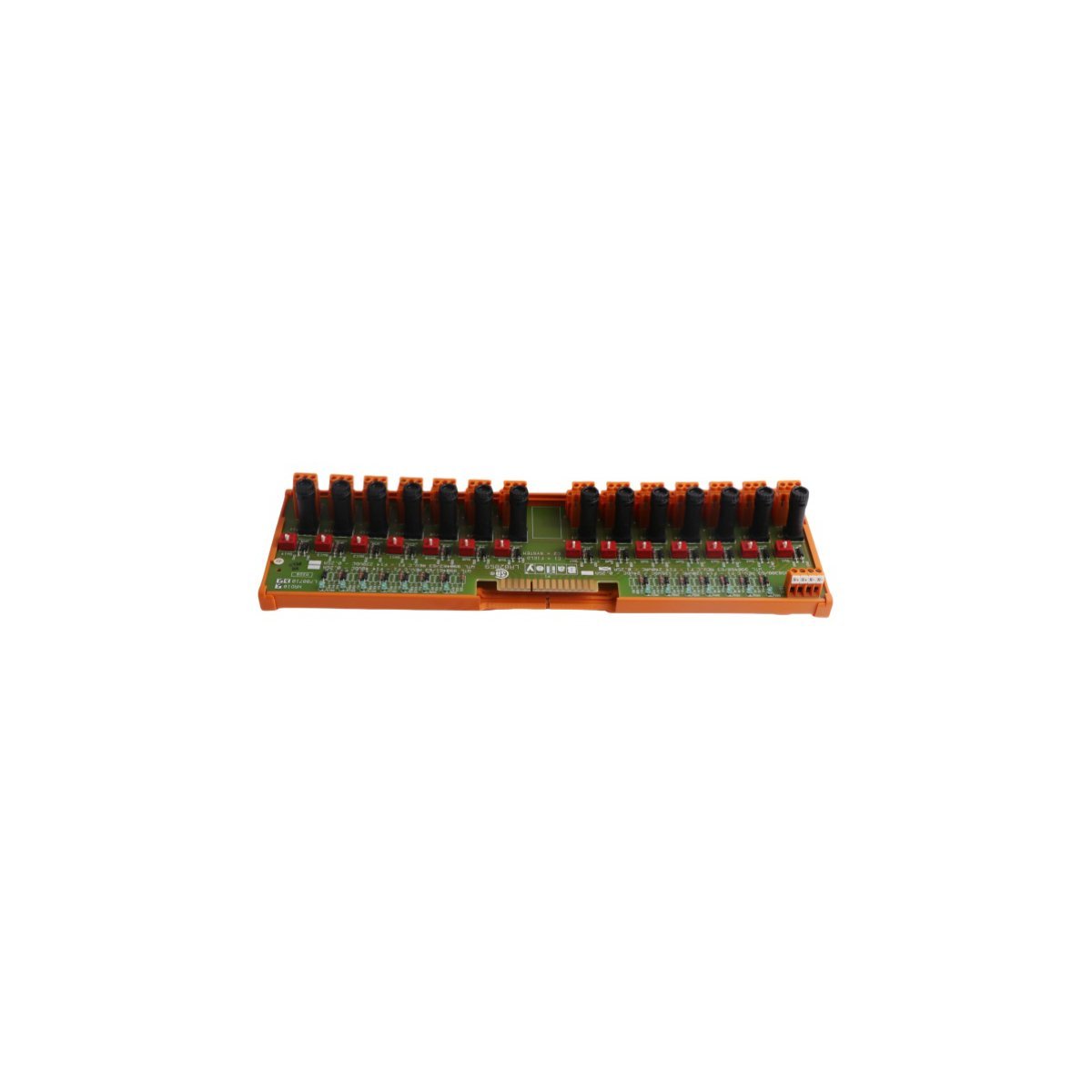

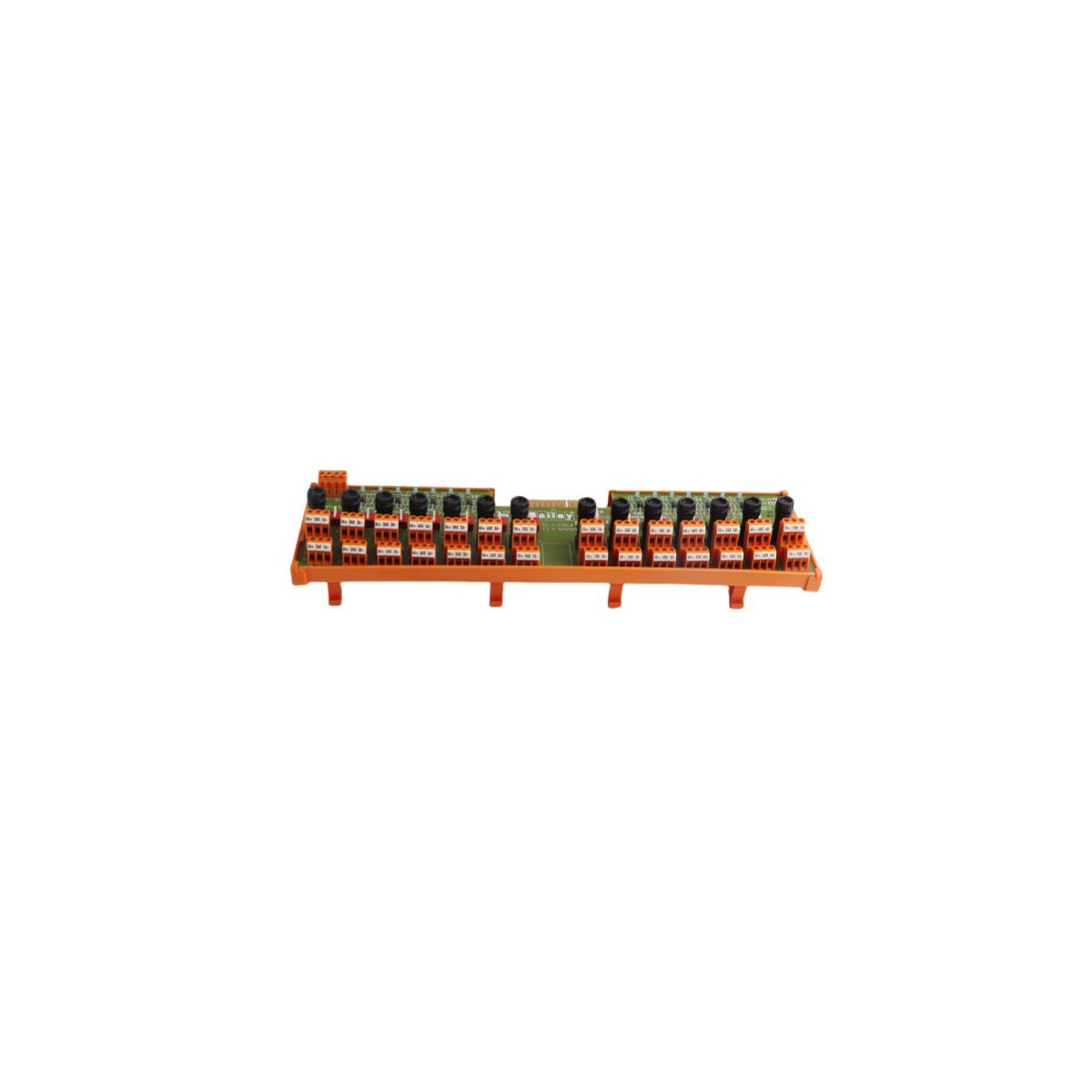

The ABB NRDI02 serves as a specialized digital input termination unit within the Symphony Harmony DCS family. This high-performance module facilitates the connection between field digital signals and the controller hardware. It manages signal conditioning for various binary inputs to ensure accurate process monitoring.

Engineers deploy this unit to interface 240V AC digital signals with low-voltage control logic safely. The NRDI02 handles 16 independent input channels for diverse industrial applications. Consequently, the system maintains high signal integrity while protecting sensitive electronic components from high-voltage transients.

Technical Specification Overview

Operational Features and Field Reliability

The NRDI02 utilizes galvanic isolation to prevent electrical noise from affecting the controller. Each channel processes high-speed binary data for real-time monitoring of field switch states. Furthermore, the robust hardware design permits continuous operation in demanding power generation environments.

The module architecture supports multiple communication protocols for enhanced system flexibility. It integrates effectively with Harmony controllers via standard termination cables. This compatibility reduces engineering time during system expansions or hardware migrations.

Installation and Maintenance Efficiency

The modular termination design allows for rapid mounting and secure field wiring. Front-facing connectors simplify the inspection process for maintenance personnel. This arrangement significantly lowers the risk of wiring errors during initial commissioning.

The NRDI02 remains active within the ABB lifecycle to support long-term plant operations. Durable housing protects the internal circuitry from dust and industrial contaminants. Choosing this authentic ABB component ensures maximum uptime for critical manufacturing production lines.
