Description

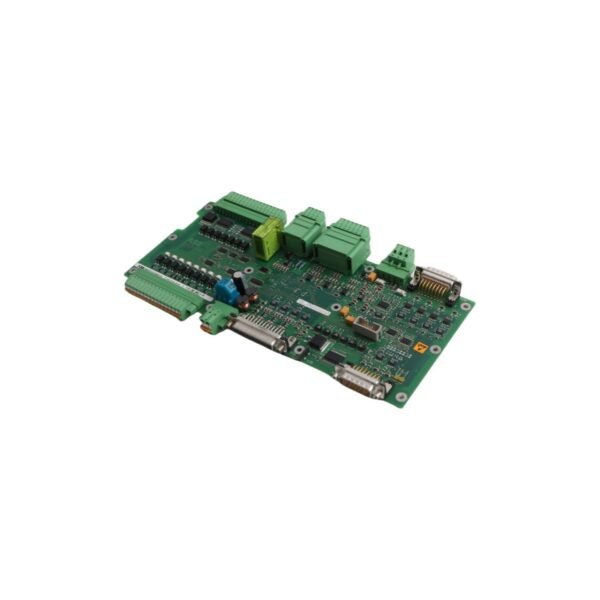

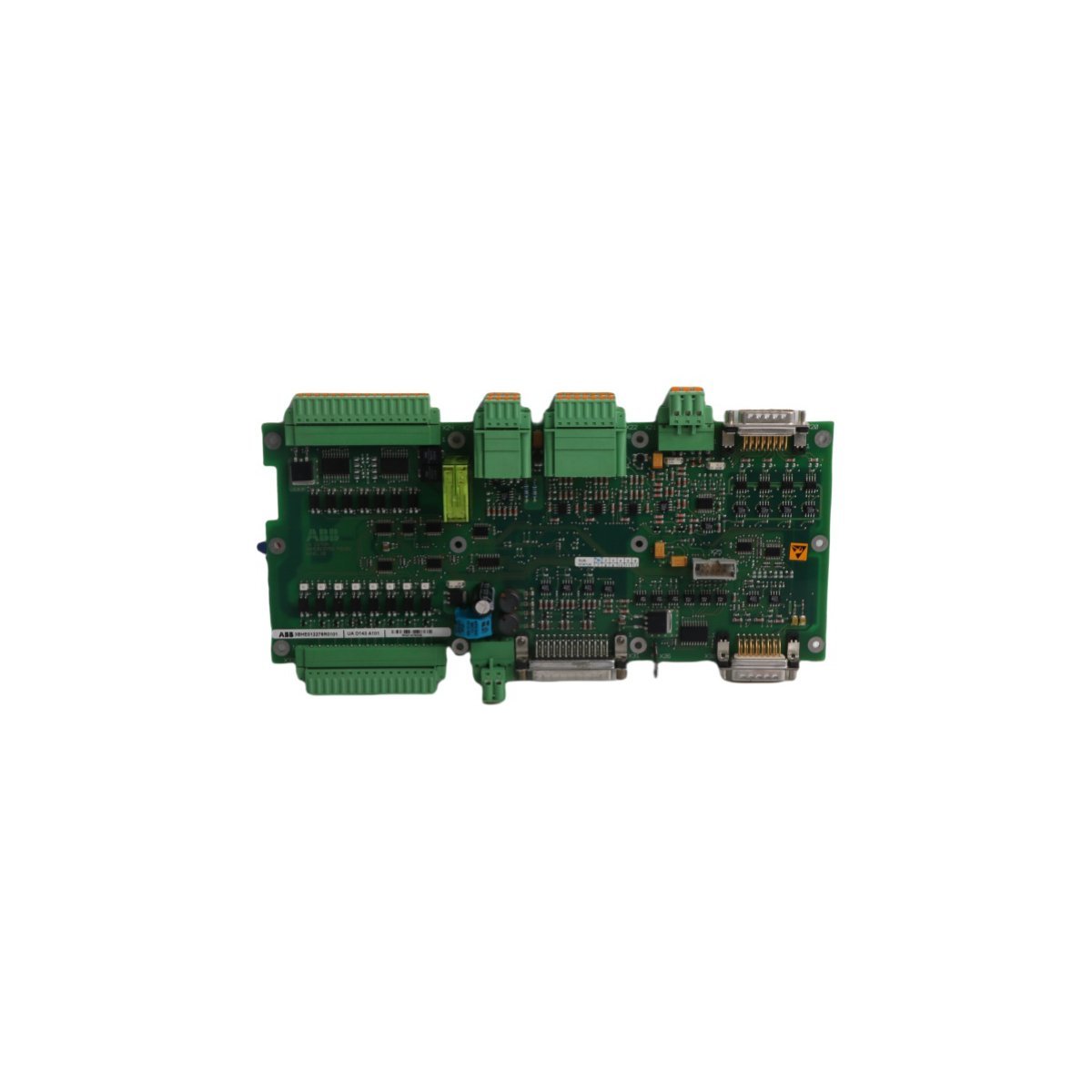

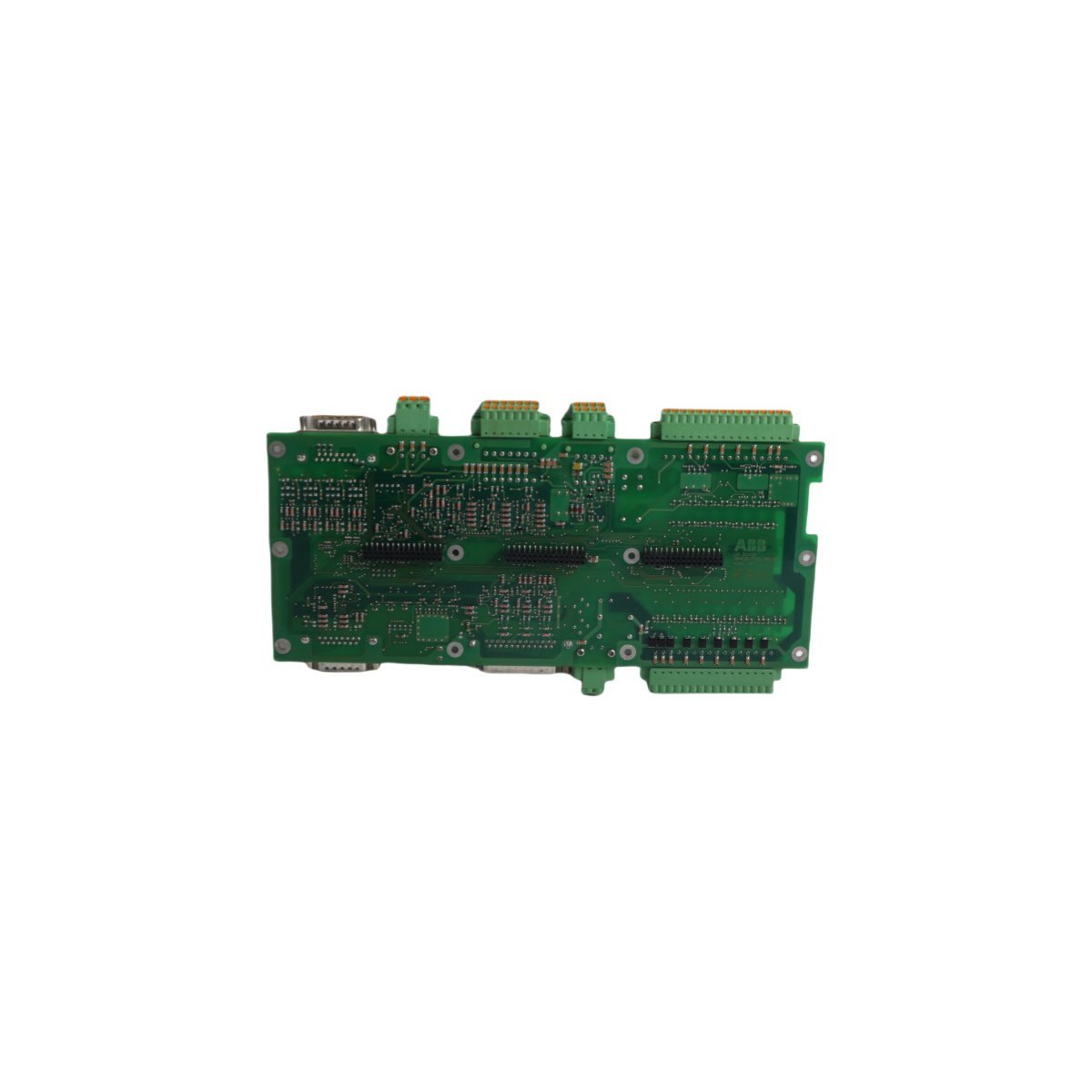

The ABB 3BHE012276R0101, also cataloged as the UAD143A101 PCB Board, operates as a dedicated hardware component for UNITROL excitation control logic within DCS networks.

Hardware Specifications

Industrial Control and Firmware Compatibility

The UAD143A101 serves as a core signal processing interface within the UNITROL excitation architecture. Firmware flash compatibility is strictly enforced through the primary control rack backplane. Users must ensure that the backplane bus communication velocity settings are aligned with the module’s revision index during commissioning. This PCB module facilitates deterministic network data exchange, ensuring high-speed synchronization between excitation regulation loops and external DCS supervision layers.

Frequently Asked Questions

Q: Is this PCB module hot-swappable during excitation system operation?

A: No. Power must be isolated from the specific rack slot prior to removal or insertion to prevent damage to the backplane communication pins or logic corruption.

Q: Does this module require specific firmware version matching for integration?

A: Yes. The 3BHE012276R0101 must be verified against the host controller firmware matrix to ensure compatibility with existing application control logic.

Q: Are there specific grounding requirements for this PCB?

A: Yes. The module housing and its mounting points should maintain a low-impedance connection to the chassis ground to manage electromagnetic interference and potential surge voltages within the excitation cabinet.

Field Installation Guidelines

• Verify the integrity of the cabinet backplane connector before inserting the UAD143A101.
• Maintain electrostatic discharge (ESD) precautions by utilizing a grounded wrist strap when handling the PCB module.
• Align the PCB edges with the cabinet guide rails and insert the module until the locking mechanism engages securely.
• Ensure all signal wiring is routed away from high-voltage power cables to minimize signal noise injection.
• Perform a visual inspection of the status LEDs upon power-up to confirm the module has passed internal self-diagnostic routines.
