Description

Brief Product Description

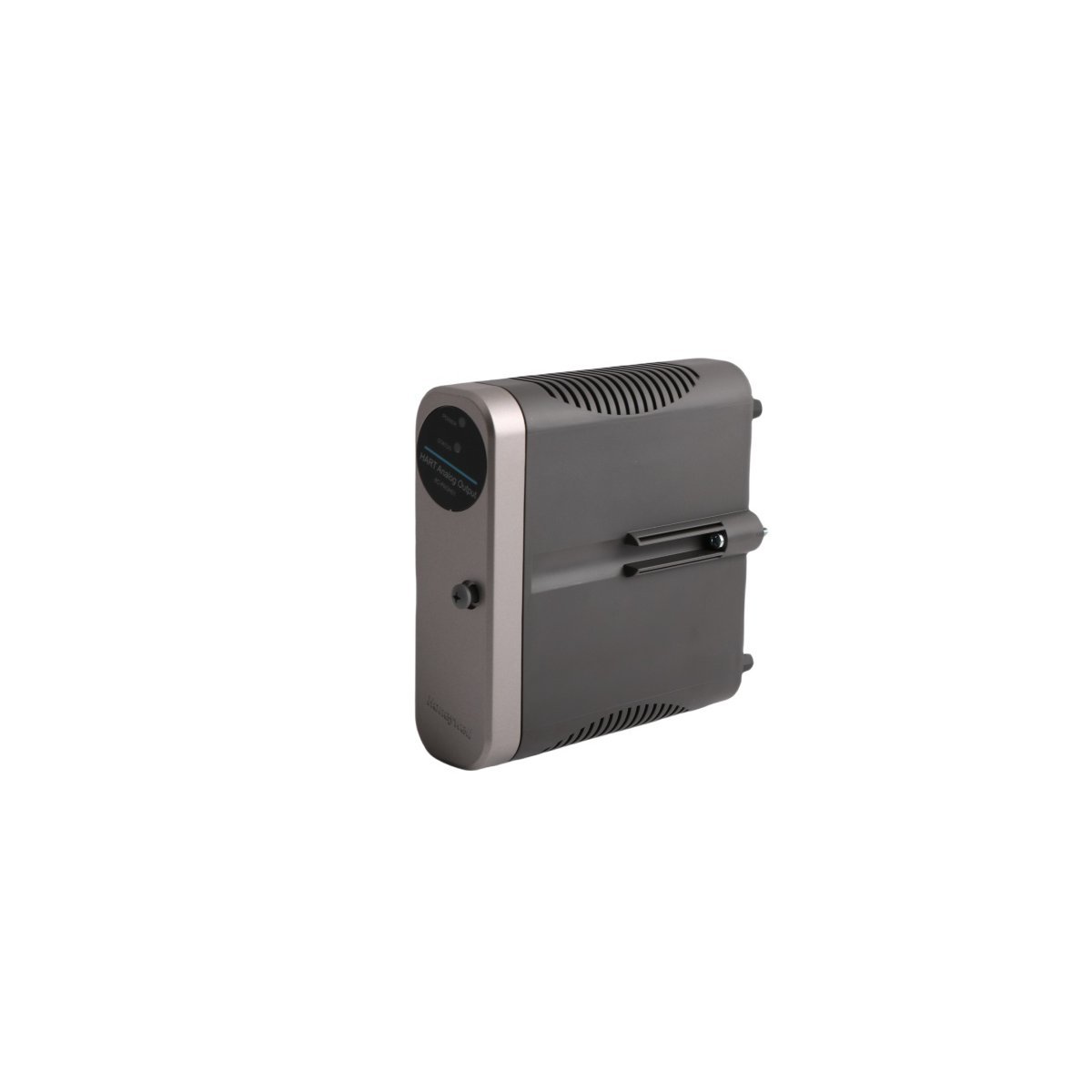

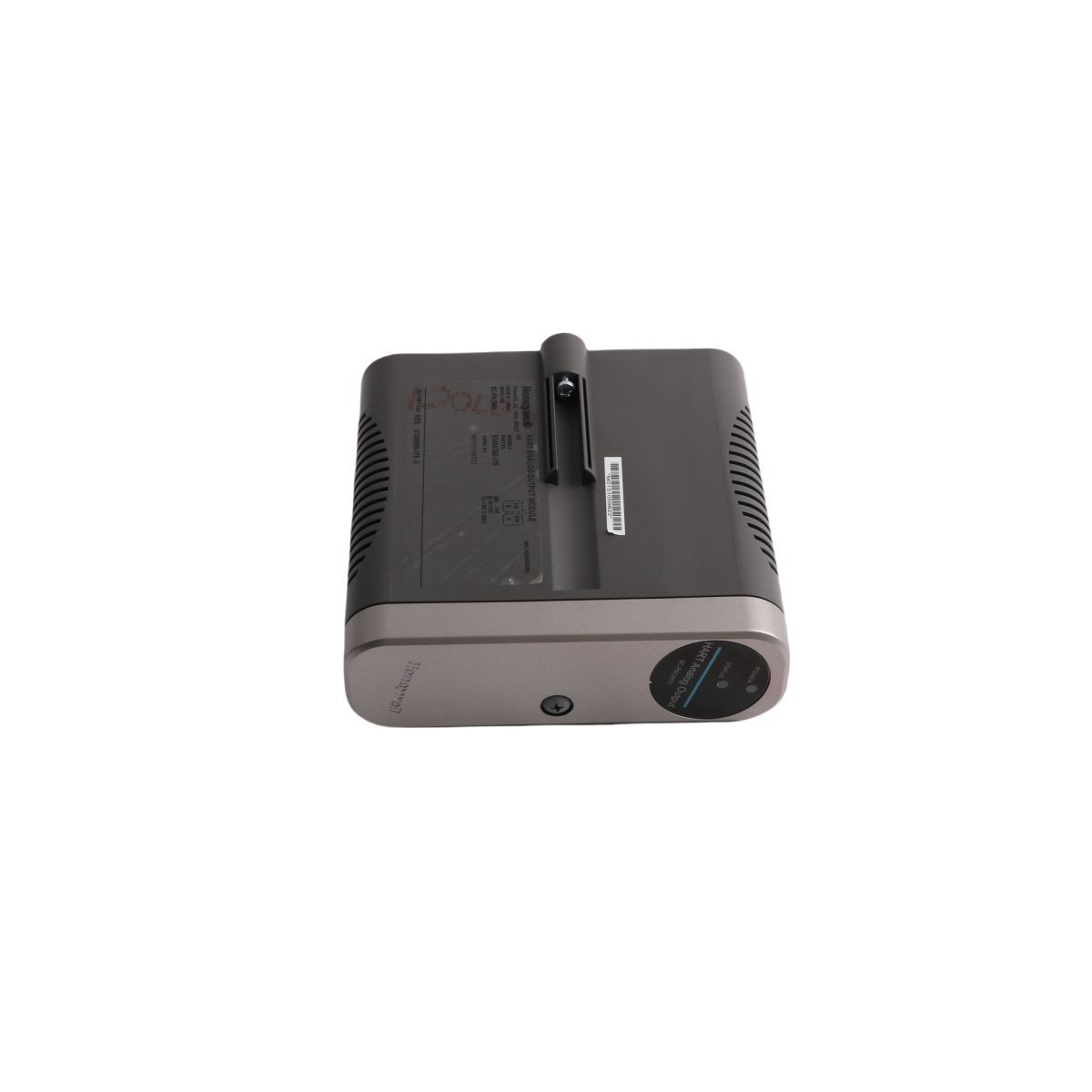

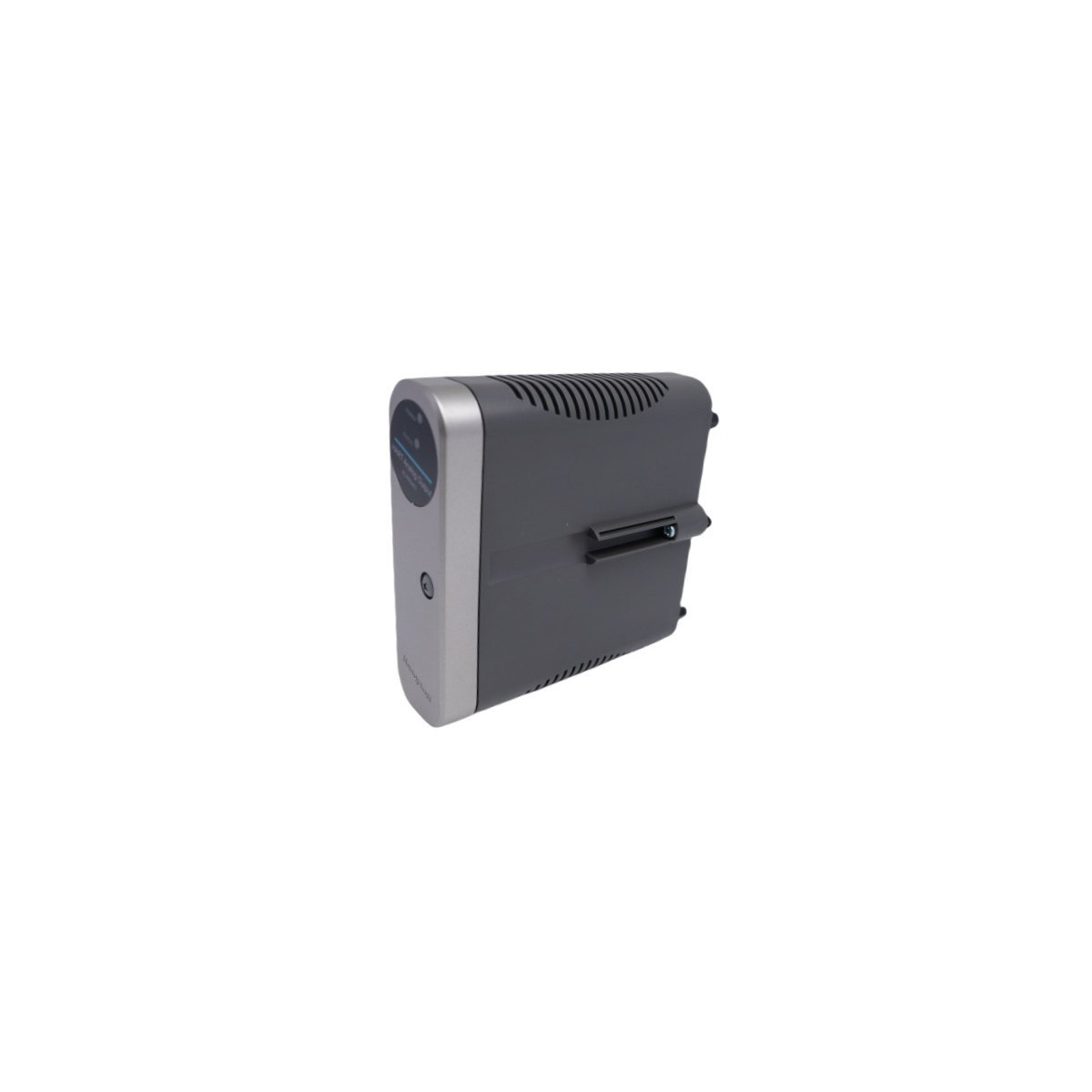

The Honeywell 8C-PAOH51 (51454355-175) is a high-density Series C Analog Output module designed for the Experion Process Knowledge System (PKS). This module provides 16 channels of precision current output to accurately drive final control elements such as control valves and variable speed drives.

Product Description

Precision Process Actuation

The Honeywell 8C-PAOH51 functions as a critical link between the digital control logic of the Experion PKS and physical field equipment. By converting digital commands into accurate 4-20mA analog signals, the module ensures precise positioning of actuators and valves. This high level of control accuracy directly improves product quality and energy efficiency in demanding sectors like oil and gas, refining, and power generation. Furthermore, the 51454355-175 hardware utilizes a Series C vertical profile, which optimizes cabinet airflow and reduces the thermal footprint of the I/O subsystem.

Advanced Diagnostics and Maintenance

The 51454355-175 module incorporates extensive self-diagnostic capabilities to monitor the health of each individual output channel. It identifies open loops and short circuits instantly, transmitting status alerts to the central controller to prevent process upsets. Because the module supports HART (Highway Addressable Remote Transducer) digital communication pass-through, maintenance teams can perform remote configuration and calibration of smart field devices. This integration reduces the need for physical field inspections and streamlines the troubleshooting process for complex control loops.

Robust Series C Engineering

Designed for long-term industrial endurance, the Honeywell 8C-PAOH51 features a “plug-and-play” design that simplifies system expansion and hardware replacement. The module mounts onto an Input Output Termination Assembly (IOTA), which isolates the sensitive electronics from field wiring and potential electrical surges. This architecture ensures that the system remains operational even in environments characterized by high vibration or electromagnetic interference. By prioritizing high uptime and hardware reliability, Honeywell has established the 8C-PAOH51 as a foundational component for modern Distributed Control Systems (DCS).

Technical Specifications
