Description

Product Overview

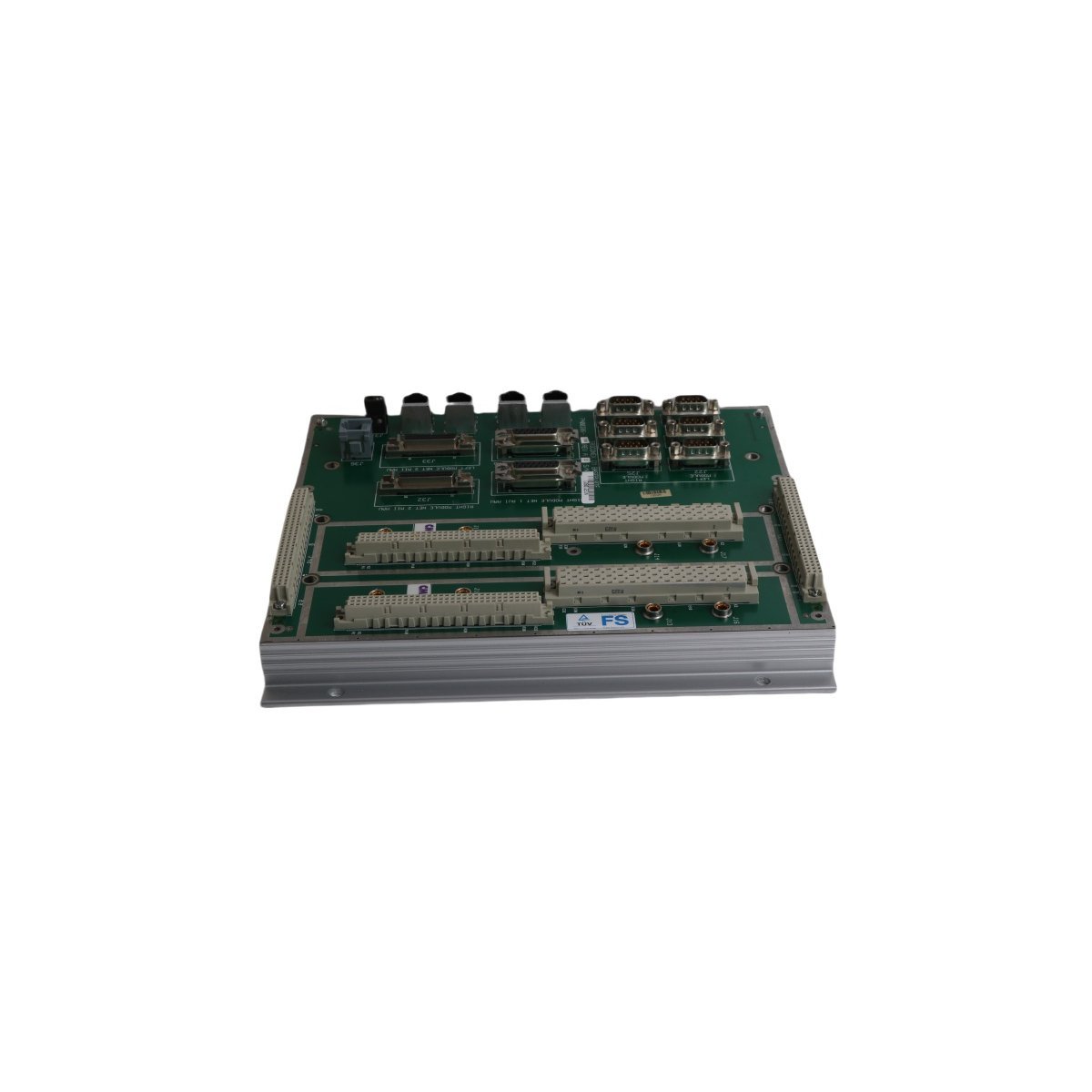

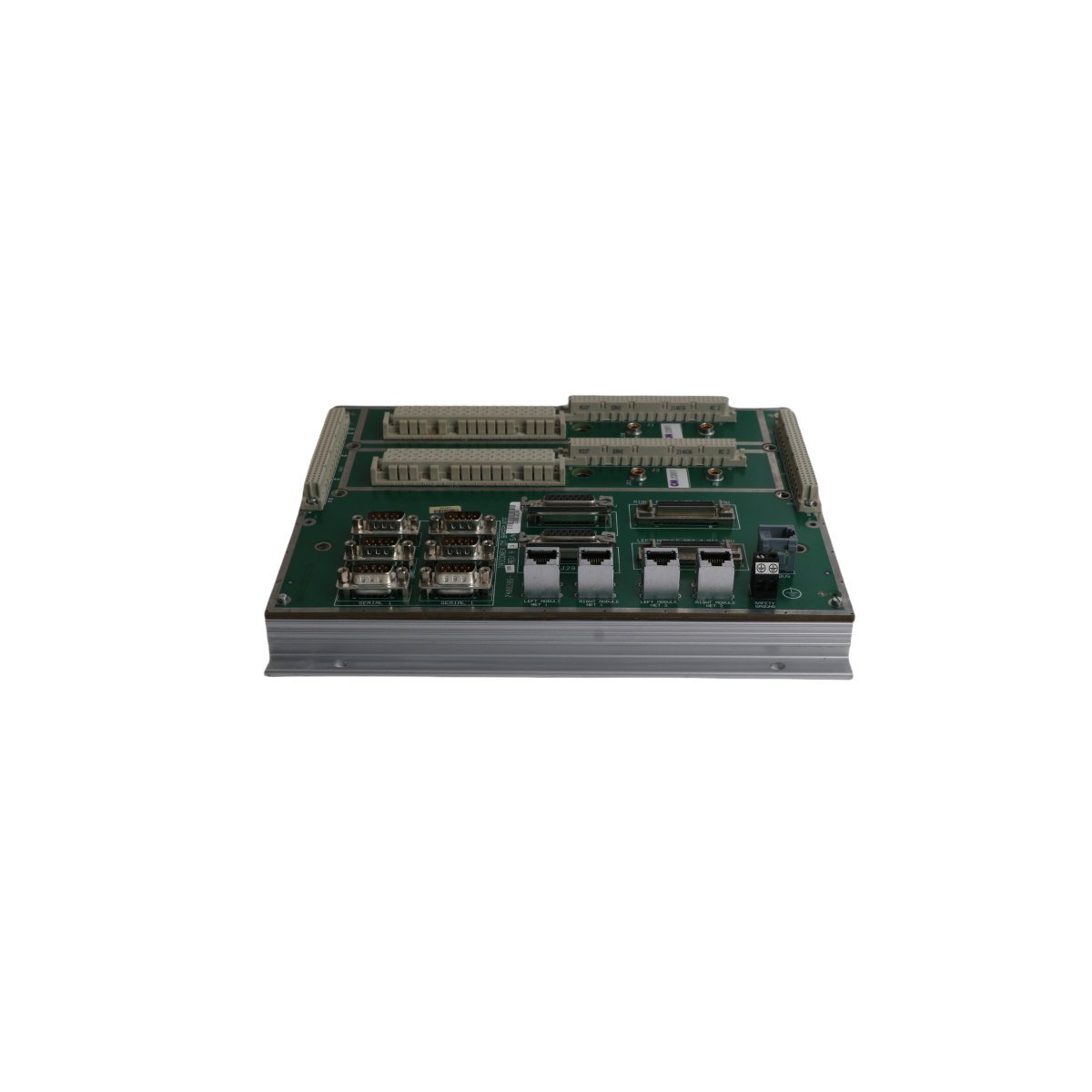

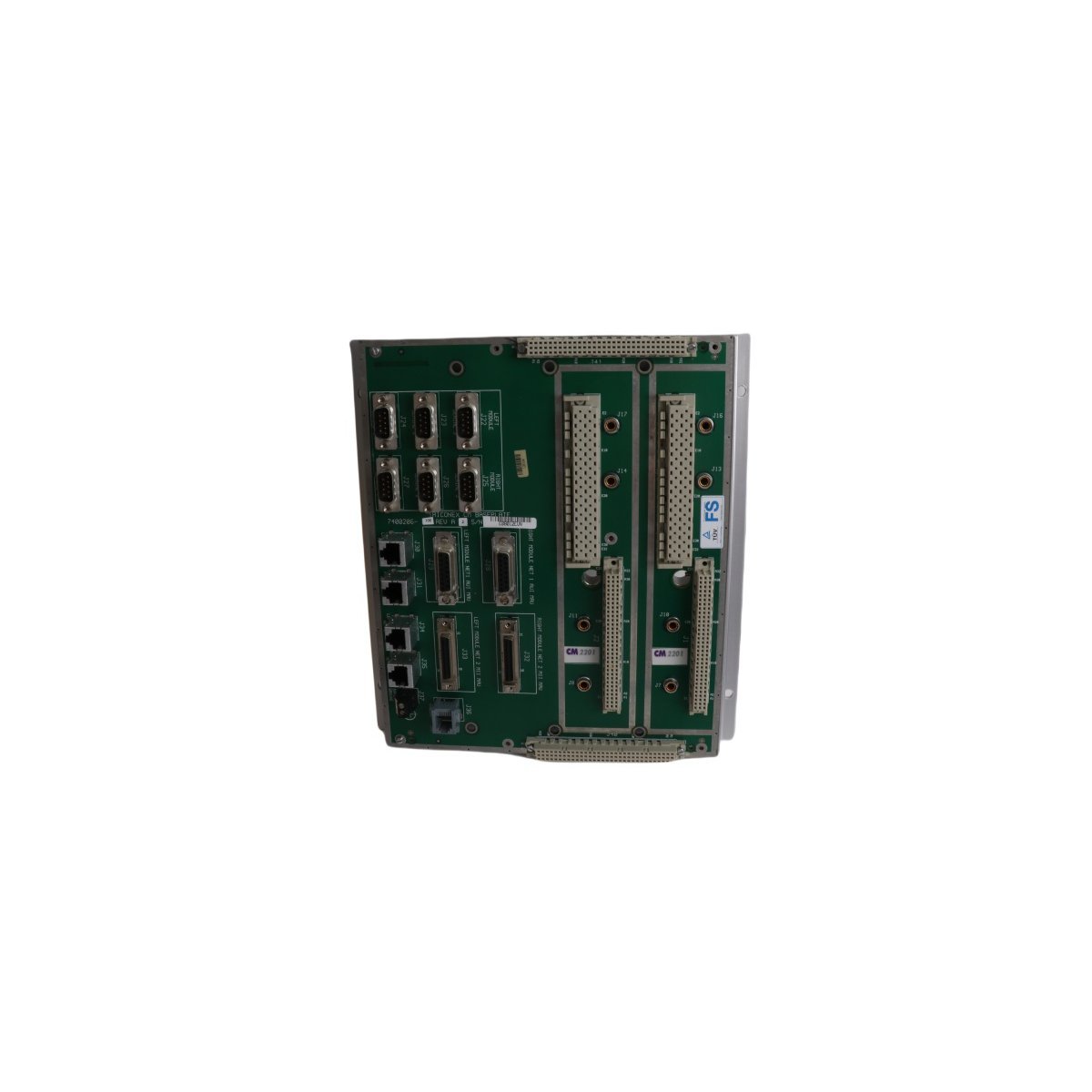

The Triconex CM2201 7400206-100 is a high-performance communication module designed for the Trident safety system, providing a secure gateway between the safety controller and external networks. This module manages critical data exchange while maintaining the architectural integrity required for SIL 3 safety applications.

Centralized Network Integration and Data Routing

The CM2201 7400206-100 functions as the primary data conduit for the Triconex Trident controller, enabling the safety system to share vital status information with the broader industrial facility. By acting as a centralized hub, the module facilitates the flow of logic and diagnostic data between I/O points and supervisory control systems. It effectively manages high-density data traffic, supporting up to 2048 I/O points. This robust throughput ensures that even as a facility expands, the communication backbone remains capable of handling increased signal loads without compromising the speed of safety-critical updates.

Multi-Protocol Versatility and Connectivity

Modern industrial environments rely on diverse networking standards, and the CM2201 7400206-100 addresses this through comprehensive protocol support. The module integrates seamlessly with industry-standard frameworks including Modbus (RTU/TCP), OPC, and Ethernet/IP. Consequently, engineers can link the Trident safety system directly to Distributed Control Systems (DCS), Human-Machine Interfaces (HMI), and plant historians. This interoperability allows for real-time monitoring of safety parameters across the entire plant floor, enhancing the transparency of protected processes in chemical plants, refineries, and power generation units.

Fault-Tolerant Design for Safety Environments

Built to the rigorous standards of the Triconex family, the 7400206-100 communication module prioritizes system availability and fault isolation. The hardware architecture ensures that communication tasks remain separate from the execution of safety logic, preventing external network issues from interfering with the controller’s primary protective functions. Additionally, the module supports hot-swappable replacement, which allows technicians to maintain or upgrade communication links without interrupting the active safety process. This feature proves invaluable for continuous operations where system downtime carries significant economic and safety risks.

Technical Specifications
