Description

Product Overview

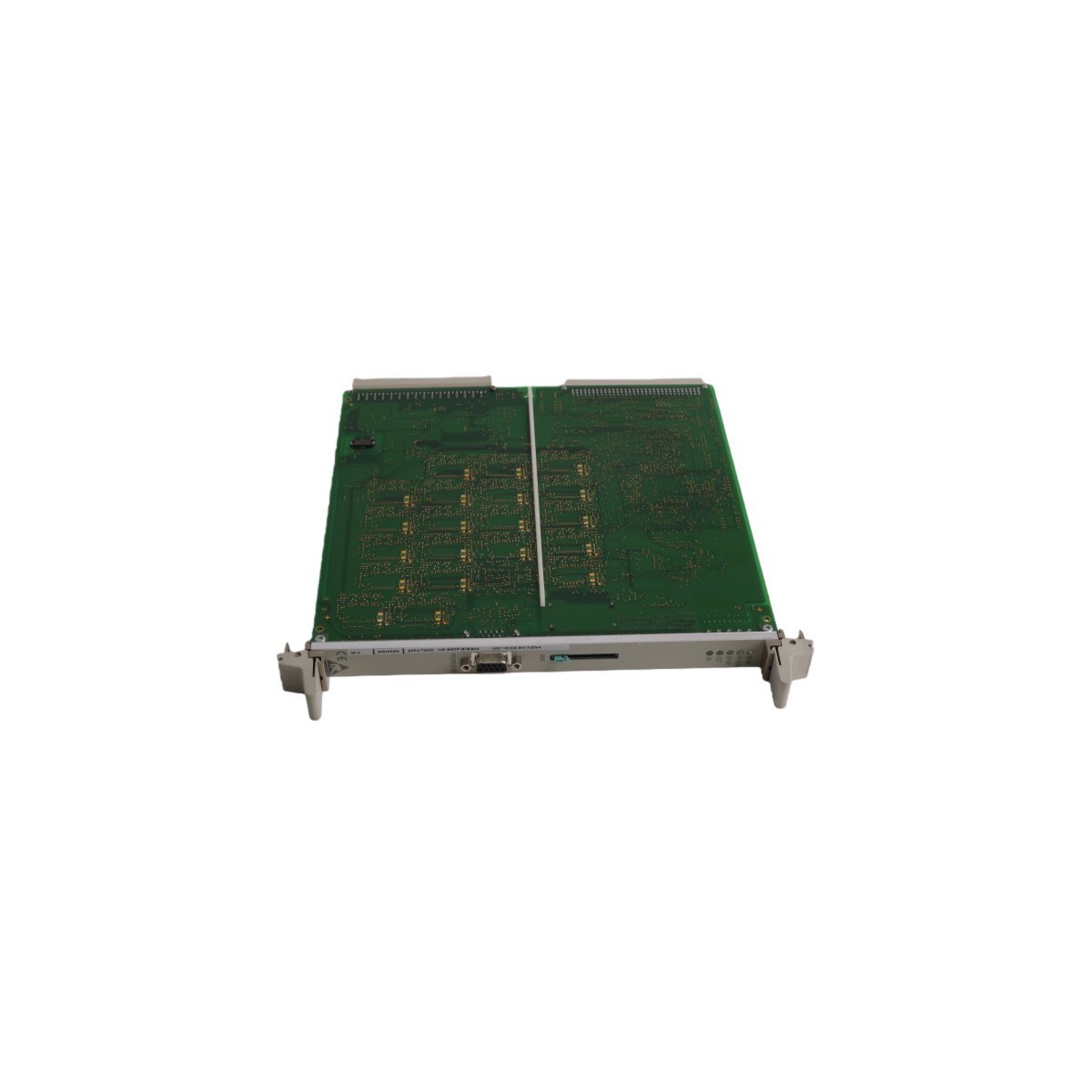

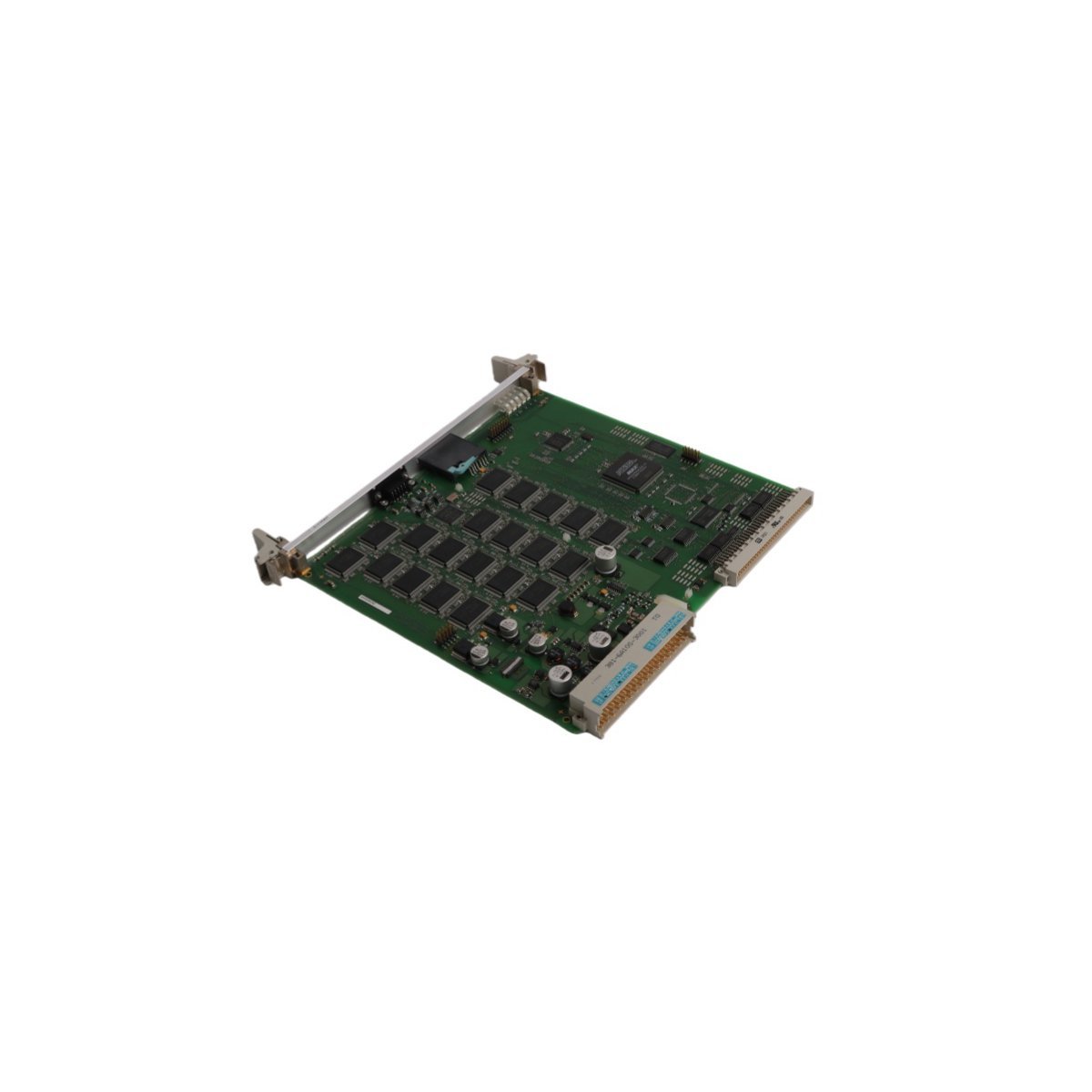

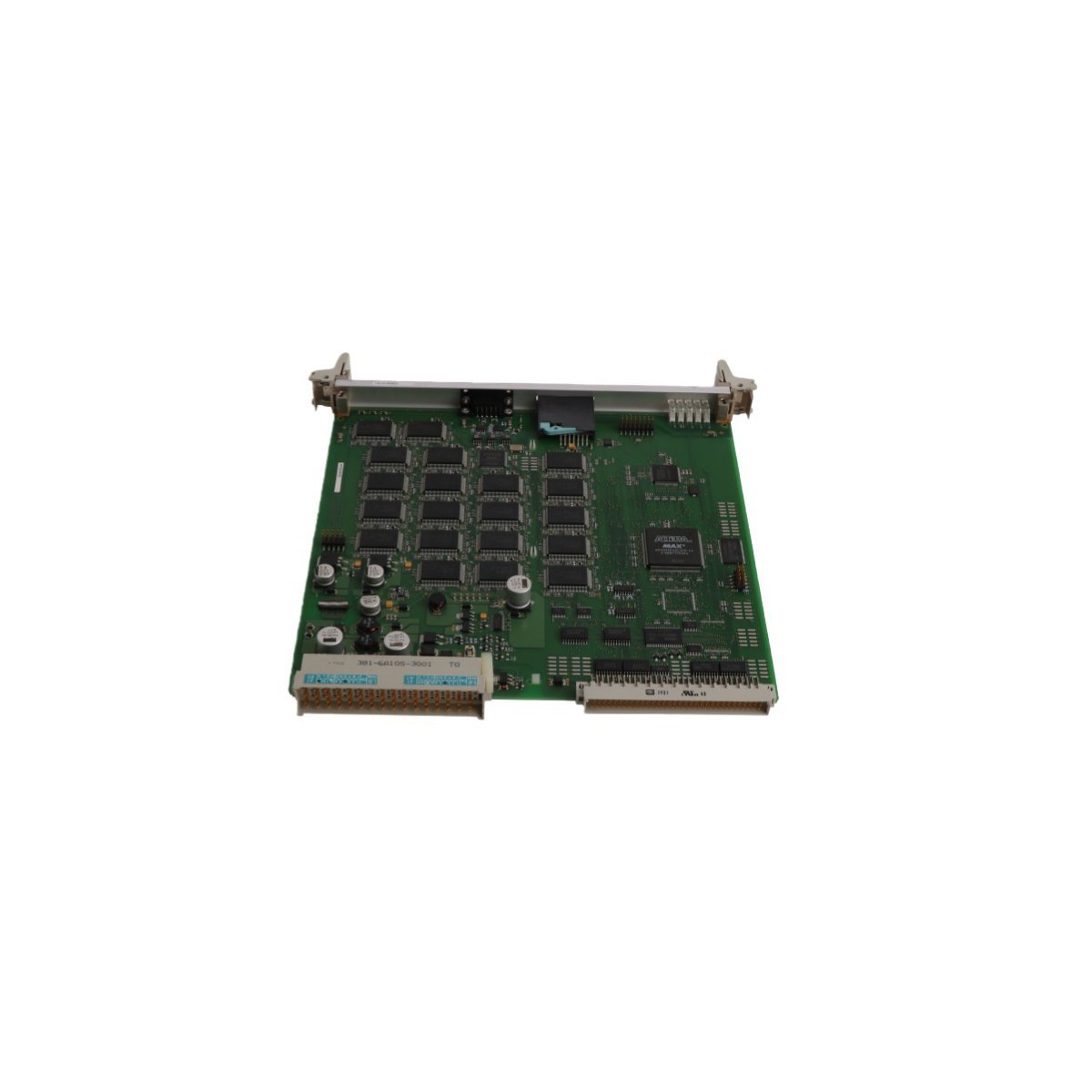

The Siemens 6DP1616-8BA is a specialized IM 616 interface module designed to integrate TELEPERM XP legacy subracks into modern PROFIBUS-DP networks.³ This communication processor functions as a high-speed gateway, allowing newer SIMATIC S7 controllers to manage existing TELEPERM XP I/O assets seamlessly.

Bridging Legacy Infrastructure and Modern Control

The 6DP1616-8BA serves as a vital communication link within the TELEPERM XP process control ecosystem.⁴ By operating as a dedicated PROFIBUS-DP slave, this module enables a FUM B subrack to communicate directly with a higher-level master system, such as a SIMATIC S7-400 PLC.⁵ This integration effectively transforms traditional local I/O into distributed I/O, allowing central processing units to access field data across different hardware generations. Consequently, industrial facilities can modernize their control architecture while maintaining their investment in proven field-level hardware.

High-Performance Data Exchange

Engineered for the rigorous demands of power generation and chemical processing plants, the IM 616 ensures rapid and reliable data transfer between systems. It manages the complex protocol conversion required to translate internal TELEPERM XP bus signals into standardized PROFIBUS-DP packets. Furthermore, this module supports the full address space of the connected I/O subrack, ensuring that no data points are lost during the migration. Because the module maintains high signal integrity, it facilitates real-time monitoring and control of sensors and actuators located in remote subracks.

Strategic Life Cycle Management

Integrating the 6DP1616-8BA into an automation strategy provides a cost-effective path for system expansion and technological upgrades. Instead of performing a complete system replacement, users can leverage this interface module to phase in newer PLC technology at the supervisory level. This approach drastically reduces downtime and commissioning costs. Although it is a specialized component, the module’s robust design ensures long-term operational stability and protects data continuity in environments where system reliability is paramount.

Technical Characteristics
