Product Overview

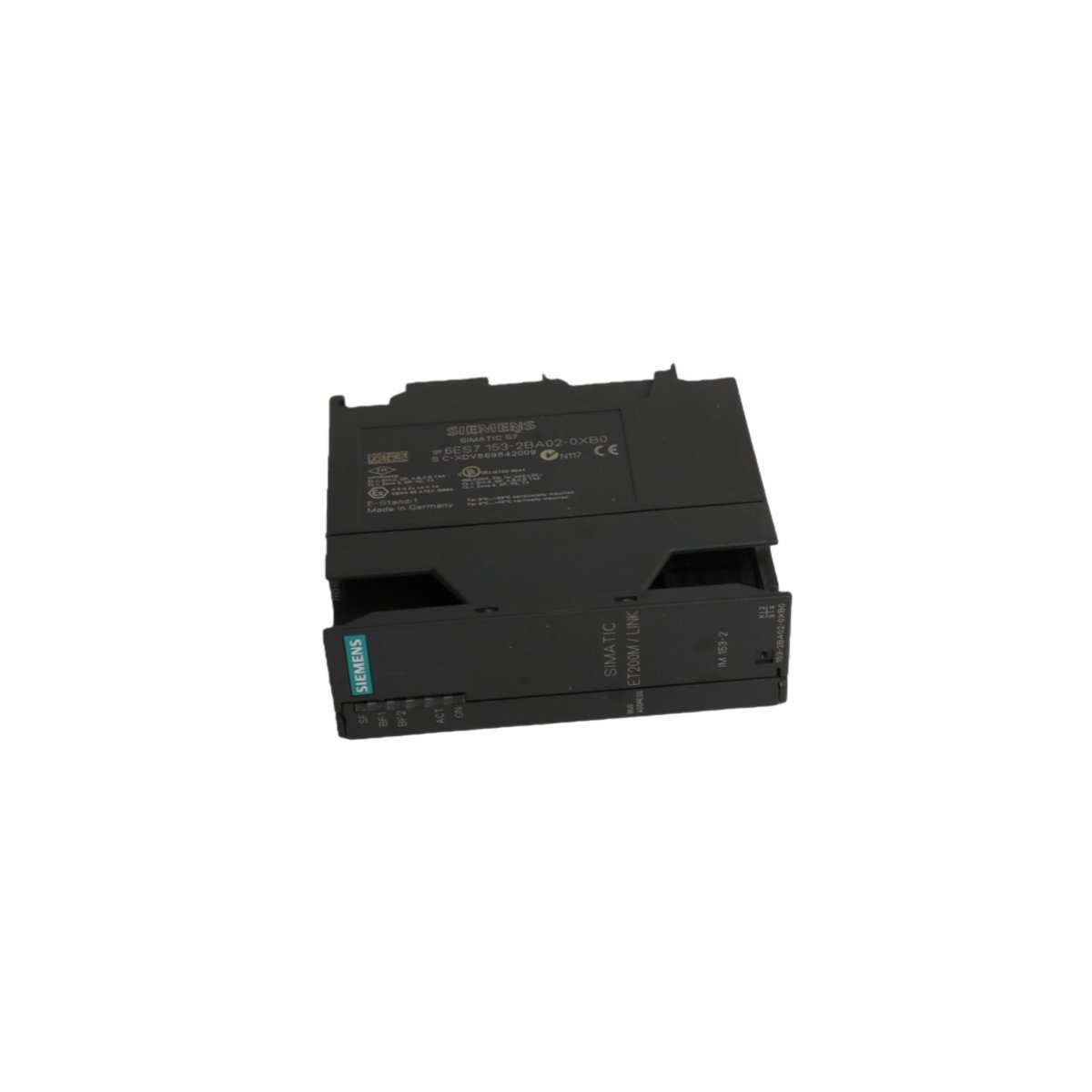

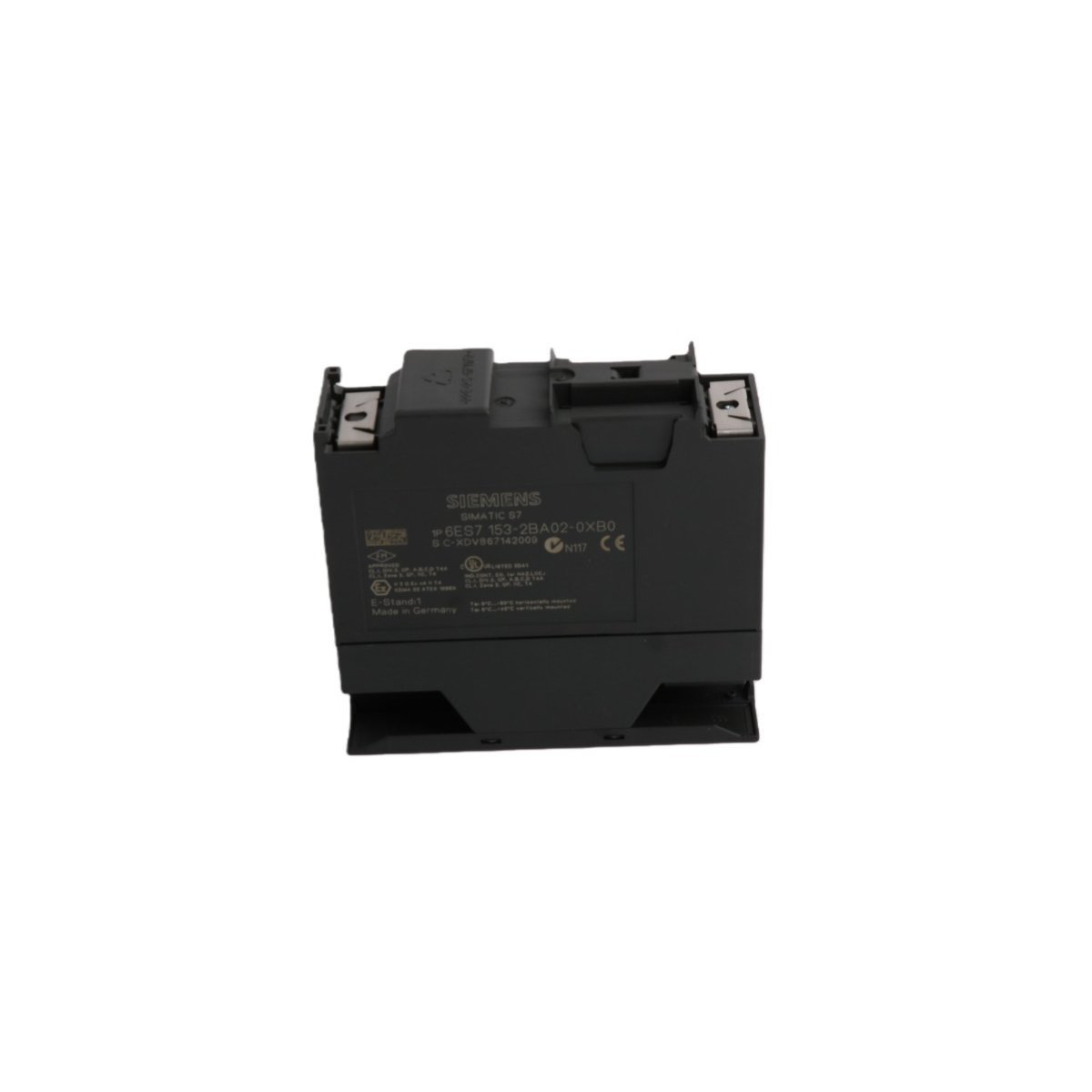

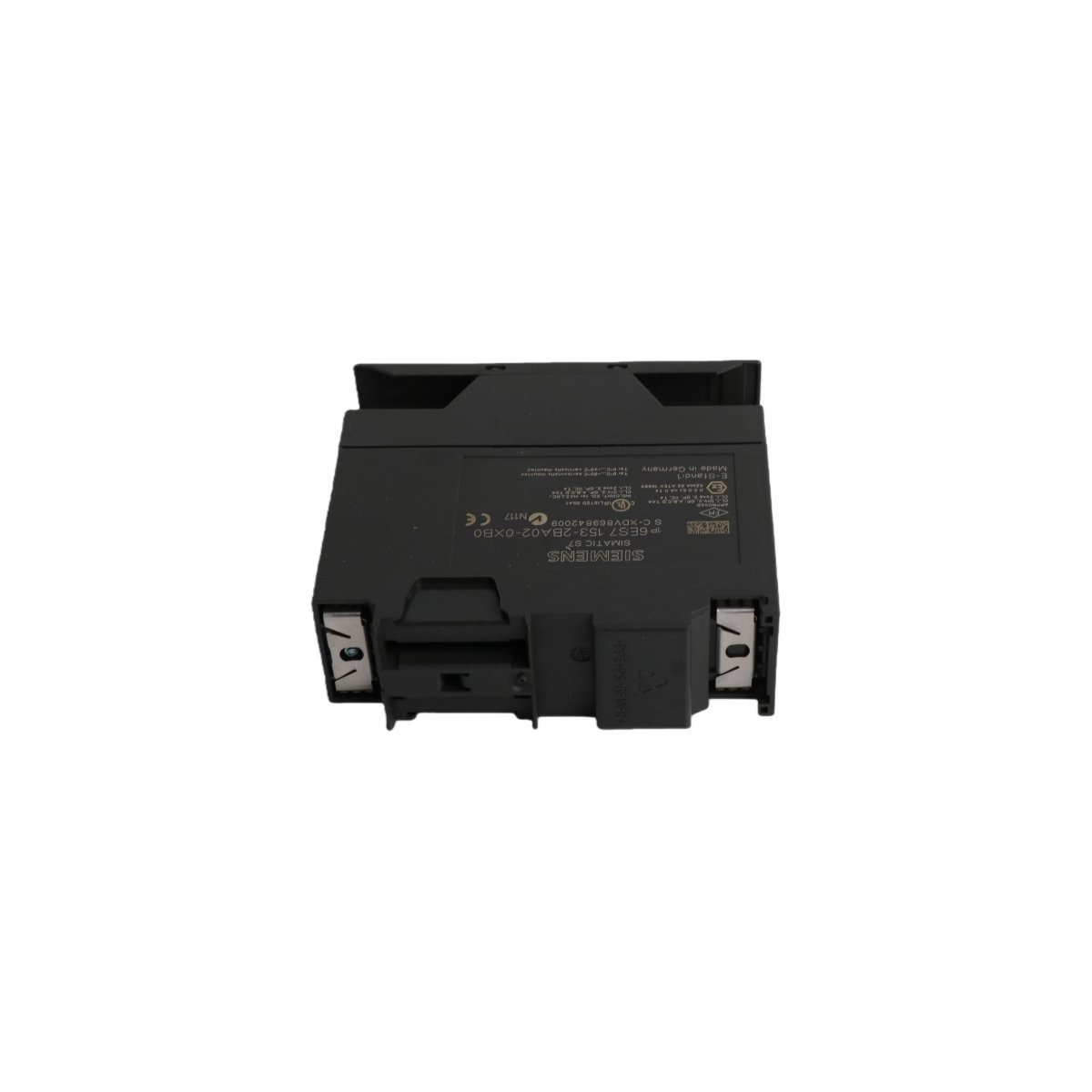

The Siemens 6ES7153-2BA02-0XB0 is a High Feature IM 153-2 interface module designed to link the ET 200M distributed I/O station to a PROFIBUS DP network. It enables high-density I/O configurations and supports advanced system functions like redundancy and time-stamping for mission-critical automation tasks.

Advanced Distributed I/O Connectivity

The 6ES7153-2BA02-0XB0 serves as the primary communication link for the SIMATIC ET 200M system. Consequently, it allows for the integration of up to 12 S7-300 I/O modules into a single station. This module provides a High Feature set, which specifically includes support for isochronous mode and hardware-based time-stamping of signals. By implementing this interface, engineers achieve precise synchronization between distributed hardware and the central controller. This synchronization is vital for high-speed manufacturing and complex process control applications.

System Redundancy and Process Optimization

Industrial environments often demand continuous uptime; therefore, this interface module facilitates high availability through full PROFIBUS DP redundancy. When you install the unit on active bus modules, the 6ES7153-2BA02-0XB0 supports “Hot Swapping” (Configuration in Run). This allows users to replace I/O modules during live operation without interrupting the entire station. Furthermore, the module enhances process transparency by handling HART secondary variables and supporting extended diagnostic data. This capability proves indispensable for process industries where detailed instrument feedback is required for preventive maintenance.

Robust Performance and Drive Integration

Beyond standard digital and analog I/O, this module integrates seamlessly with motion control systems via “slave initiative” for Drive ES and Switch ES. This feature optimizes data throughput for torque and speed adjustments by allowing direct communication between the drive and the interface. Moreover, Siemens built this hardware for longevity in harsh conditions, ensuring it maintains stable performance across a broad temperature range. Its ability to manage 64-channel modules ensures that even the most signal-dense environments remain manageable within a compact footprint.

Technical Characteristics
