Product Overview

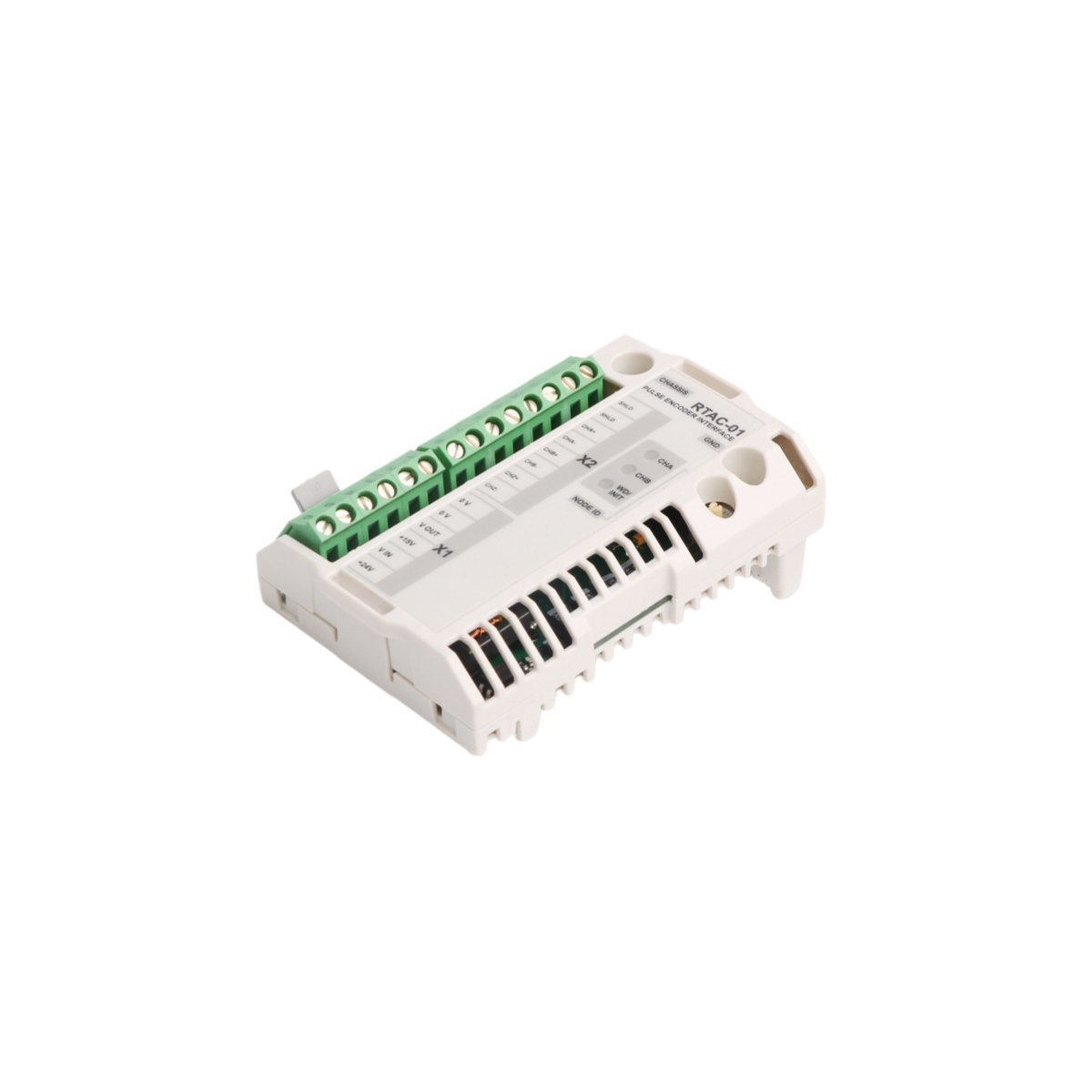

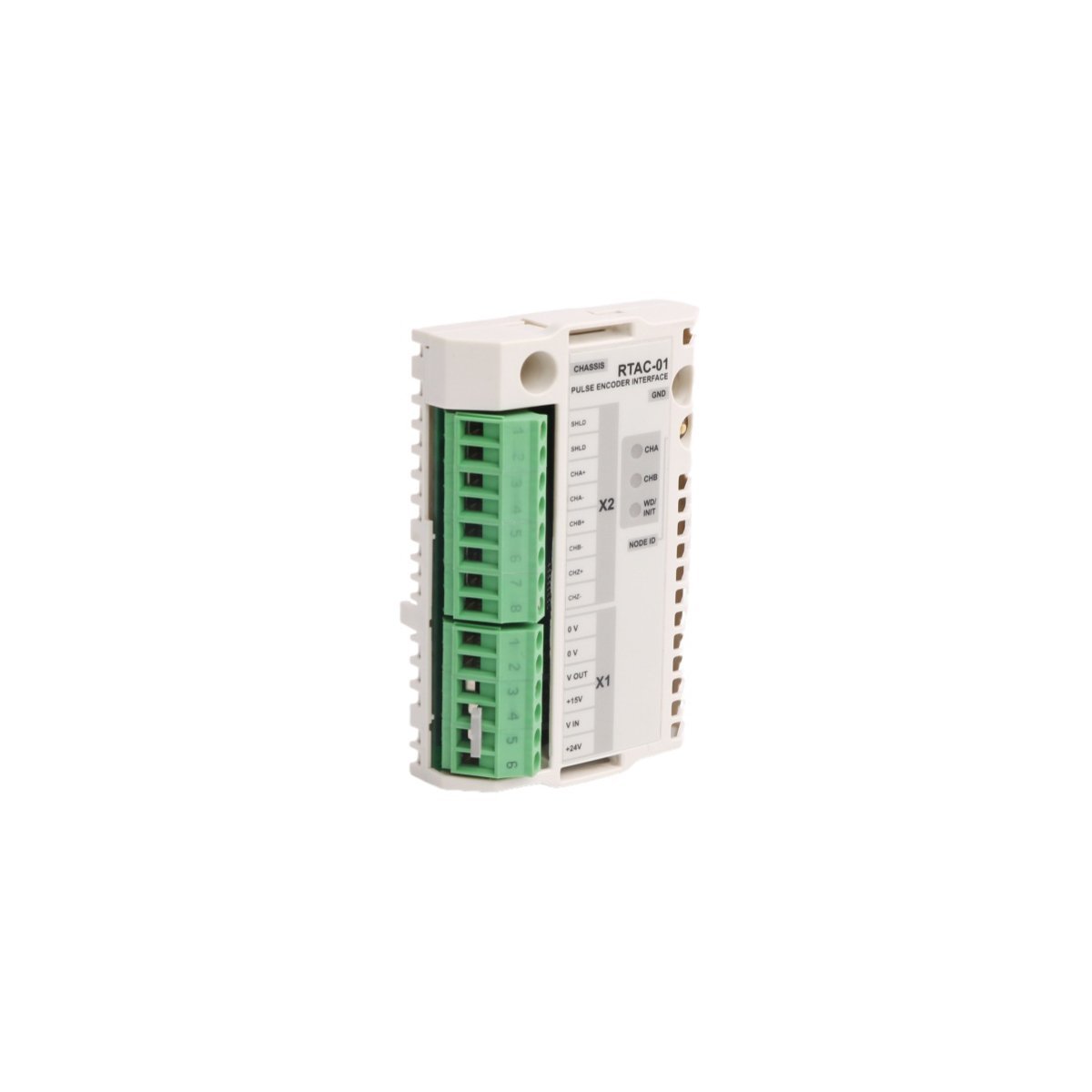

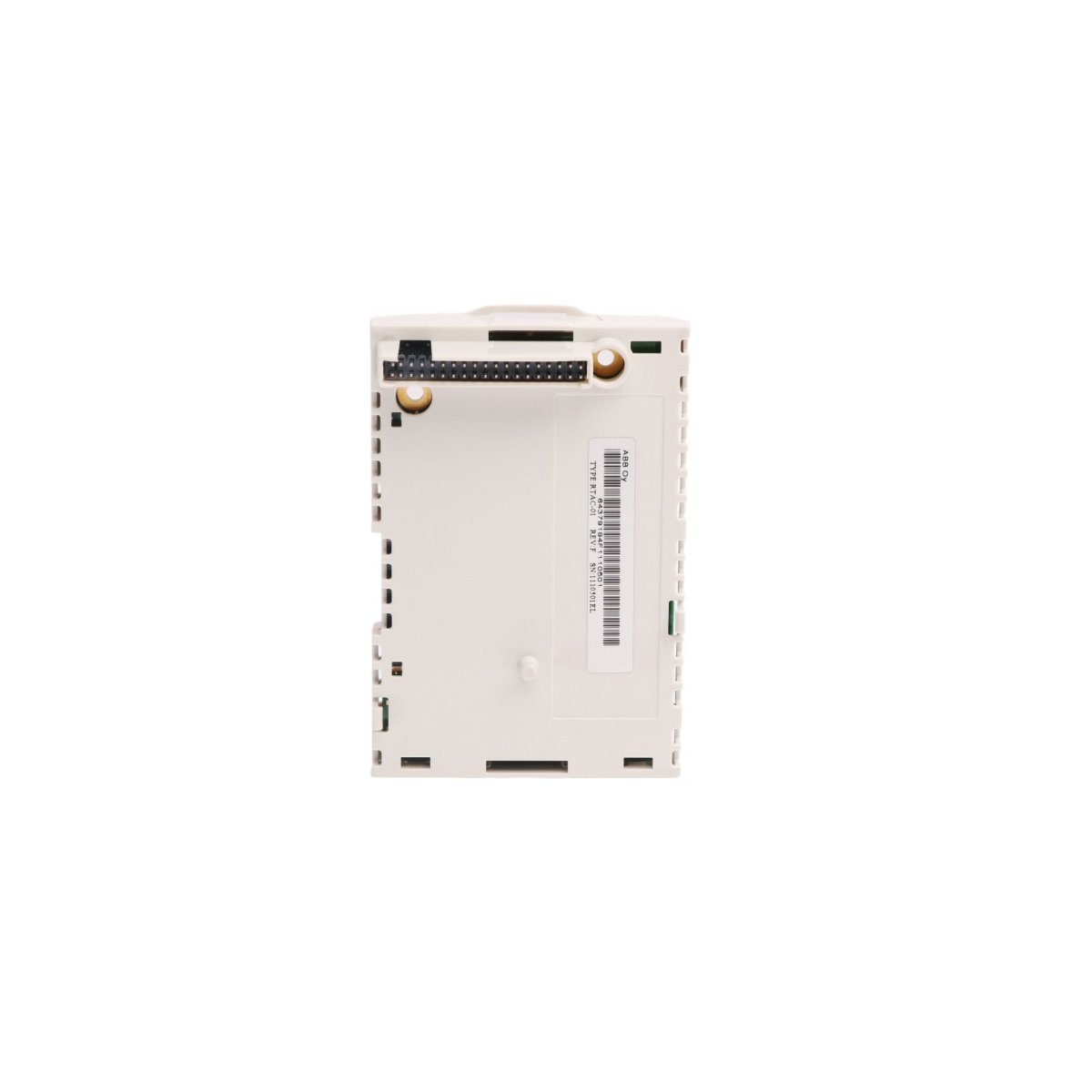

The ABB RTAC-01 64610805 is a high-precision pulse encoder interface designed specifically for ACS800 and DCS800 industrial drives. It acts as the primary feedback link between the motor’s rotary encoder and the drive controller to enable closed-loop speed and position control.

High-Fidelity Signal Processing and Drive Integration

The RTAC-01 module serves as a critical bridge in the motion control loop, converting raw encoder pulses into actionable data for the drive logic. It supports a versatile range of signals, including both 15 VDC and 24 VDC differential or single-ended configurations. This flexibility allows operators to utilize a variety of industrial encoders without needing additional signal conditioning hardware. Furthermore, this module replaces the legacy part number 64379194, providing a more robust electronic architecture that improves signal clarity and processing speed in high-torque applications.

Engineered for Electrical Noise Immunity

Industrial environments often suffer from electromagnetic interference (EMI), which can corrupt feedback signals and cause drive instability. To combat this, ABB designed the RTAC-01 with integrated noise suppression circuitry. This ensures that the speed and position feedback remains consistent even when cables run near high-voltage motor lines. Consequently, the drive can maintain tighter tolerances during complex automation sequences. The module’s compact design allows for direct mounting within the drive housing, protecting the interface from environmental contaminants and mechanical vibration.

Professional Installation and Application

Integrating the RTAC-01 requires a baseline understanding of electrical drive systems and closed-loop feedback theory. Technicians must ensure the drive is fully de-energized and installed according to safety protocols before attaching the interface card. Once active, the module facilitates precise motion control across various sectors, including material handling, crane operation, and automated processing. Because it provides high-resolution feedback, it significantly enhances the drive’s ability to manage low-speed torque and precise positioning tasks.
