Description

Brief Product Description

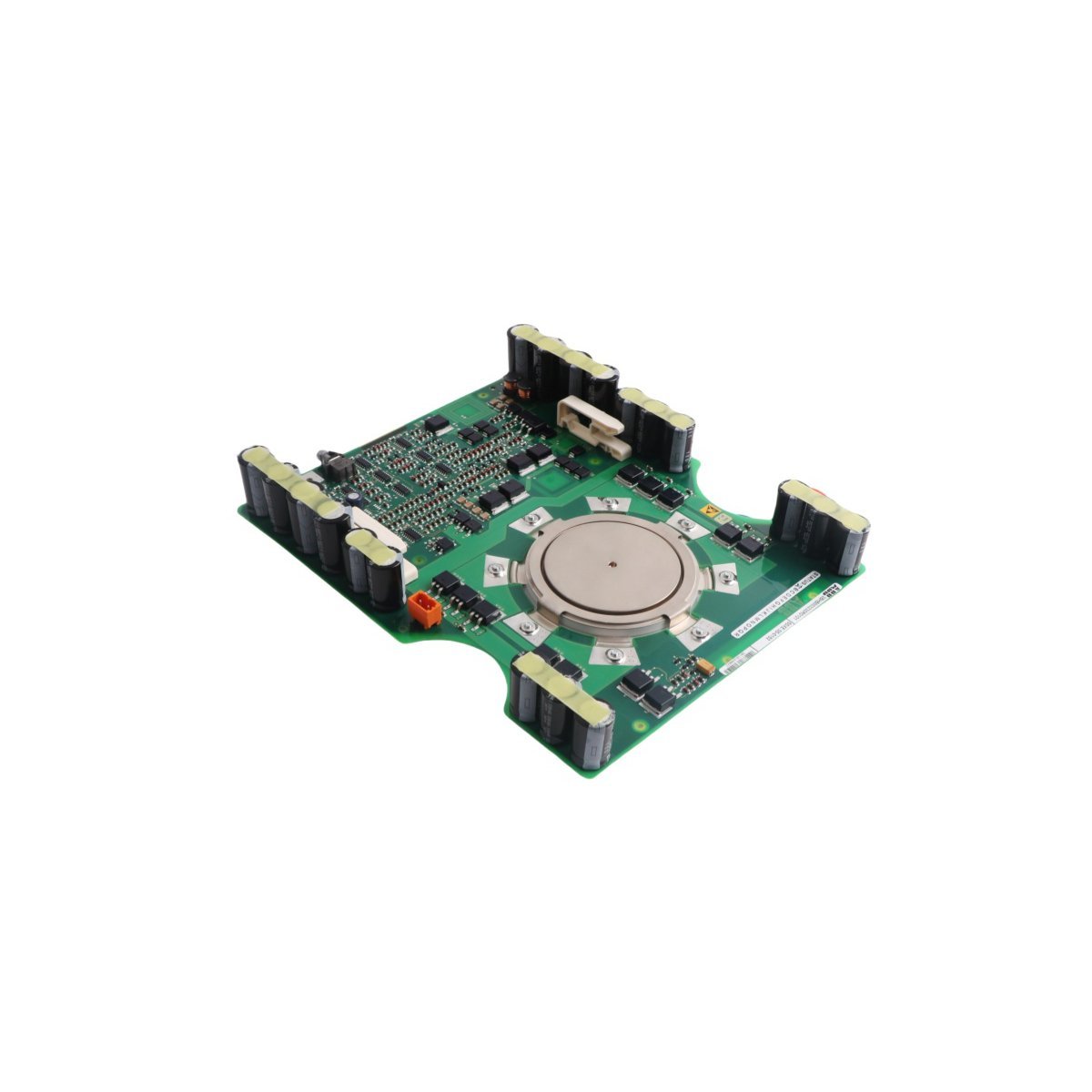

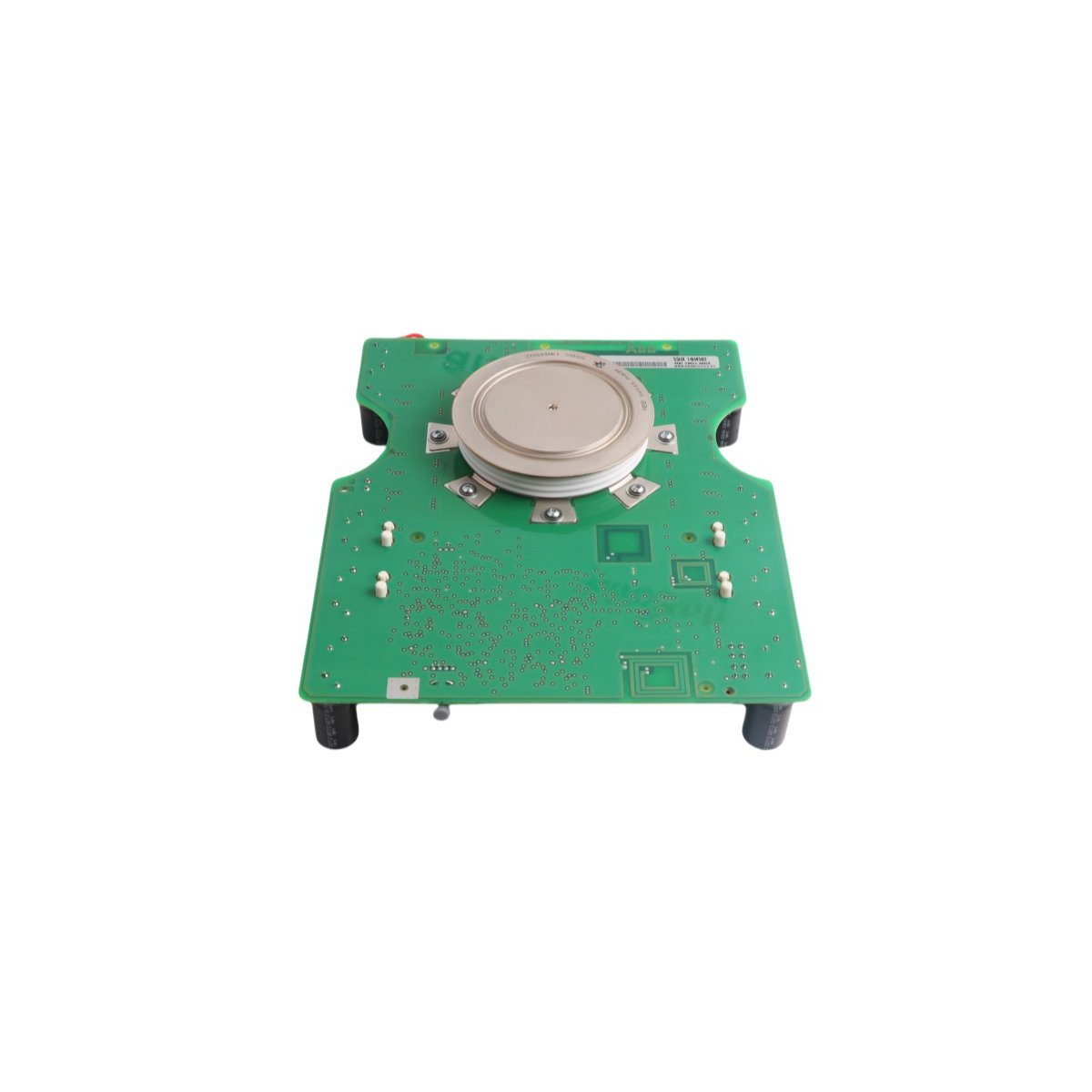

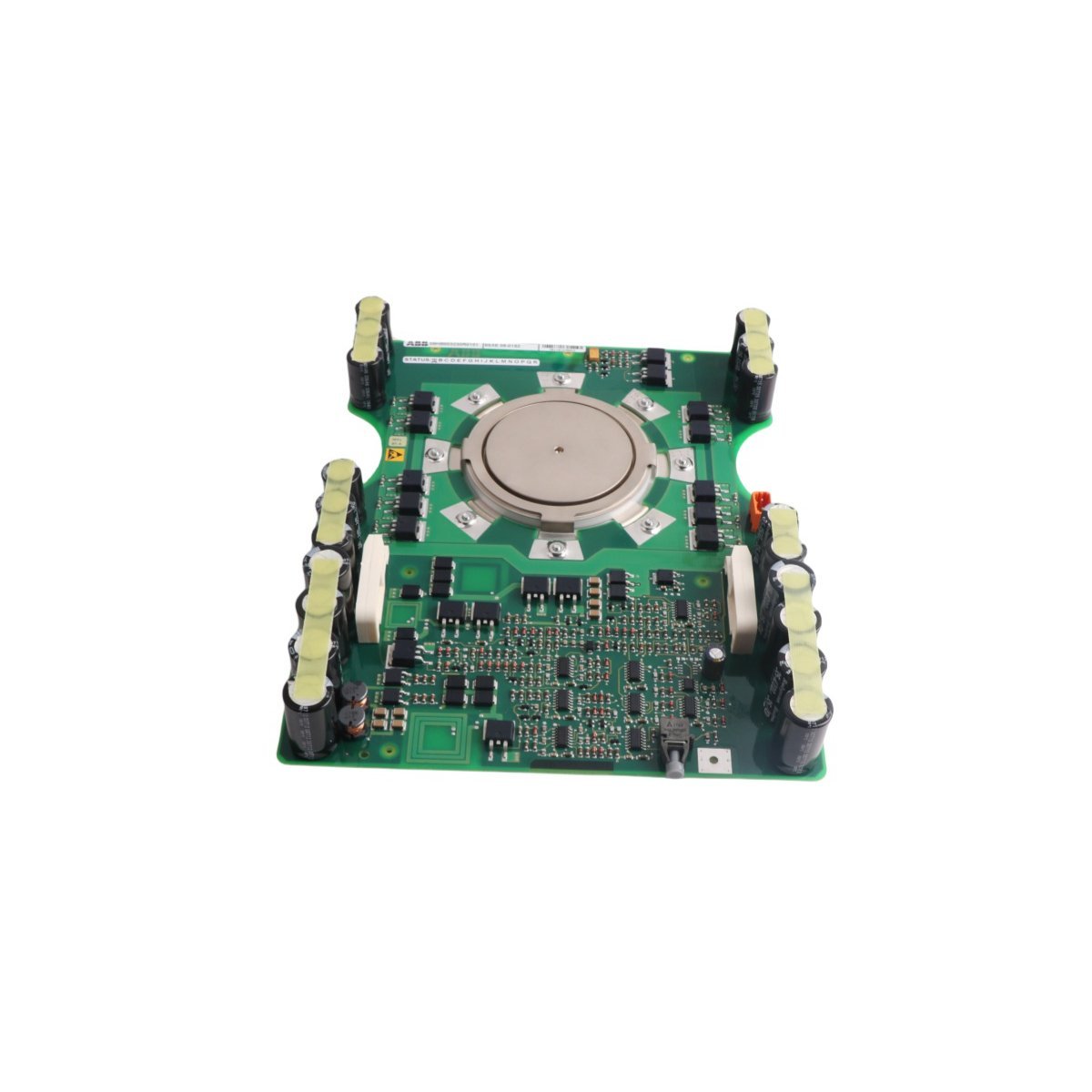

The ABB 3BHL000392R0101 (comprising sub-assemblies 5SHX1060H0001 and 5SXE05-0152) is a specialized IGCT control board engineered for high-capacity power switching and precision motion planning. This module provides critical gate-drive functionality, ensuring rapid charge extraction and stable performance in demanding industrial automation and robotic drive systems.

Product Description

High-Power Switching and Signal Integrity

The ABB 3BHL000392R0101 serves as a core gate-driver interface for high-power semiconductor applications. This IGCT board generates a precise +20V (±5%) turn-on pulse, capable of reaching a 500A peak capacity to ensure rapid ignition of power components. During the deactivation phase, the module maintains a robust -20V turn-off plateau. Because the hardware supports a di/dt tolerance exceeding 2kA/µs, it protects the system against rapid electrical transients during turn-off sequences. Furthermore, the board maintains exceptional signal integrity with a tight jitter tolerance of ±30ns, which is vital for time-critical automation processes.

Intelligent Control and Memory Architecture

Acting as the primary logic hub for the drive system, the 5SHX1060H0001 module executes high-level decision-making and motion planning. It operates seamlessly alongside specialized robotic computers to coordinate both servo and I/O control tasks. The module accommodates varied operational demands through configurable memory options, typically supporting 4MB or 6MB of RAM. Transitioning between complex tasks is handled efficiently by the +24V DC logic input, which consumes a steady 200mA current, ensuring the central control hub remains stable within complex industrial networks.

Extreme Reliability and Safety Redundancy

Industrial environments require hardware that resists failure under thermal and electrical stress. The 3BHB003230R0101 / 5SXE05-0152 is rated for operation in extreme temperatures ranging from -40°C to +85°C. To maximize system uptime, ABB integrates dual Run Chain protection and motor temperature monitoring directly into the safety circuitry. Additionally, the board features a redundant power solution comprising dual 3.6V lithium batteries. This intelligent backup system prevents data loss and maintains logic integrity during primary power interruptions, making it a comprehensive solution for mission-critical industrial automation.
