Description

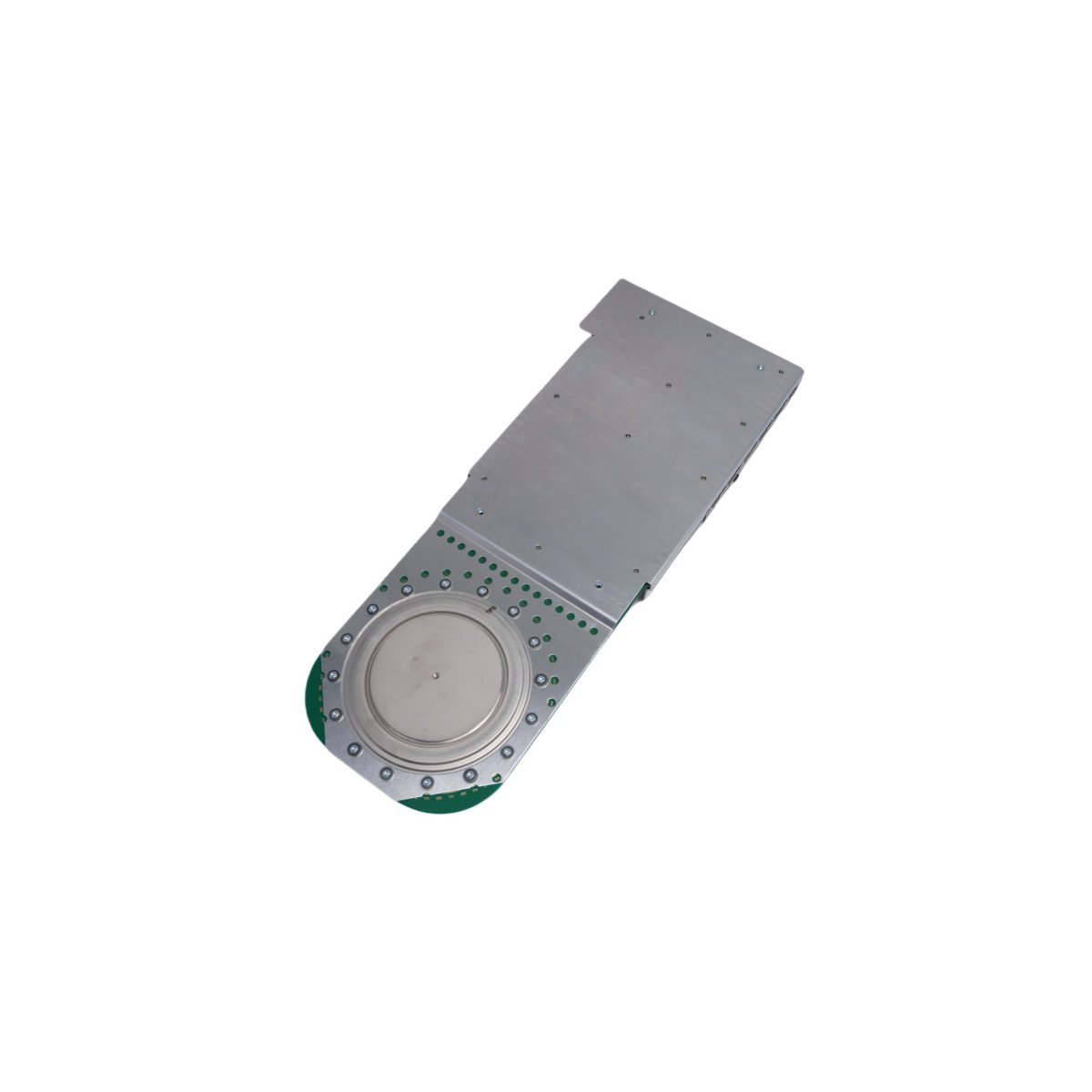

The ABB 3BHE023784R0001 acts as a high-performance switching solution for medium-voltage power electronics. This 5SHY3545L0014 IGCT module uniquely combines the low conduction losses of a thyristor with the rapid switching speed of an IGBT. Consequently, it excels in high-power conversion tasks where efficiency is a critical requirement. The Swedish-engineered press-pack design ensures exceptional mechanical stability. Furthermore, it allows for superior thermal management during continuous operation in demanding industrial environments.

Performance and Operational Precision

Engineers designed this module to handle blocking voltages up to 4500V and average currents of 3500A. It utilizes a noise-immune fiber-optic interface for gate triggering to ensure reliable signal transmission. This design eliminates the need for bulky snubber circuits and simplifies the overall system architecture. Moreover, the module supports switching frequencies up to 500Hz with very fast transition times. These technical traits make it a vital component for active rectifier units within the ACS6000 drive platform.

Technical Specifications

Versatile Industrial Applications

The 3BHE023784R0001 module frequently supports critical infrastructure in renewable energy and heavy industry. It plays a major role in grid stabilization, HVDC transmission, and large-scale industrial drives. Additionally, the unit works seamlessly with gate supply units (GUSP) to form complete phase modules. The copper-baseplate construction enhances heat dissipation for long-term durability. Because of its robust design, it effectively manages power transitions in voltage ranges from 2.3kV to 6.9kV.

System Integration and Quality

This IGCT module integrates perfectly with Advant OCS and 800xA control systems. It meets rigorous international standards for safety and electrical performance. The press-pack housing provides high resistance to vibration and thermal cycling. Maintenance teams often choose this component for its proven track record in mission-critical applications. Every unit undergoes strict quality control to ensure reliable service throughout its operational lifecycle.
