Description

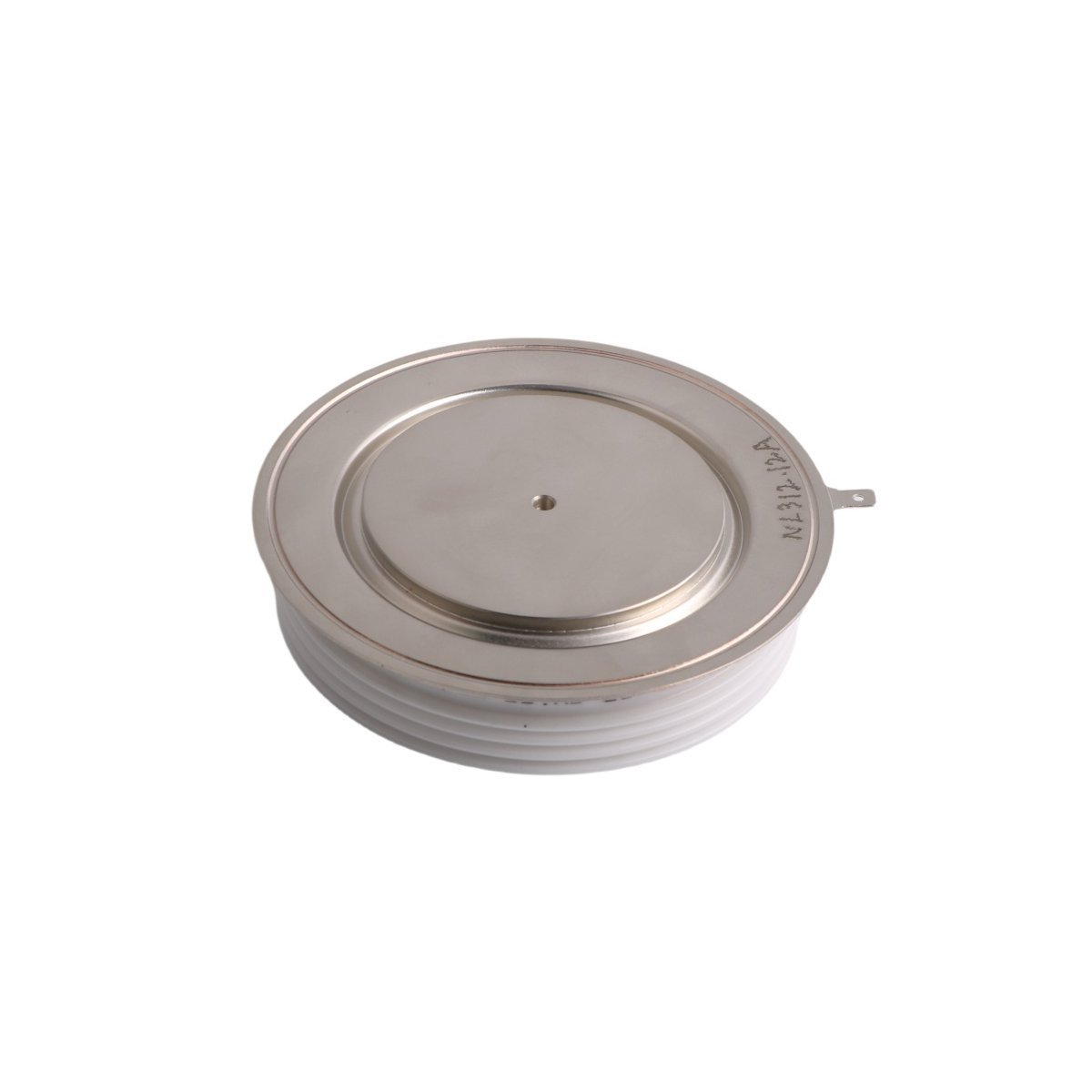

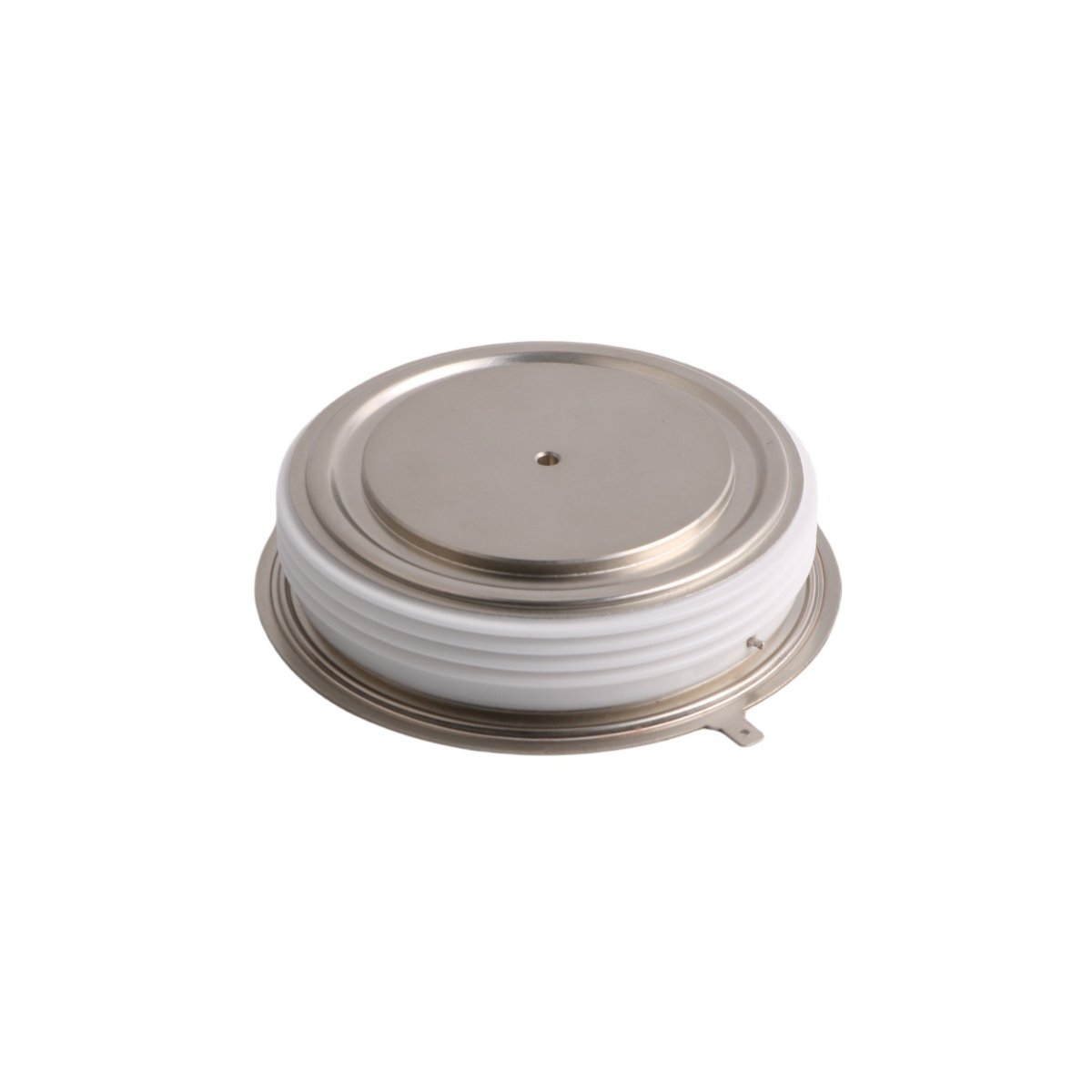

The ABB 5STP1752H0002 serves as a high-capacity Integrated Gate-Commutated Thyristor for industrial power conversion. This 3BHL000986P3016 module manages a substantial 1700V blocking voltage for medium-voltage applications. It supports a nominal current rating of 2000A to handle heavy electrical loads effectively. Furthermore, the semiconductor achieves fast switching transitions with a maximum recommended frequency of 500Hz. This capability significantly improves efficiency in HVDC transmission and grid stabilization projects. Consequently, the module reduces energy loss during high-frequency power modulation.

Thermal Efficiency and Reliability

Superior thermal management defines the architecture of this Swedish-engineered thyristor module. It features an incredibly low thermal resistance of 0.02 K/W for rapid heat dissipation. Moreover, the unit operates reliably across a wide junction temperature range from -40°C to +125°C. This resilience ensures stable performance in harsh environments like mining or heavy manufacturing. The module also withstands extreme storage temperatures up to +140°C without compromising internal integrity. Such thermal stability prevents premature component failure during continuous high-power operation.

Robust Construction and Protection

The 5STP1752H0002 excels in handling extreme electrical surges during system transients. It manages peak surge currents up to 20kA for 1ms durations. Additionally, the critical di/dt rating of 500A/μs protects the silicon from rapid current spikes. The 2.56kg chassis uses high-quality materials to resist mechanical vibrations in industrial cabinets. Precise gate control requires only a low trigger voltage between 1.5V and 2.5V. This efficiency allows for easier integration with standard Advant OCS and 800xA control systems.

Technical Specifications

Core Industrial Applications

• Control of medium-voltage industrial drives and propulsion.
• Power modulation for renewable energy grid-tie systems.
• Crowbar protection and switching in HVDC transmission.
• Voltage regulation for Flexible AC Transmission Systems (FACTS).
• High-current switching in specialized metal processing equipment.
• Infrastructure support for large-scale energy storage facilities.

Global Logistics and Integration

The 3BHL000986P3016 module remains an active product within the ABB DCS ecosystem. Its compact footprint optimizes space utilization in standardized power electronics cabinets. Furthermore, the unit facilitates straightforward retrofitting for existing ACS series drive platforms. This compatibility reduces the complexity of system overhauls and hardware modernization. Each module ships with comprehensive documentation to streamline installation and commissioning. This professional-grade thyristor represents a dependable solution for global power infrastructure needs.
