Description

Brief Product Description

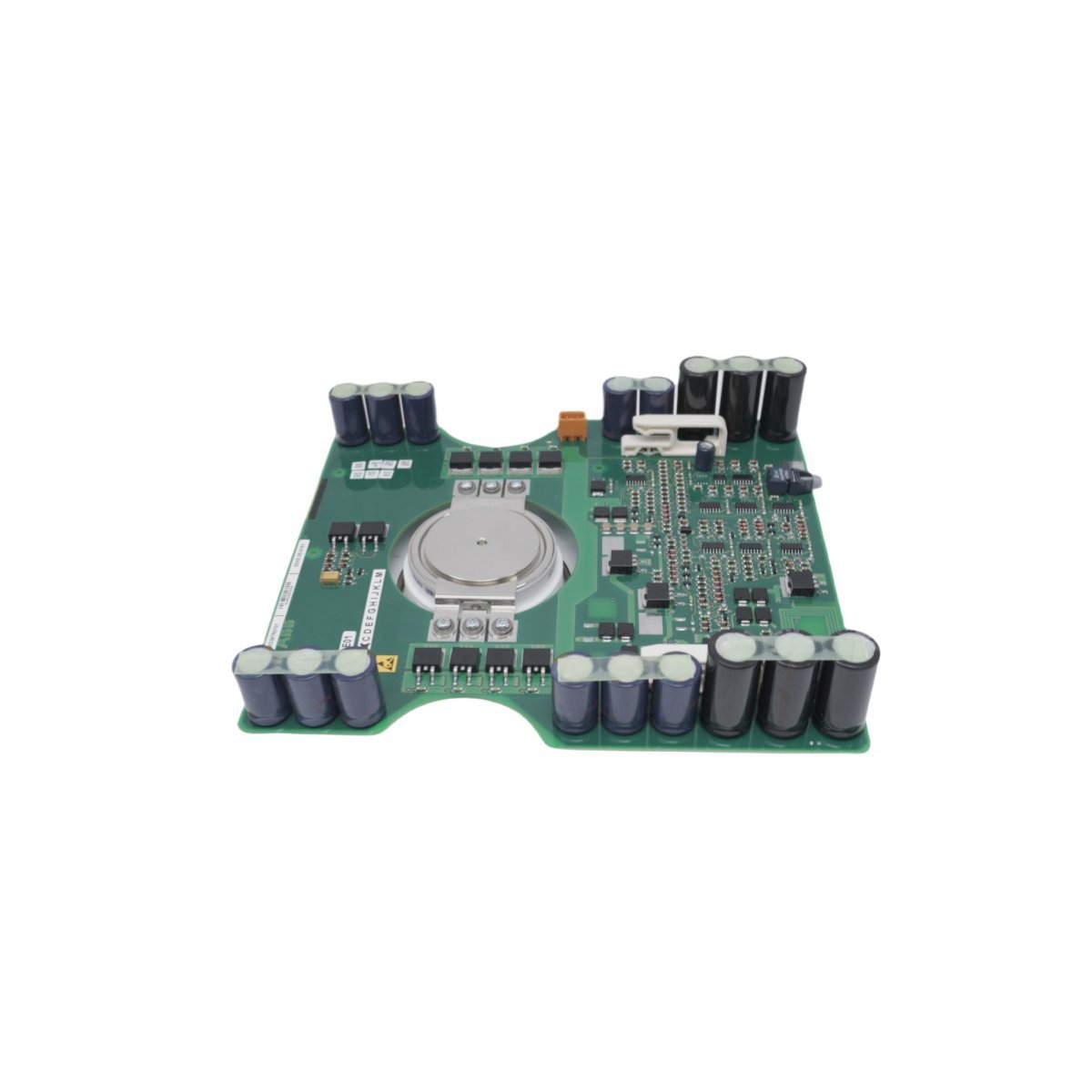

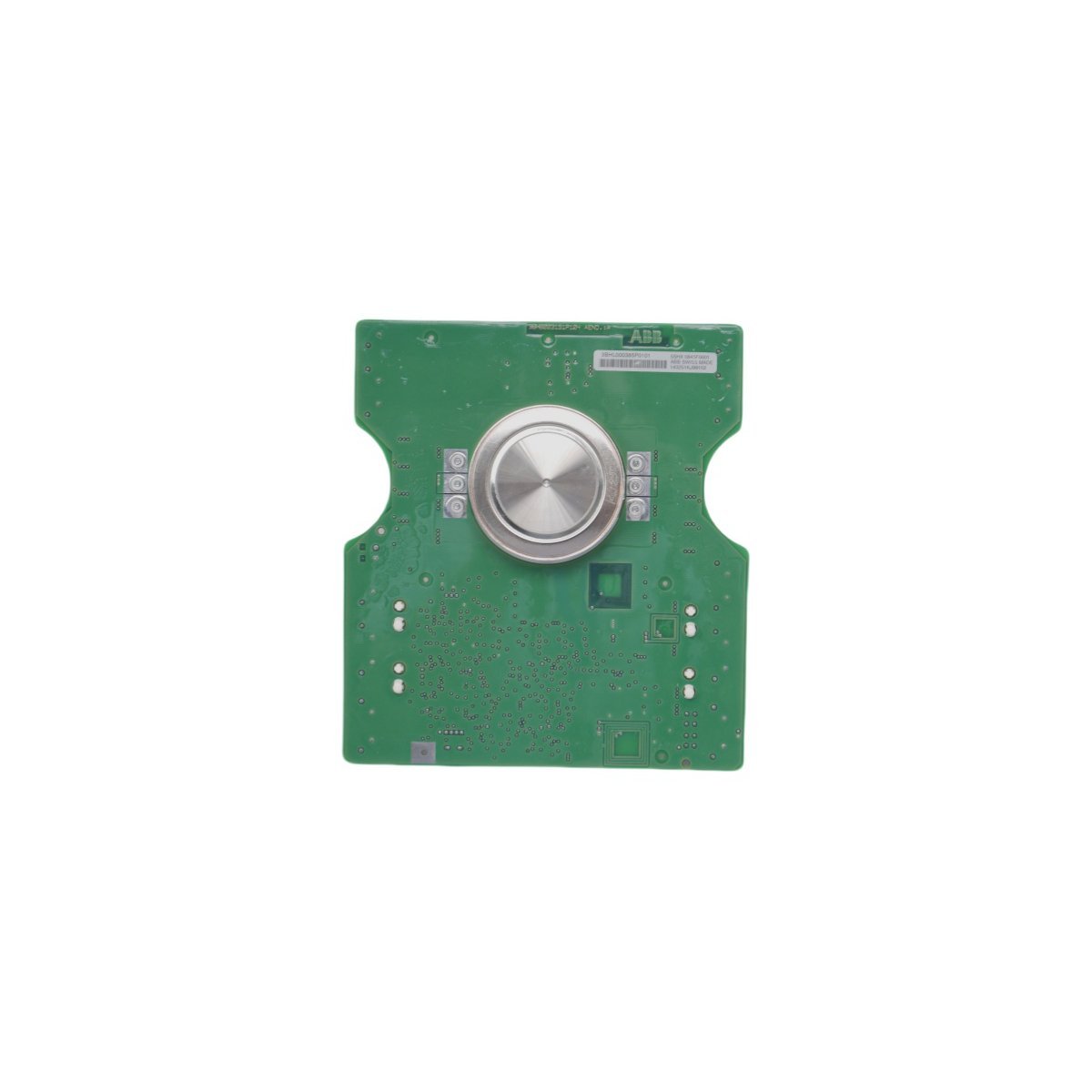

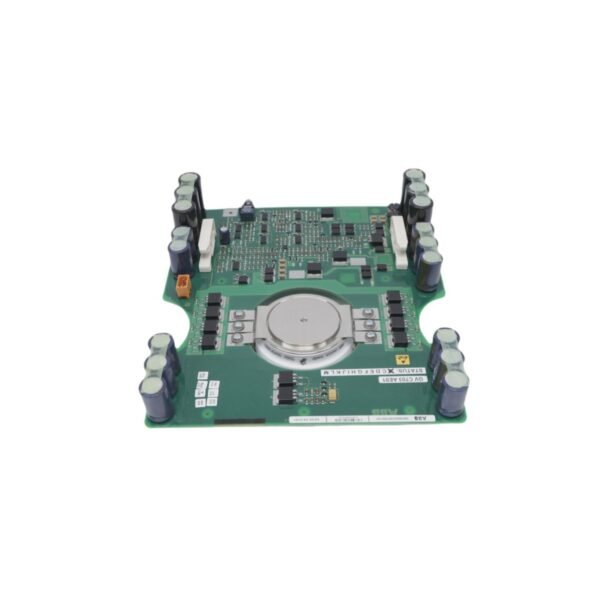

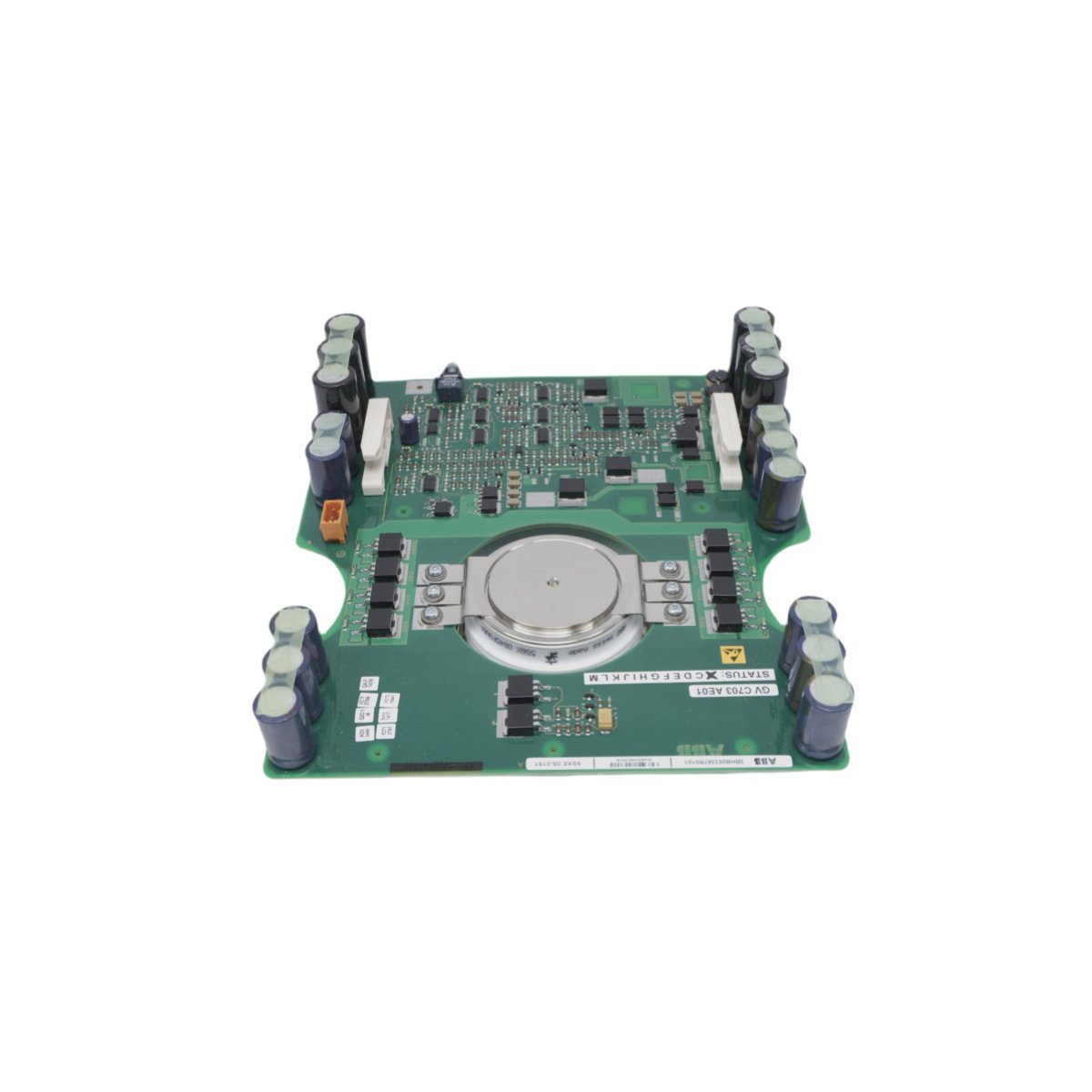

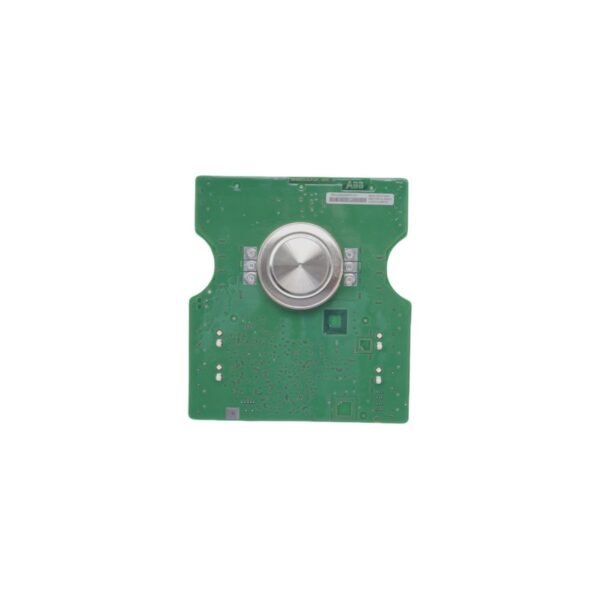

The ABB 3BHB003386R0101 5SXE05-0153 is a high-performance Integrated Gate-Commutated Thyristor (IGCT) module engineered for precision power conversion and heavy-duty industrial drives. It provides robust switching capabilities for high-voltage applications within the Advant OCS and 800xA control frameworks.

​Product Description

Advanced Power Switching and Efficiency

The ABB 5SXE05-0153 serves as a cornerstone in modern power electronics, specifically designed to handle the rigorous demands of high-voltage AC/DC conversion. This IGCT module utilizes a 6.5kV voltage class architecture, allowing it to manage a continuous anode current of up to 5,150 A RMS. By integrating the gate driver directly with the semiconductor wafer, the module achieves exceptionally fast turn-off times of less than 4.5 μs. This rapid response reduces switching losses and enhances the overall energy efficiency of the drive system.

Precision Gate Drive Control

Stability remains a priority during high-frequency operations. The 3BHB003386R0101 incorporates a sophisticated gate drive system that operates within a precise range of -18V to +22V. With a peak current capacity of ±200A, the driver maintains absolute control over the semiconductor’s switching characteristics even under fluctuating loads. This level of precision ensures that the module can withstand surge currents as high as 45 kA peak (10ms pulse) without compromising the integrity of the larger power infrastructure.

Rugged Design for Industrial Environments

Industrial facilities often subject components to thermal stress and mechanical vibration. ABB engineered the 5SXE05-0153 to thrive in these conditions, featuring a wide storage temperature tolerance from -40°C up to +100°C. This resilience ensures the module remains a reliable asset within DCS (Distributed Control Systems) and heavy industrial applications, such as wind energy converters, rail traction, and marine propulsion drives. Its heavy-duty construction facilitates a long service life while minimizing the risk of unplanned downtime in mission-critical environments.

Technical Specification Table
