Description

Product Overview

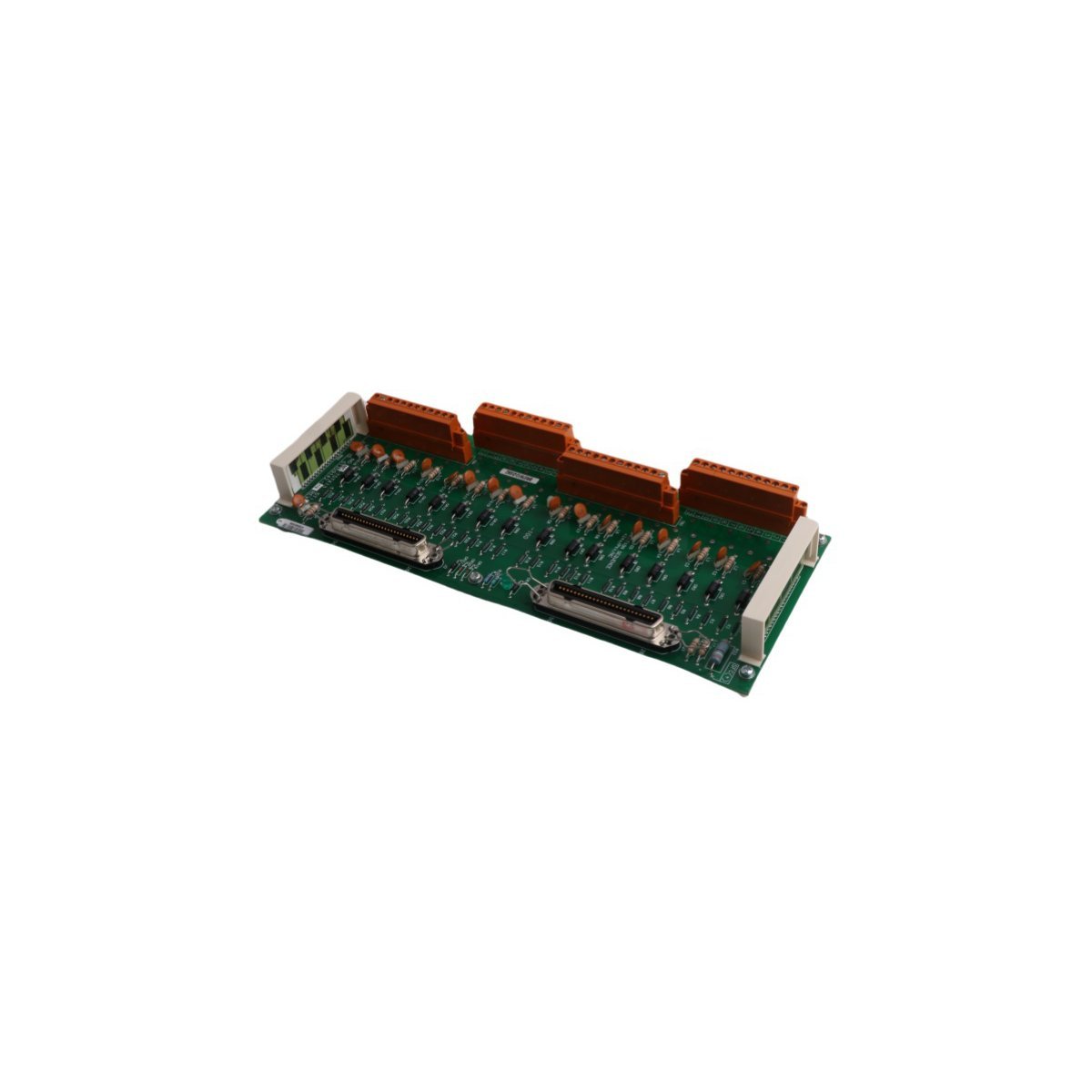

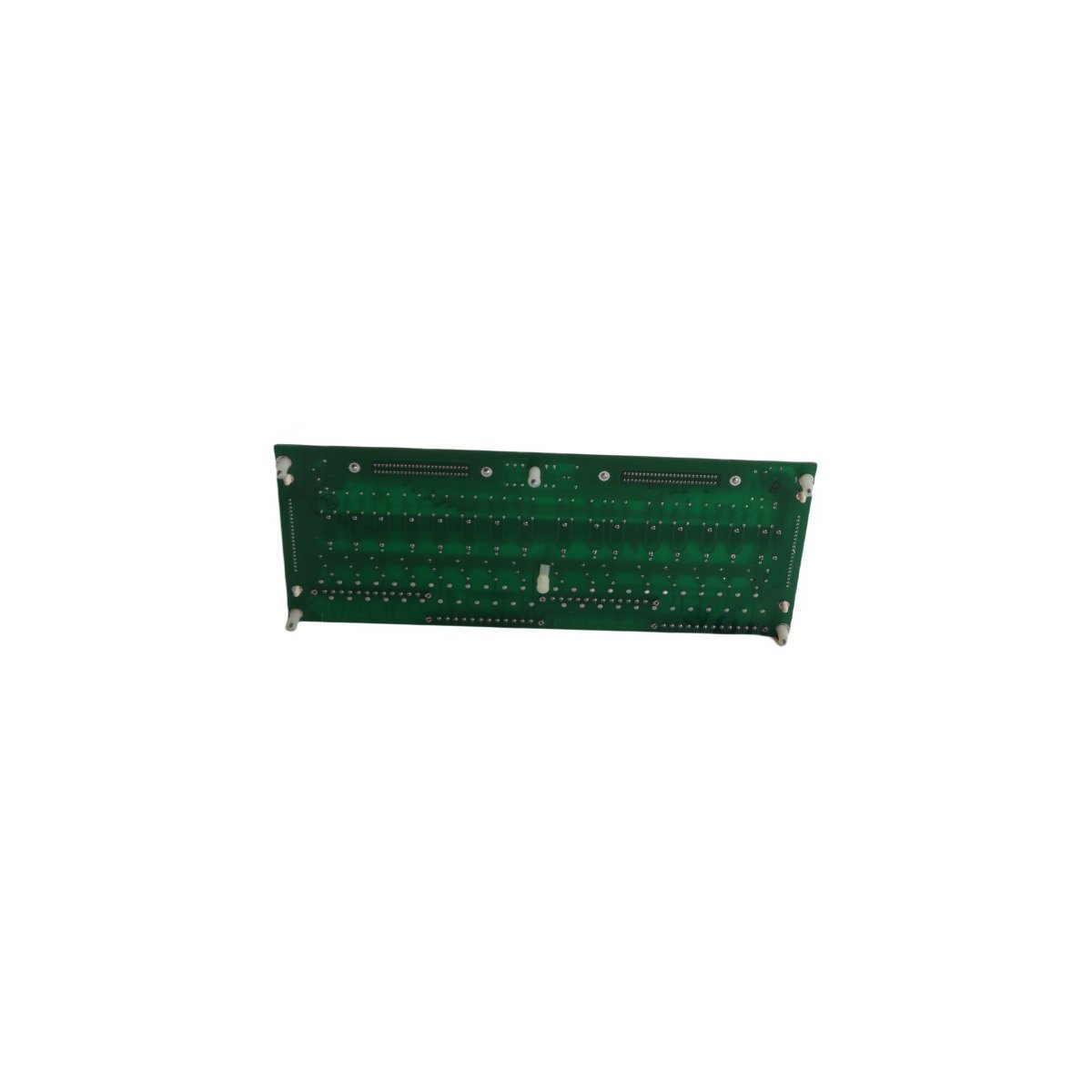

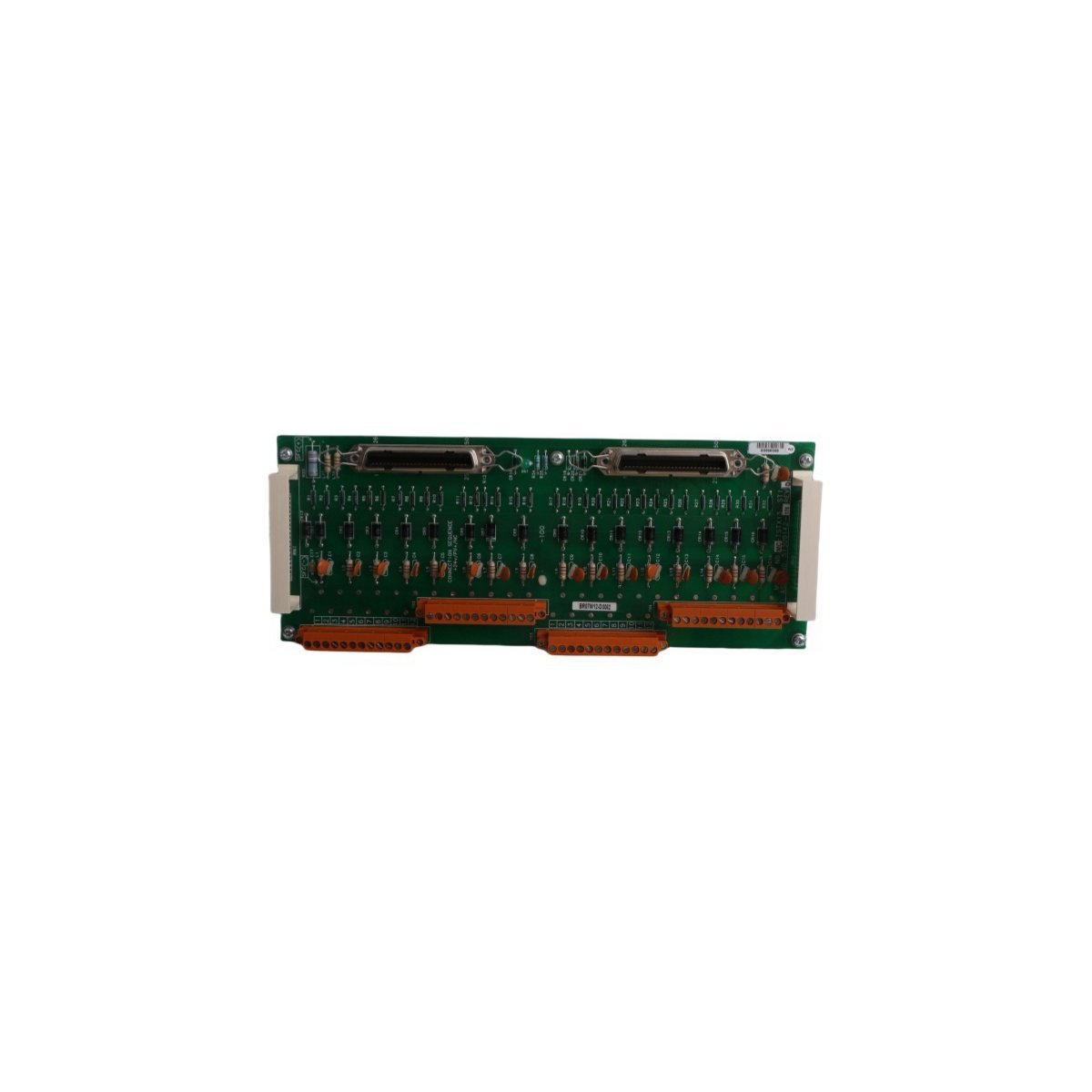

The Honeywell MC-TSTX13 (51309142-175) is a specialized Smart Transmitter Interface (STI) module designed for the MU-T Series within Distributed Control Systems (DCS). It facilitates high-precision digital communication and analog signal processing between field transmitters and the primary controller.

Digital Process Communication and Precision

The MC-TSTX13 module serves as the critical communication bridge for smart field instrumentation, enabling the system to extract more than just a simple process variable. By utilizing advanced digital signaling, this interface captures secondary variables, diagnostic data, and calibration status from compatible smart transmitters. This bidirectional data flow ensures that the control room receives a highly accurate representation of field conditions. Consequently, the module eliminates the common errors associated with traditional digital-to-analog conversions, maintaining the integrity of the data throughout the entire control loop.

Seamless System Integration and Connectivity

Honeywell engineered the 51309142-175 to integrate effortlessly with existing automation networks, including those utilizing Modbus RTU protocols. This compatibility allows for a streamlined connection to various Programmable Logic Controllers (PLCs) and third-party automation hardware. Because the module supports high-level analog inputs and outputs alongside its digital capabilities, engineers can deploy it in a diverse range of process environments without requiring extensive auxiliary hardware. Furthermore, the unit’s energy-efficient circuitry minimizes heat dissipation, which effectively extends the operational life of the module and surrounding components in dense cabinet installations.

Industrial Reliability and Performance Standards

The MC-TSTX13 excels in harsh industrial settings where temperature fluctuations and electromagnetic interference are common. Its ruggedized hardware undergoes rigorous testing to comply with international performance standards, ensuring continuous uptime for critical operations in the chemical, refining, and power sectors. Transitioning to this smart interface allows facilities to adopt predictive maintenance strategies, as the module identifies field device irregularities before they escalate into process failures.¹ This proactive diagnostic capability significantly reduces unplanned downtime and enhances the overall safety of the industrial facility.

Technical Characteristics
