Description

Product Overview

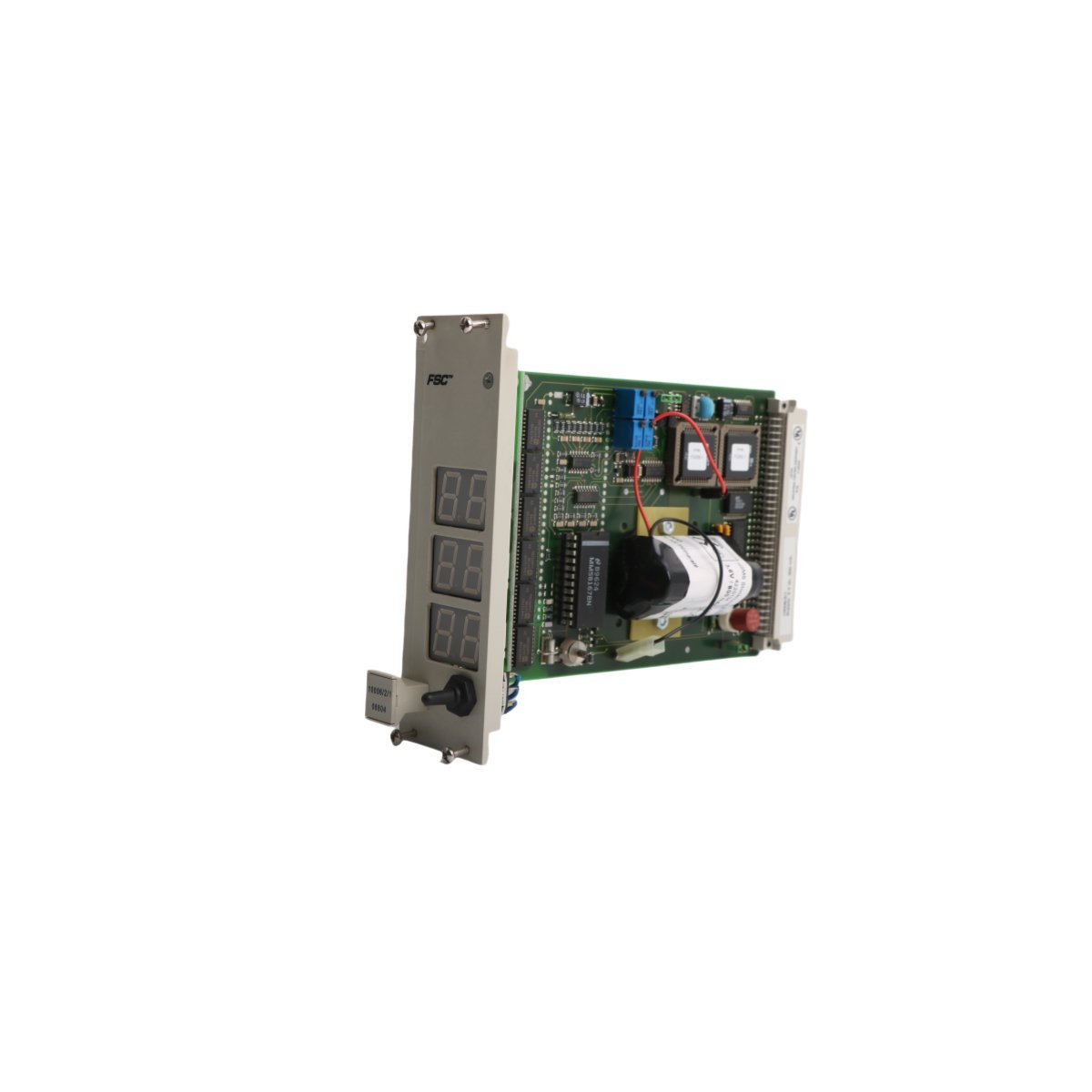

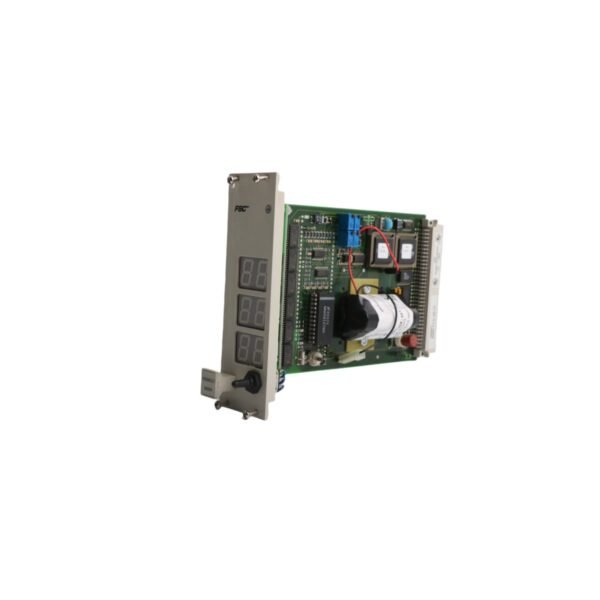

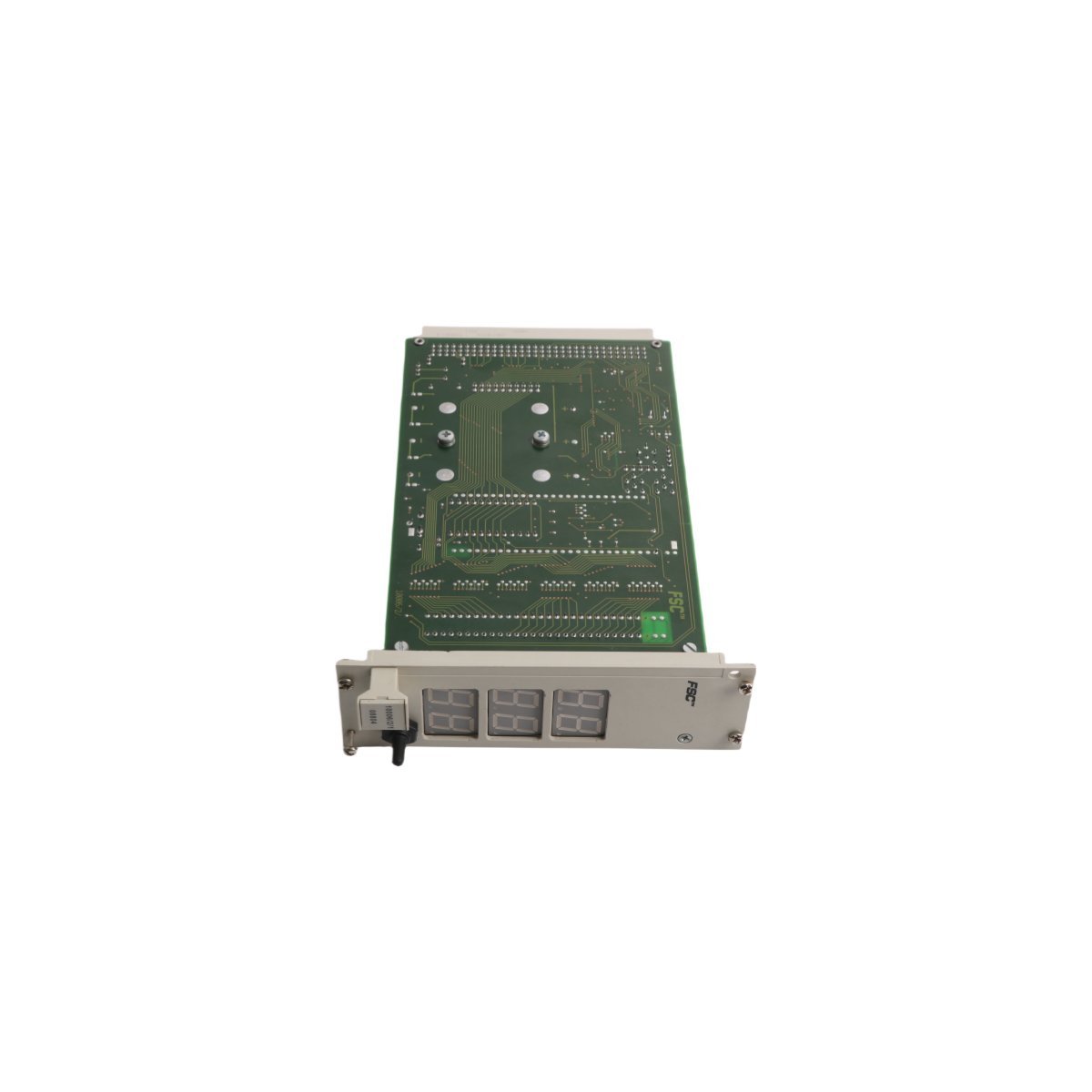

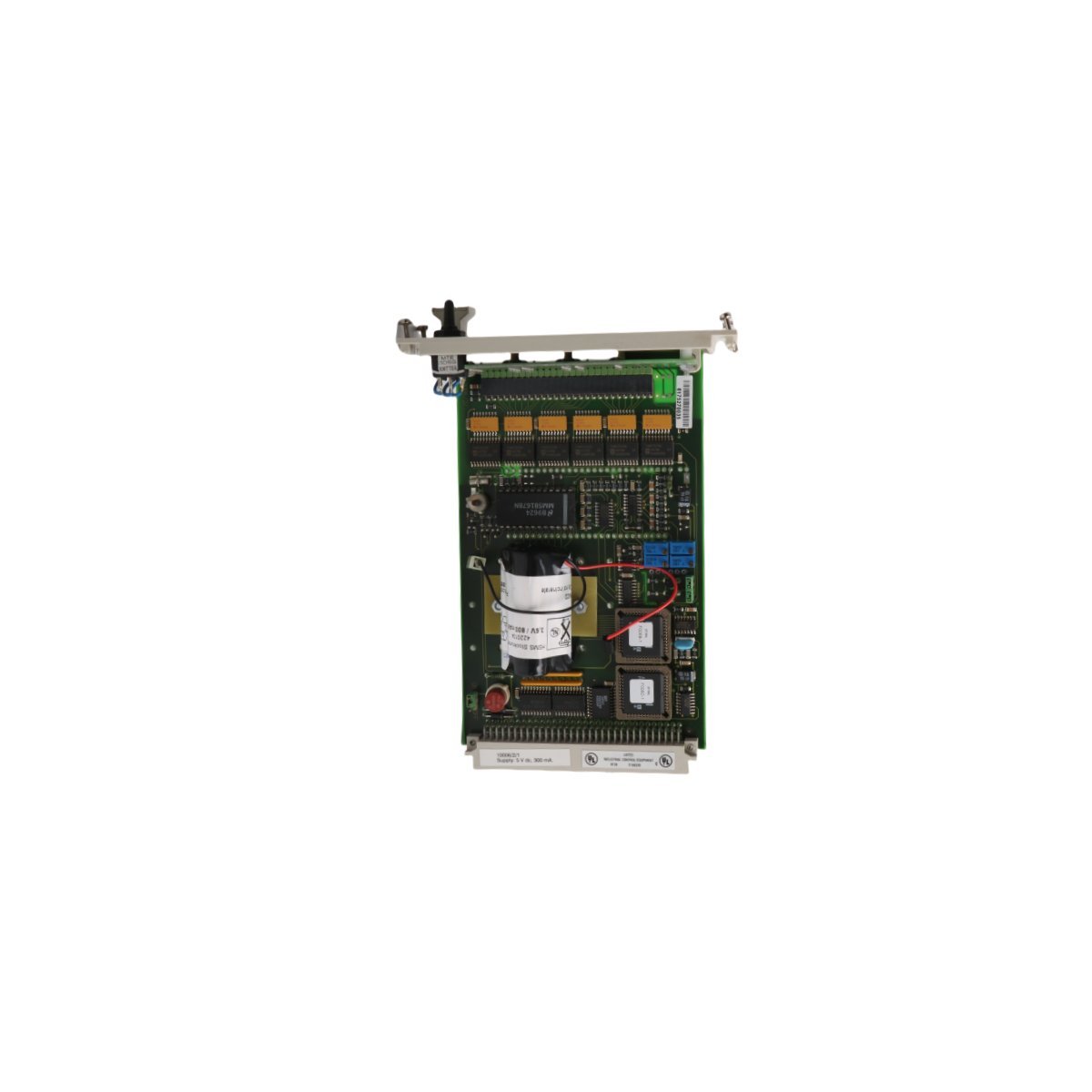

The Honeywell 10006/2/1 is a specialized Battery Module designed for the Fail Safe Control (FSC) system architecture. It serves as a critical power backup for system memory and configuration settings, ensuring that essential safety logic and diagnostic data remain intact during primary power interruptions.

Essential Data Retention and Safety

The 10006/2/1 module acts as the primary safeguard for the volatile memory within FSC processors. By providing a stable, low-current power source, the module prevents the loss of complex safety application software and system parameters when the main power supply fails or undergoes maintenance. This capability is vital for Safety Instrumented Systems (SIS) where a cold start or loss of logic could lead to hazardous plant conditions. Consequently, the module supports the overall integrity of the safety loop by maintaining a ready-state for the controller.

Diagnostic Oversight and System Health

Honeywell integrated advanced monitoring features into the 10006/2/1 to enhance proactive maintenance strategies. The FSC system continuously polls the battery module to verify voltage levels and circuit continuity. If the module detects a low-voltage state or a hardware fault, it immediately triggers a system alarm, allowing operators to replace the unit before a total power loss occurs. This transparent reporting reduces the risk of undetected “silent failures” within the safety cabinet, thereby improving the facility’s overall safety average probability of failure on demand (PFD).

Industrial Design and Integration

Engineered specifically for the demands of manufacturing and energy sectors, the 10006/2/1 features a compact form factor that fits seamlessly into standard FSC chassis slots. The module utilizes high-energy-density lithium chemistry to provide a long service life, typically spanning several years under standard operating conditions. While the FSC line reached its official discontinuation milestone in 2018, these modules remain essential for the thousands of active safety systems worldwide. Maintenance teams can easily hot-swap these units in many configurations, ensuring that protection remains active without disrupting the ongoing process control environment.

Technical Characteristics
