Description

Product Overview

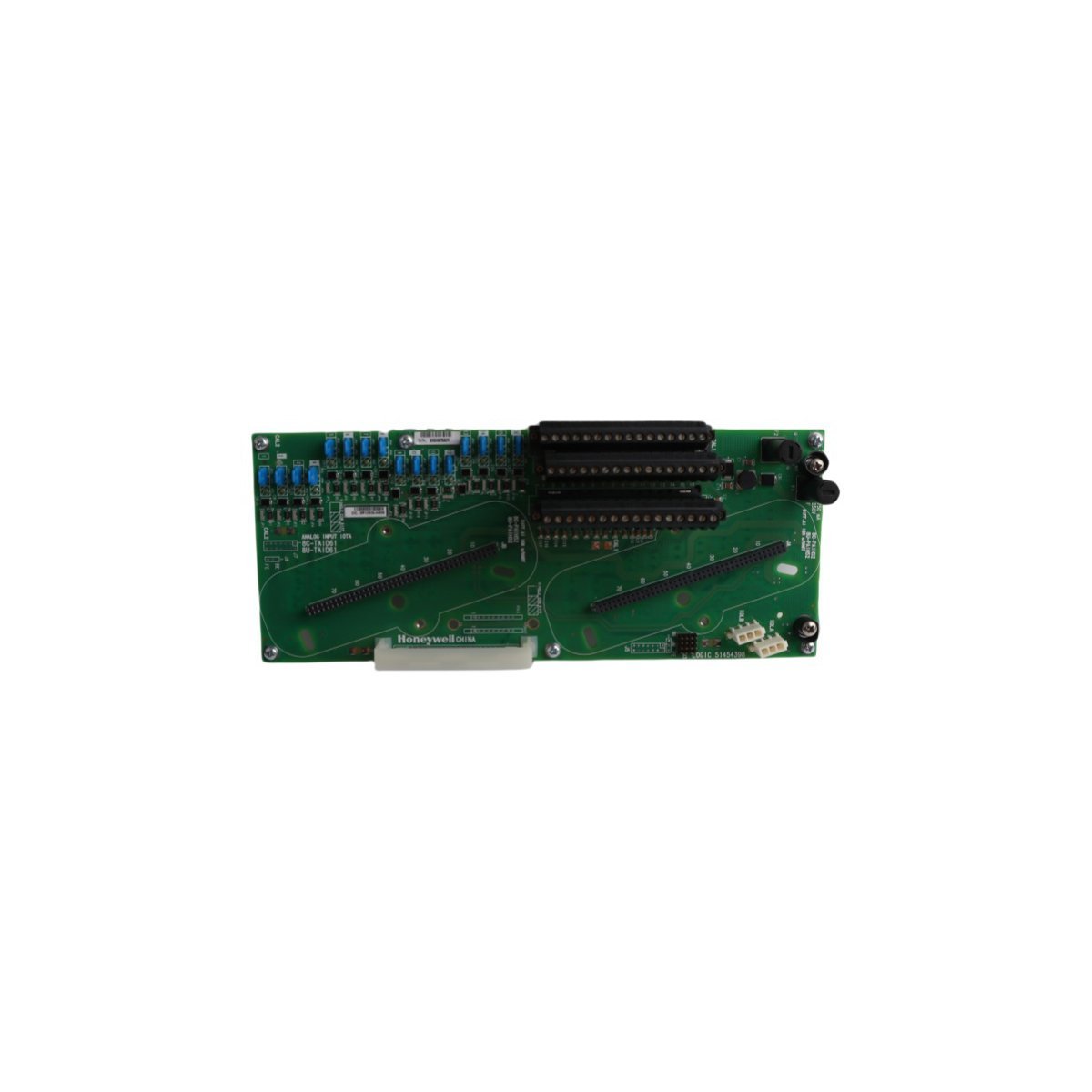

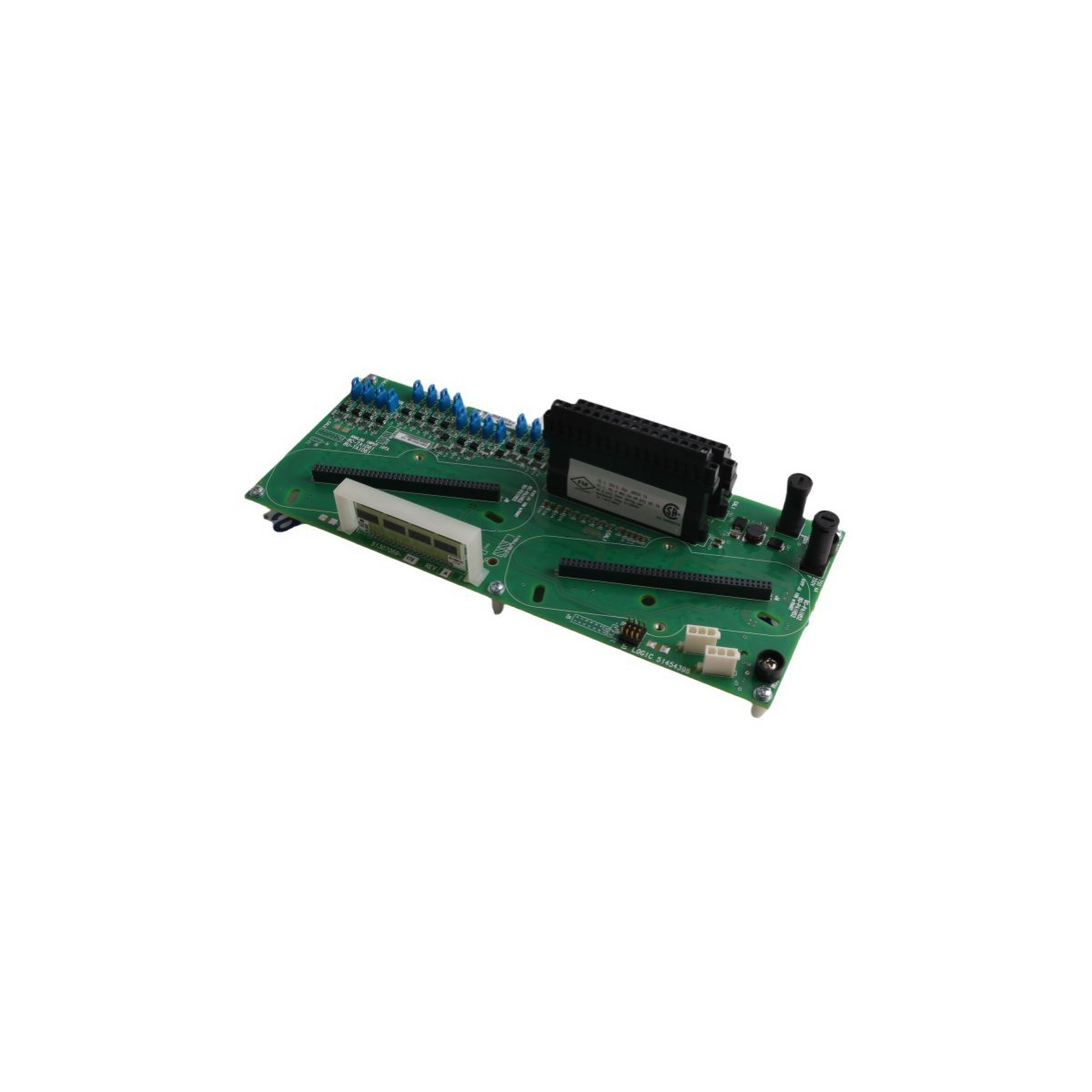

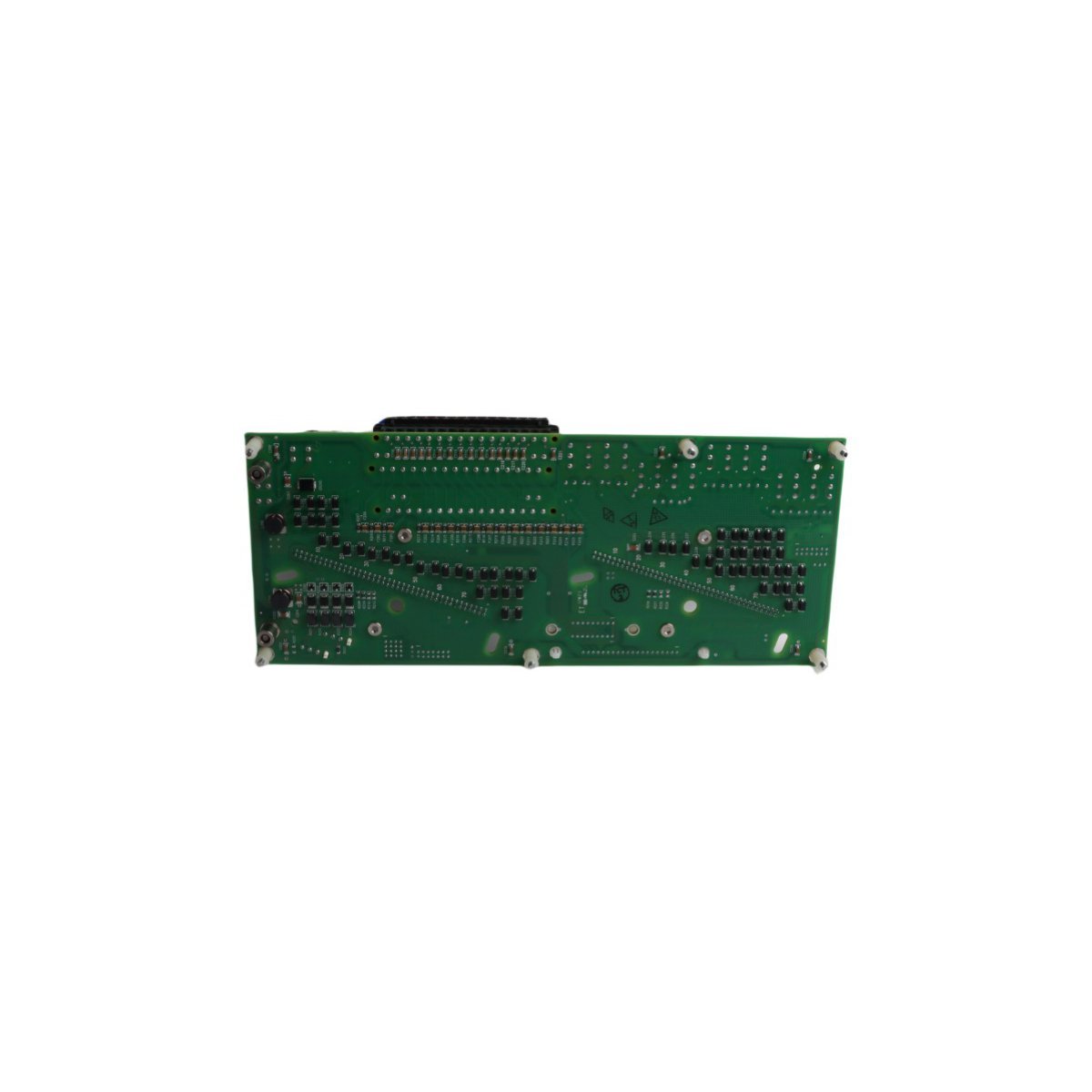

The Honeywell 8C-TAID61 (51307069-175) is a high-performance digital input board designed for the Series 8 I/O family within the Experion PKS architecture. This module provides a reliable interface for collecting discrete status signals from field equipment, ensuring rapid data updates for time-critical control loops.

High-Speed Digital Signal Processing

The 8C-TAID61 serves as a high-density gateway for discrete field data, converting physical switch and contact states into actionable digital information for the DCS. By utilizing advanced hardware filtering, the board effectively eliminates signal bounce and electrical noise, which guarantees that only legitimate state changes reach the controller. This precision is vital for monitoring equipment interlocks, motor statuses, and safety limit switches where millisecond-level accuracy determines the success of automated sequences. Consequently, the module enhances the overall responsiveness of the control system, allowing for tighter process management.

Robust Architecture for Extreme Environments

Honeywell engineered the 51307069-175 to thrive in the punishing conditions of heavy industry, including oil refineries and power generation plants. The board features a ruggedized physical design that withstands significant thermal fluctuations and vibration. Because the Series 8 architecture prioritizes vertical mounting and innovative airflow management, the module maintains a lower operating temperature than traditional flat-mount boards. Furthermore, the 8C-TAID61 supports redundant configurations, enabling seamless failover to a secondary module if the primary unit detects a hardware fault. This self-diagnostic capability provides operators with high system availability and significantly reduces the risk of unplanned process shutdowns.

Efficient Installation and Scalability

The compact form factor of the 8C-TAID61 allows for high-density I/O configurations, which effectively reduces the total footprint of the control cabinet. Transitioning to this board simplifies field wiring through standardized termination assemblies, accelerating the commissioning phase of new projects. The module also facilitates hot-swapping, meaning technicians can replace a board during active operations without de-energizing the entire I/O rack. By implementing the 8C-TAID61, facilities gain a scalable solution that integrates perfectly with existing Series 8 hardware, protecting the long-term investment in automation infrastructure.

Technical Characteristics
