Description

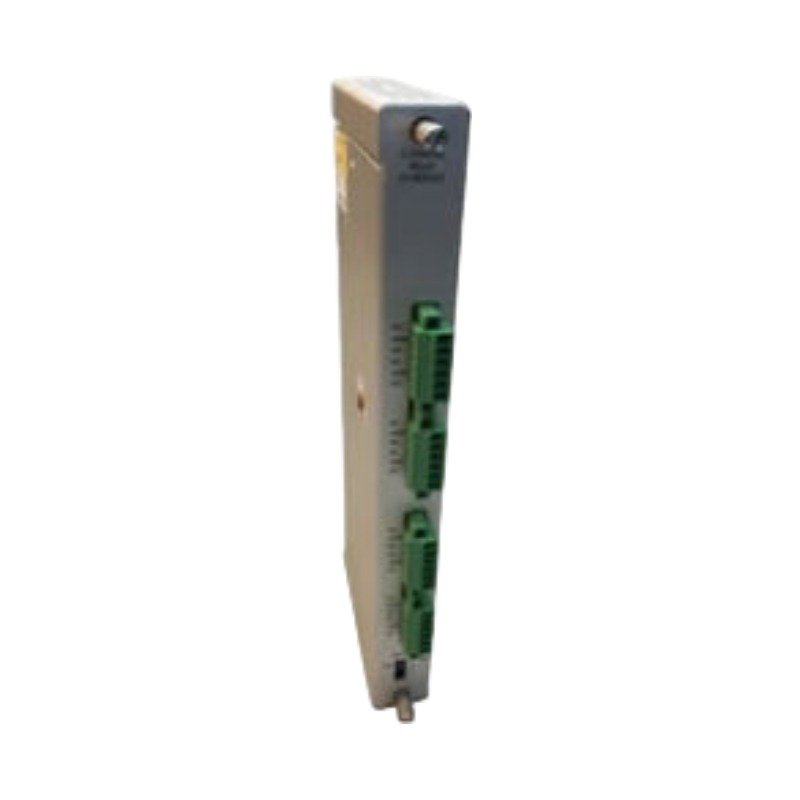

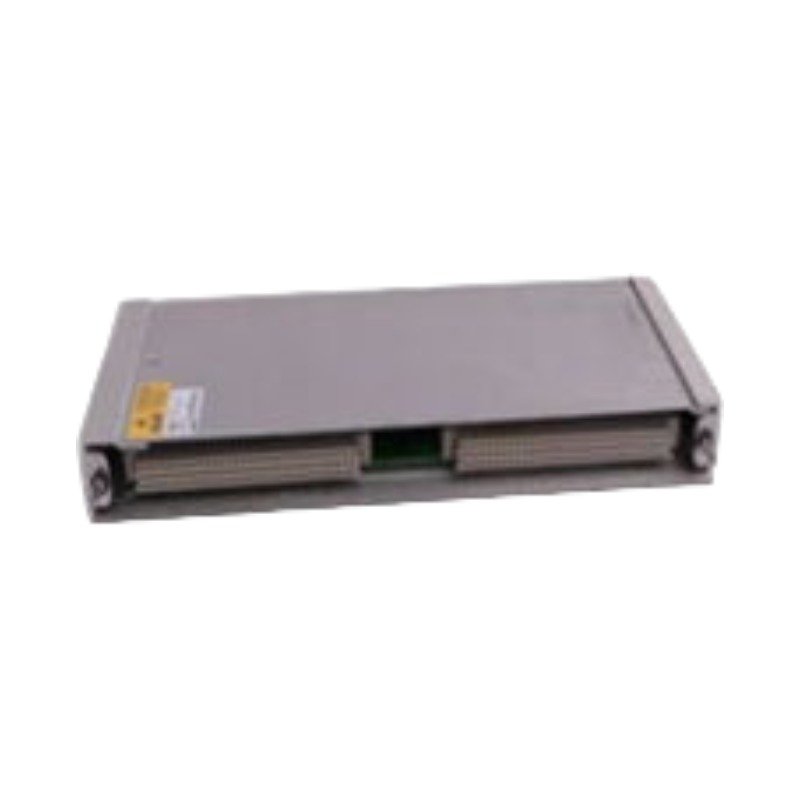

Configured for precise velocity measurement and vibration signature collection in machinery monitoring networks, the Bently Nevada 47042 308 EL30 (47042 Velocity Monitor Module) operates as a dedicated hardware component for predictive machinery diagnostics within 3500 Machinery Protection System platforms. The hardware accepts high-density transducer inputs across its physical channel terminations. Consequently, the board digitizes continuous mechanical motion waveforms to update rack alert matrices before destructive vibration energy compromises critical turbine or compressor components.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The module incorporates specific electrical signal-path engineering designed for Turbomachinery Protection System (TSI) deployment. Specifically, the processing core automates gap voltage validation (-10 VDC targets) monitoring when evaluating bias tracking parameters across connected proximity and velocity transducers. If a field circuit breaks or transducer calibration drift happens, the diagnostic block asserts a channel Not OK condition to isolate the row from the active trip network. Furthermore, the specialized grounding system achieves cross-talk suppression between adjacent high-frequency velocity traces and parallel instrumentation wires inside the enclosure. As a result, the hardware captures clean, uncorrupted transient waveforms detailing complex rotor dynamics during high-temperature thermal transitions without signal bleeding.

Frequently Asked Questions

Q: Does the 47042 308 EL30 hardware support online replacement while the system rack remains powered?

A: Yes. Technicians can execute insertion and removal procedures while the backplane has power. However, operators must implement specific rack-level bypass configurations before extraction to prevent accidental machine trip execution when signal links drop.

Q: How does the module handle extended thermal exposure when deployed near machine casings?

A: The circuit components feature ruggedized manufacturing tolerances that allow uninterrupted operation across an extended field envelope of -40 to 85 deg C. Therefore, the module does not require supplemental climate-control cooling apparatus when fitted inside standard external junction boxes.

Field Installation Guidelines

• Chassis Grounding: Bond the main 3500 chassis assembly directly to the local instrument clean earth bus bar. In addition, land transducer shielding drains strictly at the designated termination point on the I/O block to suppress ground loop current development.
• Pin and Rail Alignment: Slide the main 47042 card directly along the chassis guide rails to avoid terminal socket binding. Always check the physical orientation and vertical mapping of all rear interface pins prior to applying full seating force.
• Signal Path Isolation: Route all low-voltage transducer wiring and communication leads away from high-voltage motor starters, switchgear, and inductive AC lines. Therefore, preserve a minimum spatial isolation gap of 30 cm and apply grounded metallic conduit paths to isolate electromagnetic transients.
