Description

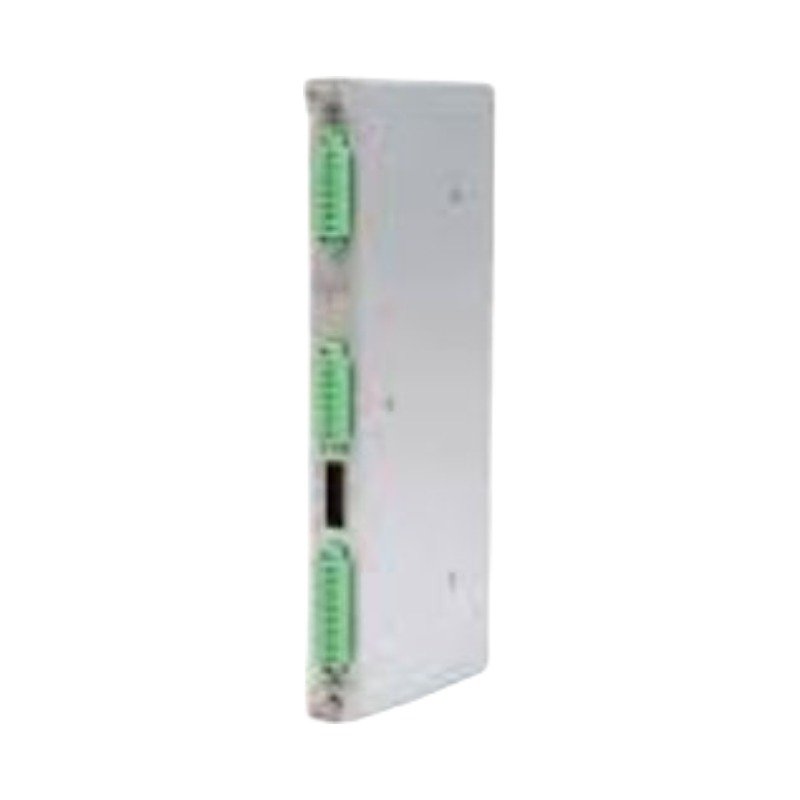

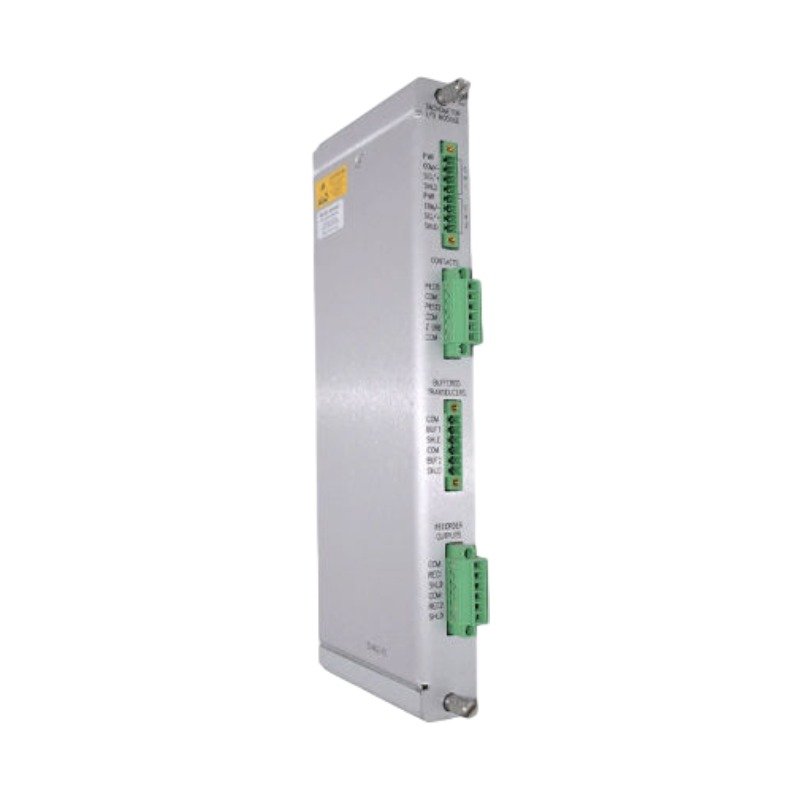

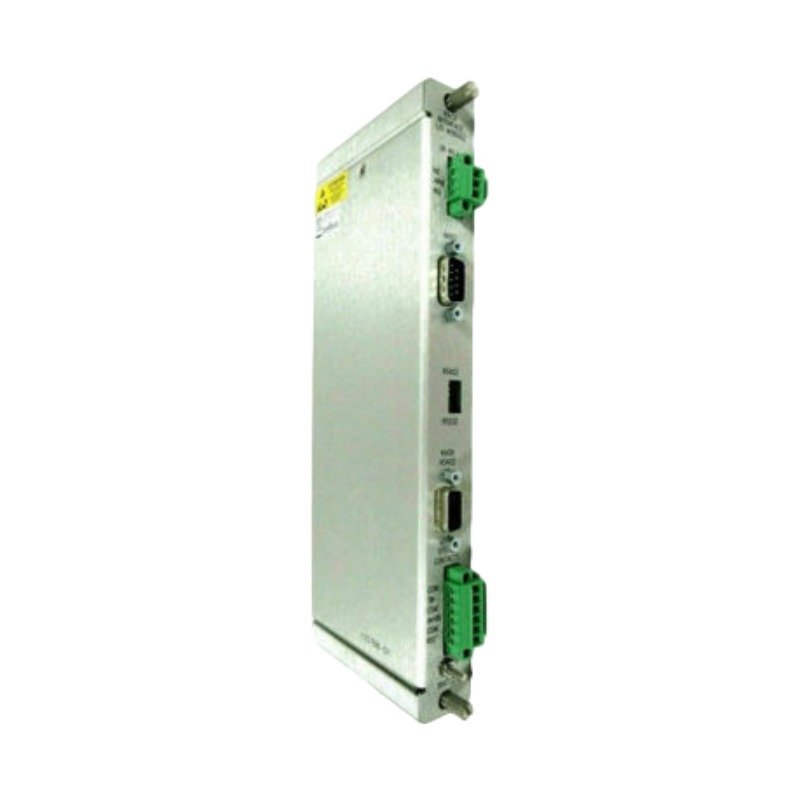

The Bently Nevada 78462-01, also cataloged as the 78462-01 Transducer I/O and Record Terminal Block, operates as a dedicated hardware component for dual-channel field wiring termination within Bently Nevada 3300 Series Monitoring System platforms. The unit installs directly onto the rear portion of the 3300 instrument rack chassis to loop field transducer signals into the front-slot monitoring modules. Consequently, the hardware routes continuous dynamic sensor voltage signatures and alarm execution links directly to the internal backplane bus.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The module runs dedicated internal hardware tracks to optimize legacy machine diagnostics and Turbomachinery Protection System (TSI) deployments. Specifically, the component infrastructure automates gap voltage validation (-10 VDC targets) pass-through monitoring by routing continuous DC bias signals derived from external eddy-current probe drivers straight to the main monitor module. If field connections drop or transducer calibration drift happens, the grounding path flags a channel fault loop to prevent invalid protective shutdown command execution. Furthermore, the multi-layered trace separation scheme provides cross-talk suppression between the high-frequency vibration waveforms and adjacent DC recording lines. As a result, the unit safely pipes critical raw telemetry indicating complex rotor dynamics into the 3300 chassis environment.

Frequently Asked Questions

Q: Can an automation engineer remove or install the 78462-01 termination module while the 3300 rack remains powered?

A: No. Unplugging a rear terminal module while energized breaks the active physical loops for sensor power and return lines. Consequently, this action can disrupt adjacent monitor calculations or trigger unexpected alarm logic on associated voting circuits.

Q: Which specific 3300 monitor modules interface directly with this I/O termination assembly?

A: The 78462-01 backplane termination assembly primarily pairs with the 3300/20 Dual Thrust Monitor, 3300/25 Dual Displacement Monitor, and 3300/45 Dual Differential Expansion Monitor rows.

Field Installation Guidelines

• Chassis Grounding: Ground the 3300 instrument rack chassis framework directly to the local plant clean earth bus. In addition, terminate all transducer outer shield drain wires exclusively at the designated ground terminals on the 78462-01 block to prevent ground loops from injecting electrical noise.
• Pin and Block Alignment: Align the rear terminal assembly connectors squarely against the matching chassis backplane slots before applying torque to the mounting hardware. Ensure no structural alignment stress bends the terminal pins during installation.
• Field Conductor Isolation: Route low-voltage signal wires coming from proximity probe drivers through separate grounded steel conduits. Therefore, maintain a minimum physical air separation of 30 cm from heavy AC power switches or inductive motor lines to block electromagnetic noise induction.
