Description

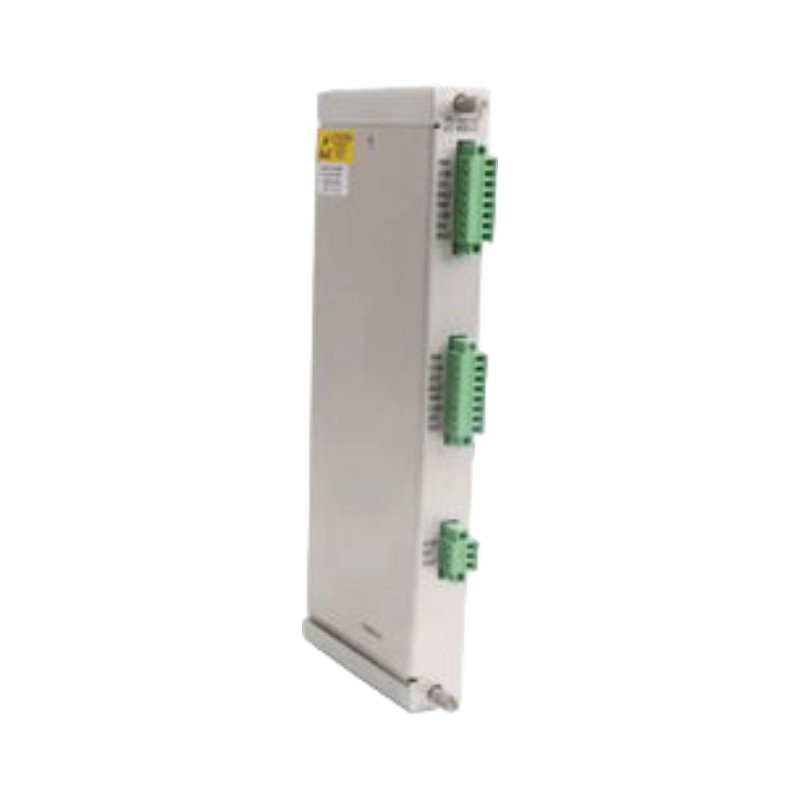

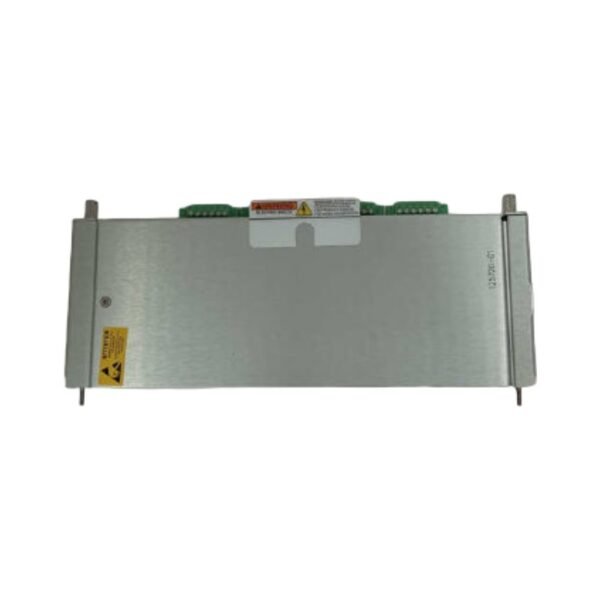

The Bently Nevada 3500/94 147663-01, also cataloged as the 3500/94 VGA Display I/O Module, operates as a dedicated hardware component for localized touch-screen visualization within 3500 Machinery Monitoring System networks. The unit provides physical termination and transmission links behind the main 3500/94 processing card. Consequently, the hardware routes analog RGB video components and serial touch-controller streams directly between the rack backplane bus and compatible external operator display panels.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The module incorporates specific high-speed video routing layout designs to optimize Turbomachinery Protection System (TSI) field display arrays. Specifically, the onboard electrical tracking automates gap voltage validation (-10 VDC targets) data representation by feeding steady digital parameter updates to the screen’s visual column matrices. If a monitoring line drops out or sensor calibration drift happens, the I/O bus immediately transfers the failure code to display the channel Not OK condition on screen. Furthermore, the multi-layer grounding planes achieve cross-talk suppression between the high-frequency video clock lines and adjacent low-level dynamic traces on the rack backplane. As a result, the card delivers stable real-time vector graphs of complex rotor dynamics directly to plant operators without generating noise harmonics inside neighboring seismic or proximity monitor slots.

Frequently Asked Questions

Q: Can an automation technician replace the 147663-01 rear I/O module while the monitor rack remains energized?

A: Yes. The 3500 chassis supports hot-swap maintenance for this rear board without disrupting the automatic machinery protective logic or voting networks of surrounding channels. However, the local VGA monitor display goes dark and stops updating until the replacement module completes its synchronization sequence.

Q: What is the mechanical and electrical purpose of the RS232 port located directly on this I/O module?

A: The RS232 port transfers bidirectional interactive telemetry between the external screen and the rack. Specifically, it carries touch-screen cursor coordinates from the display panel back to the main module processor to handle user screen selections locally.

Field Installation Guidelines

• Chassis Grounding: Bond the 3500 chassis frame to the designated local instrument clean earth grid. In addition, terminate all outer communication cable shields cleanly at the designated I/O chassis grounding clips to ensure stray ground currents do not distort the video signal.
• Backplane Alignment: Slide the main 3500/94 display module into the targeted front slot, then seat the 147663-01 I/O module directly opposite it within the rear slot of the rack chassis. Always ensure absolute vertical alignment of all mating connector pins before applying final seating forces.
• Interface Cable Isolation: Route the analog VGA cable and the serial touch lines away from active high-voltage AC or inductive motor control wires. Therefore, maintain a minimum physical spacing separation of 30 cm and utilize isolated cable tracking pathways to eliminate visual jitter and screen artifacts.
