Description

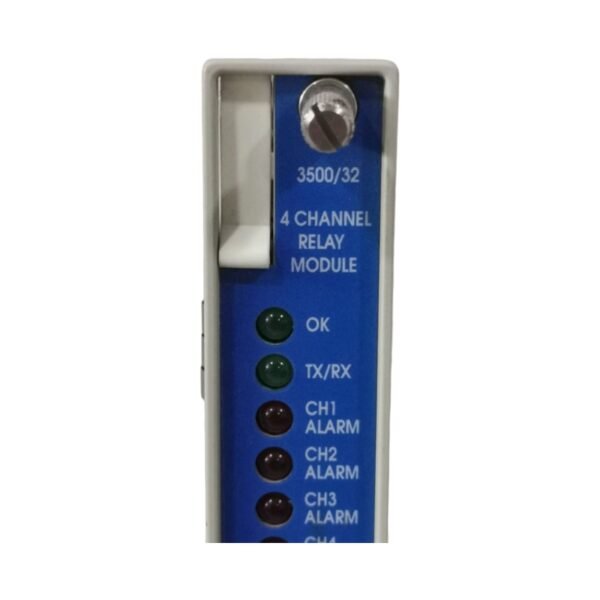

The Bently Nevada 3500/32 125712-01, also cataloged as the 125712-01 4-Channel Relay Module, operates as a dedicated hardware component for emergency shutdown execution within the 3500 Machinery Protection System. Configured with a highly responsive circuit board, it automatically drives physical relay contacts to initiate machinery trips when programmable alarm conditions trigger across the backplane network.

Hardware Specifications

Proximity Probe Scaling and Rotor Dynamics Calibration

Although this module functions primarily as an output relay component, it operates downstream from critical transducer inputs that depend on precise eddy-current probe scaling. Consequently, proper machine protection relies on accurate gap voltage validation across the associated input modules to ensure that true rotor dynamics events drive the alert thresholds. Shifting parameters or calibration drift in upstream displacement sensors modify the target logic states, which directly alters when this relay card triggers shutdown mechanisms. To ensure faultless cross-talk suppression and signal purity, the integrated backplane bus implements differential noise filtering to shield the low-voltage logic control lines from magnetic field fluctuations induced by nearby power circuitry.

Frequently Asked Questions

Q: How does the module handle a total loss of power or backplane communication failure?

A: The hardware incorporates a programmable safe state option. Therefore, during a total power disruption or internal system fault, the relays automatically de-energize and drop into their fail-safe position to initiate an immediate machinery shutdown sequence.

Q: Can an operator hot-swap this module while the rest of the monitoring system remains active?

A: Yes, the 3500 system architecture fully supports hot-swap maintenance for this card. However, field technicians must first bypass all associated trip loops to prevent accidental machinery shutdown during module extraction or insertion.

Field Installation Guidelines

• Chassis Slot Alignment: Slide the main module straight into the front guide rails of the 3500/05 rack, pushing firmly until the rear backplane connectors seat completely before tightening the panel screws.
• Contact Terminal Torque: Secure all terminal block wiring on the matching rear I/O module to a maximum torque specification of 0.56 N-m (5.0 in-lb) to maintain solid mechanical connections.
• Inductive Load Suppression: Install external arc suppression devices, such as diodes for DC loops or varistors for AC loops, when switching inductive interposing relays to protect the internal contacts from voltage spikes.
• Logical Voting Setup: Establish the desired 1oo4, 2oo2, or 2oo4 logic voting configurations using the 3500 Rack Configuration Software prior to putting the active shutdown circuits into service.
