Description

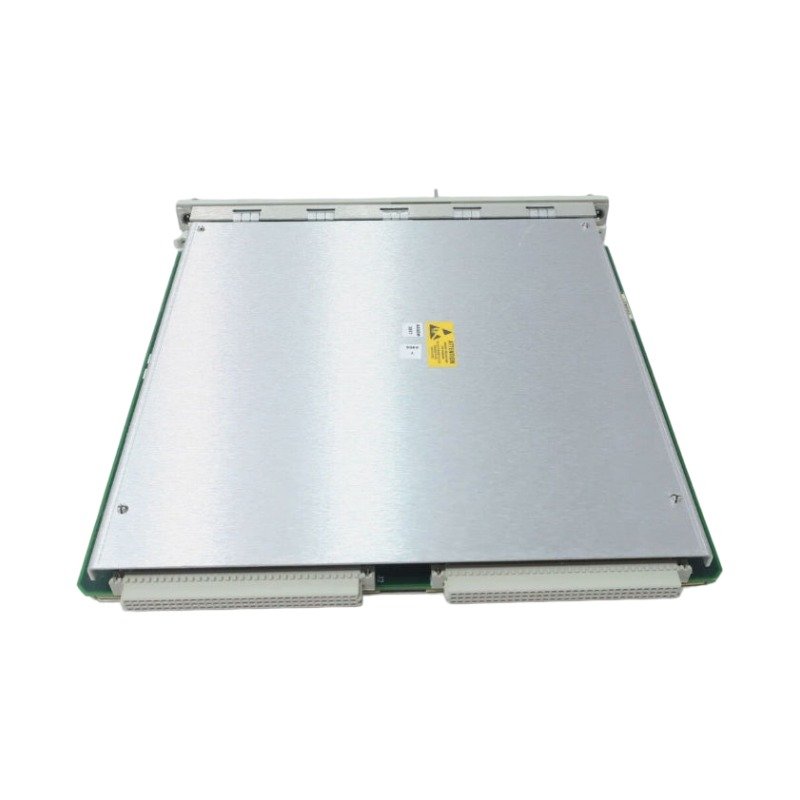

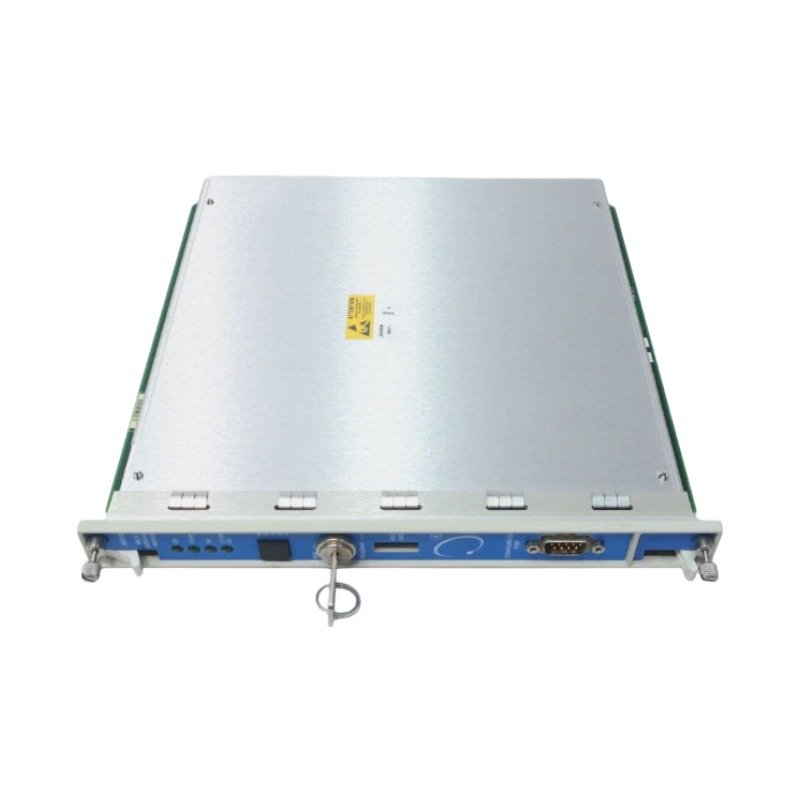

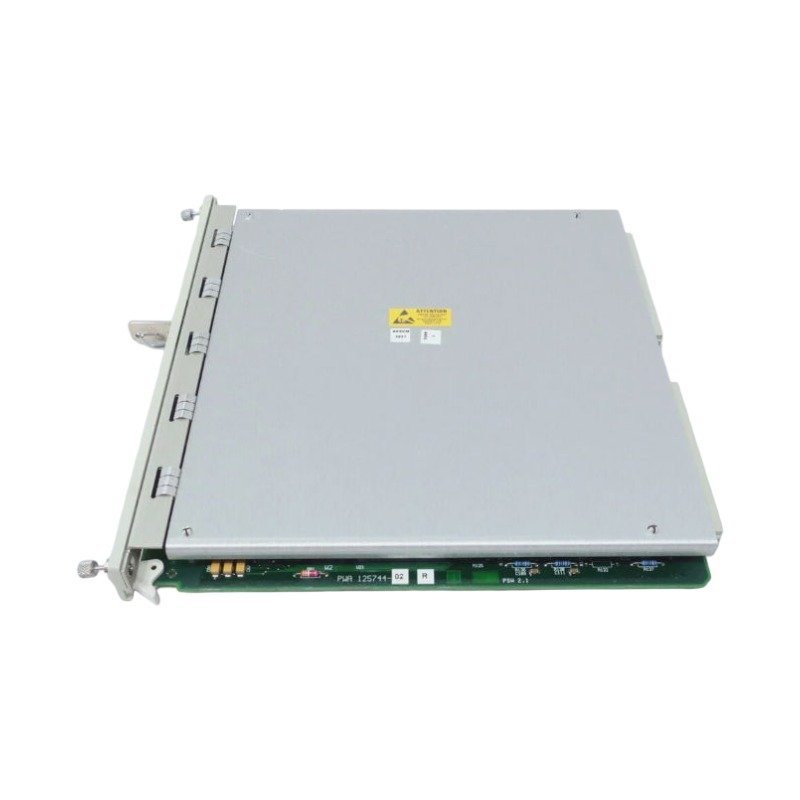

The Bently Nevada 3500/20 125744-02, also cataloged as the 125744-02 Rack Interface Module (RIM) with Data Manager Interface, serves as the primary 3500/20 processor utilized to execute systemic configuration and data distribution tasks across Bently Nevada 3500 Machinery Protection System platforms.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This module coordinates system-wide communications and buffers static configuration parameters, allowing subordinate monitors to apply accurate eddy-current probe scaling variables across the backplane. Consequently, the hardware transfers steady-state parameters and transient rotor dynamics data directly to external supervisory computers without affecting primary alarm machinery protection loops. During commissioning, the module updates the background baseline metrics, which allows operators to verify gap voltage validation metrics across all installed channels. Furthermore, the internal backplane filtering circuitry reinforces cross-talk suppression between high-density analog channels.

Frequently Asked Questions

Q: Does the removal or failure of the 125744-02 module interrupt the machine trip protection functions of the rack?

A: No. The internal architecture isolates the RIM from individual monitor channel logic. Consequently, if the module fails or if a technician removes it under power, the remaining rack monitor modules continue executing emergency machine trips independently.

Q: How does the technician update the operational configuration stored inside this specific hardware?

A: The technician connects a PC running 3500 Configuration Software to the front-panel serial port. Then, the user downloads the new parameter file into the non-volatile memory, which immediately redistributes the operational thresholds across the backplane.

Field Installation Guidelines

• Insert the module exclusively into Slot 1 of the 3500 rack frame, ensuring the upper and lower chassis ejector tabs click into place to verify solid backplane mating.
• Connect the frame ground terminal on the corresponding rear I/O module directly to the plant instrumentation earth bus using a minimum 14 AWG conductor.
• Keep serial communication cables isolated from high-current AC motor leads to secure a stable data transfer interface and enforce cross-talk suppression.
• Check the front-panel LED matrix immediately following power application to confirm that the green “OK” indicator illuminates steadily.
