Description

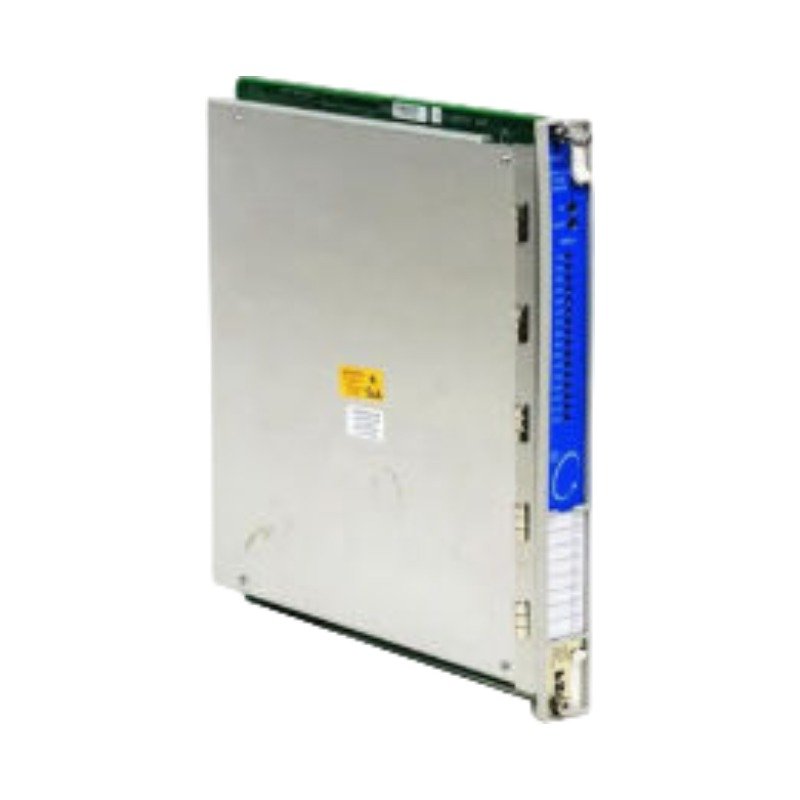

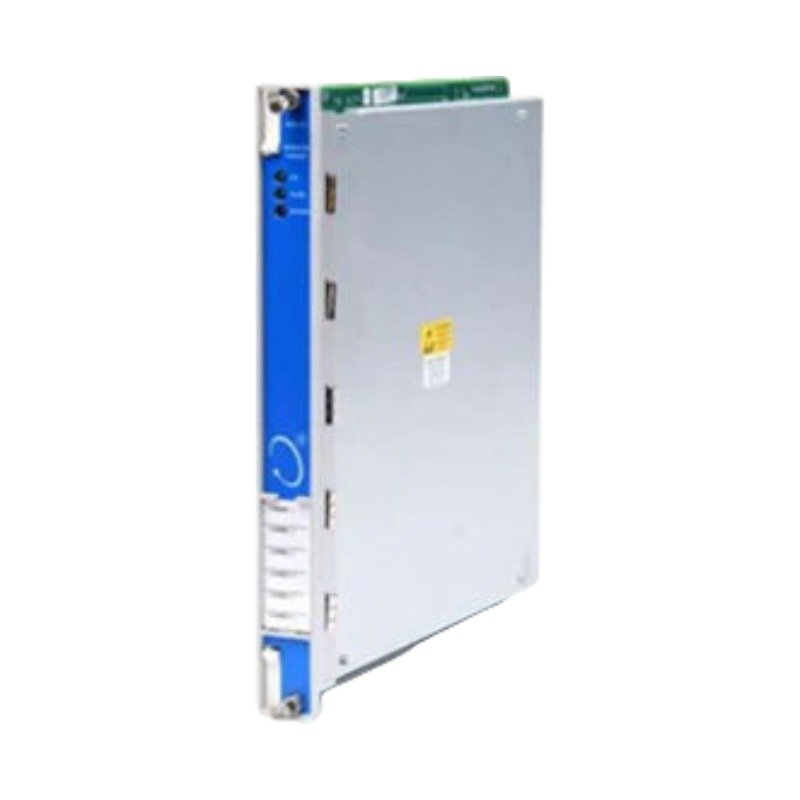

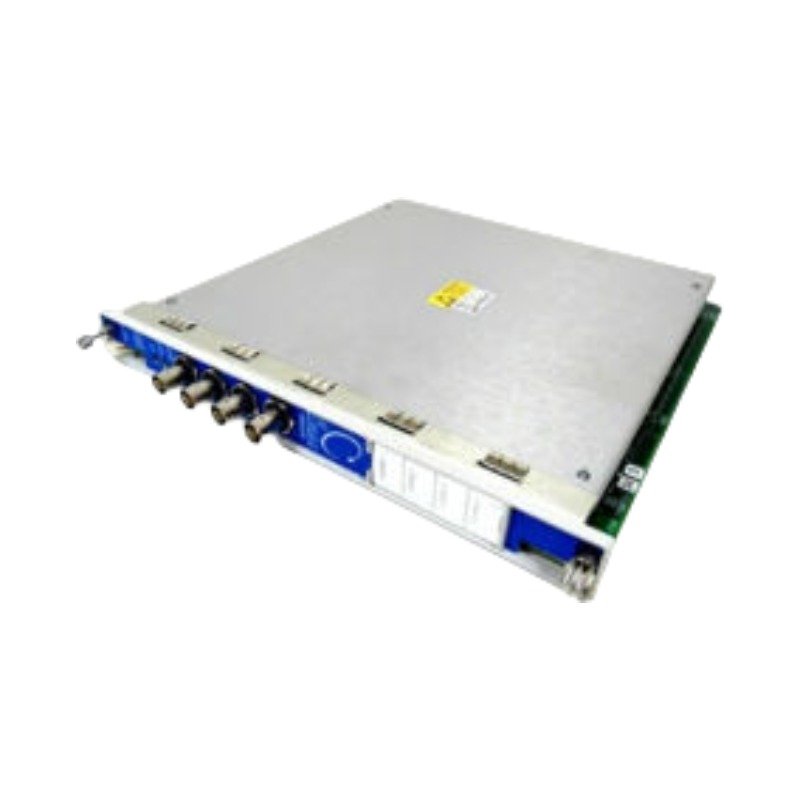

Configured for radial vibration, thrust position, and velocity monitoring within the 3500 machinery protection system, the Bently Nevada 3500/42 125672-02 (125672-02 Proximitor/Seismic Monitor Module) provides direct physical/electrical execution. Consequently, it continuously processes raw AC/DC voltage inputs from eddy-current proximity probes and seismic velocity transducers to determine exact mechanical health metrics across designated rotating shaft components.

Hardware Specifications

Proximity Probe Scaling and Rotor Dynamics Calibration

The Bently Nevada 3500/42 125672-02 relies on correct eddy-current probe scaling to ensure accuracy across its processed channels. Consequently, proper calibration requires strict gap voltage validation, which targets a -10 VDC baseline at the electrical midpoint of the linear window via the front-panel short-circuit protected buffered coaxial interfaces. Furthermore, field variations in target material chemistry modify magnetic permeability and electrical conductivity, shifting the nominal scale factor calculations inside the monitor software. To maintain critical rotor dynamics monitoring, engineers must execute cross-talk suppression between adjacent probes linked to this module by establishing physical separation distances that exceed twice the probe tip diameter, thereby preventing electromagnetic field overlap and subsequent heterodyne interference.

Frequently Asked Questions

Q: How does the monitor respond if an input transducer loop drops below its linear voltage window?

A: The module relies on an active Not OK filter circuit. Therefore, when the transducer gap voltage drifts outside the programmed operating parameters, the internal logic flags a Not OK state within 100 milliseconds, clamping the channel data and disabling false alarm trips.

Q: Can this module operate within a Triple Modular Redundant (TMR) configuration?

A: Yes, this hardware supports TMR architectures. Consequently, users must group three separate monitors in adjacent chassis slots and interface them with a matching TMR I/O module to execute 2oo3 voting mechanisms across the machinery shutdown loops.

Field Installation Guidelines

• Chassis Slot Assembly: Slide the main module straight into the front guide rails of the 3500/05 rack, pushing firmly until the rear backplane connectors seat completely before securing the dual panel screws.
• Buffered Output Isolation: Maintain dedicated cable shielding on test equipment lines connected to the front coaxial ports to avoid injecting stray electromagnetic noise into the active processing circuitry.
• Recorder Loop Verification: Ensure total loop resistance on the rear-panel 4-20 mA analog recorder outputs remains below 600 ohms when providing real-time data to external plant DCS platforms.
• Software Configuration Download: Connect via the 3500 Rack Configuration Software tool to define the exact sensor selection, full-scale ranges, and alarm delay values prior to placing the unit into active service.
