Description

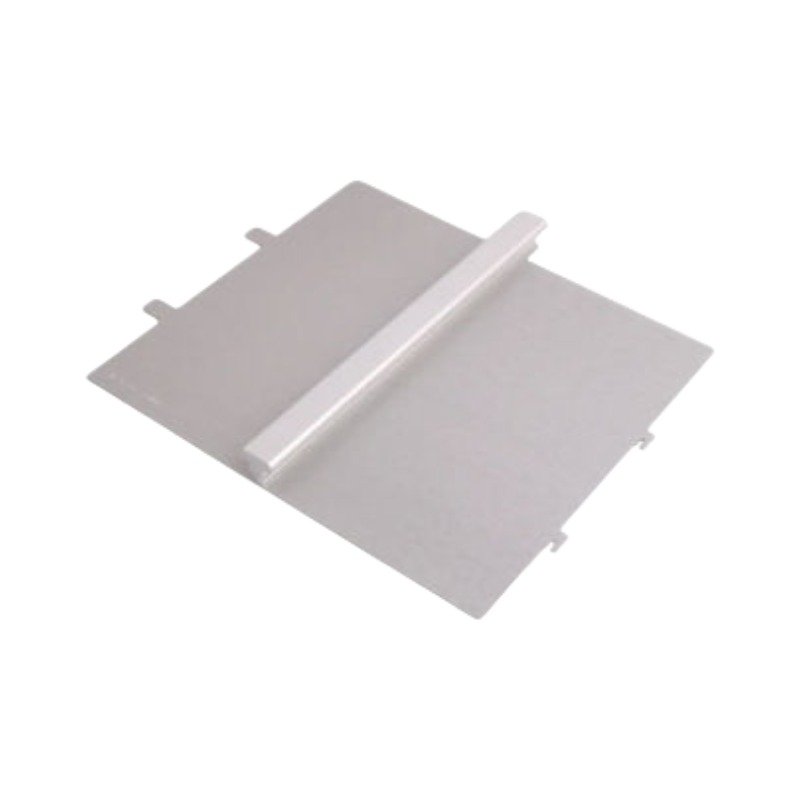

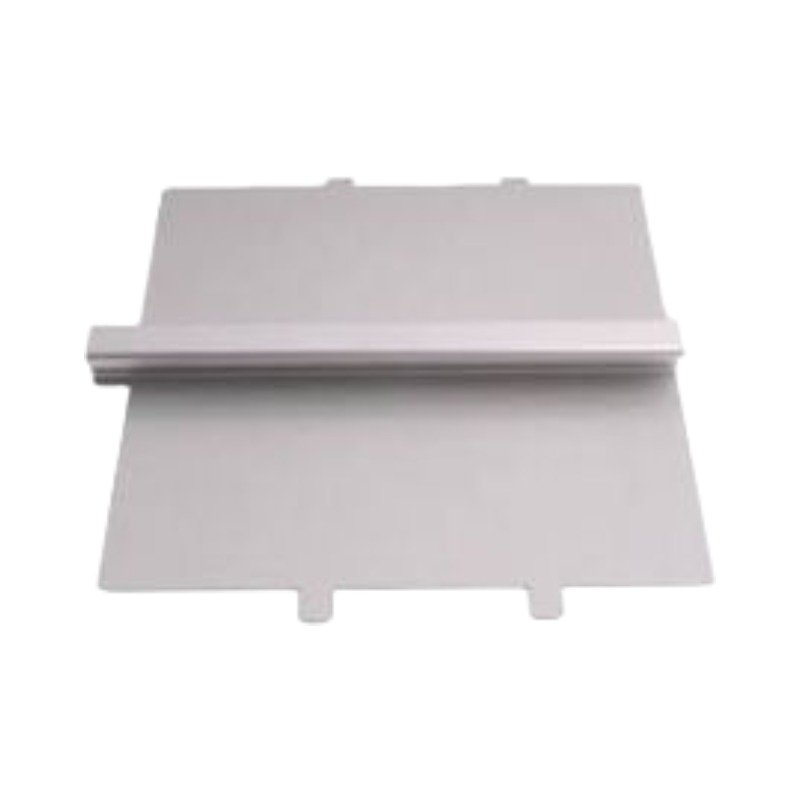

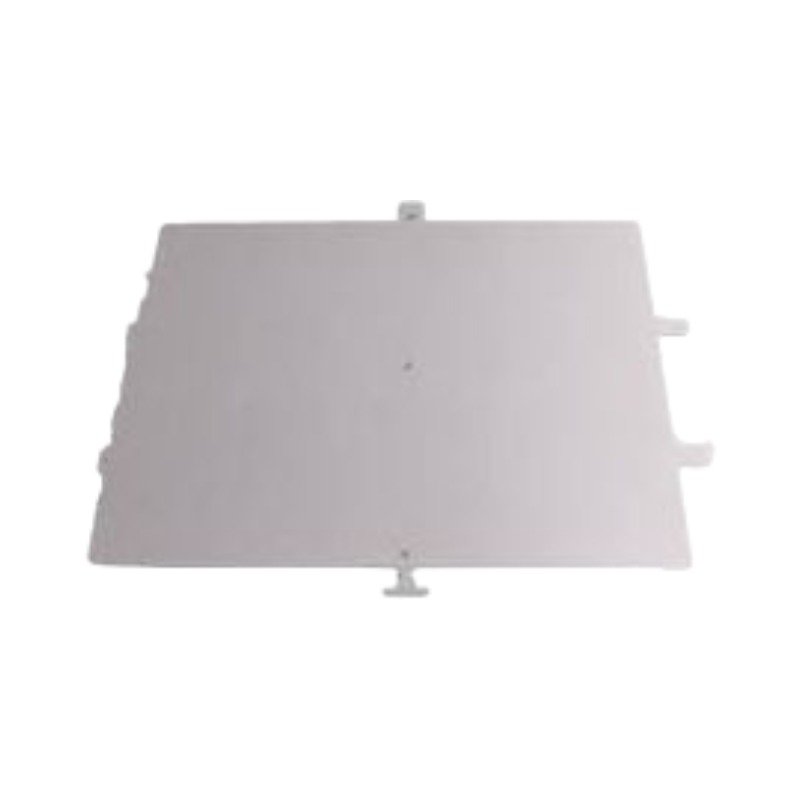

Configured for structural alignment inside 3500/05 machinery protection system racks, the Bently Nevada 125388-01 (125388-01 Half-Height Card Adaptor) provides direct physical execution. It operates as the primary mechanical interface designed to securely house and guide half-height processing instruments, such as the 3500/25 Enhanced Keyphasor Module, within a standard full-height backplane slot configuration.

Hardware Specifications

Proximity Probe Scaling and Rotor Dynamics Calibration

Although the Bently Nevada 125388-01 functions as a passive mechanical chassis adaptor, it directly impacts rotor dynamics monitoring by ensuring rigid physical alignment of critical diagnostic modules. Specifically, maintaining strict dimensional stability prevents any physical displacement of the module, which could otherwise introduce mechanical strain or noise into low-voltage sensor circuits. This precise mechanical positioning remains vital during gap voltage validation procedures, where monitoring systems demand uncompromised electrical integrity to track shaft motion accurately. Furthermore, the specialized grounding paths integrated into the chassis design provide crucial cross-talk suppression by diverting parasitic electromagnetic energy away from adjacent eddy-current instrumentation cards.

Frequently Asked Questions

Q: Does this internal chassis adaptor draw any current from the 3500 system backplane power supply?

A: No, the hardware contains no active electrical components. Therefore, it draws 0.0 mA of current, serving entirely as a passive structural guide for half-height cards.

Q: Can an engineer perform a hot-swap modification on a module housed within this adaptor?

A: The adaptor itself remains fixed inside the rack chassis. However, the active half-height monitoring modules inserted into this structural frame fully support hot-swap execution, provided the user observes standard system safety interlocks first.

Field Installation Guidelines

• Chassis Slot Alignment: Slide the adaptor guide rails smoothly into the designated slot of the 3500/05 rack, ensuring the rear mechanical tabs lock firmly into the main backplane infrastructure.
• Fastener Torque Specification: Tighten the integrated retention screws to secure the adaptor frame to the rack chassis, preventing structural resonance from loosening the assembly under machine vibration.
• Module Insertion Path: Align the target half-height processing card straight within the upper or lower track of the adaptor before pushing inward to avoid bending the rear pin connectors.
• Grounding Tab Inspection: Verify that the metal ground wiping contacts on the adaptor frame stay clean and clear of oxidation to preserve low-impedance path paths to earth.
