Description

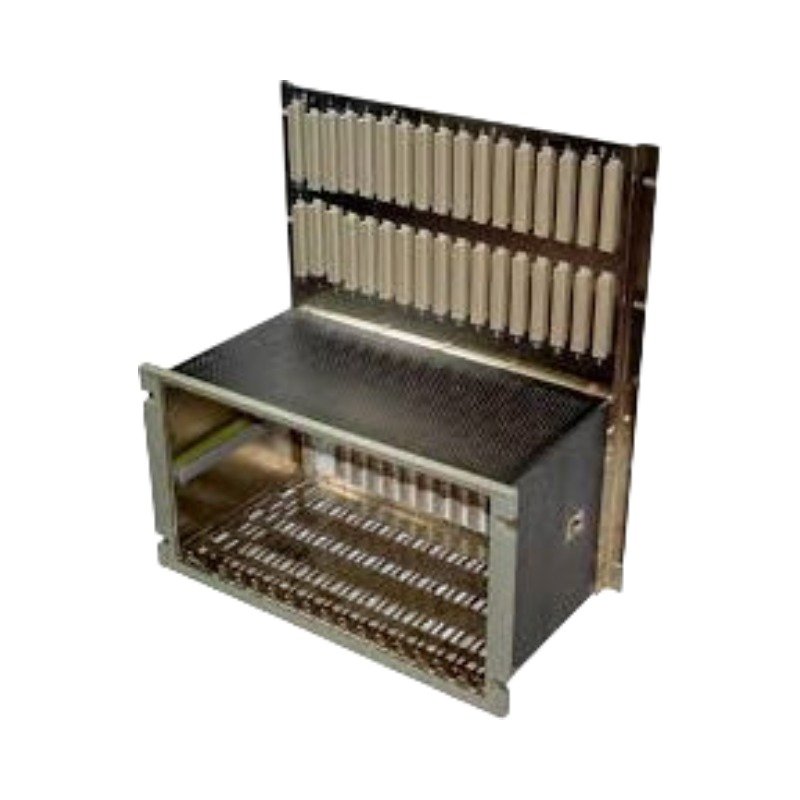

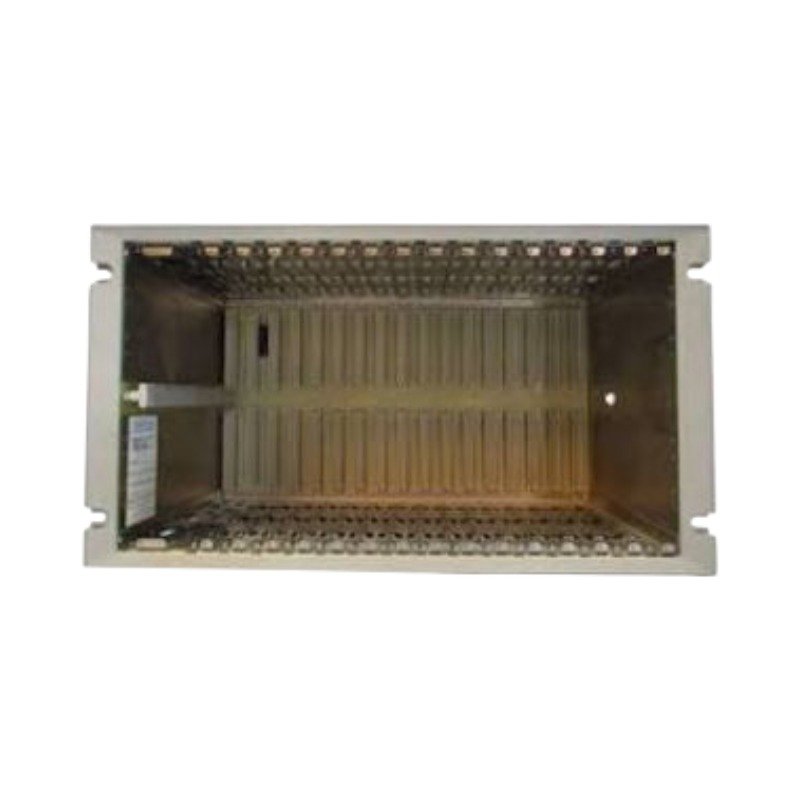

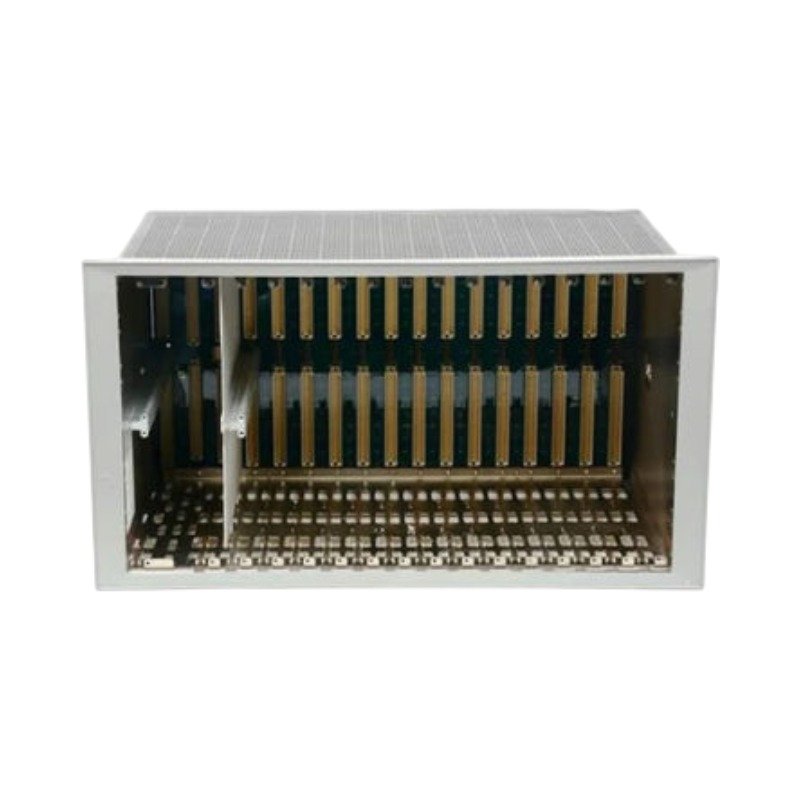

The Bently Nevada 3500-05-01-03-00-00-00, also cataloged as the 3500/05 System Rack, operates as a dedicated hardware component for housing and interconnecting machinery monitoring modules within Bently Nevada 3500 platforms. Configured specifically as a 19 inch rack format, this assembly establishes the internal backplane connectivity and power distribution necessary to support machinery protection operations.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

Because this chassis forms the foundation of Turbine Supervisory Instrumentation (TSI) deployments, the internal backplane engineering enforces strict cross-talk suppression between adjacent high-frequency vibration channels. This physical shielding isolates the weak voltage signals generated by proximity sensors, thereby maintaining signal integrity across the backplane bus. Consequently, technicians can execute gap voltage validation with a target of -10 VDC on eddy-current probe scaling without interference from surrounding digital communication modules. This accurate signal preservation enables the 3500 system to capture precise rotor dynamics data during critical turbomachinery startup and shutdown sequences.

Frequently Asked Questions

Q: How does the system handle power distribution across the rack slots?

A: The passive backplane routes redundant power directly from the 3500/15 Power Supplies to every individual slot. This design ensures that a single supply failure does not disrupt the operations of the monitoring modules.

Q: Can technicians hot-swap modules within this specific rack frame?

A: Yes, the backplane design permits full live-insertion and removal of modules. However, operators must follow specific procedural safety protocols to prevent false trip signaling on the active relay channels during the swap.

Field Installation Guidelines

• Earthing and Shielding: Installers must connect the system common ground to the dedicated brass ground stud located on the rear of the rack chassis. Ensure that all eddy-current probe shield wires terminate at the instrument ground point rather than multiple field points to eliminate ground loops.
• Mechanical Mounting: Secure the rack into standard 19 inch EIA panels using four heavy-duty fasteners. Maintain at least 50 mm of unobstructed space above and below the assembly to allow natural convection currents to cool the internal modules.
