Description

Technical Overview

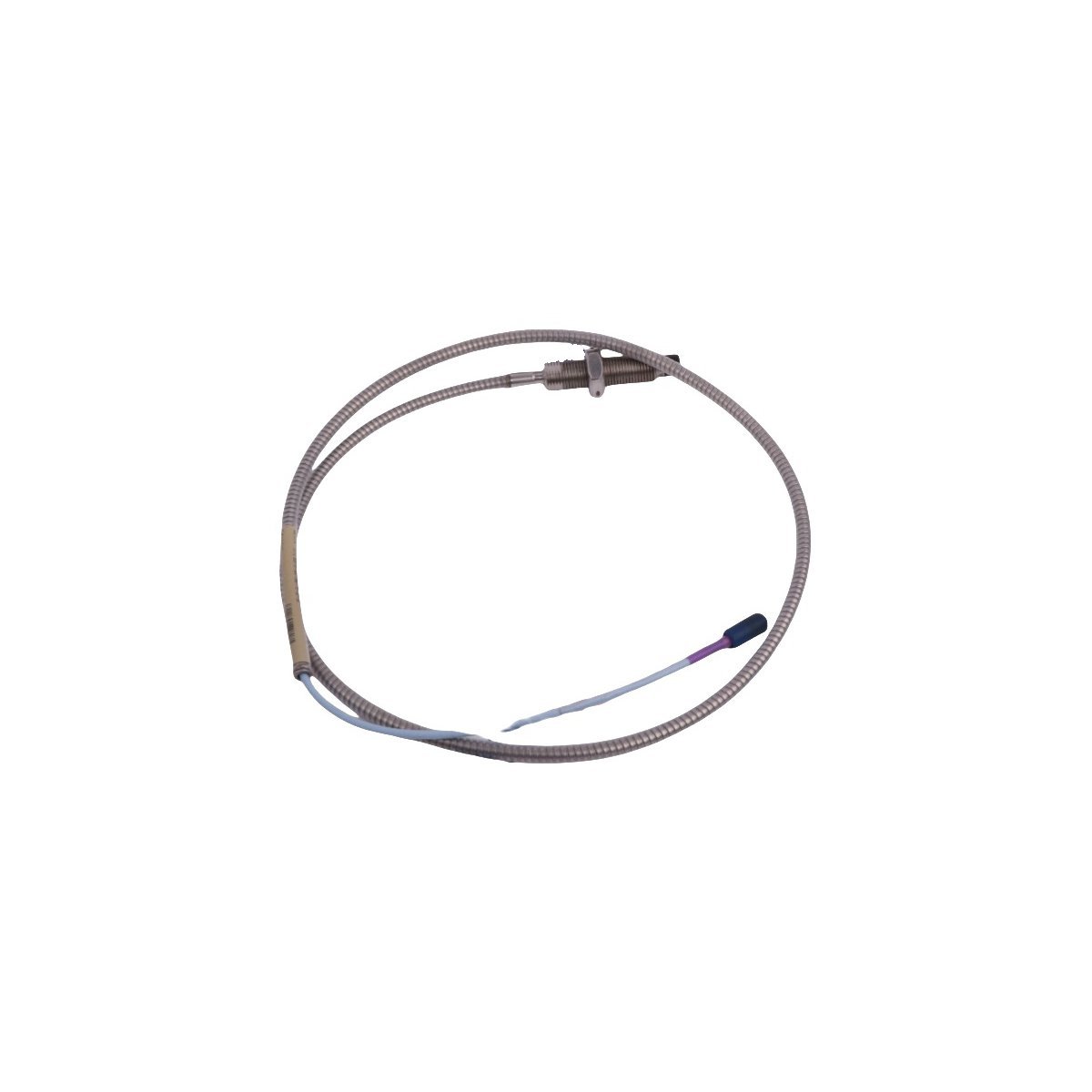

The Bently Nevada 3300 XL 11 mm Proximity Probe (Model: 330710-000-060-10-02-00) is a high-precision, non-contact displacement sensor engineered for continuous monitoring of shaft vibration, axial position, and differential expansion in critical rotating machinery. As part of the industry-standard 3300 XL transducer system, this probe delivers exceptional linearity, temperature stability, and immunity to electromagnetic interference—ensuring reliable performance in demanding industrial environments such as power generation, oil & gas, petrochemical, and heavy manufacturing facilities.

Designed for integration with Bently Nevada 3300 XL 25 mm or 50 mm前置器 (proximity driver units), the 330710-000-060-10-02-00 probe features a robust 11 mm diameter stainless steel housing rated for harsh operating conditions—including high ambient temperatures up to +120°C, exposure to lubricating oils, steam, and corrosive vapors. Its optimized coil geometry and advanced eddy-current sensing technology provide a linear measurement range of ±2.0 mm (±0.079 in) with a sensitivity of 4.0 V/mm (100 mV/mil), enabling sub-micron resolution for early fault detection and predictive maintenance programs.

Key Features

• High Accuracy & Repeatability: Maintains ±1% full-scale linearity across its calibrated range, ensuring consistent data integrity for condition monitoring systems.
• Rugged Industrial Construction: Hermetically sealed, corrosion-resistant 316 stainless steel body with integrated high-temperature coaxial cable (up to 120°C continuous operation).
• EMI/RFI Immunity: Engineered to meet stringent IEC 61000-4 electromagnetic compatibility standards—ideal for electrically noisy turbine halls and motor control centers.
• Plug-and-Play Compatibility: Fully interoperable with Bently Nevada 3300 XL 25 mm and 50 mm前置器 (model numbers 330180-50-00, 330180-51-00, etc.), simplifying system upgrades and retrofits.
• Long-Term Stability: Minimal zero-shift and sensitivity drift over time—reducing calibration frequency and total cost of ownership.

Specifications

• Part Number: 330710-000-060-10-02-00
• Manufacturer: Bently Nevada (a Baker Hughes business)
• Type: 3300 XL 11 mm Non-Contact Proximity Probe
• Warranty: 24-month limited warranty from date of shipment, covering defects in materials and workmanship

Contact us for bulk pricing and availability
