Technical Overview

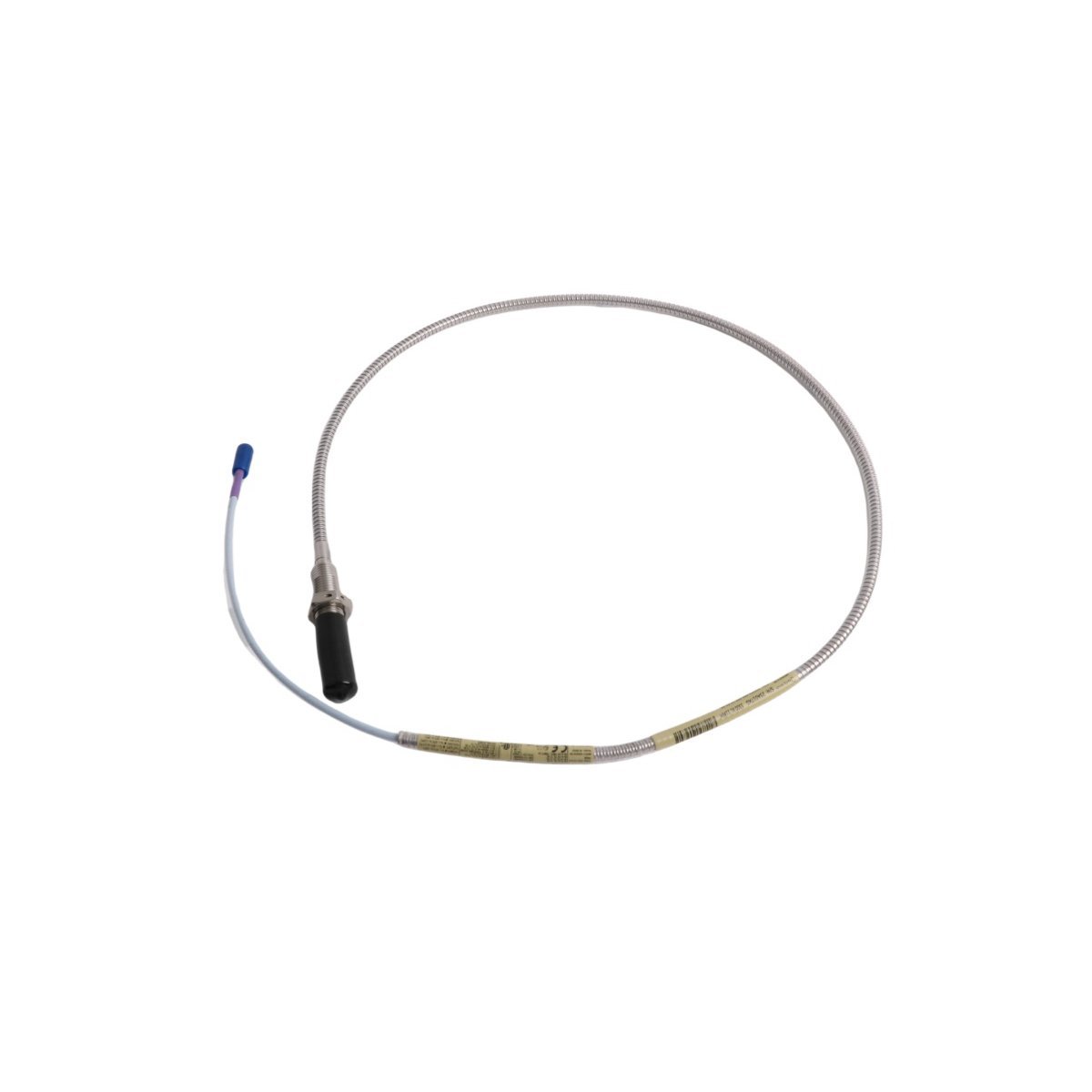

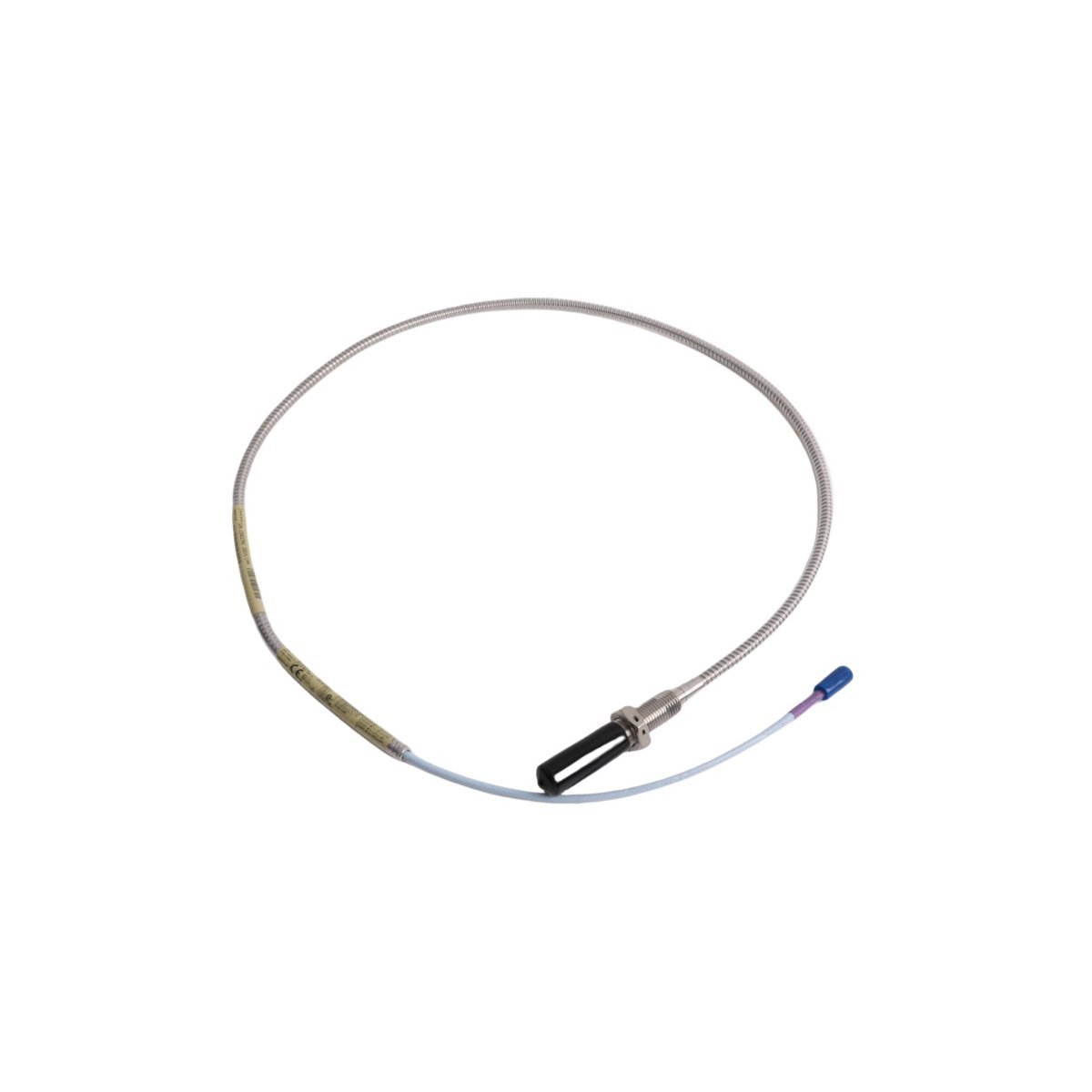

The Bently Nevada 330704-000-100-10-01-05 is a high-precision, industrial-grade proximity probe engineered for continuous, non-contact vibration and displacement monitoring in critical rotating machinery applications. Manufactured by Baker Hughes (under the Bently Nevada brand—a globally recognized leader in condition monitoring and predictive maintenance solutions), this probe is part of the trusted 3300 XL series, specifically optimized for extended linear range and exceptional thermal stability. Designed to operate seamlessly with the 3300 XL 11 mm probe driver modules and monitoring systems, the 330704-000-100-10-01-05 delivers millivolt-per-mil (mV/mil) output calibrated to industry-standard sensitivity (typically 4.0 V/mm or 100 mV/mil), ensuring compatibility with legacy and next-generation Bently Nevada monitoring platforms including System 1™, 3500, and 3300 NSM systems. The probe utilizes a robust, hermetically sealed stainless steel housing with an integrated 11 mm diameter active sensing face, enabling reliable operation in harsh environments characterized by extreme temperatures (–30 °C to +120 °C ambient), high humidity, oil immersion, and electromagnetic interference (EMI). Each unit undergoes rigorous factory calibration per ISO 17025-accredited procedures and is supplied with full traceable calibration documentation. This probe is offered in New, Factory-Fresh Condition, backed by a comprehensive 24-Month Limited Manufacturer Warranty, covering defects in materials and workmanship under normal industrial use. Its precise mechanical tolerances, low thermal drift (<0.05 %/°C), and repeatable linearity (<±1 % of full scale) make it ideal for mission-critical asset protection across power generation, oil & gas, petrochemical, marine propulsion, and industrial manufacturing sectors.

Detailed Specifications

Key Features

• Precision 11 mm Sensing Face: Optimized geometry ensures consistent field distribution, minimizing edge effects and maximizing measurement repeatability across the entire 10 mm linear range.
• Hermetic Stainless Steel Construction: Fully sealed 316 SS housing provides superior corrosion resistance and mechanical durability in aggressive process environments—including steam turbines, compressors exposed to H₂S, and offshore platform equipment.
• Low Thermal Drift Performance: Advanced coil winding and temperature-compensated electronics reduce sensitivity variation to less than 0.05 %/°C—critical for stable readings during start-up, shutdown, and load transients.
• Factory-Calibrated & Traceable: Each probe ships with NIST-traceable calibration certificate (per ISO/IEC 17025), including dynamic linearity plots, frequency response data, and thermal drift verification.
• EMI/RFI Immunity: Integrated triple-layer shielding (copper braid + aluminum foil + conductive polymer) meets IEC 61000-4-3 (Level 3) and MIL-STD-461G RS103 requirements for operation near VFDs, SCR drives, and high-power switchgear.
• Plug-and-Play Integration: Fully compatible with all 3300 XL system components—including 3300 XL 11 mm Proximitor® drivers (e.g., 3300 XL 11 mm Driver Module 176449-01), 3500 rack systems, and System 1™ software—eliminating configuration overhead.
• Long-Term Stability: Gold-plated contacts, ceramic-filled epoxy encapsulation, and stress-relieved cable terminations ensure >15-year service life with minimal zero-shift or sensitivity degradation.

Applications

• Steam and Gas Turbines: Monitoring radial vibration, axial position (thrust), and differential expansion on high-speed shafts operating above 3,600 RPM in combined-cycle and cogeneration plants.
• Centrifugal Compressors & Pumps: Detecting bearing wear, misalignment, and surge precursors in refinery, LNG liquefaction, and chemical processing units where reliability directly impacts safety and throughput.
• Aeroderivative Engines: Providing real-time rotor dynamics data for marine propulsion and mobile power generation platforms requiring compact, lightweight, and thermally resilient sensors.
• Large Electric Motors & Generators: Enabling continuous shaft orbit analysis, eccentricity detection, and air-gap monitoring to prevent catastrophic stator-rotor contact in utility-scale generators (>100 MW).
• Rolling Mill Drives & Gearboxes: Supporting predictive maintenance programs by capturing high-frequency displacement signatures indicative of gear tooth damage, bearing spalling, or housing resonance.
• API 670-Compliant Machinery Protection Systems (MPS): Serving as primary sensing elements in SIL2-certified shutdown loops for critical assets governed by American Petroleum Institute standards.
