Description

Technical Overview

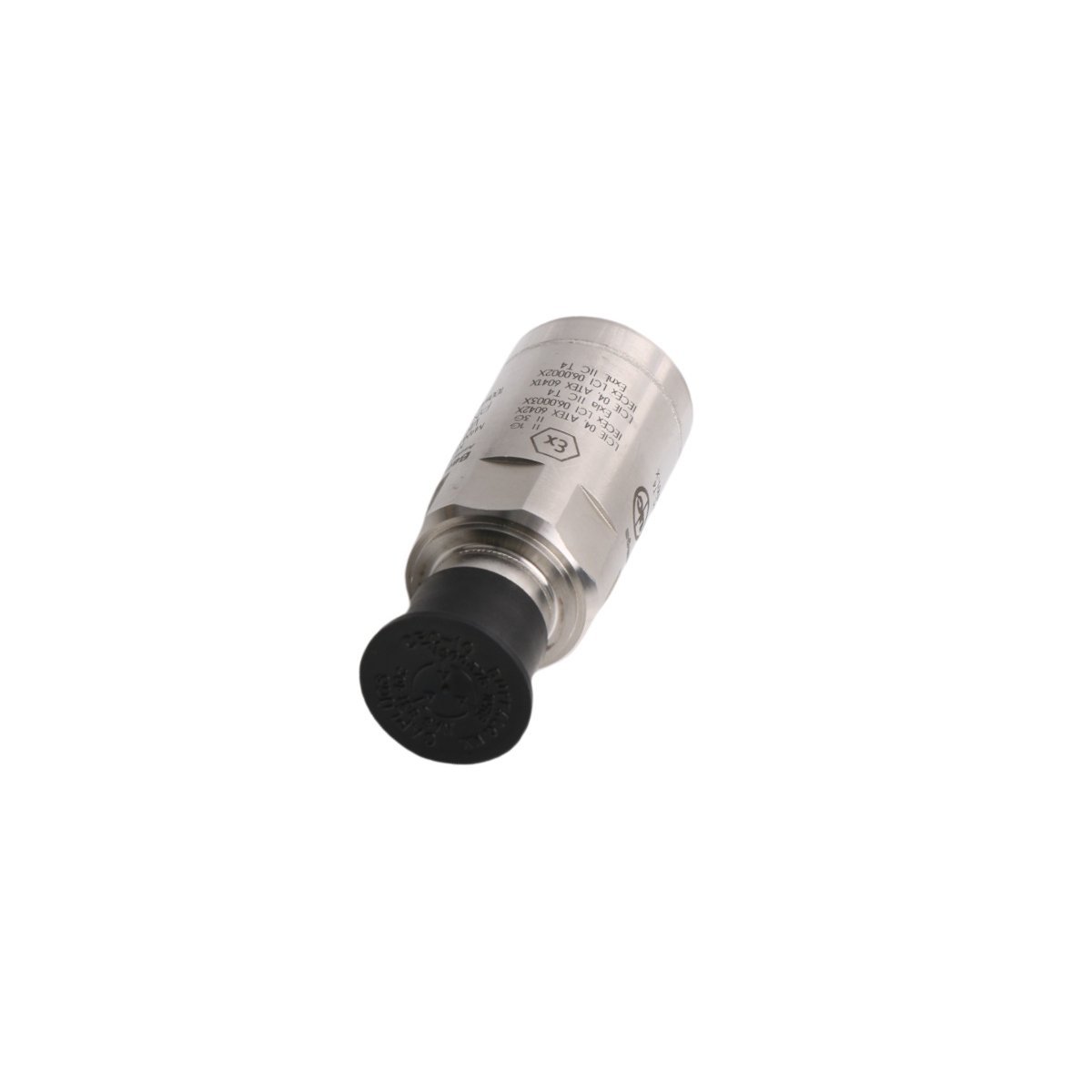

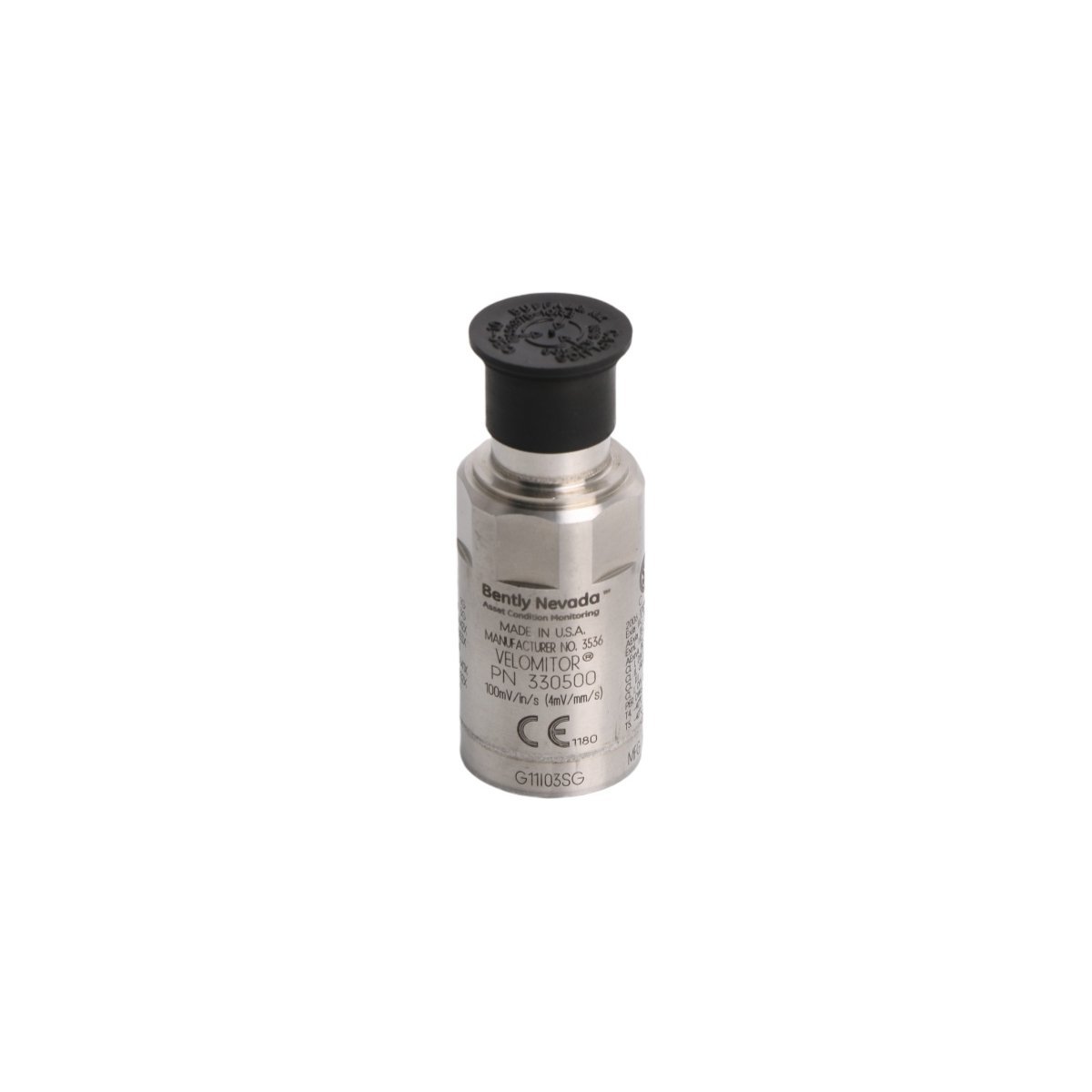

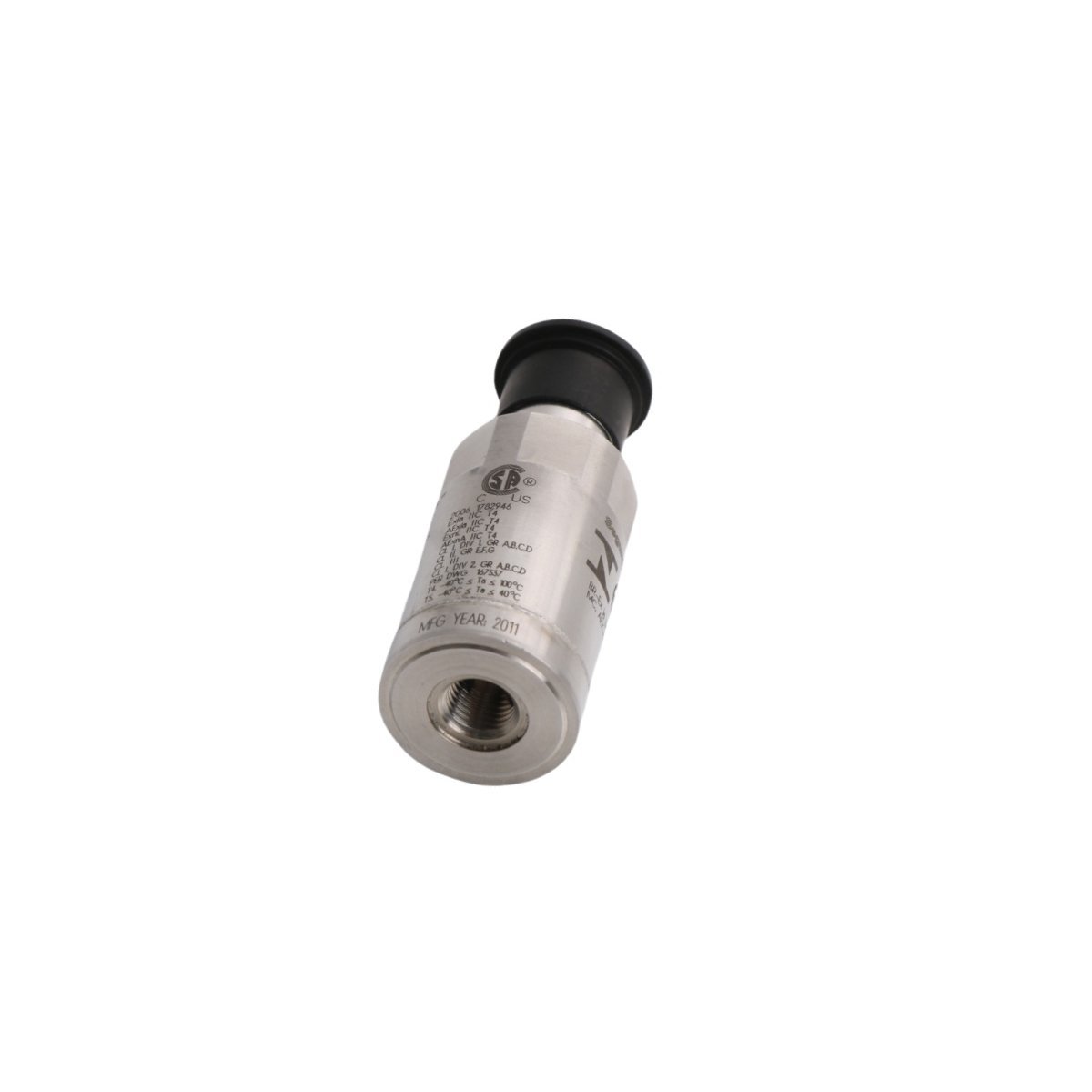

The Bently Nevada 330500-00-20 Velomitor Piezo-velocity Sensor is a high-reliability, industrial-grade vibration monitoring transducer engineered for continuous, real-time measurement of velocity-based mechanical vibration in rotating and reciprocating machinery. Manufactured by Baker Hughes under the globally recognized Bently Nevada brand — the industry benchmark for condition monitoring and predictive maintenance solutions — this sensor leverages proprietary piezoelectric ceramic technology to deliver stable, linear output across its operational frequency range. Unlike accelerometers or displacement probes, the 330500-00-20 is intrinsically velocity-sensitive, eliminating the need for external integration circuitry and reducing signal conditioning complexity. Its hermetically sealed, stainless steel housing ensures robust performance in harsh environments characterized by high humidity, oil mist, chemical exposure, and wide ambient temperature fluctuations. Designed for permanent mounting on machine casings, gearboxes, compressors, turbines, motors, and pumps, the sensor provides analog voltage output (in mV/mm/s) directly proportional to vibration velocity magnitude — a critical parameter aligned with ISO 10816 and API 670 standards for machinery health assessment. The unit is supplied new, factory-calibrated, and backed by a comprehensive 24-month limited warranty, affirming its compliance with IEC 61266-1 and IEEE 279 vibration sensor performance criteria. With origins in the United States — specifically engineered and assembled at Bently Nevada’s state-of-the-art facility in Minden, Nevada — the 330500-00-20 reflects stringent quality control protocols, traceable calibration documentation, and long-term repeatability exceeding ±1% full-scale over 10 years of service life. Its compact form factor (Ø25.4 mm × 63.5 mm), lightweight construction (125 g), and integrated 10–32 UNF threaded stud facilitate rapid installation without structural modification, while its wide operating temperature range (–50 °C to +120 °C) supports deployment in cryogenic plants, offshore platforms, and high-temperature refinery applications. As part of the broader Bently Nevada System 1™ ecosystem, the 330500-00-20 seamlessly interfaces with 3500/42M monitors, 3300 XL proximity probe systems, and modern DCS/SCADA platforms via standard 10–30 VDC power and low-impedance voltage output, enabling seamless integration into enterprise-wide asset performance management (APM) strategies.

Detailed Specifications

Key Features

• True Velocity Output: Delivers direct, analog velocity measurements without requiring external integrators — simplifying system architecture and improving signal fidelity.
• Hermetic Stainless Steel Construction: 316 stainless steel housing with welded seams ensures exceptional resistance to corrosion, hydrocarbons, and aggressive industrial atmospheres.
• Wide Dynamic Range & Frequency Response: Covers critical low-frequency torsional vibrations (e.g., gear mesh, misalignment) through high-frequency bearing faults (e.g., cage defects, spalling) in a single sensor.
• Integrated Mounting Stud: Precision-machined 10–32 UNF threaded stud eliminates alignment errors and ensures optimal mechanical coupling for repeatable, high-fidelity measurements.
• NIST-Traceable Calibration: Each unit ships with a unique, factory-issued calibration certificate compliant with ISO/IEC 17025 requirements — essential for regulatory audits and ISO 55001-aligned maintenance programs.
• Low-Power, High-Noise Immunity Design: Operates on minimal current draw (2 mA) and features built-in RF filtering and shielded cabling to maintain signal integrity in electrically noisy plant environments.
• Global Compliance Ready: Meets CE, UKCA, ATEX Zone 2 (II 3G Ex nA IIC T4 Gc), and IECEx standards for use in hazardous locations — certified for Class I, Div. 2 applications.
• Plug-and-Play Integration: Compatible with legacy Bently Nevada 3300, 3500, and next-generation System 1™ platforms, as well as third-party PLCs, DCS, and edge-computing gateways supporting 4–20 mA or voltage input modules.

Applications

• Rotating Equipment Monitoring: Continuous velocity-based vibration surveillance of centrifugal and axial compressors, steam and gas turbines, and large induction/synchronous motors in power generation and petrochemical facilities.
• Reciprocating Machinery Diagnostics: Detection of valve train anomalies, crosshead wear, rod bolt looseness, and foundation resonance in reciprocating compressors and internal combustion engines.
• Condition-Based Maintenance (CBM) Programs: Enables early identification of imbalance, misalignment, bearing degradation, looseness, and resonance conditions per ISO 13373-3 guidelines.
• Offshore & Marine Installations: Ruggedized design supports deployment on FPSOs, drilling rigs, and marine propulsion systems exposed to salt spray, vibration, and extreme thermal cycling.
• Refinery & Chemical Plant Assets: Monitoring of pumps, agitators, fans, and blowers operating in corrosive, high-temperature, or explosive atmospheres — compliant with API RP 500 and IEC 60079-14.
• Renewable Energy Infrastructure: Vibration trending of wind turbine gearboxes, pitch/yaw drives, and hydroelectric generator sets to extend service intervals and reduce unplanned outages.
• Manufacturing & Process Lines: Integration into smart factory architectures for OEE optimization, predictive shutdown scheduling, and digital twin synchronization using time-synchronized velocity waveforms.
• Research & Development Labs: Used in modal analysis, structural health monitoring (SHM), and prototype validation due to its flat phase response and minimal mass-loading effect.
