Description

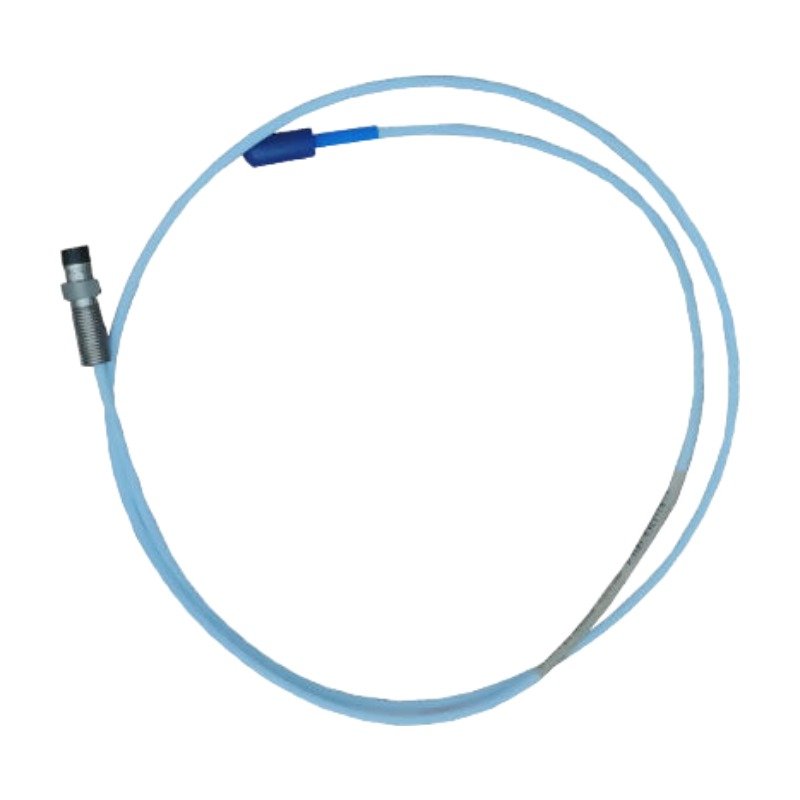

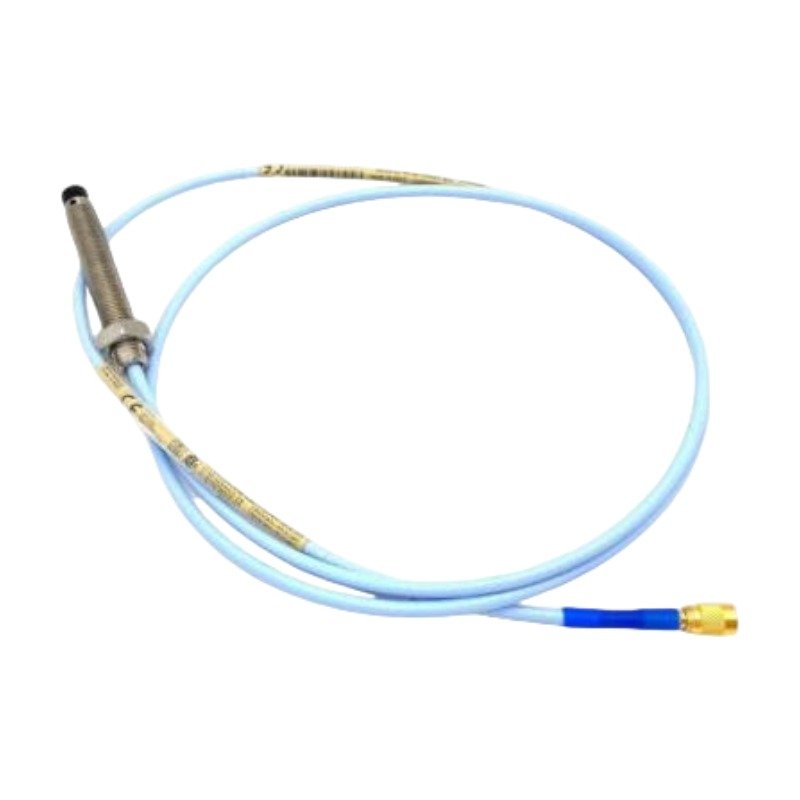

Configured for non-contacting vibration and displacement measurements in tight physical clearances or restricted mounting areas, the Bently Nevada 330171-00-94-10-02-00 (330171 Proximity Probe) provides direct physical/electrical execution. This hardware component operates as the high-frequency sensing element for the 3300 XL NSv (Near Surface side view) transducer system, tracking dynamic movements of targeted machine shafts where counterbore constraints or narrow installation paths prevent the deployment of standard 8 mm probes.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 330171-00-94-10-02-00 utilizes a unique localized field geometry to maintain precise eddy-current probe scaling when capturing high-frequency rotor dynamics in tight spaces. Field installation requires meticulous gap voltage validation (-10 VDC targets) to position the 1/4-inch probe face at the optimal midpoint of its 1.52 mm operational range. Because the NSv design specifically counters the side-view effects of narrow counterbores, its electrical scaling resists voltage distortions caused by surrounding machine walls. Consequently, this specialized tip profile achieves robust cross-talk suppression and isolates the primary high-frequency RF signal from adjacent metallic components.

Frequently Asked Questions

Q: Can this 3300 XL NSv probe connect to a standard 3300 XL 8 mm Proximitor sensor?

A: No. The NSv probe tip features unique coil geometry and different electrical properties than standard 8 mm probes. Connecting it to a standard 8 mm Proximitor disrupts the calibrated eddy-current probe scaling and creates significant scale factor errors.

Q: What is the primary purpose of the -02 connector protector option on this probe model?

A: The connector protector physically encases the miniature coaxial union. It seals out synthetic lubricating oils, moisture, and fine metal dust, preventing electrical resistance drops that degrade the analog vibration loop.

Field Installation Guidelines

• Mechanical Torque Constraints: Tighten the 1/4-28 thread probe case into the mounting structure using a maximum torque value of 2.3 N-m (20 in-lb) to prevent structural distortion of the internal coil housing.
• Cable Bend Configuration: Maintain a strict minimum physical bending radius of 25.4 mm (1.0 inch) along the coaxial cable jacket to protect the core conductor from physical cracking and internal signal reflection.
• Coaxial Joint Isolation: Ensure that the Click-Loc connector shell remains completely isolated from intermediate structural metal panels or conduit piping to eliminate unwanted electrical ground loop noise.
• Thread Engagement Target: Verify a minimum thread engagement depth of at least 5 full threads into the machine housing or mounting clamp before tightening the secondary locking nut.
