Description

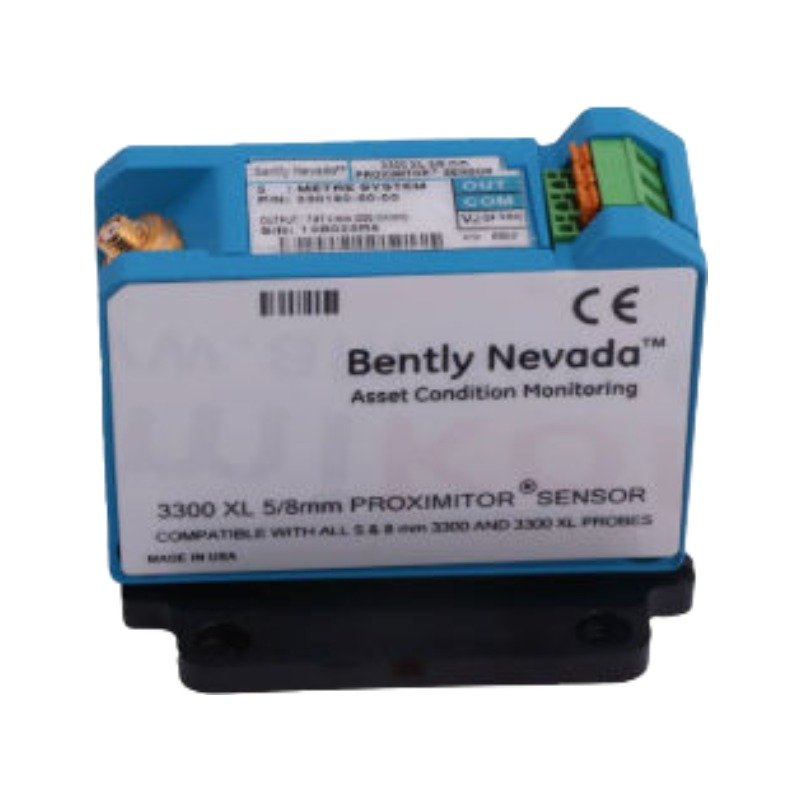

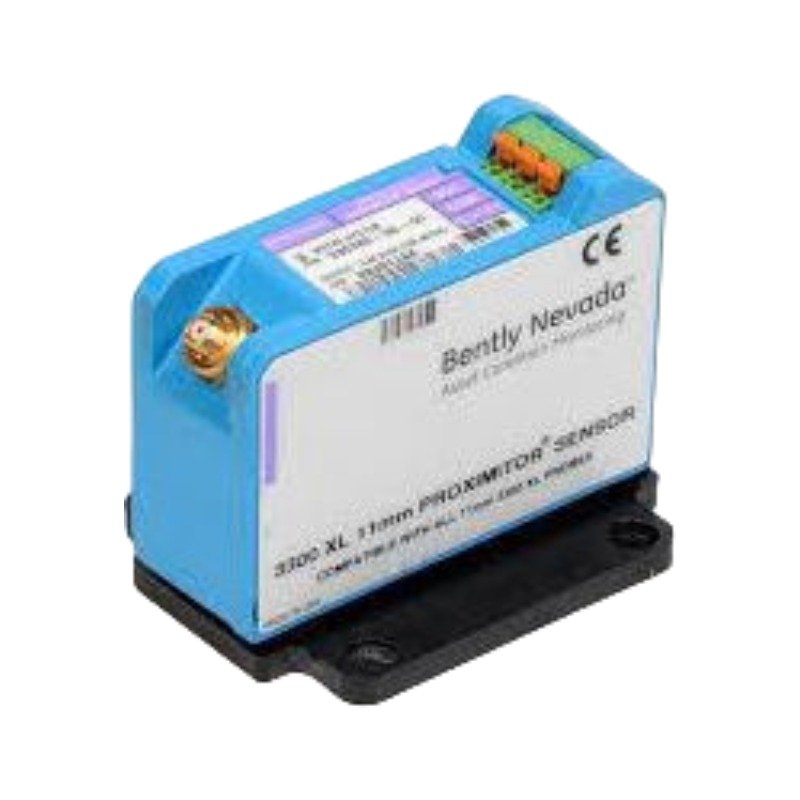

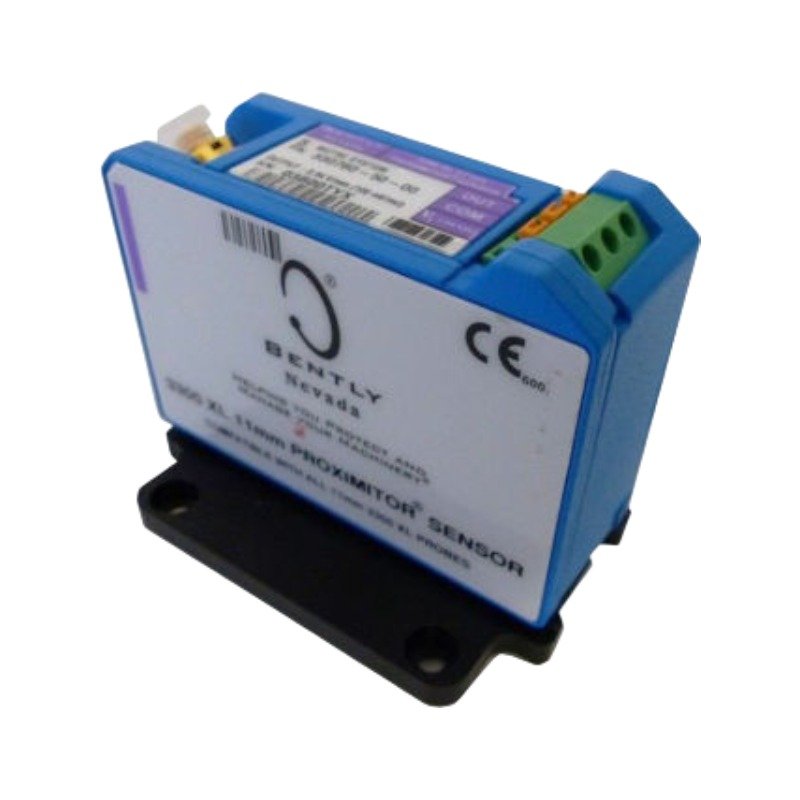

The Bently Nevada 330780-50-00, also cataloged as the 330780 Proximitor Sensor, serves as the primary 3300 XL Proximitor Sensor utilized to execute non-contacting vibration and displacement signal conditioning across Bently Nevada 3500 Machinery Protection System platforms. This electronic module conditions the high-frequency radio frequency (RF) signal from an 11 mm proximity probe. Consequently, it converts dynamic physical gap variations into a continuous, linear analog voltage output that tracks shaft position and axial thrust.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 330780-50-00 relies on precise internal loop tuning because the component must maintain exact eddy-current probe scaling when tracking extended-range rotor dynamics. Because this 11 mm system provides a wider 2.54 mm (100 mil) linear span compared to standard 8 mm probes, field commissioning requires precise gap voltage validation. Technicians must target a nominal value of -10 VDC to center the probe face directly in the middle of its calibrated operational field. Furthermore, the specialized physical layout of the aluminum casing minimizes electromagnetic interference. This design enforces strict cross-talk suppression between adjacent high-frequency channels sharing the same localized terminal enclosure.

Frequently Asked Questions

Q: Why does the 11 mm Proximitor sensor utilize a 3.94 V/mm (100 mV/mil) scale factor instead of the 7.87 V/mm factor?

A: The larger 11 mm probe tip spreads the electromagnetic field across a wider target area. Consequently, this geometry widens the total linear measurement range to 2.54 mm, which shifts the nominal scale factor to 3.94 V/mm to accommodate the broader physical span.

Q: What operating voltage limits apply when using this sensor with intermediate safety barriers?

A: When routing through safety barriers, the input voltage must stay within a strict range of -23 VDC to -26 VDC. Operating at a voltage more positive than -23.5 VDC alters internal bias points and reduces the overall linear range.

Field Installation Guidelines

• Panel Mounting Torque: Fasten the Proximitor base plate onto the flat internal layout panel of the enclosure using standard hardware. Tighten the screws to a maximum torque specification of 1.1 N-m (10 in-lb).
• System Component Verification: Connect this module exclusively to a matching 11 mm proximity probe and extension cable. The combined physical lengths of these parts must equal exactly 5.0 meters to protect the factory calibration curves.
• Coaxial Terminal Protection: Slide oil-resistant insulation shielding sleeves over the miniature coaxial connections. This practice prevents the exposed shell from grounding against intermediate metallic framework surfaces.
• Signal Wire Separation: Route the 3-conductor analog output wiring away from high-current AC motor supply conduits. This method maintains high-frequency signal integrity and suppresses inductive electrical noise.
