Description

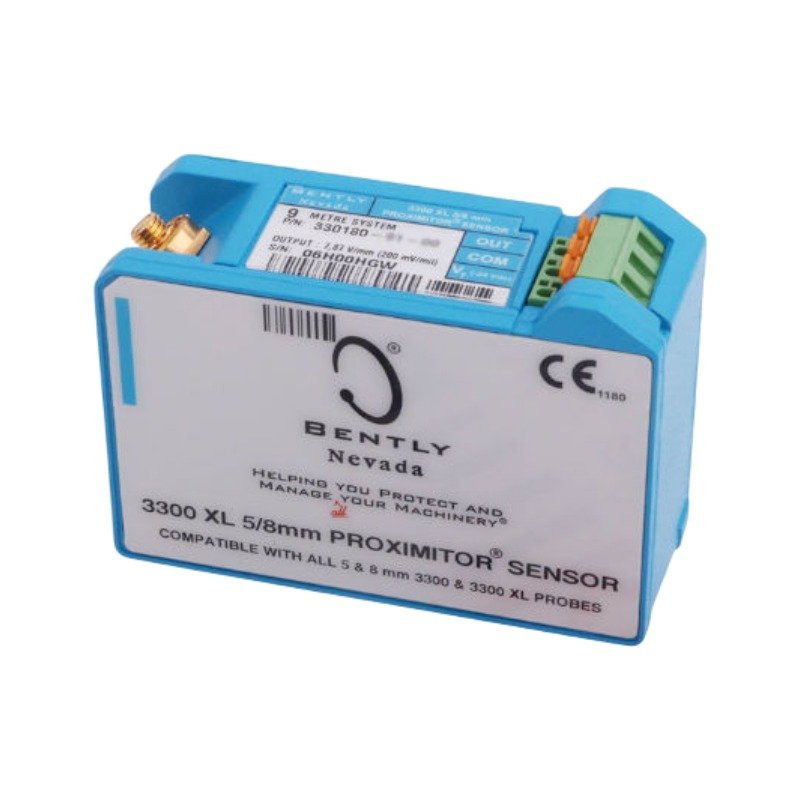

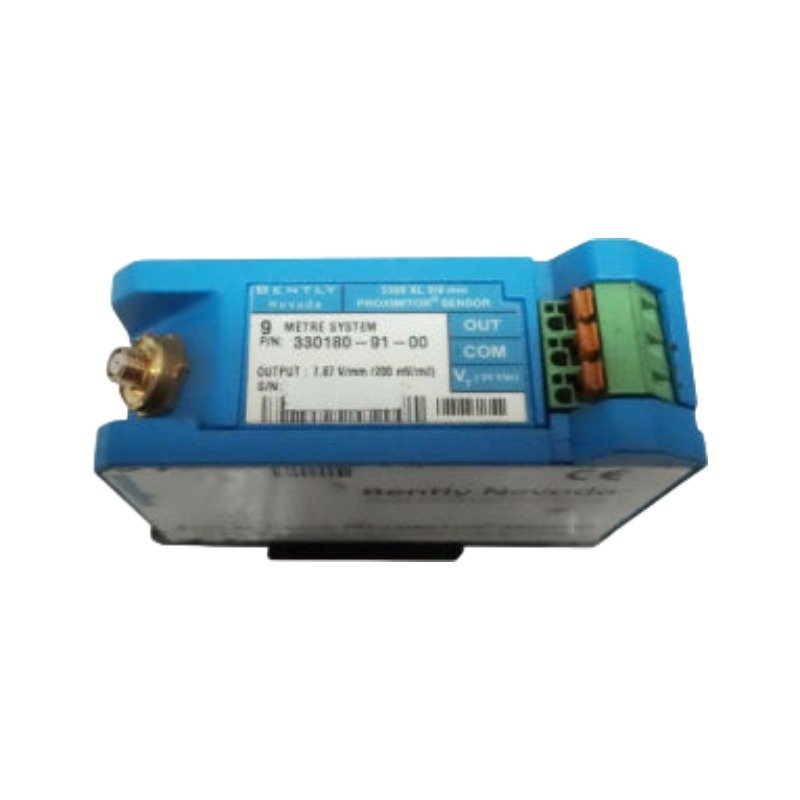

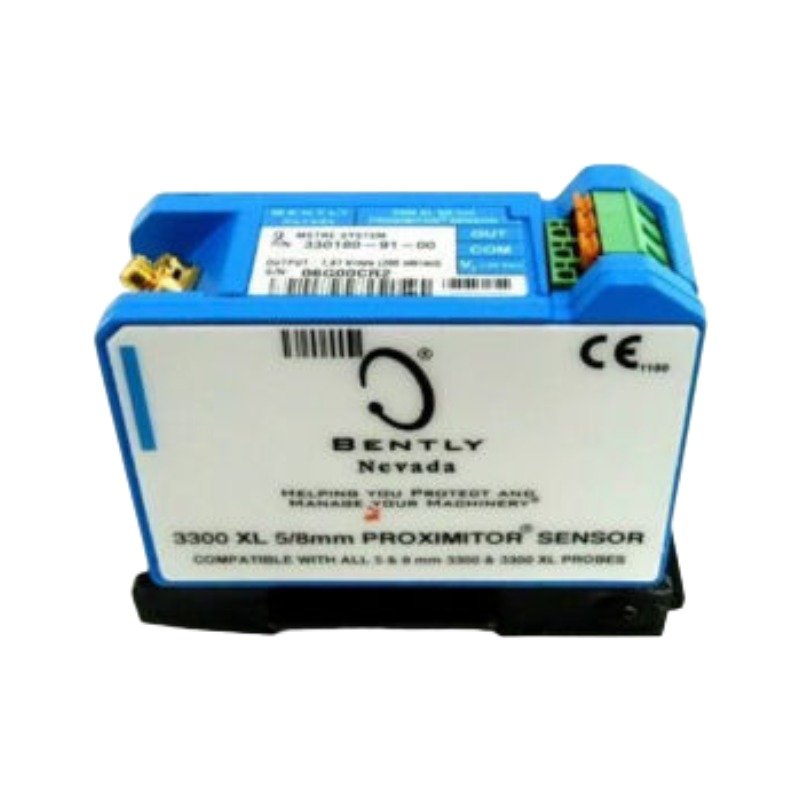

Configured for non-contacting vibration and displacement signal conditioning in Bently Nevada 3500 Machinery Protection System networks, the Bently Nevada 330180-91-00 (330180 Proximitor Sensor) provides direct physical/electrical execution. This hardware component processes the high-frequency radio frequency (RF) signal from an 8 mm proximity probe. Consequently, it converts dynamic physical gap variations into a continuous, linear analog voltage output that tracks shaft movement in real time.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 330180-91-00 requires exact loop tuning because the system must maintain precise eddy-current probe scaling when capturing high-frequency rotor dynamics. For this reason, standard calibration procedures dictate strict gap voltage validation (-10 VDC targets) at the midpoint of the sensor’s linear operating range. Furthermore, engineers must arrange the physical placement of the module to facilitate proper cross-talk suppression between adjacent high-frequency coaxial lines. As a result, this layout actively prevents electromagnetic signal degradation across multi-channel terminal setups.

Frequently Asked Questions

Q: How does the system maintain the strict 7.87 V/mm scale factor during field replacement?

A: Technicians must match the module exclusively with an 8 mm proximity probe and extension cable assembly. Meanwhile, the combined physical components must equal a total system length of exactly 9.0 meters.

Q: What maximum distance can the conditioned analog voltage output drive without encountering signal attenuation?

A: The internal output driver safely transmits the analog voltage signal across a 3-conductor shielded cable up to 300 meters (1000 feet). However, field engineers must verify that the cable routing completely bypasses high-voltage electrical fields.

Field Installation Guidelines

• DIN Rail Alignment: Snap the integrated mounting clip onto a standard 35 mm DIN rail. Simultaneously check that the module locks firmly into position to mitigate industrial vibration displacement.

• Shield Grounding Control: Terminate the cable shield at the receiver rack ground only. In addition, ensure that the Proximitor housing remains completely isolated from local machine structure ground to eliminate ground loops.

• Terminal Screw Tightening: Tighten the terminal strip screw connections to a maximum specification of 0.56 N-m (5 in-lb). This torque limit safeguards the internal circuit board traces against mechanical stress.

• Enclosure Protection: Install the Proximitor hardware within an IP54 or greater rated environmental enclosure. Consequently, this barrier shields the internal circuitry from oil mist and corrosive moisture.
