Description

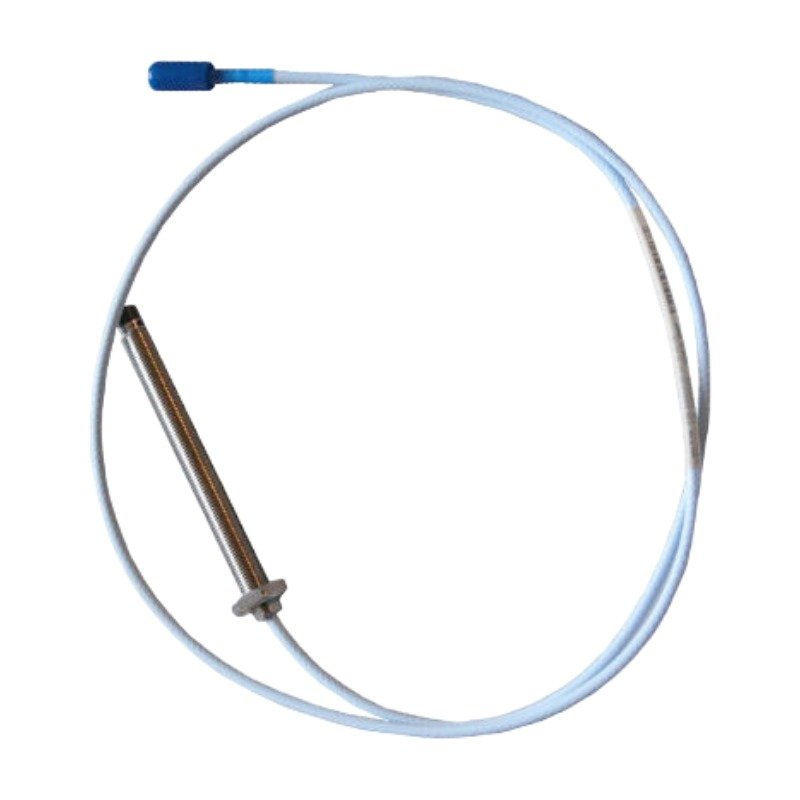

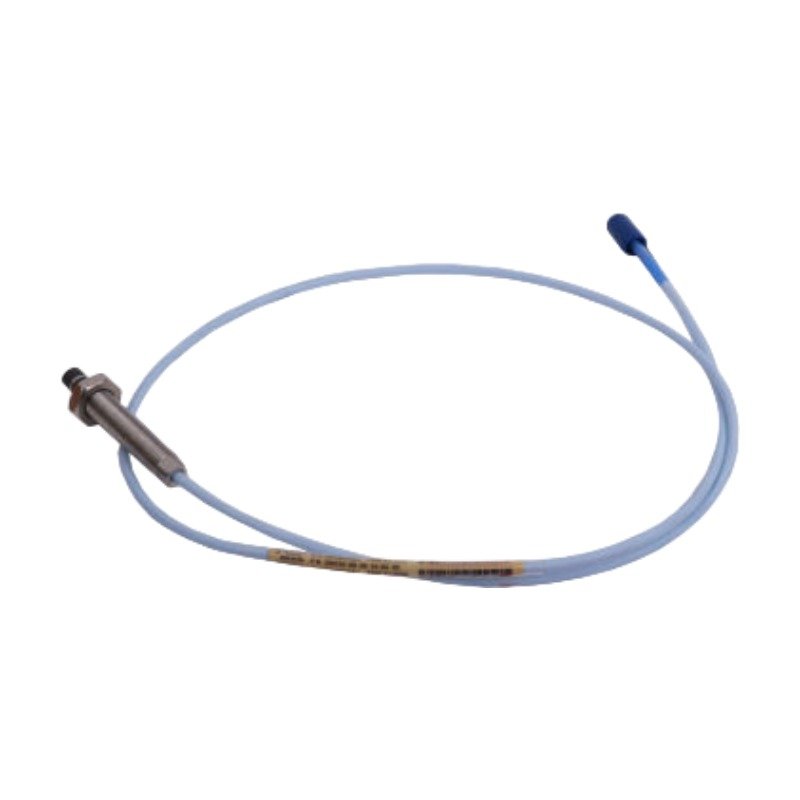

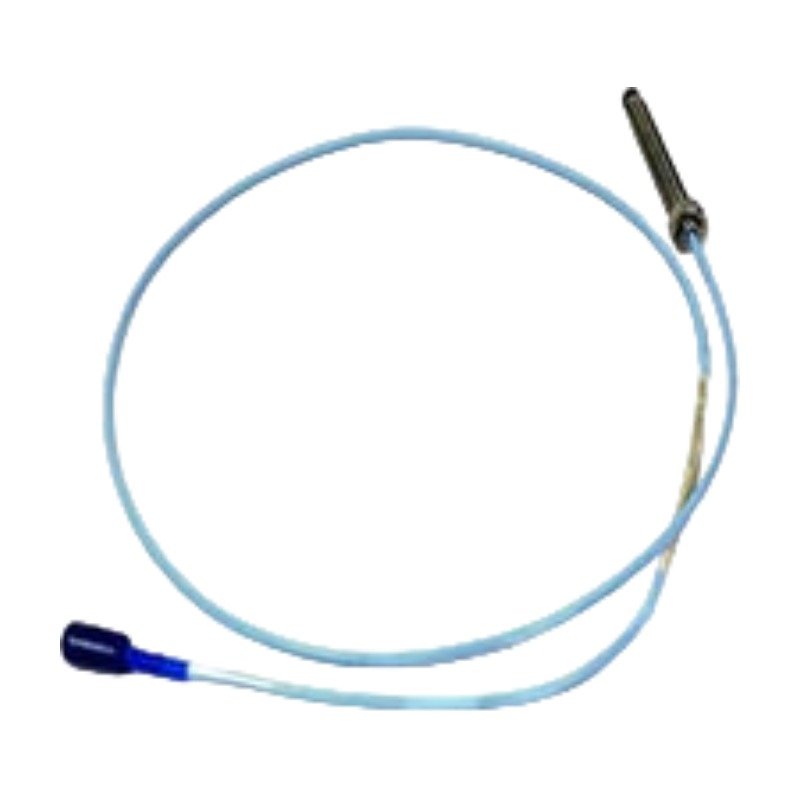

Configured for non-contacting vibration and displacement measurements in machine protection loops, the Bently Nevada 330103-00-04-05-02-00 (330103 Proximity Probe) provides direct physical/electrical execution. It transforms physical distance into a proportional electrical signal when paired with a matching 3300 XL Proximitor Sensor. The probe mechanism reacts directly to static and dynamic target changes, driving raw voltage variations through the interconnected extension cable to the monitoring system backplane.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

Proper operation requires validation of the eddy-current probe scaling against standard AISI 4140 steel targets. The system generates a linear scale factor of 7.87 V/mm (200 mV/mil) across a 2.0 mm (80 mils) linear range. During physical installation, engineers conduct gap voltage validation to anchor the probe tip within the linear region. Technicians adjust the mechanical position until the Proximitor output registers a -10 VDC target voltage. This voltage corresponds to the exact center point of the calibrated operational sweep. This precise gap alignment suppresses cross-talk from adjacent components and prevents signal clipping caused by asymmetric rotor dynamics during high-speed shaft excursions.

Frequently Asked Questions

Q: Does this proximity probe configuration support hot-swapping or physical disconnection while the monitoring system is live?

A: Yes, the system supports live connection and disconnection of the extension cable interface. However, disconnecting the probe interface interrupts the signal loop, which triggers a NOT OK fault condition on the corresponding 3500 series monitor channel and may initiate trip logic if interlocks are active.

Q: How do component mismatches between the 4.0 meter cable and the Proximitor sensor affect measurement accuracy?

A: A system mismatch degrades the calibrated scale factor. The 330103 probe variant with a 4.0 meter electrical length demands a 5.0 meter system Proximitor sensor when joined with a 1.0 meter extension cable, or a 9.0 meter Proximitor sensor when paired with a 5.0 meter extension cable. Mismatching total electrical lengths causes calibration drift across the standard -10 VDC bias center point.

Field Installation Guidelines

• Mechanical Thread Engagement: Thread the 3/8-24 probe body into the mounting bracket by hand to prevent cross-threading. Secure the final position using locknuts torqued to a maximum value of 11.3 N-m (100 in-lb).
• Coaxial Connector Isolation: Clean the miniature coaxial ClickLoc connectors with an approved electronics contact cleaner before joining them. Insulate the final connection using clear PTFE fluoropolymer heat-shrink tubing to prevent physical grounding against the machine housing or local conduit structures.
• Bending Radius Constraints: Maintain a minimum physical bending radius of 25.4 mm (1.0 inch) for all sections of the coaxial extension cable. Tight bends introduce structural stress that modifies internal impedance profiles and degrades high-frequency eddy-current return characteristics.
• Shielding and Grounding: Terminate the outer coaxial shield exclusively at the Proximitor sensor terminal block. Do not ground the probe body at the machine casing interface, as double-point grounding introduces low-frequency ground loops that distort dynamic vibration measurements.
