Description

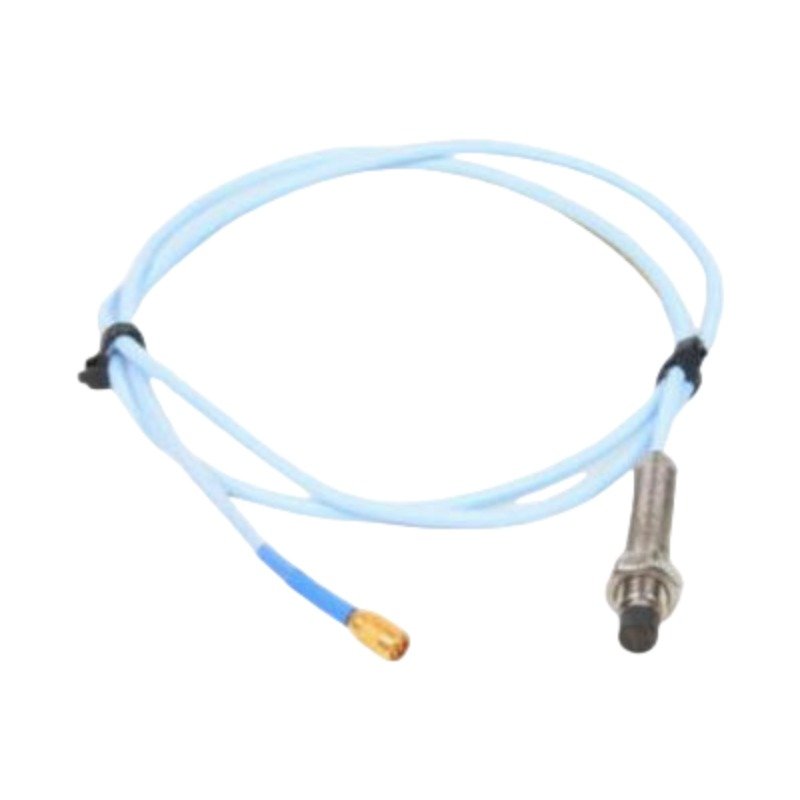

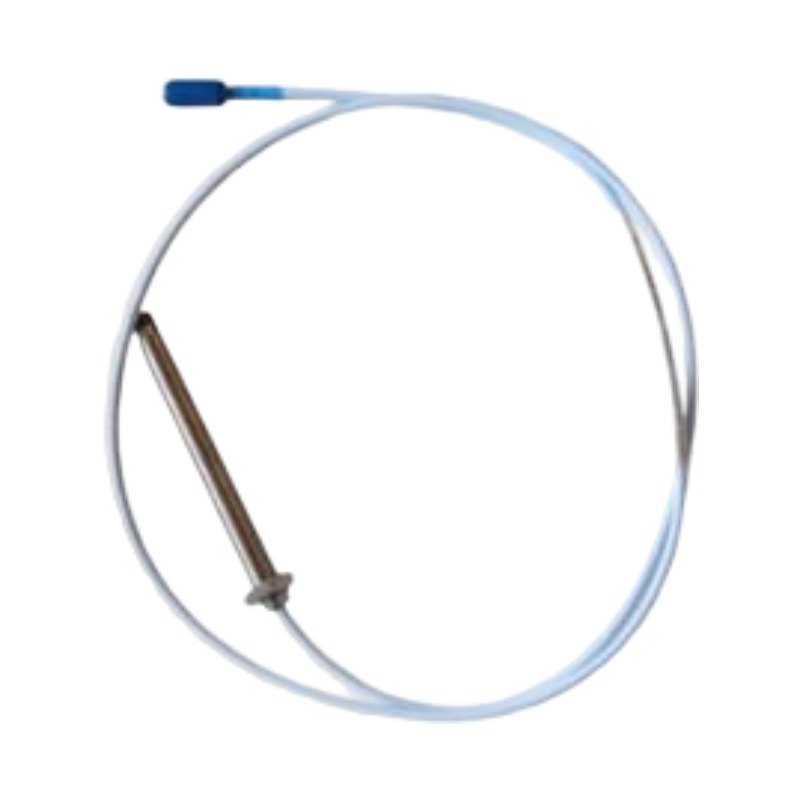

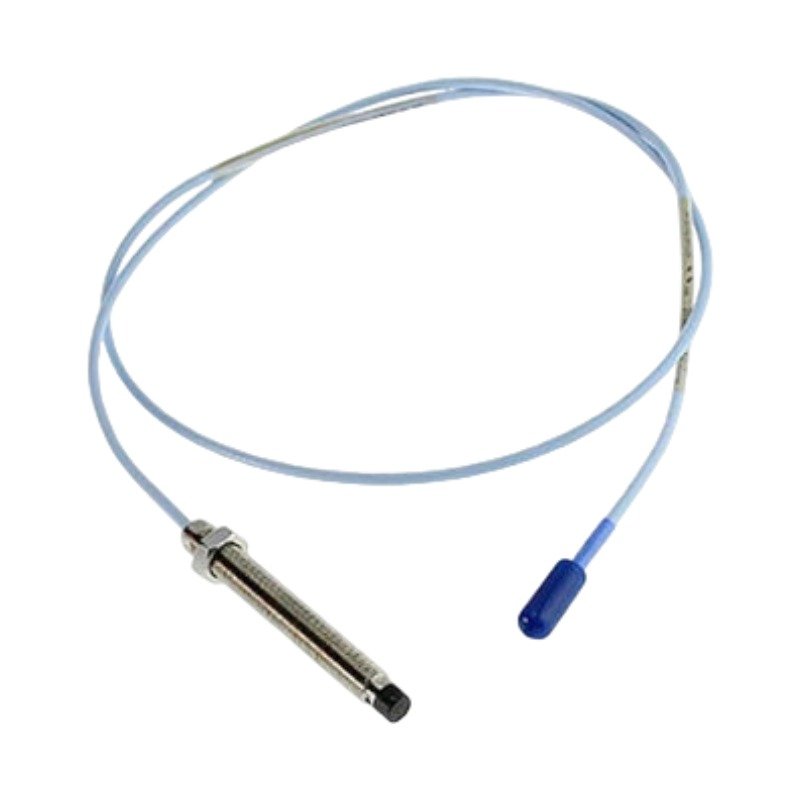

The Bently Nevada 330103-10-20-10-02-00 serves as the primary 330103 Proximity Probe utilized to execute relative vibration and shaft displacement measurements across turbine supervisory instrumentation (TSI) platforms. This non-contacting transducer measures static and dynamic distances between the sensor tip and a rotating shaft conductive surface. The hardware converts physical gap variations into high-frequency electrical signals, routing data through a matching extension cable to a 3300 XL Proximitor Sensor to track critical mechanical indicators.

Suffix Breakdown & Model Matrix

The unique alphanumeric suffix combination defines the mechanical dimensions, structural casing, cable length, and regulatory metrics of this specific transducer configuration.

• 330103: 3300 XL 8 mm Proximity Probe base identifier featuring a metric M10 x 1 forward-mount threaded body design.
• 10: Unthreaded Length Option (Specifies exactly 100 mm of unthreaded cylindrical probe case).
• 20: Overall Case Length Option (Specifies exactly 200 mm of total threaded housing length).
• 10: Total Length Option (Configured with a 1.0 metre / 3.3 feet total integrated cable length).
• 02: Connector and Cable Option (Equipped with a miniature coaxial ClickLoc connector and standard high-temperature triaxial cable layout).
• 00: Agency Approval Option (Indicates standard production without specialized hazardous area certification additions).

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

To preserve the accurate scale factor parameters needed to capture complex vibration frequencies, this 1.0-metre integrated probe matches precisely with a 4.0-metre or 8.0-metre extension cable to form a complete 5.0-metre or 9.0-metre electronic system. During initial machine configuration, technicians execute gap voltage validation to ensure the steady-state target positions the output voltage near the default -10 VDC targets. This mechanical tuning secures the probe tracking mechanism at the absolute center of its linear range.

Proper loop validation isolates subtle movements in the machinery rotor dynamics profile, preventing signal inaccuracies from distorting early indicators of structural unbalance or bearing fatigue. Furthermore, the specialized gold-plated ClickLoc connector architecture achieves high cross-talk suppression between parallel proximity signal runs sharing standard metal instrumentation wire conduits.

Frequently Asked Questions

Q: Can this 1.0-metre probe module operate reliably if connected to a 3300 XL 11 mm Proximitor Sensor?

A: No, this module belongs exclusively to the 8 mm sensor family. Combining it with an 11 mm system causes severe impedance mismatches that alter the scale factor and eliminate linear tracking accuracy.

Q: What action prevents the integrated ClickLoc miniature coaxial connectors from loosening under machine vibration?

A: The connectors incorporate a mechanical detent mechanism that securely locks into place when turned finger-tight. This tactile lock eliminates the need for installation tools while resisting severe structural vibration.

Field Installation Guidelines

• Enforce Thread Torque Limits: Torque the metric M10 x 1 threaded probe body into the bracket housing using a recommended torque of 11.2 N m (100 in lbf). Do not exceed the maximum structural ceiling of 33.9 N m (300 in lbf) to avoid cracking the stainless steel casing.
• Maintain Minimum Bend Radii: Route the triaxial probe lead smoothly, maintaining a minimum bend radius of 25.4 mm (1.0 inch) at all locations. Sharp mechanical kinks create permanent electrical anomalies that alter the system calibration.
• Apply Connector Insulation Protection: Always place a silicone connector protector sleeve over the ClickLoc coupling. This sleeve seals out machine moisture and insulates the connection to prevent ground loops caused by contact with grounded junction boxes.
• Verify Counterbore Clearances: Ensure that the surrounding counterbore diameter around the probe tip measures at least 31 mm (1.2 inches) to eliminate stray magnetic edge effects from distorting the active eddy-current field.
