Description

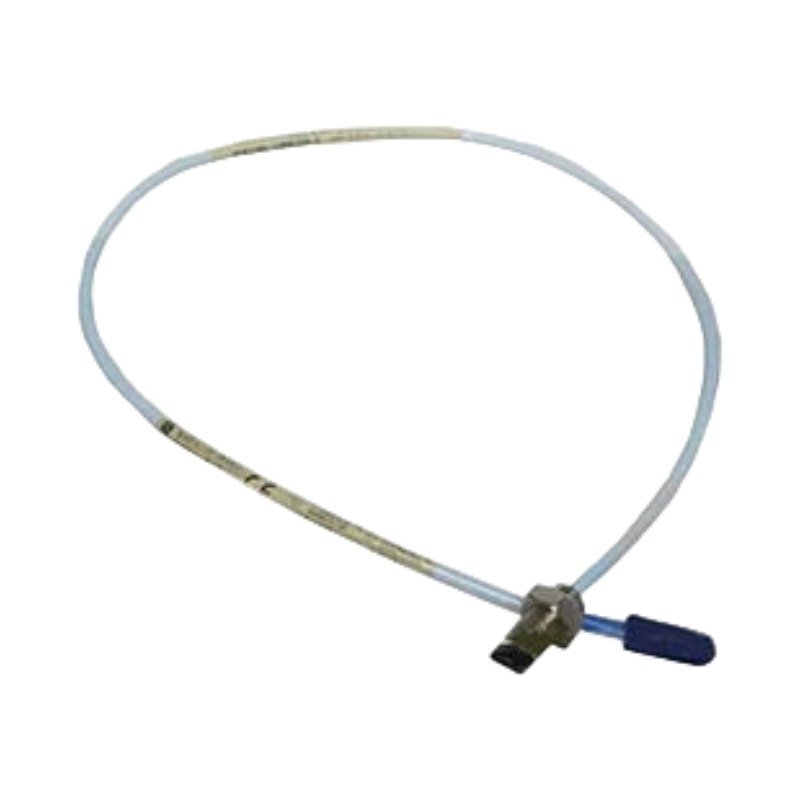

The Bently Nevada 330905-00-25-05-12-CN, also cataloged as the 330905 Proximity Probe, operates as a dedicated hardware component for high-precision vibration and displacement measurements within 3300 XL NSv Transducer System platforms. This non-contacting sensor tracks both static and dynamic displacement parameters on fluid-film bearing machinery where small shaft diameters or tight installation spaces restrict standard-sized instrumentation. The hardware delivers a linear electrical output directly proportional to the physical gap distance between the unshielded probe tip and the target conductive surface.

Suffix Breakdown & Model Matrix

The specific alphanumeric configuration defines the exact physical dimensioning, cable mechanics, and regulatory compliance parameters for this hardware assembly.

• 330905: 3300 NSv Proximity Probe series base designator (Metric M10 x 1 thread, unarmored).
• 00: Unthreaded Length Option (Specifies 0 mm of unthreaded probe case).
• 25: Overall Case Length Option (Specifies a 250 mm total threaded case length).
• 05: Total Length Option (Specifies a 0.5 metre total integrated cable length).
• 12: Connector and Cable Option (Equipped with a miniature coaxial ClickLoc connector and integrated FluidLoc triaxial cable).
• CN: Agency Approval Option (Indicates full certification and compliance under China-specific industrial regulatory standards).

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

To preserve the accurate calibration metrics required for precise rotor dynamics monitoring, engineers must calibrate the 3300 NSv system to match the exact physical properties of the target shaft material. The proximity probe system injects a high-frequency radio frequency signal into the sensor tip coil, which establishes an electromagnetic field that induces eddy currents in the adjacent metal. The Proximitor sensor measures the resulting modulation to determine physical distance.

During initial loop setup, personnel perform gap voltage validation to target a baseline reading of -10 VDC, centering the probe within its linear displacement window. Furthermore, the specialized FluidLoc triaxial cable design works actively to prevent processing oil or synthetic lubricants from leaking out of the machine casing via the internal voids of the probe cable, which isolates the sensor circuit and maintains high cross-talk suppression between neighboring channels.

Frequently Asked Questions

Q: Can this 0.5-metre proximity probe connect directly to a standard 3300 XL 8 mm Proximitor Sensor?

A: No, this probe belongs exclusively to the 3300 NSv series. It requires a matching 330930 NSv extension cable and a 330980 NSv Proximitor Sensor to avoid severe impedance mismatches that destroy the linear scale factor.

Q: What precise benefit does the “12” connector option supply during field operation?

A: The option provides a miniature coaxial ClickLoc connector coupled with FluidLoc cable tech. The connector creates a tactile mechanical engagement without tools, while the FluidLoc inner core physically blocks oil migration along the cable interior.

Field Installation Guidelines

• Enforce Case Torque Constraints: Tighten the M10 x 1 metric probe case to a recommended mounting torque of 11.3 N m (100 in lb). Do not exceed the maximum rated ceiling of 33.9 N m (300 in lb) to prevent structural damage to the stainless steel body.
• Verify Bend Radius Clearances: Maintain a minimum cable bend radius of 25.4 mm (1.0 inch) at all times during permanent conduit routing. Sharp kinks modify the internal structural impedance, creating permanent signal artifacts.
• Apply Isolation Tooling: Utilize a silicone connector protector sleeve over the ClickLoc link to insulate the junction from the surrounding metal junction box. This prevents ground loops from corrupting the instrumentation shield network.
• Establish Thread Engagement: Ensure a minimum thread engagement equivalent to 1.5 times the nominal thread diameter within the mounting bracket or housing bore to guarantee structural stability under dynamic machinery vibration.
