Description

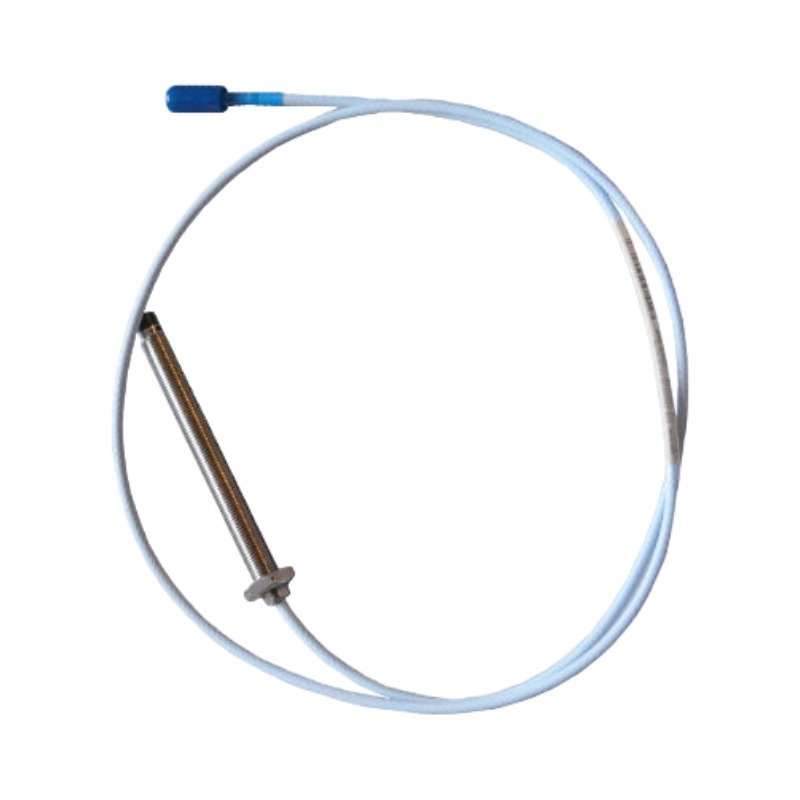

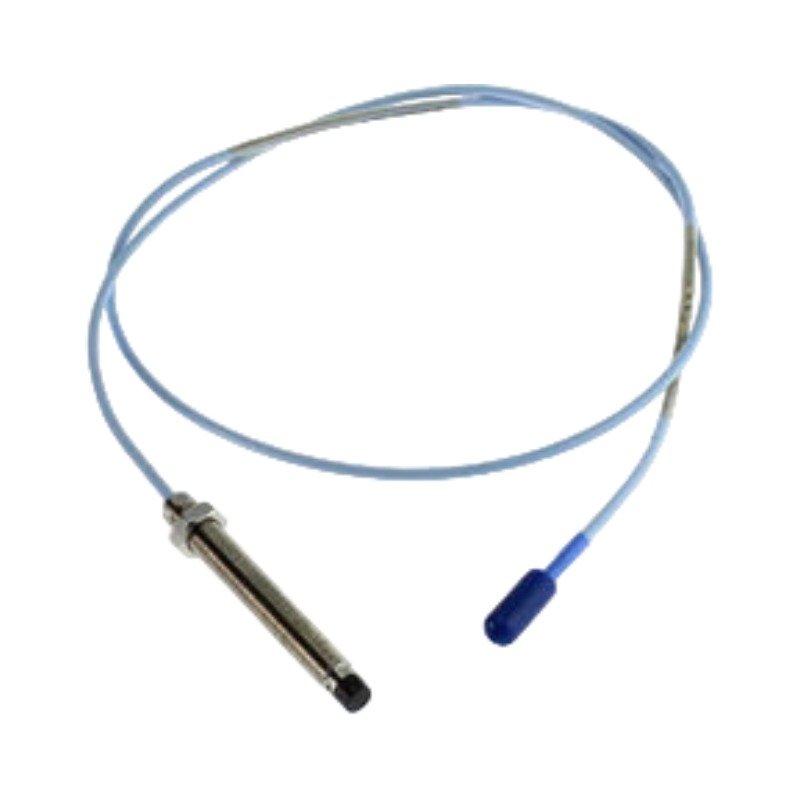

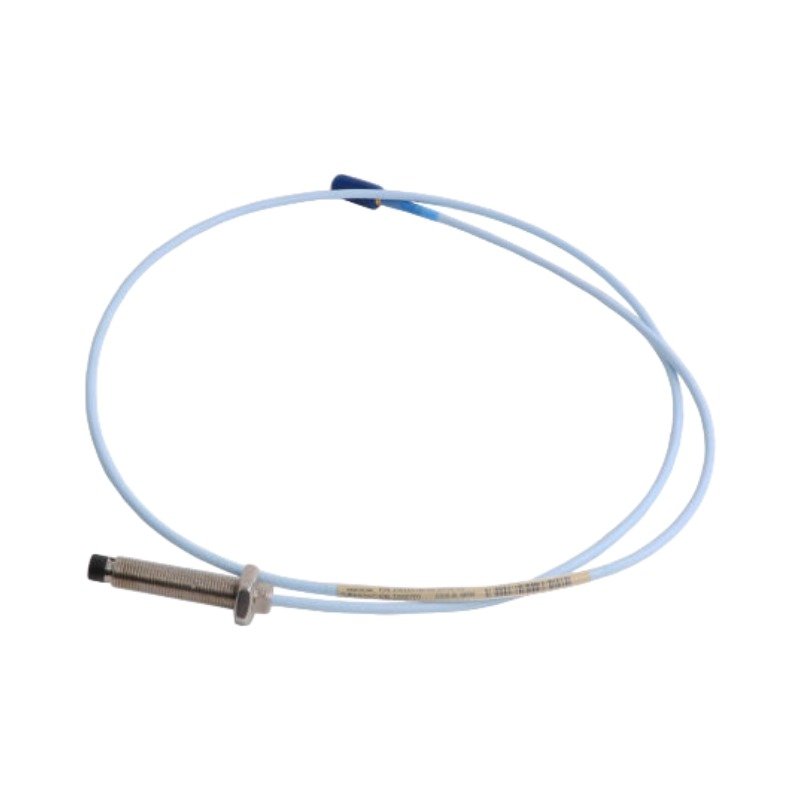

The Bently Nevada 330103-00-10-10-02-00 serves as the primary 330103 8mm Proximity Probe utilized to execute proximity displacement and vibration sensing tasks across 3300 XL Proximity Transducer System platforms.

Suffix Breakdown & Model Matrix

• 00: Unthreaded Length Option (0.0 inches unthreaded portion)
• 10: Overall Case Length Option (1.0 inch total case length)
• 10: Total Length Option (1.0 meter or 3.3 feet system cable length)
• 02: Connector and Cable-Type Option (Miniature coaxial ClickLoc connector, standard cable)
• 00: Agency Approval Option (No approvals required)

Hardware Specifications

Eddy-Current Transducer Calibration and Gap Voltage Validation

The sensor employs high-frequency eddy-current paths to continuously track fast-acting rotor dynamics. Field installation requires accurate gap voltage validation, which targets a nominal -10 VDC baseline voltage output at the center of the calibrated linear spectrum. Furthermore, optimized internal winding geometry enhances mutual inductance cross-talk suppression. This layout ensures adjacent probe networks monitor localized shaft position targets without structural signal degradation or inter-channel frequency interference.

Frequently Asked Questions

Q: What specific target configuration provides the best gap voltage validation during setup?

A: Technicians must perform gap voltage validation using an AISI 4140 steel target. Setting the probe position to achieve an initial output of -10 VDC establishes the center point of the linear sensing spectrum.

Q: How do the standard ClickLoc coaxial connectors protect the raw signal integrity?

A: The ClickLoc configuration features a mechanical locking arrangement that resists severe industrial vibration. Consequently, the coupling prevents loose connection cycles and maintains consistent impedance profiles across the loop.

Field Installation Guidelines

Engineers must maintain explicit side-clearance zones around the 8 mm tip to avoid structural interference from surrounding counterbores. Thread the casing into the reverse-mount bracket, ensuring a solid mechanical lockdown using a minimum of 5-扣 engagement or matching locking nuts. Furthermore, operators must isolate low-voltage coaxial paths from high-voltage power conduits to block electromagnetic noise. Terminate the outer shield layer directly at the designated Proximitor terminal block ground point.
