Description

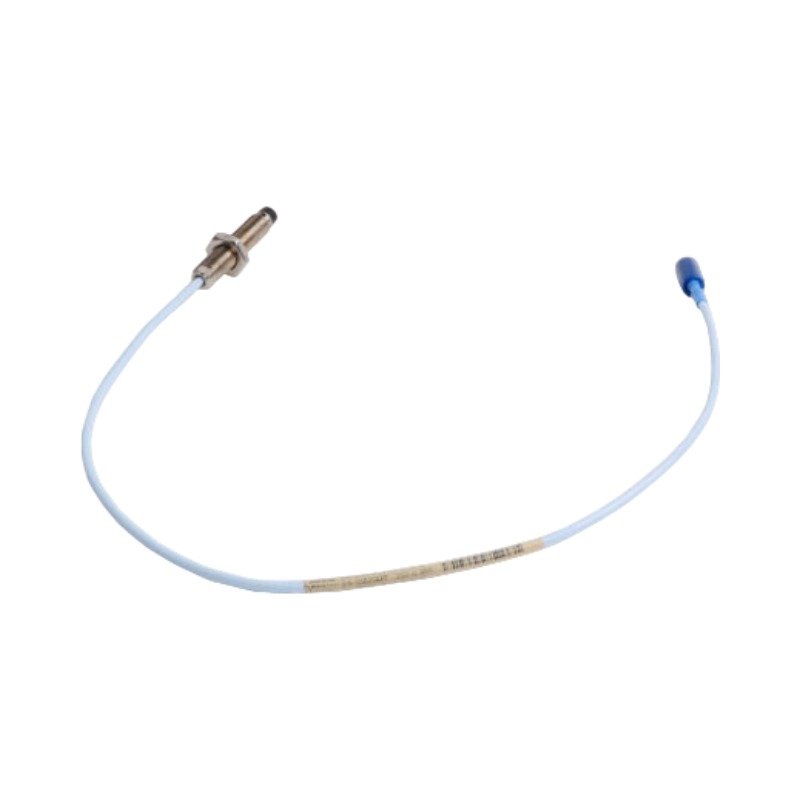

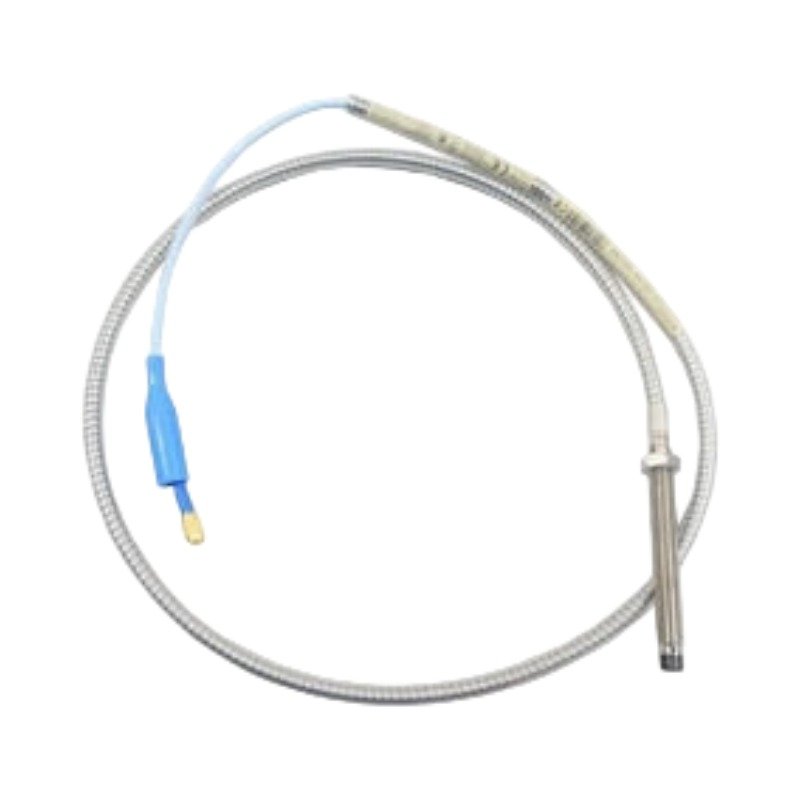

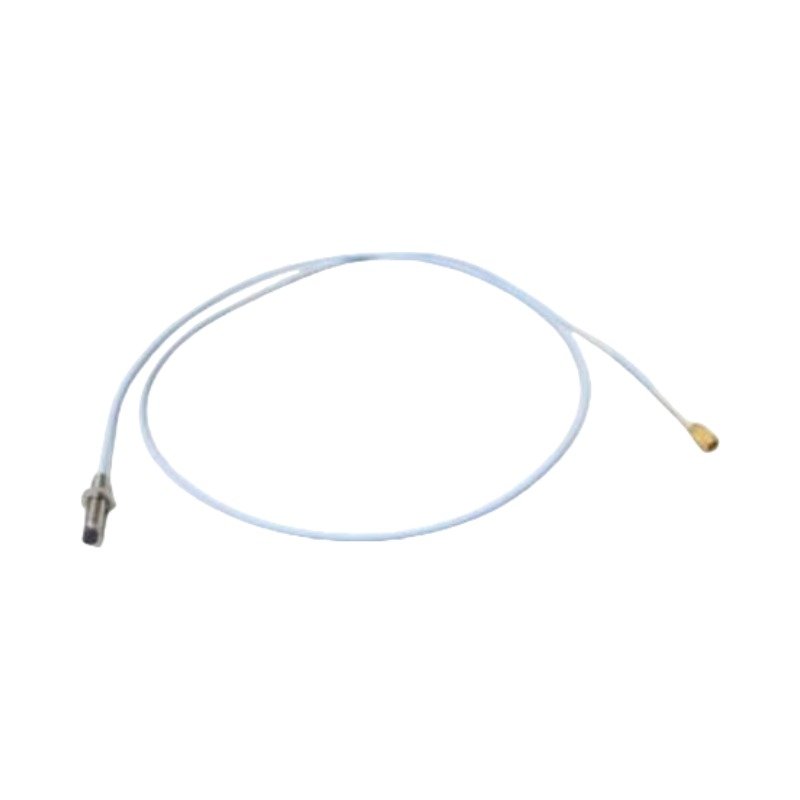

The Bently Nevada 330103-00-05-05-02-CN, also cataloged as the Bently Nevada 330103 Proximity Probe, operates as a dedicated hardware component for non-contacting vibration and displacement measurements within 3500 Machinery Protection System networks. Consequently, the sensor translates physical target displacement into a proportional electrical signal for real-time monitoring.

Hardware Specifications

Gap Voltage Validation and Eddy-Current Probe Scaling

Field technicians execute gap voltage validation to position the probe tip within the linear range of the system. Specifically, an optimum calibration achieves a -10 VDC target voltage at the physical midpoint of the linear scale. Furthermore, eddy-current probe scaling requires strict matching with the specific target material chemistry to minimize errors in rotor dynamics monitoring. Therefore, the system suppresses cross-talk between adjacent probe tips through proper physical separation and shielding practices.

Frequently Asked Questions

Q: How do technicians verify the operational linear range of the 330103 probe during field setup?

A: Technicians apply a static calibration using a spindle micrometer. They measure the voltage output across the gap to confirm a uniform scale factor of 7.87 V/mm.

Q: What occurs if the probe cable encounters external electromagnetic fields?

A: External fields induce signal noise, which corrupts rotor dynamics data. Consequently, engineers must enforce proper coaxial shielding and maintain distance from high-voltage lines to maintain signal integrity.

Field Installation Guidelines

First, thread the probe into the mounting bracket using standard 3/8-24 UNF parameters. Next, establish a minimum clearance to avoid structural interference. Additionally, execute a full 5-thread engagement to lock the probe securely. Finally, connect the mini-coaxial connector to the extension cable and insulate the connection using silicone tape to block fluid ingress.
