Description

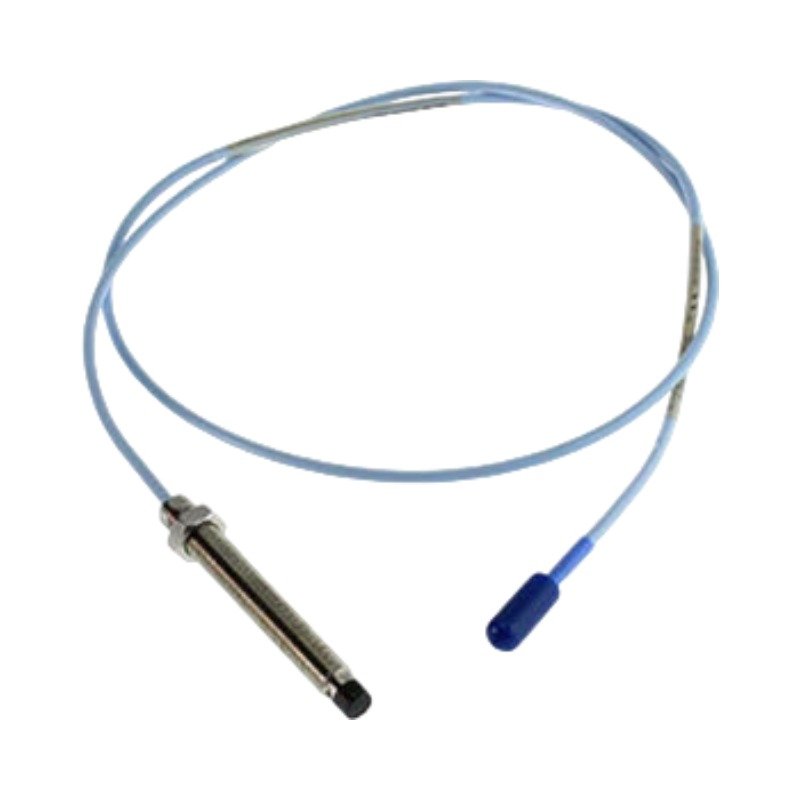

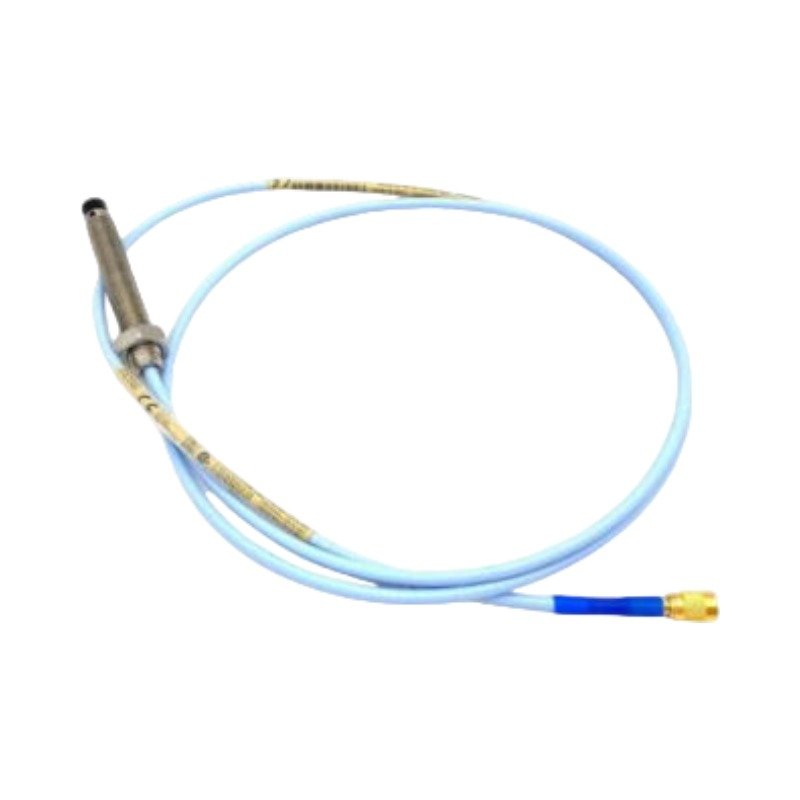

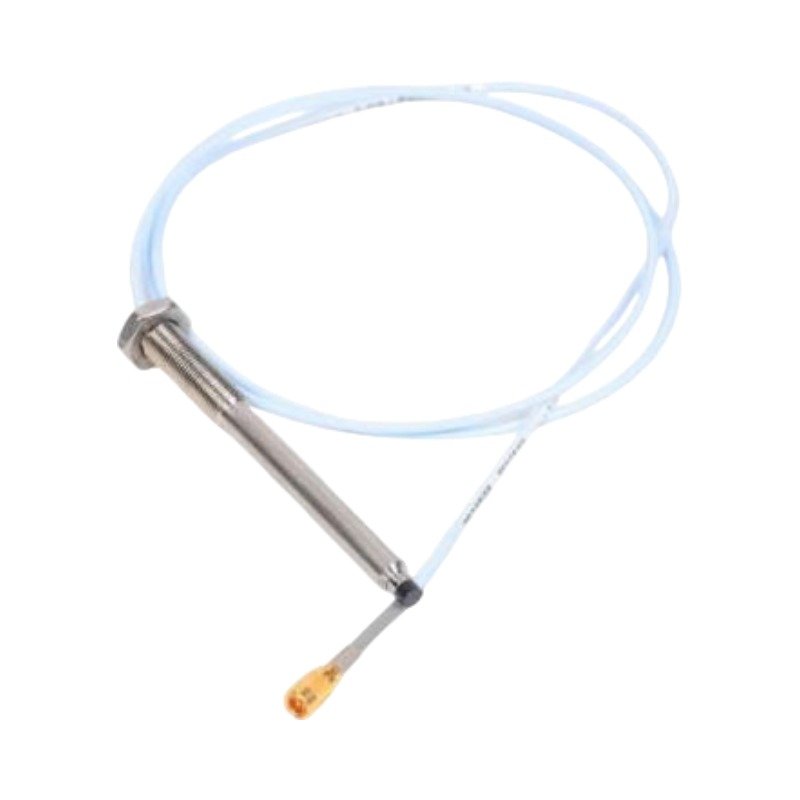

The Bently Nevada 330101-00-18-10-02-00, also cataloged as the 330101 Proximity Probe, operates as a dedicated hardware component for non-contacting shaft displacement and vibration measurements within the 3300 XL 8mm Proximity Transducer System.

Suffix Breakdown & Model Matrix

The alphanumeric suffix codes define specific physical dimensions, structural configurations, and certification parameters for this assembly:

• 330101: 3300 XL 8 mm Proximity Probe with 3/8-24 UNF thread, without mechanical armor.
• 00: Unthreaded length option specifying 0.0 inches of clear case barrel.
• 18: Overall case length option specifying a 1.8-inch total threaded barrel.
• 10: Total length option denoting a 1.0-meter (3.3 feet) integrated cable length.
• 02: Connector and cable-type option indicating standard cable terminated with a miniature coaxial ClickLoc connector.
• 00: Agency approval option dictating standard multi-agency approvals (no country-specific exceptions).

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The 330101-00-18-10-02-00 proximity probe utilizes eddy-current technology to generate a high-frequency electromagnetic field around the probe tip. When a conductive surface approaches the polyphenylene sulfide (PPS) tip, eddy currents are induced, altering the amplitude of the RF signal supplied by the external Proximitor. The system evaluates static and dynamic rotor dynamics by transforming this impedance change into an output voltage directly proportional to the physical gap. Accurate operations rely on precise gap voltage validation, targeting -10 VDC during physical mechanical positioning to position the transducer at the midpoint of its 2.0 mm (80 mil) linear calibration range. Cross-talk suppression is maintained through strict physical spacing guidelines between adjacent probe tips, preventing adjacent magnetic field overlap from distorting low-level data.

Frequently Asked Questions

Q: Can this 3/8-24 UNF probe body thread directly into a metric M10 x 1 tapped mounting bracket?

A: No. The 330101 series utilizes standard imperial 3/8-24 UNF threading. Forcing this component into a metric M10 x 1 threaded hole will permanently strip the threads of both the mounting fixture and the stainless steel probe body.

Q: What is the purpose of the 1.0-meter total integrated length configuration?

A: The 1.0-meter option represents the standard proximity probe tail length design. This configuration requires a matching 4.0-meter or 8.0-meter extension cable to create a complete 5.0-meter or 9.0-meter system loop tuned to the specific calibration frequency of the 3300 XL Proximitor Sensor.

Q: Is the ClickLoc coaxial connector water-resistant when exposed to industrial environments?

A: The ClickLoc connector provides mechanical connection security, but it is not inherently liquid-tight. Technicians must seal the mated connector junction using oil-resistant connector silicone sleeves or specialized self-vulcanizing tape to prevent moisture, synthetic oil, or steam condensation from shorting the raw RF signal.

Field Installation Guidelines

• Thread Mounting Alignment: Thread the probe into the tapped bracket by hand to avoid cross-threading. Adjust the physical position while monitoring the DC gap voltage via the Proximitor Sensor output until the electrical potential reads exactly -10 VDC, corresponding to the mechanical linear centerpoint.
• Locknut Security: Once the correct gap voltage is achieved, tighten the supplied locknut against the mounting housing. Use a backup wrench on the probe flat to prevent the probe body from rotating out of alignment during the locknut tightening phase.
• Cable Bend Radius Controls: Route the 75 Ohm triaxial FEP-insulated probe lead away from hot surfaces and sharp mechanical edges. Maintain a strict minimum physical cable bend radius of 25.4 mm (1.0 in) along the entire path to prevent internal conductor damage.
• Conduit and Shield Isolation: Pull the probe cable through dedicated, oil-resistant flexible conduit when routing through machine internals. Ensure the coaxial shield terminates completely at the Proximitor Sensor housing, maintaining an isolated floating chassis ground layout at the sensor tip to suppress ambient electromagnetic interference.
