Description

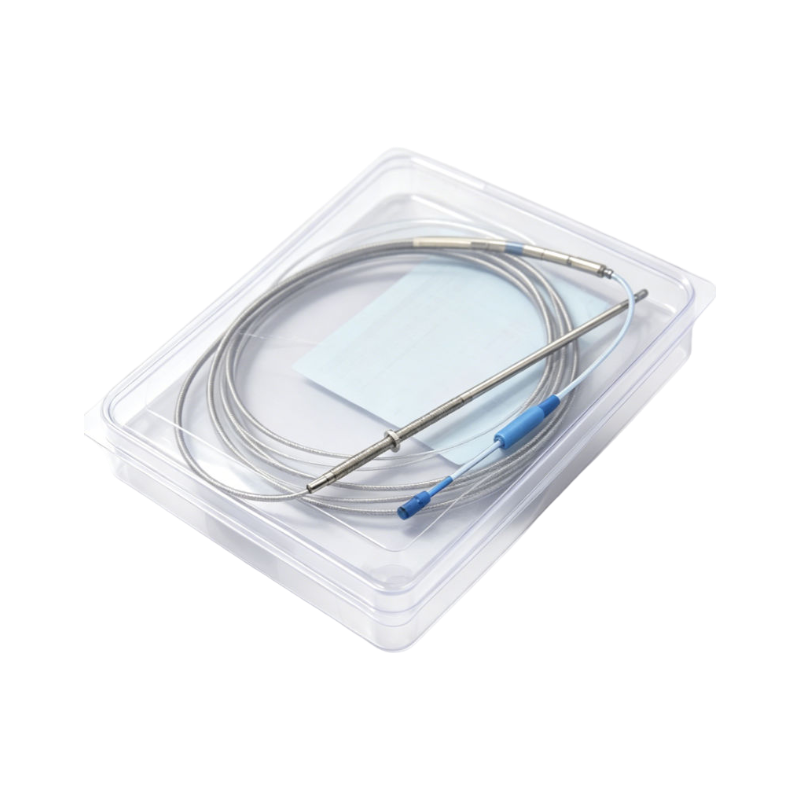

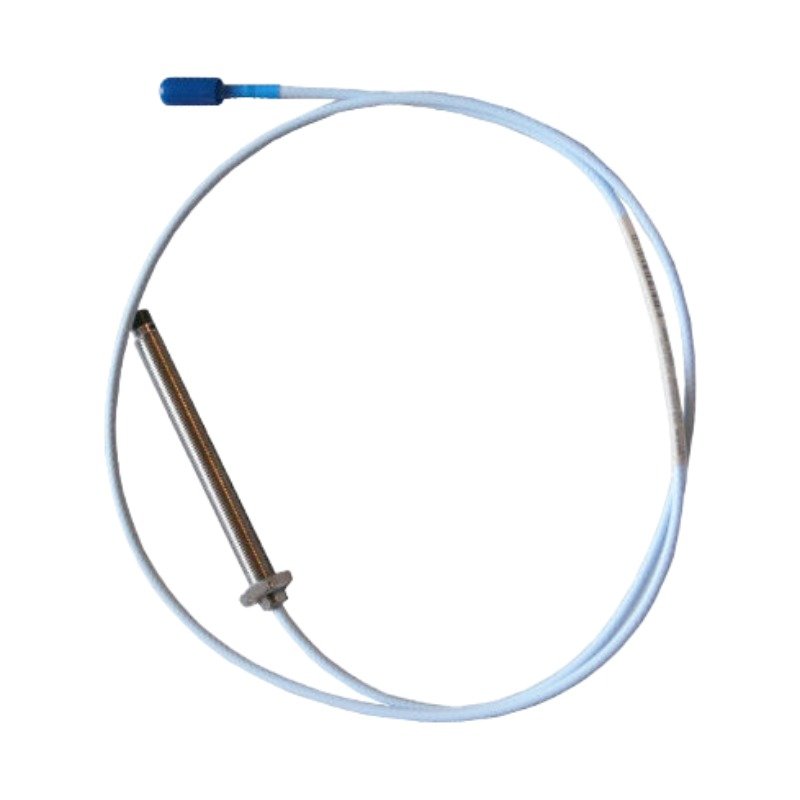

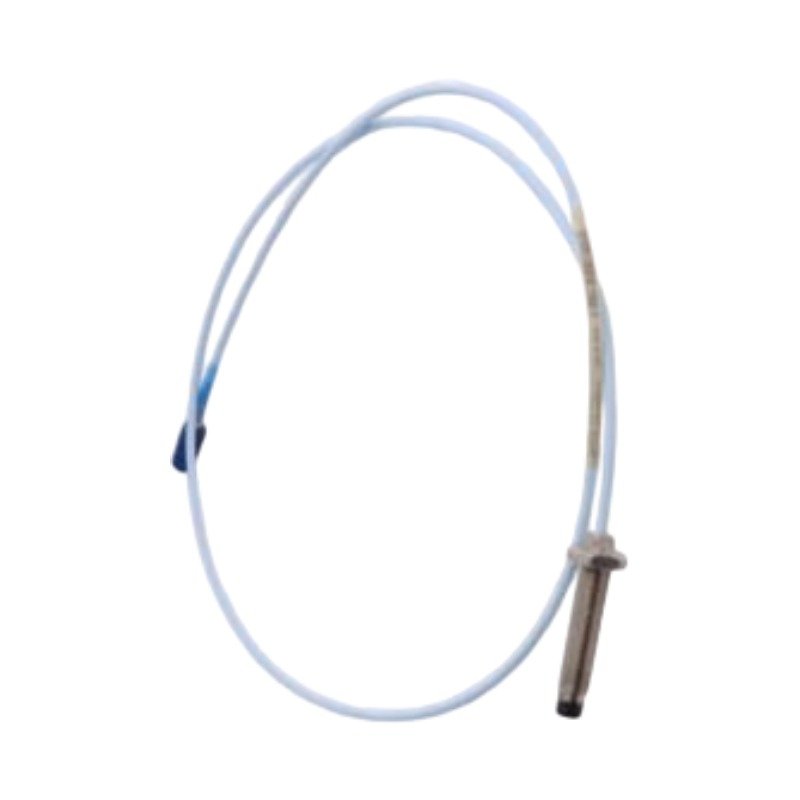

Configured for non-contacting shaft displacement and vibration measurements in rotating machinery, the Bently Nevada 330103-00-09-05-02-00 (330103 Proximity Probe) provides direct physical/electrical execution. It operates as the primary sensor component to capture high-frequency mechanical data within critical machinery protection systems.

Suffix Breakdown & Model Matrix

The alphanumeric suffix codes define specific physical dimensions, structural configurations, and certification parameters for this assembly:

• 330103: 3300 XL 8 mm Proximity Probe with M10 x 1 metric thread, without mechanical armor.
• 00: Unthreaded length option specifying 0 mm of clear case barrel.
• 09: Overall case length option specifying a 90 mm total threaded barrel.
• 05: Total length option denoting a 0.5 meter (1.6 feet) integrated cable length.
• 02: Connector and cable-type option indicating standard cable terminated with a miniature coaxial ClickLoc connector.
• 00: Agency approval option dictating standard multi-agency approvals (no country-specific exceptions).

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The 330103-00-09-05-02-00 probe deploys a precise eddy-current coil structure to monitor continuous rotor dynamics on fluid-film bearing machines. The drive electronics from a coupled Proximitor establish a high-frequency RF field at the tip, which reacts directly to displacement variations of the observed conductive surface. Field setup requires systematic gap voltage validation, where field technicians establish a mechanical offset targeting -10 VDC to baseline the system within its optimized linear zone. Strict physical layout criteria must be managed to maintain cross-talk suppression between multiple co-located probes, ensuring that overlapping electromagnetic fields do not distort the low-level signal paths returned to the TSI chassis.

Frequently Asked Questions

Q: Why does this specific probe feature a short 0.5 meter integrated cable length?

A: The 0.5 meter length option is engineered specifically for applications where the field terminal box or fluid-tight housing is located immediately adjacent to the probe mounting point. Total loop length must always match system design limits (typically 5.0 or 9.0 meters) by utilizing a corresponding 4.5 or 8.5 meter extension cable linked to the Proximitor.

Q: What is the maximum physical torque limit for this metric M10 x 1 probe body?

A: The maximum rated installation torque for the M10 x 1 stainless steel probe case is 14.7 N-m (130 in-lb). Exceeding this torque threshold risks cross-threading the installation port or shearing the thin-walled housing near the probe tip.

Q: Is the polyphenylene sulfide (PPS) probe tip resistant to synthetic lubricating oils?

A: Yes. The PPS material and internal seals are chemically inert to standard mineral-based and synthetic hydrocarbon-based industrial lubricants used in turbomachinery. It maintains mechanical stability under continuous submersion within hot oil environments up to the maximum operating temperature limit.

Field Installation Guidelines

• Mechanical Thread Engagement: Thread the M10 x 1 probe housing by hand into the mounting location to guarantee smooth alignment. Adjust the physical depth while reading the raw DC gap voltage from the Proximitor loop until the potential reaches the calibrated -10 VDC baseline.
• Locknut Tension Requirements: Tighten the supplied metric locknut to anchor the probe body firmly against the bracket structure. Apply a stabilizing wrench to the probe case wrench flats to prevent the sensor body from turning and shifting the gap setting during final torque application.
• Cable Handling & Bend Radius: Protect the unarmored 0.5 meter standard coaxial cable from sharp metal edges and moving machine parts. Maintain a strict minimum physical cable bend radius of 25.4 mm (1.0 in) along the entire route to prevent fracturing the internal conductor or shield layers.
• ClickLoc Interconnection Isolation: Connect the miniature coaxial ClickLoc terminal to the extension cable by pushing and turning until the locking detent engages. Insulate the exposed metal body of the coaxial connector union using specialized connector silicone sleeves to prevent accidental paths to chassis ground.
