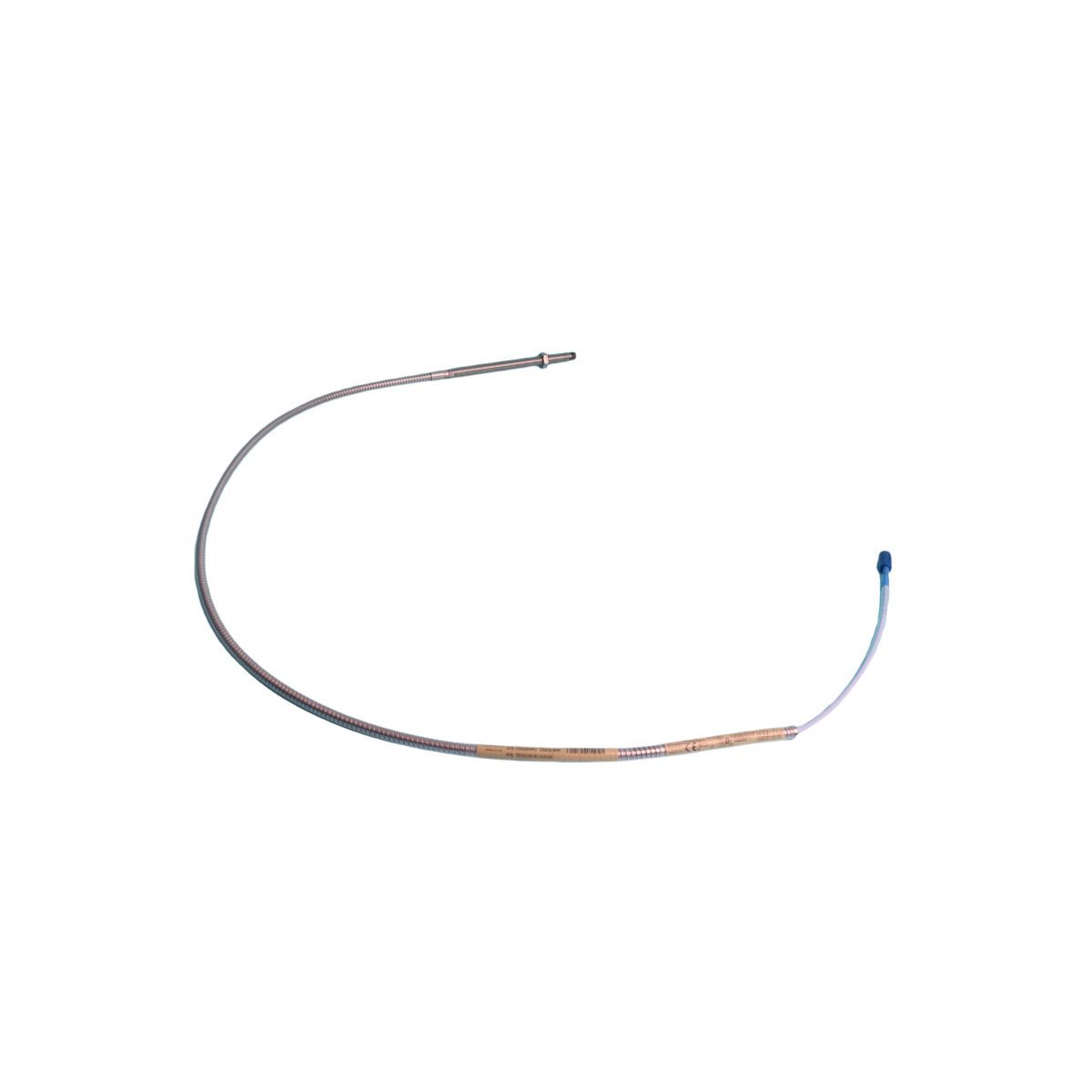

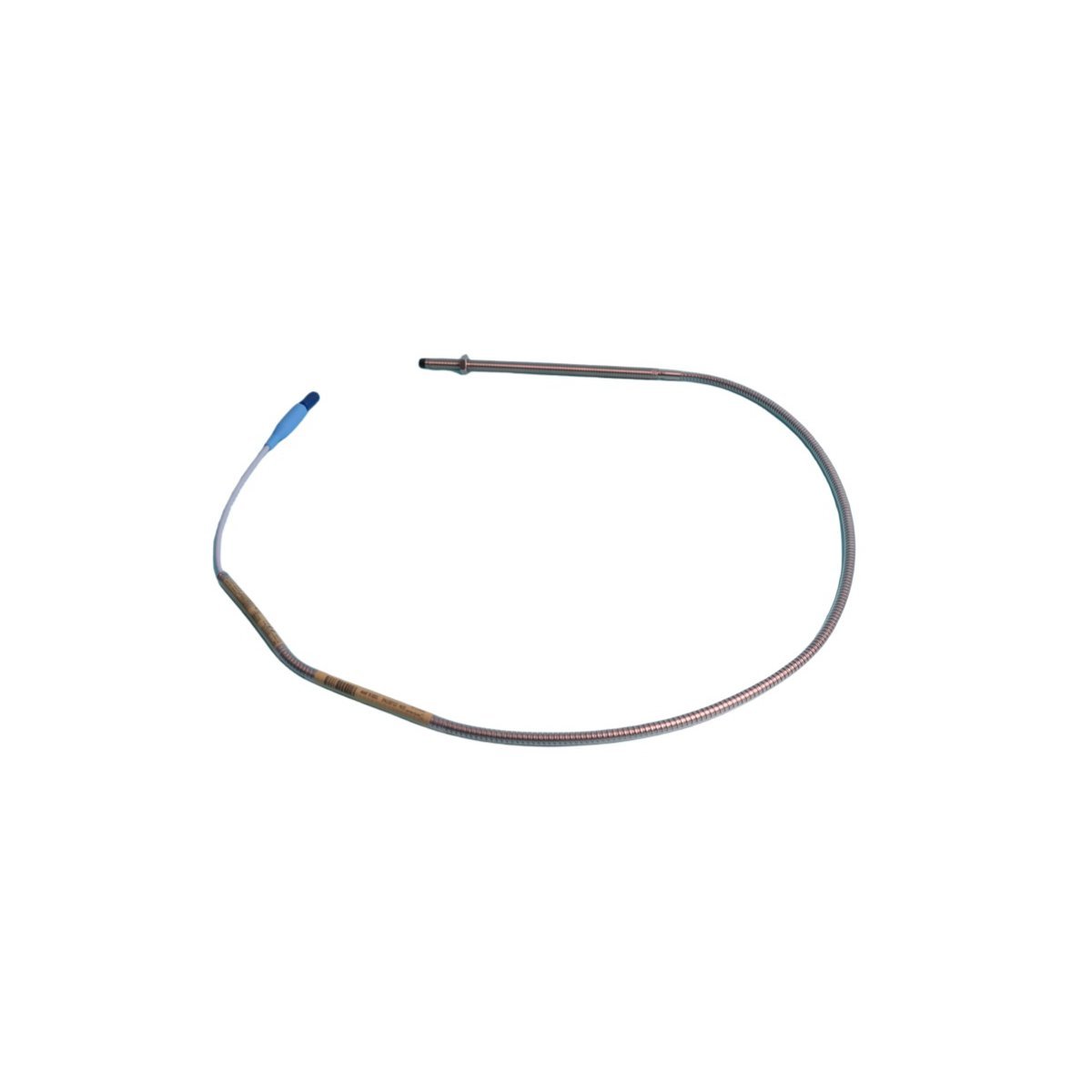

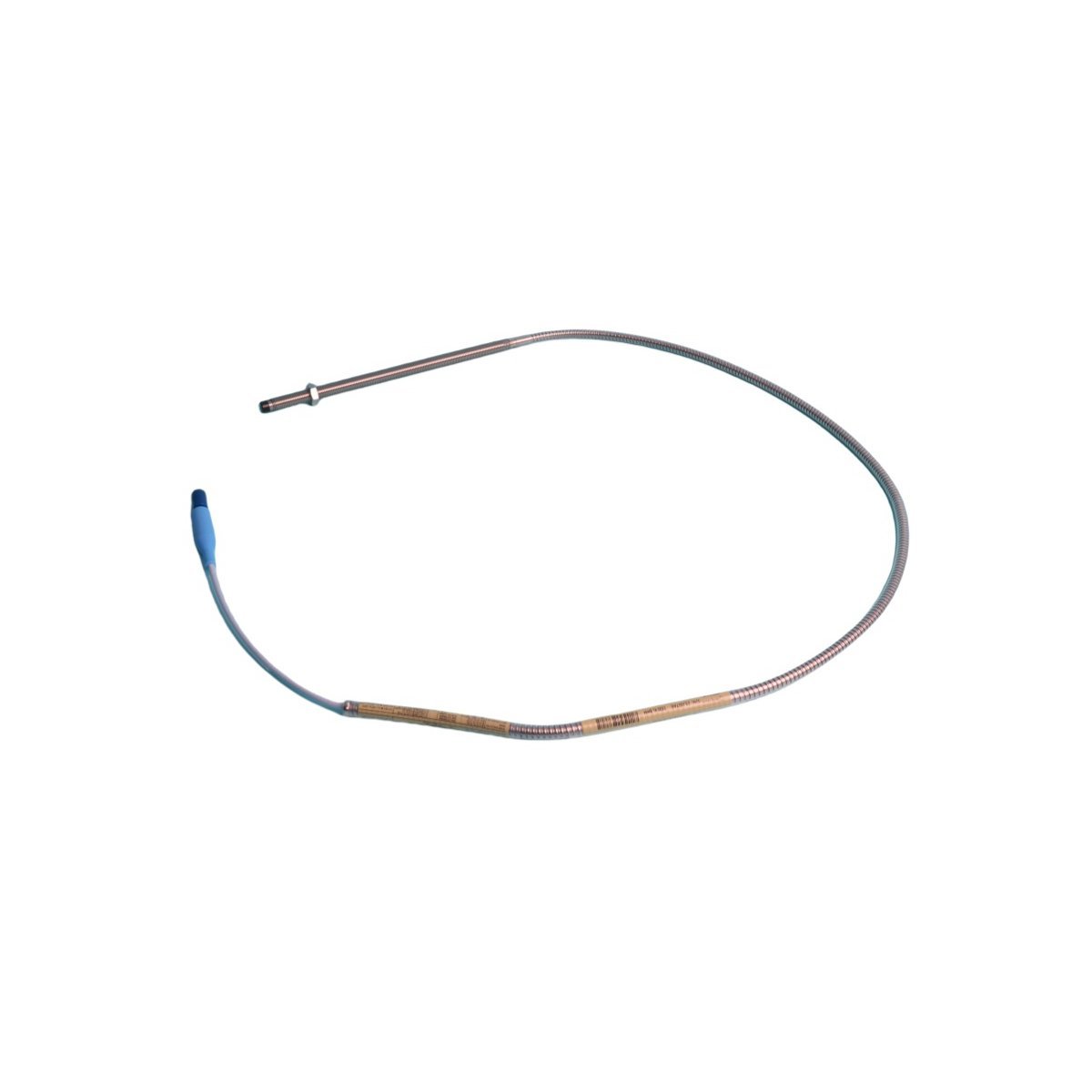

330102-00-96-05-02-05 | Bently Nevada | 3300 XL 8 mm Proximity Probes

### Product Description
The 330102-00-96-05-02-05 is a non-contact eddy-current proximity probe from Bently Nevada’s 3300 XL series. It delivers high-stability displacement and vibration measurements for rotating machinery.
Moreover, it is engineered for continuous monitoring of shaft position, vibration, and axial thrust in critical turbomachinery applications.
Therefore, it integrates seamlessly with 3300 series monitors and supports API 670 compliance. In addition, its 8 mm diameter sensing tip enables precise gap measurement in constrained mechanical spaces.

### Technical Specifications

### Typical Applications
– Monitoring radial vibration and shaft position in steam and gas turbines
– Measuring axial position and thrust bearing wear in centrifugal compressors
– Detecting shaft orbit and dynamic motion in large electric motors and generators
– Supporting machine protection systems per API RP 670 requirements

### FAQ
What is the standard cable length for this probe?
The probe includes a 5-meter integral coaxial cable with a 3300 XL connector.

Is calibration required before installation?
Yes—each probe must be calibrated with its matching extension cable and monitor using the system’s calibration procedure.

Can this probe be used with legacy 3300 monitors?
Yes, it is compatible with all 3300 series monitors, including 3300/16, 3300/20, and 3300/25.

What is the operating temperature range?
The probe operates continuously from –30 °C to +120 °C ambient.

Does it require a separate前置 amplifier?
No—the 3300 XL system uses a built-in oscillator-demodulator in the monitor; no external前置 amplifier is needed.
