Description

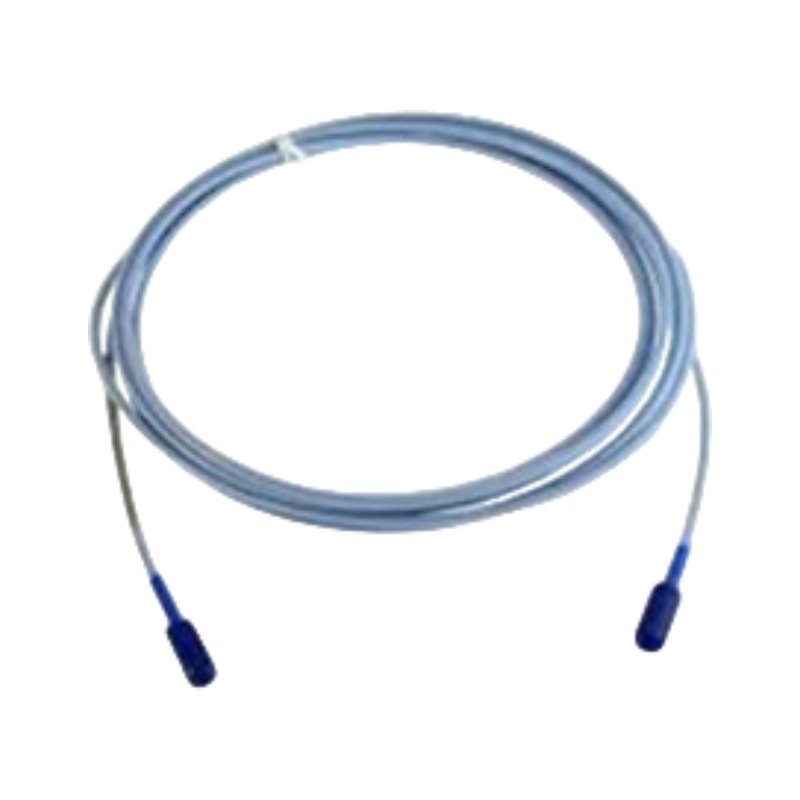

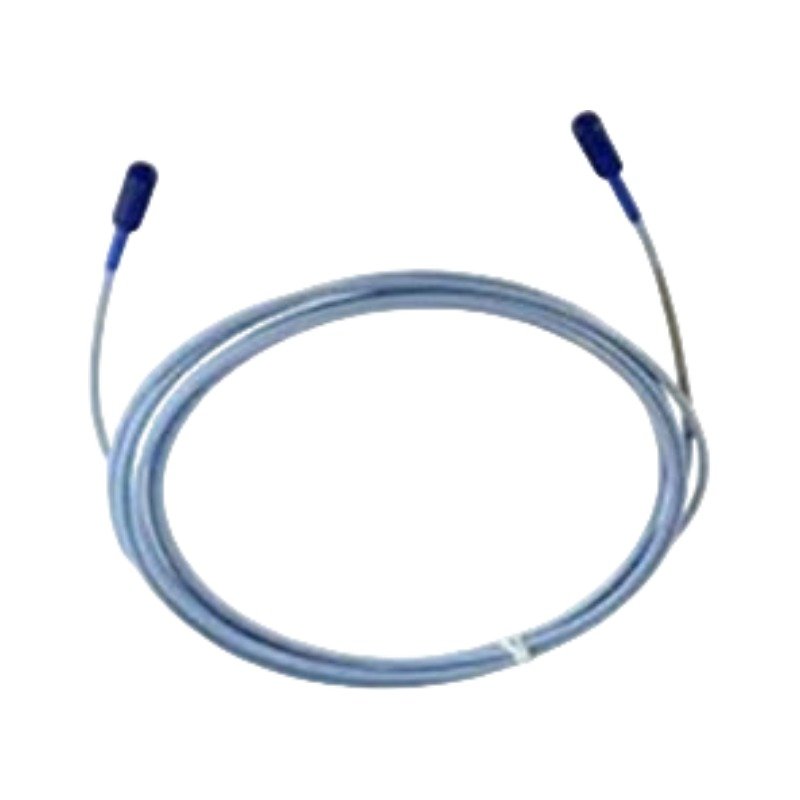

The Bently Nevada 26179-01-04-10-02, also cataloged as the Bently Nevada 26179 Proximity Switch Sensor, operates as a dedicated hardware component for non-contact shaft displacement and vibration measurement within machinery protection systems. Configured as an eddy-current transducer assembly, the hardware tracks dynamic distances between the sensor tip and rotating components, converting mechanical gap alterations directly into proportional electrical metrics without data propagation delays.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The component executes precise eddy-current probe scaling to convert structural surface boundaries into stable voltage responses. The hardware internal geometry is designed to achieve gap voltage validation (-10 VDC targets) within the calibrated linear monitoring zone, ensuring exact electrical zeroing during physical mounting field calibration. Advanced trace configurations and structural insulation layer boundaries deliver passive cross-talk suppression, preventing inductive signal contamination between adjacent cable paths and ensuring accurate signal transmission for multi-axis rotor dynamics evaluation.

Frequently Asked Questions

Q: Can this proximity switch sensor be hot-swapped while the machinery monitor is powered?

A: Yes, the sensor assembly and its extension cable interface can be connected or disconnected from the field Proximitor sensor while the primary monitoring rack is online. Protective relays for the corresponding channels must be bypassed beforehand to eliminate the risk of transient trips during connection transitions.

Q: What are the input electrical power requirements for this sensor system?

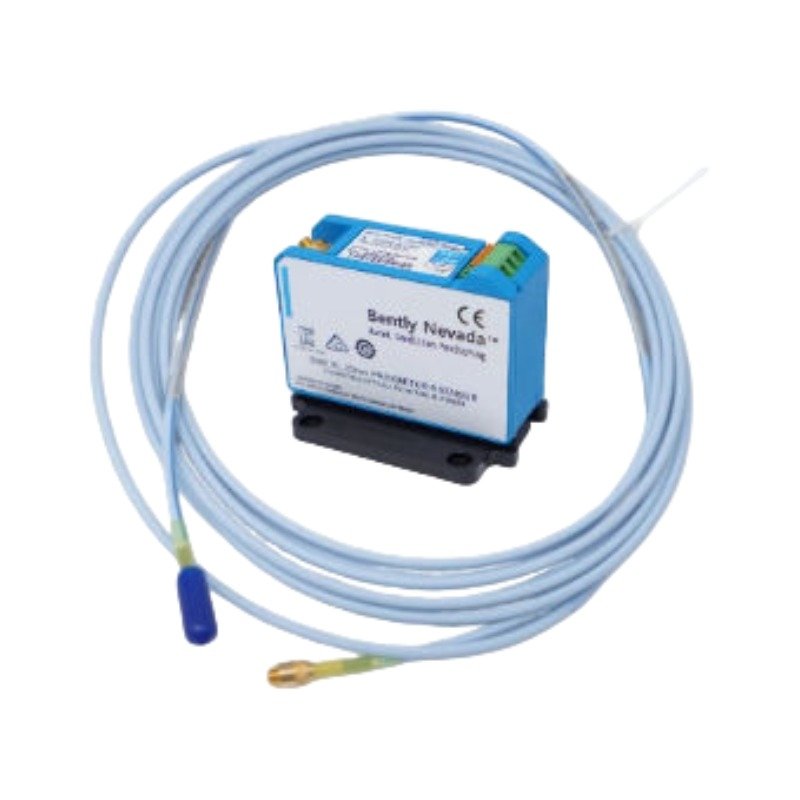

A: The sensor operates as part of a complete transducer loop driven by an external Proximitor module. It requires an input voltage ranging from -18 VDC to -24 VDC with a maximum constant current draw of 13 mA under normal operating load conditions.

Field Installation Guidelines

1. Verify target area boundaries before mechanical installation to confirm that the AISI 4140 steel or matching target diameter meets or exceeds the minimum 33.0 mm specification.
2. Route the integral field cable or extension cable using rigid conduits or protective trays to isolate the signal path from high-voltage alternating current lines by at least 300 mm.
3. Secure all connection links using self-locking fluid-tight connectors, ensuring a minimum of 5 full NPT thread engagements for rigid case mounts.
4. Establish a single-point instrumentation ground by grounding the coaxial shield only at the terminal housing block, preventing common-mode noise corruption loops across the sensor path.
