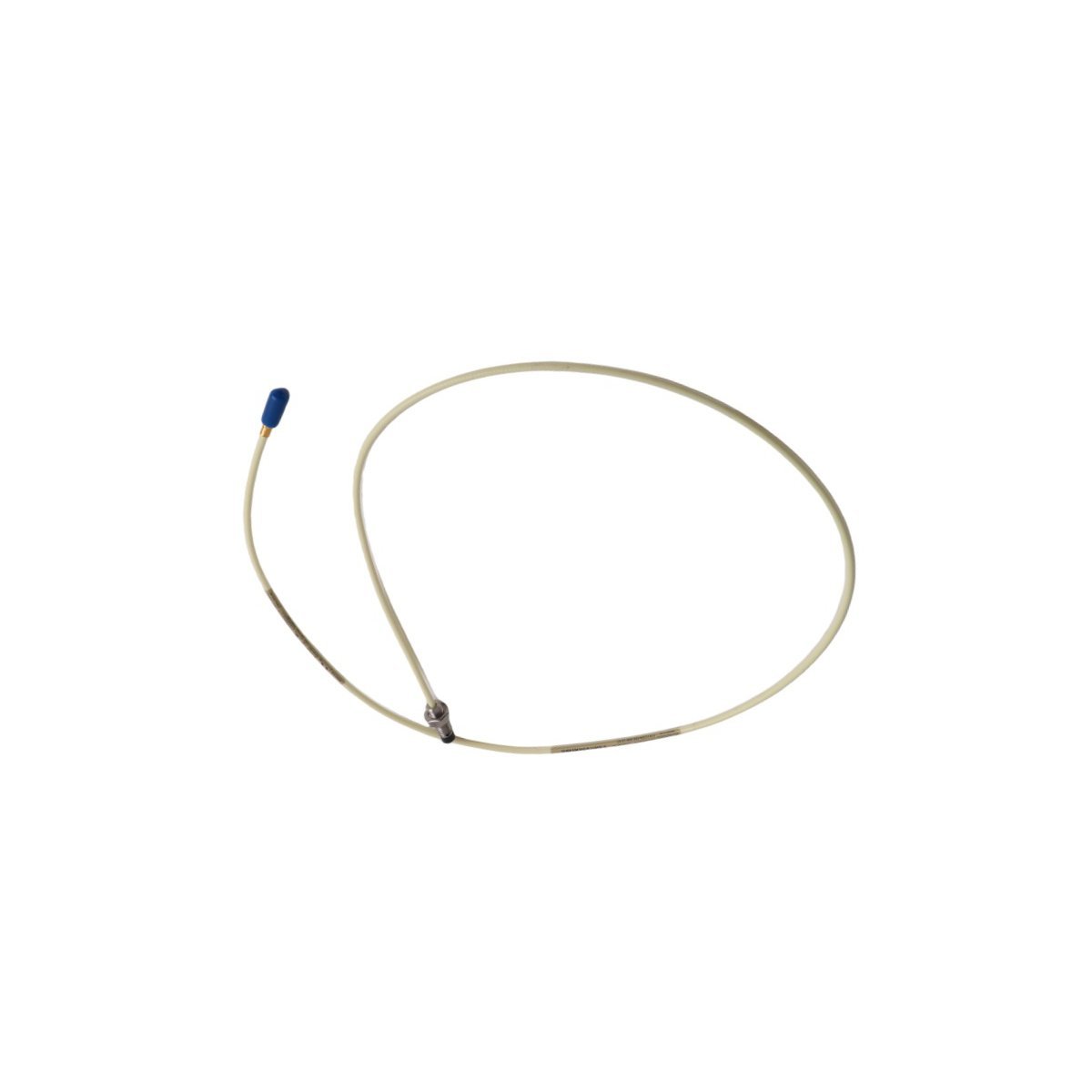

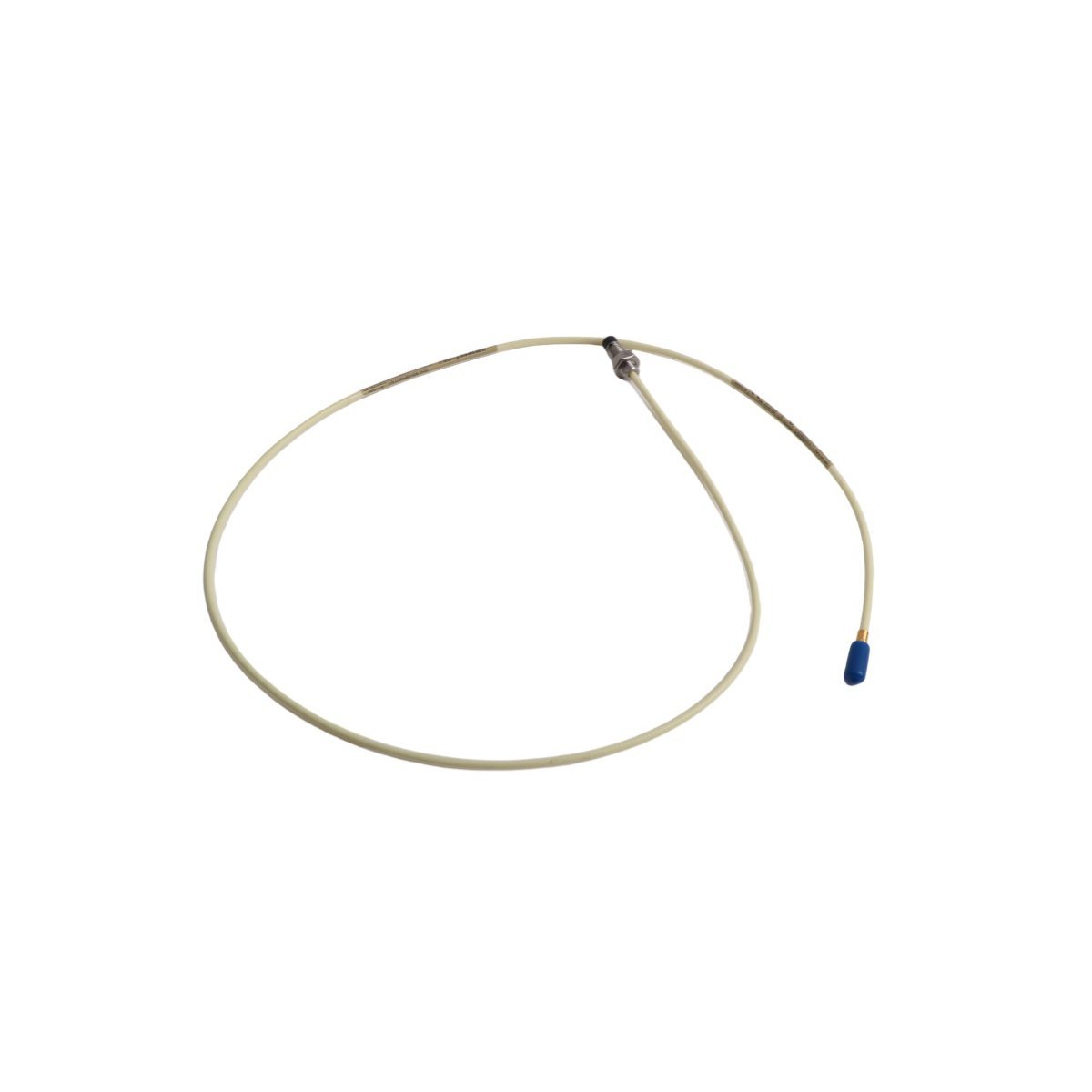

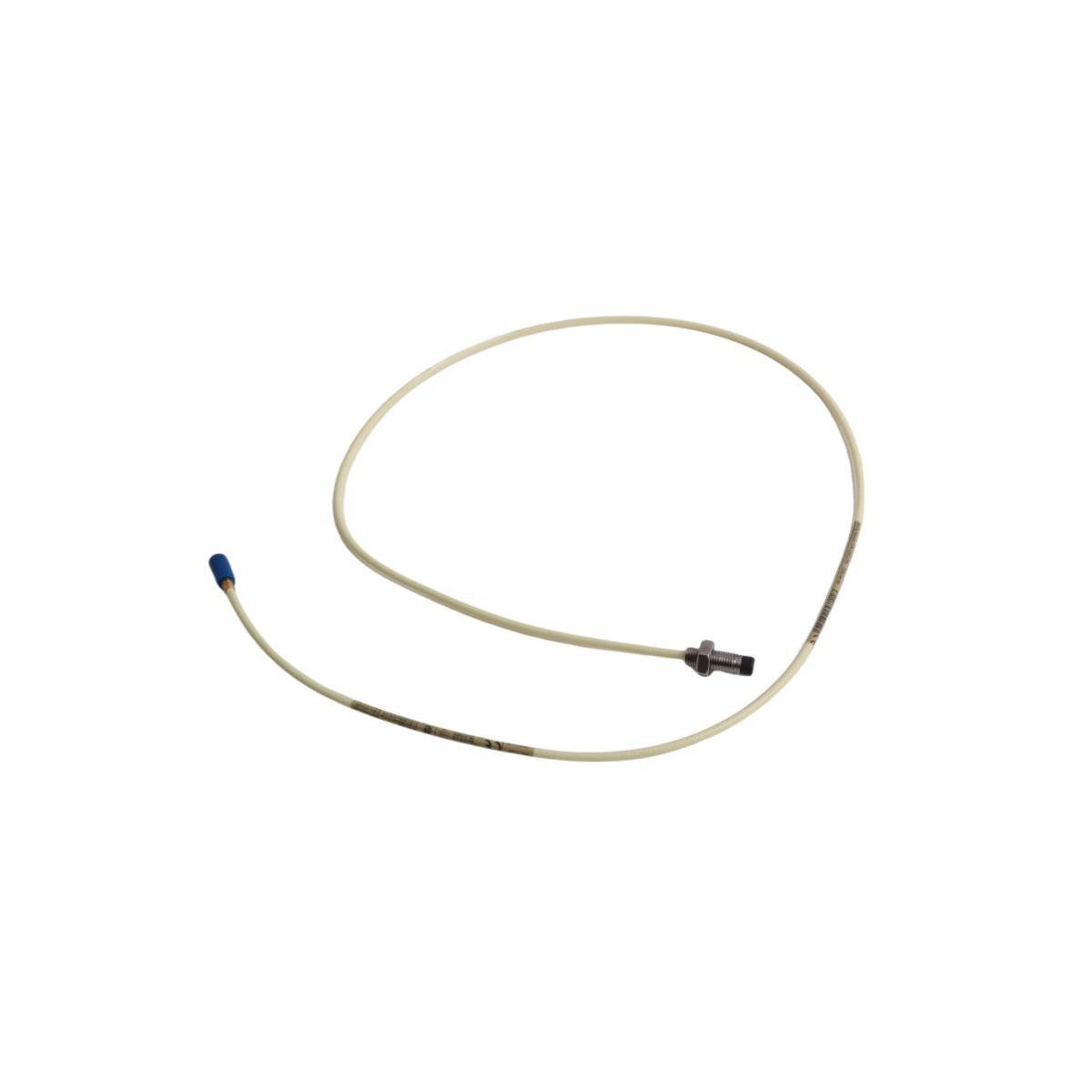

21504-00-40-10-02 | Bently Nevada | Standard Mount Probe

### Product Description
The 21504-00-40-10-02 is a non-contact eddy-current proximity probe engineered for shaft vibration and position monitoring. It integrates with Bently Nevada 3300 XL and 3500 monitoring systems.
Moreover, it delivers high-resolution displacement measurements in harsh industrial environments where reliability and repeatability are critical.
Therefore, it is commonly deployed on rotating machinery such as turbines, compressors, and motors to support condition-based maintenance programs.
In addition, its standard mount configuration ensures compatibility with existing probe housings and alignment fixtures across legacy and modern installations.

### Technical Specifications

### Typical Applications
– Gas and steam turbine shaft vibration monitoring
– Centrifugal compressor axial position and radial vibration measurement
– Large electric motor rotor dynamic analysis
– Gearbox input/output shaft runout and displacement tracking

### FAQ
What is the operating temperature range?
–40 °C to +125 °C (–40 °F to +257 °F) for continuous operation.

Is this probe compatible with 3300 XL monitoring systems?
Yes, it is fully compatible with Bently Nevada 3300 XL and 3500 series monitors when used with appropriate前置器 (proximity driver).

Does it require calibration before installation?
No—factory-calibrated per API 670; field verification is recommended but recalibration is not required under normal conditions.

What cable length options are available?
This part number includes an integral 5.0 m (16.4 ft) coaxial cable with Teflon insulation and stainless steel braid.

Can it be used in hazardous areas?
Not intrinsically safe by itself; requires associated barrier or isolated monitor for Class I Div 1 applications.
