Brief Product Description

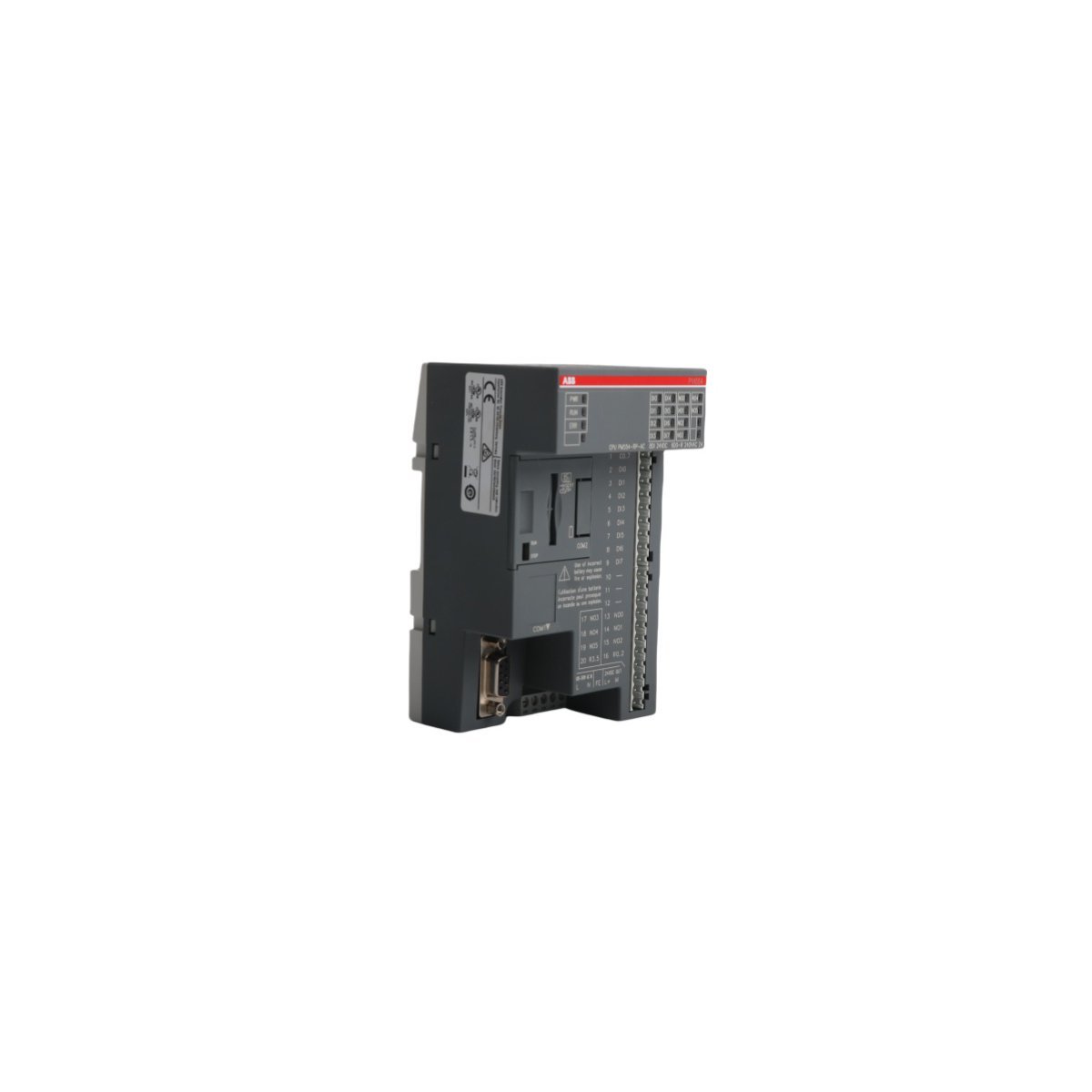

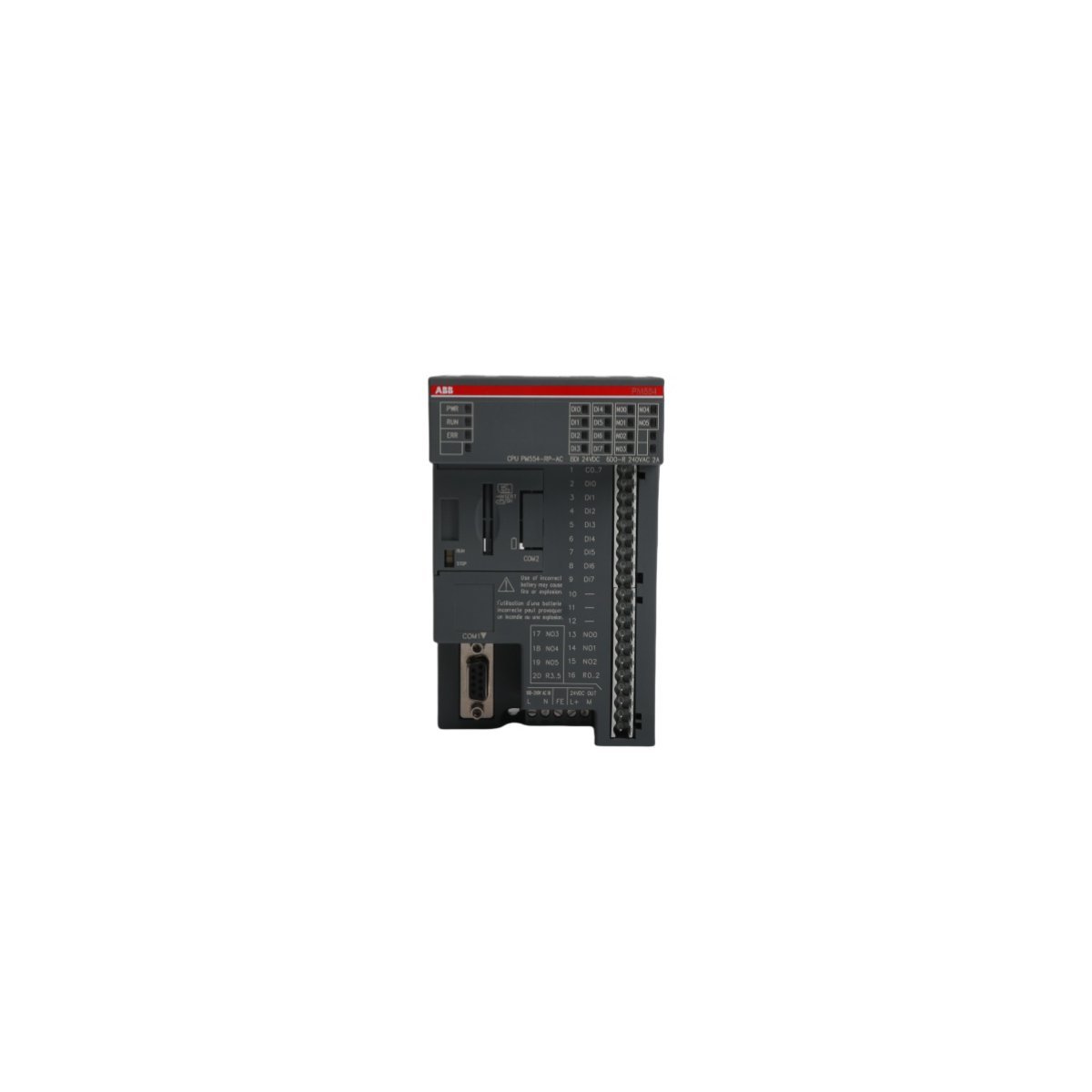

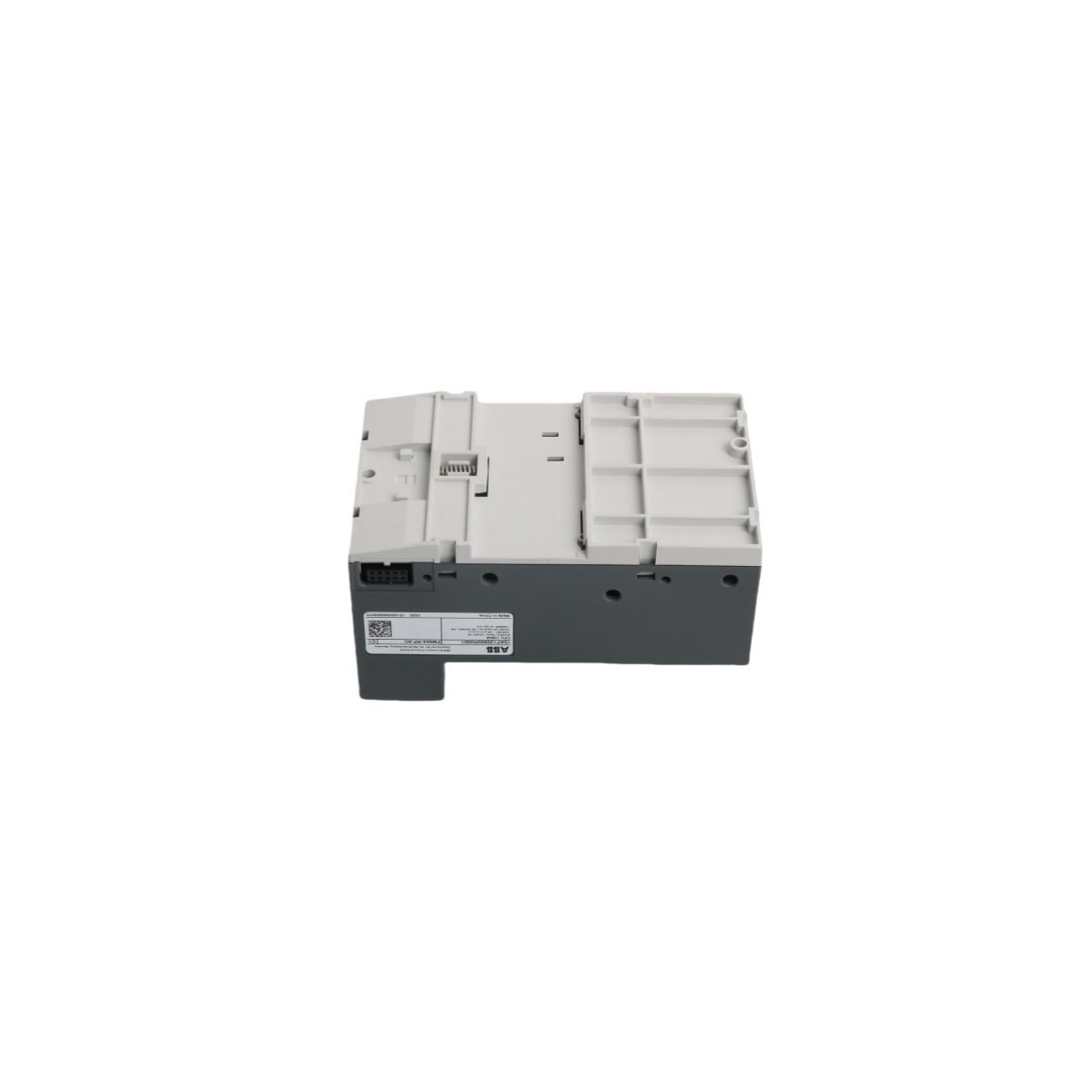

The ABB PM554-RP-AC 1SAP120800R0001 is a compact and versatile CPU from the AC500-eCo range, featuring a 100-240V AC power supply and integrated relay outputs. This logic controller provides a cost-effective, high-performance solution for small-to-medium industrial automation tasks and Distributed Control System (DCS) integration.

High-Performance Logic Processing

The PM554-RP-AC (1SAP120800R0001) serves as a robust central processing unit within the AC500-eCo ecosystem. This module executes complex logic commands with high precision, ensuring that manufacturing workflows remain synchronized and efficient. By utilizing a 128KB program memory, the controller handles standard automation sequences while maintaining rapid cycle times. This performance allows industrial operators to improve machine throughput and minimize operational latency in time-sensitive processing environments.

Versatile Connectivity and Scalable Architecture

Connectivity serves as a cornerstone of the PM554-RP-AC design. The module features an integrated serial interface that supports Modbus RTU, facilitating immediate communication with HMIs, frequency converters, and other field devices. Furthermore, the unit supports expansion through the addition of S500 and S500-eCo I/O modules. This modular flexibility enables engineers to scale their control systems as production requirements evolve, ensuring the hardware remains relevant even as system complexity increases. Because it integrates easily into Ethernet-supported environments via optional gateways, the PM554-RP-AC acts as a reliable node within larger DCS networks.

Industrial Resilience and Installation Efficiency

ABB engineered the PM554-RP-AC to operate reliably across a broad range of environmental conditions. The hardware maintains consistent performance across various temperatures, which is critical for non-climate-controlled industrial settings. Its compact mechanical design (13.4 x 8.1 cm) significantly reduces the required footprint within electrical cabinets, making it an excellent choice for space-constrained applications. Additionally, the unit features relay outputs that provide direct switching capabilities for AC and DC loads, simplifying the overall wiring architecture and reducing the need for external interposing relays.

Key Technical Characteristics

• Integrated Relay Outputs: Provides 6 digital relay outputs for direct control of high-voltage industrial actuators.
• Onboard Digital Inputs: Features 8 digital 24V DC inputs to monitor sensors and field device statuses.
• Wide Voltage Compatibility: Supports an AC power supply range of 100V to 240V for global electrical standards.
• Expandable Memory: Includes 128KB of program memory to accommodate complex automation logic.
• Compact Form Factor: Streamlined dimensions of 13.4 x 8.1 x 7.3 cm optimize DIN-rail space.
• Multi-Protocol Support: Native serial communication capabilities for seamless integration with third-party automation hardware.
