190501-04-00-04 | Bently Nevada | | Bently Nevada | | Bently Nevada | Probe

### Product Description

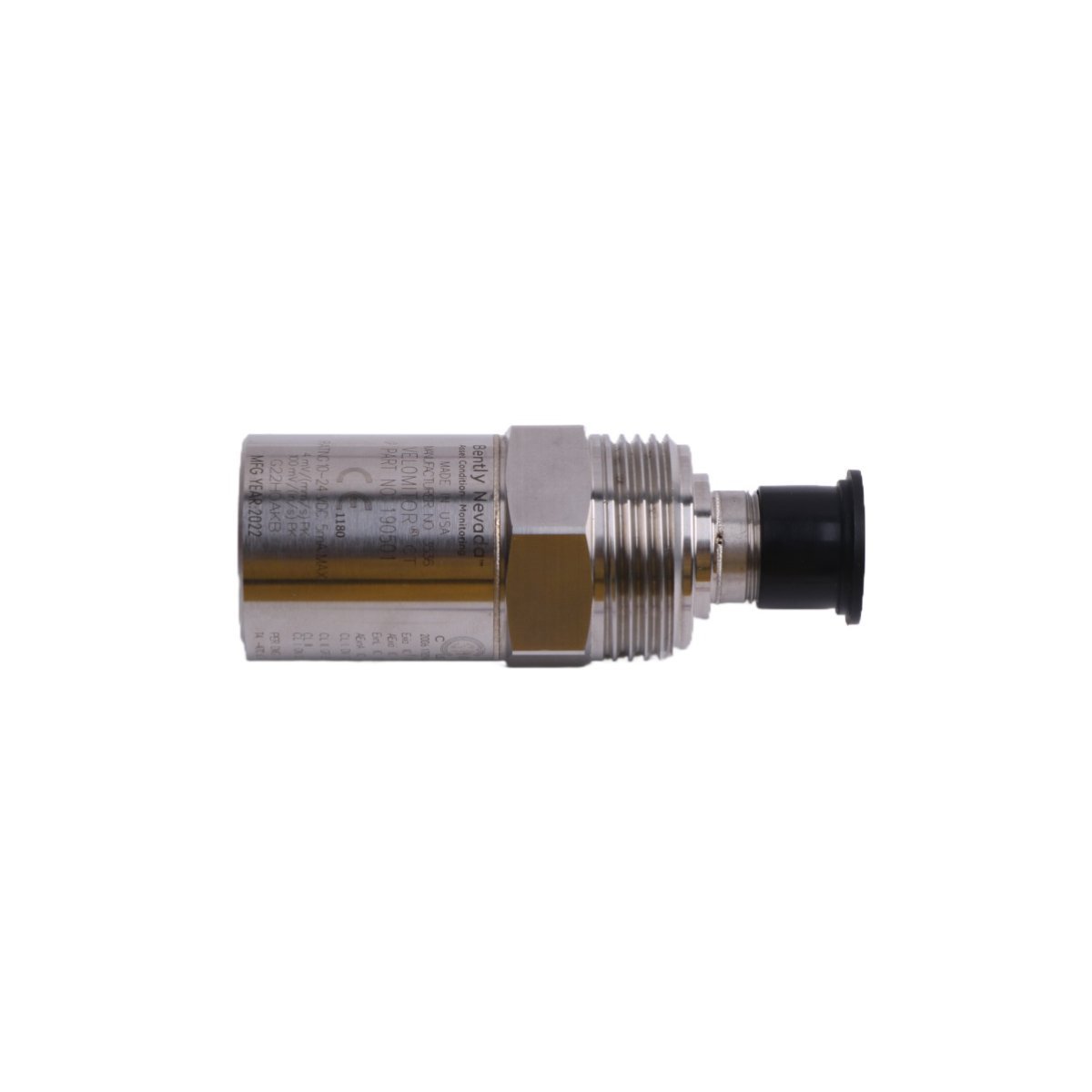

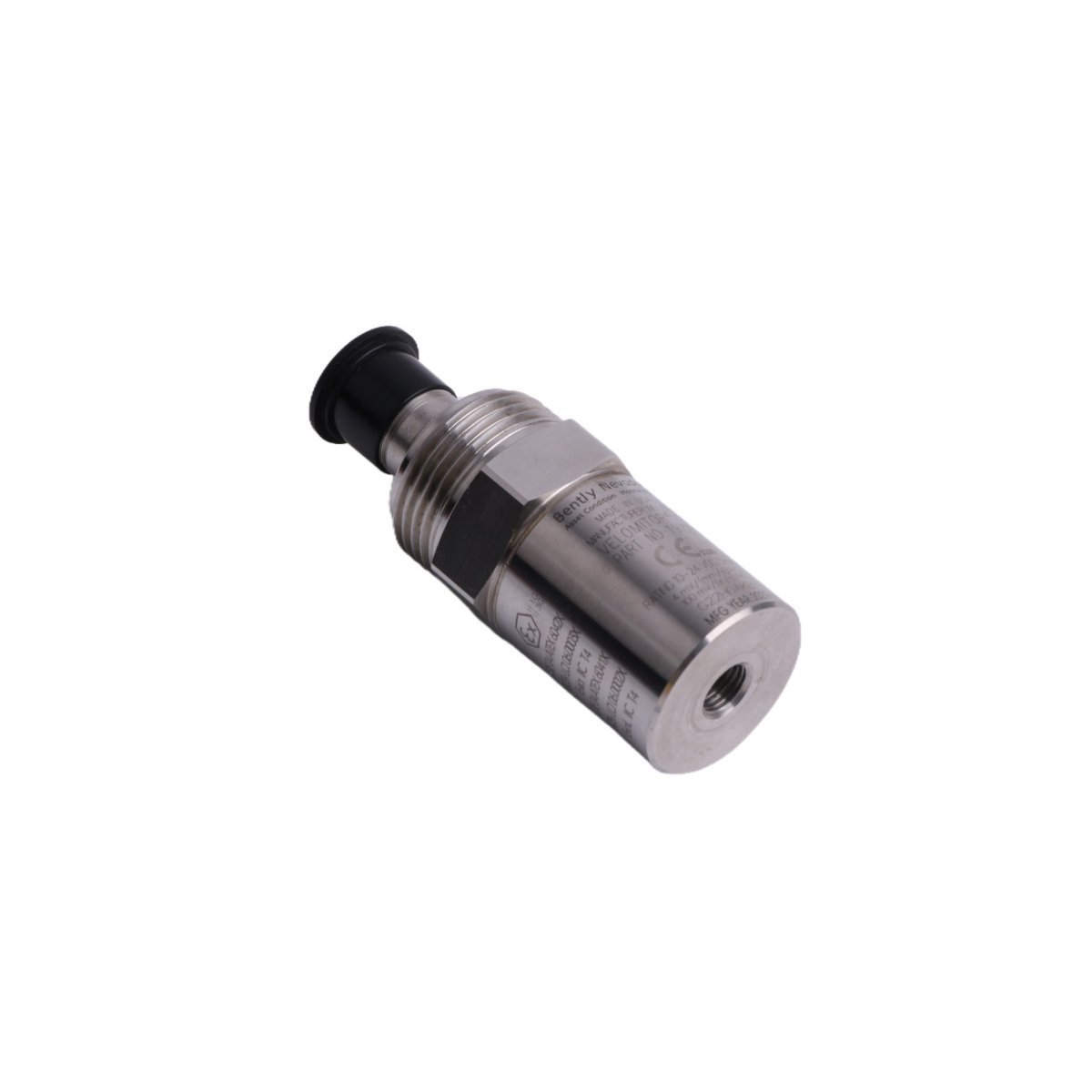

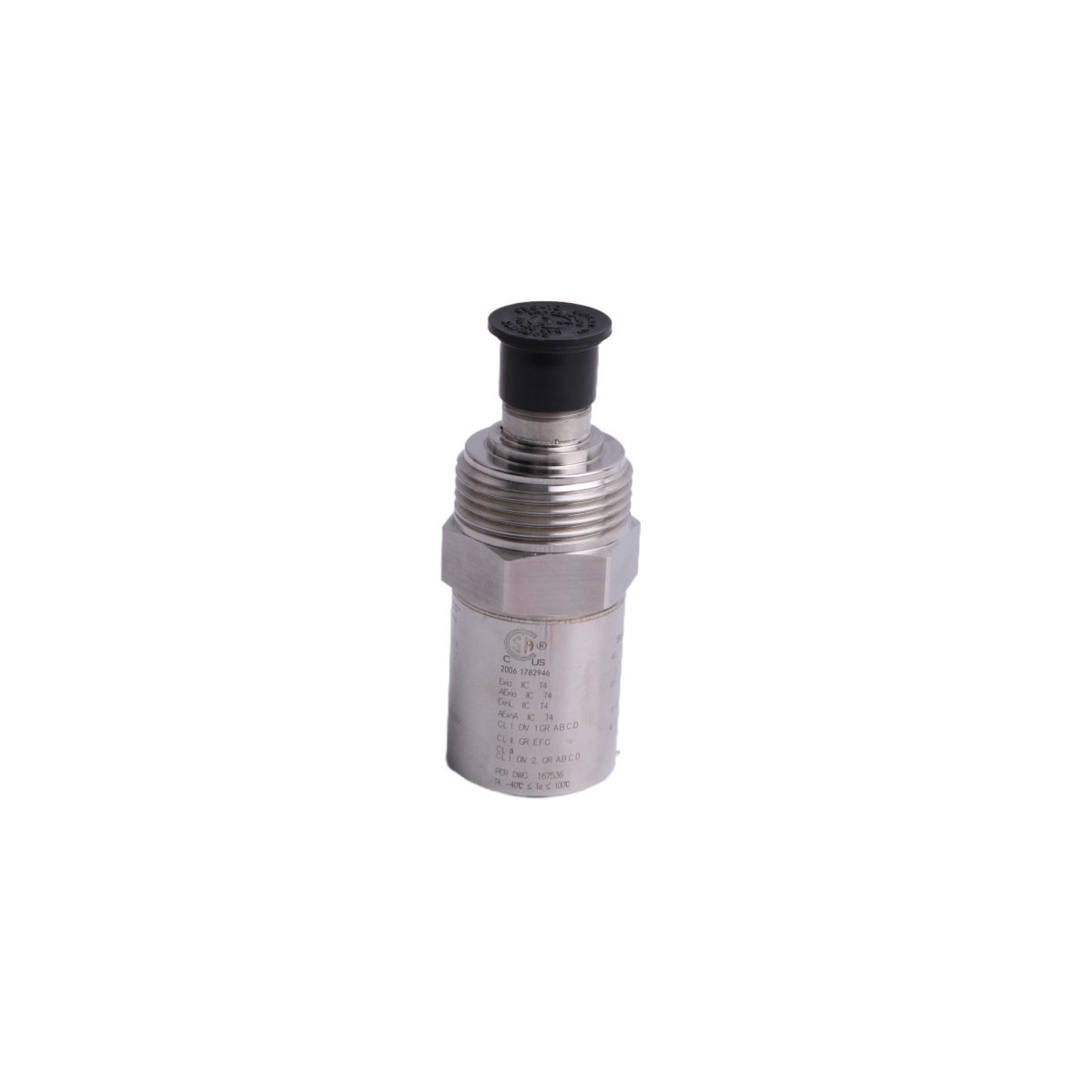

The 190501-04-00-04 is a non-contact eddy-current proximity probe designed for shaft vibration and position monitoring.
Moreover, it delivers high-resolution displacement measurements in harsh industrial environments where reliability and repeatability are critical.
Therefore, it is commonly integrated into machinery protection systems for continuous condition monitoring of rotating equipment.

### Technical Specifications

### Typical Applications
– Steam turbine shaft vibration monitoring
– Gas compressor axial position measurement
– Motor bearing housing displacement tracking
– Gearbox input/output shaft runout analysis

### FAQ
What is the standard output signal type?
The probe outputs a DC voltage proportional to target displacement, typically −2 VDC to −18 VDC.

Is this probe compatible with all Bently Nevada 3300 series monitors?
Yes, it is fully compatible with 3300/3300XL monitoring systems when used with matching extension cables and前置器 (proximitor).

What material is the probe tip made from?
The sensing tip is constructed from corrosion-resistant stainless steel (316 SS).

Does this probe require calibration before installation?
Factory-calibrated; field verification using a certified calibrator is recommended prior to commissioning.

What is the maximum operating temperature?
Continuous operation up to +120 °C ambient, with short-term exposure to +150 °C permitted.
